Customize Eagle Group Model no. ASFT-1284-SG
Play manufacturer video for Eagle Group ASFT-1284-SG 84-Inch x 12-Inch Anti-Splash Stainless Steel Floor Trough, 6-Inch Deep Pan, Subway-Style GratingEagle Group ASFT-1284-SG 84-Inch x 12-Inch Anti-Splash Stainless Steel Floor Trough, 6-Inch Deep Pan, Subway-Style Grating

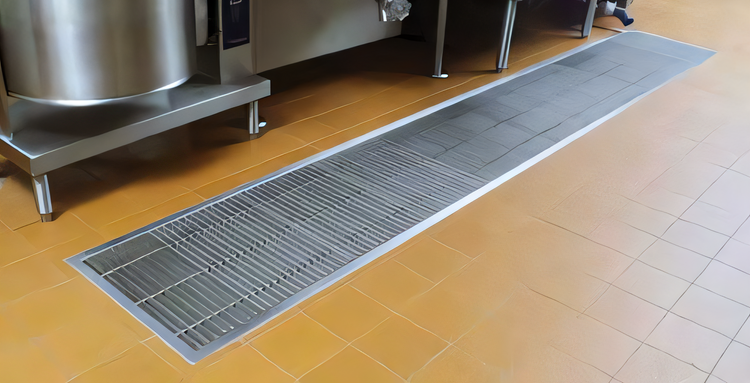

84-Inch x 12-Inch Anti-Splash Floor Trough with 6-Inch Deep Pan and Subway-Style Stainless Steel Grating
14/304 Stainless Steel, Built-In Pitch, Removable Perforated Basket
Built to keep floors drier, this anti-splash floor trough combines complete drainage, splash-back control, and durable stainless steel construction in one commercial-grade unit.
- 84" x 12" trough with a 6" deep pan for effective runoff collection.
- Patented anti-splash design helps prevent water from splashing back onto the floor.
- All-welded 14/304 stainless steel construction provides long-lasting durability.
- Built-in pitch toward the drain promotes complete drainage.
- Includes subway-style stainless steel grating and a removable perforated basket.
- Drain accommodates up to a 4" diameter pipe.
- NSF approved for sanitary applications.
Overall Dimensions:
84.0"W x 12.0"DProduct Weight:
162.0 lbPatented Anti-Splash Design
Helps prevent splash-back while allowing complete drainage.
All-Welded Stainless Steel Construction
Constructed from 14-gauge, type 304 stainless steel for strength and corrosion resistance.
Built-In Pitch Toward Drain
The trough is pitched to help move water fully to the drain.
Subway-Style Stainless Steel Grating
Type 304 grating uses 3/16" x 1" vertically positioned bars spaced 1" apart for efficient drainage.
Removable Perforated Basket
Standard stainless steel basket helps capture debris and simplifies cleaning.
4-Inch Drain Capacity
Accommodates up to a 4-inch diameter drain pipe.
6-Inch Deep Trough Pan
Deep pan helps manage floor runoff and collect drainage water.
ADA Grating Option
Gray ADA-compliant grating is available by adding the "-ADA" suffix to the model number.
NSF Approved
Documentation shows NSF approval for sanitary use.
Warranty & Protection
1 year from installation, not to exceed 18 months from shipment.
