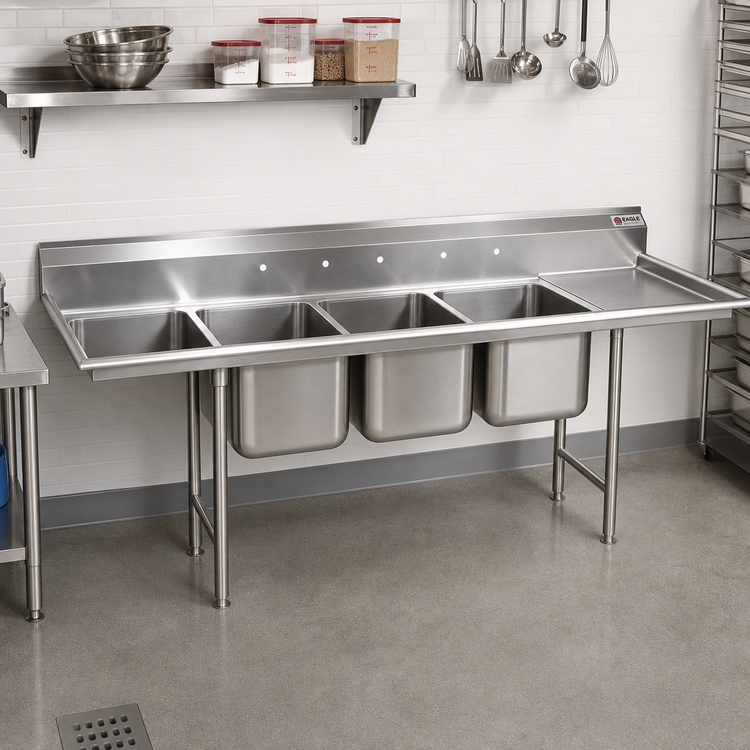

Eagle Group 414 Series Four-Compartment Stainless Steel Sink with 24" x 24" x 13-1/2" Bowls and 18" Right Drainboard
Eagle Group 414 Series Four-Compartment Stainless Steel Sink with 24" x 24" x 13-1/2" Bowls and 18" Right Drainboard
Floor Model, Heavy Gauge Stainless Steel, Right Drainboard
Designed for demanding commercial environments, this Eagle Group 414 Series four-compartment sink offers exceptional durability and efficiency for all your washing needs.
- Heavy gauge 304 stainless steel sink bowls for superior corrosion resistance and longevity.
- Spacious 24" x 24" x 13-1/2" deep compartments accommodate large pots and utensils.
- Integrated 18" right-hand drainboard provides convenient space for drying or food preparation.
- Robust 430 stainless steel top and backsplash with coved corners for easy cleaning and hygiene.
- Features a 2" wide "Euro-Style" edging on front and sides for added strength and aesthetics.
- Galvanized legs with side crossbracing and adjustable bullet feet ensure stability on uneven floors.
- NSF certified, meeting public health and safety standards for commercial foodservice equipment.
Overall Dimensions:
124.75"W x 31.75"D x 44.0"HProduct Weight:

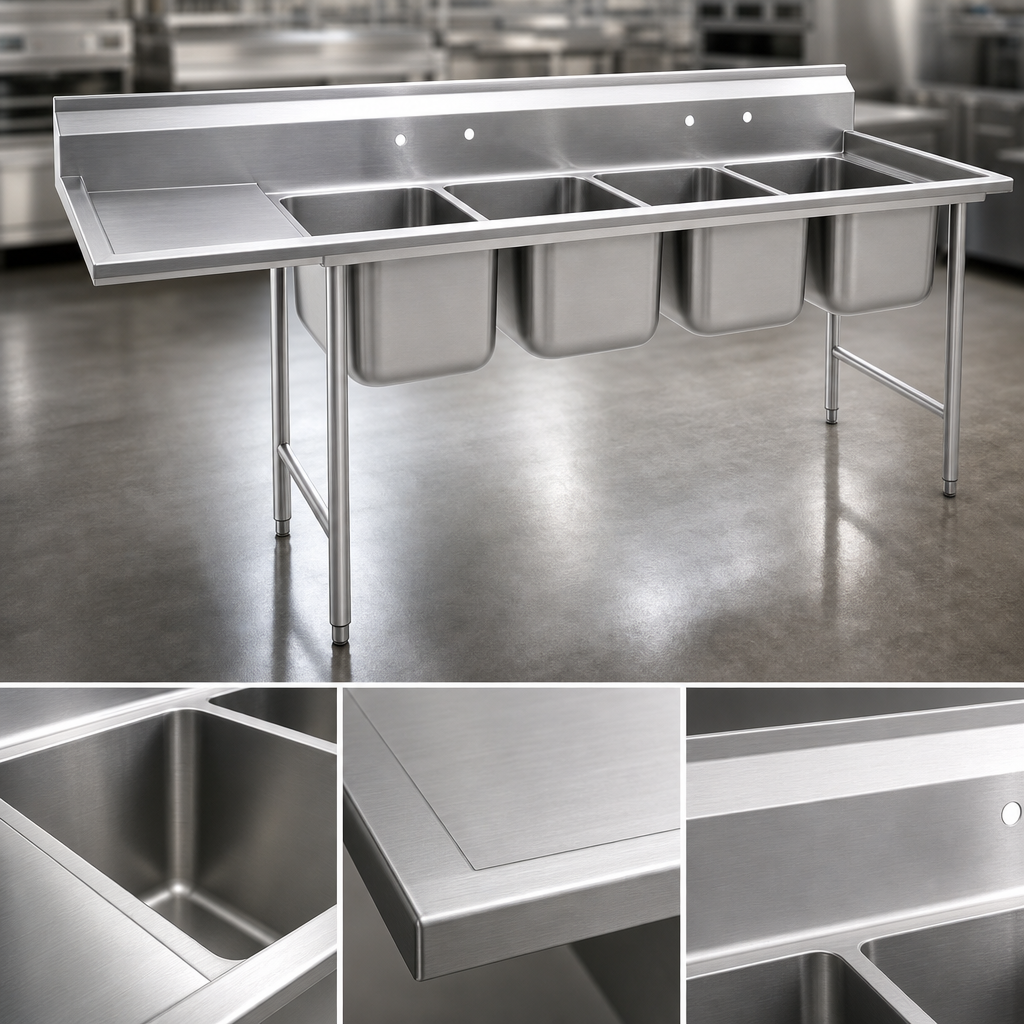

248.0 lbHeavy Gauge Stainless Steel Construction
Sink bowls are crafted from heavy gauge Type 304 stainless steel for maximum durability and corrosion resistance. The top, drainboards, and backsplash are made from heavy gauge Type 430 stainless steel, offering a balanced blend of strength and cost-effectiveness.
Deep-Drawn Seamless Sink Bowls
Each 24" x 24" x 13-1/2" deep sink bowl features a one-piece, deep-drawn seamless construction, eliminating crevices where dirt and bacteria can accumulate, ensuring superior hygiene and making cleaning easier. All corners are coved with a minimum 3" radius.
Integrated Right-Hand Drainboard
An 18" right-hand drainboard offers ample space for air-drying dishes, glassware, or for temporary food prep, designed with a 'V' creased surface for positive drainage directly into the sink.
High Backsplash with Tile Edge
A 9-1/2" high backsplash with a 1" upturn and tile edge is included, providing protection against splashes and spills on adjacent walls and facilitating easy installation and feathering to wall surfaces.
Euro-Style Edging
The front and sides of the sink feature a 2" wide 'Euro-Style' edging, enhancing structural rigidity and offering a refined aesthetic.
Sturdy Galvanized Leg Assembly
Equipped with 1-5/8" O.D. heavy-gauge galvanized tubing legs and 1" O.D. galvanized tubing side crossbracing, ensuring robust support and stability. Plated 12-gauge gussets are welded adjacent to the sink bowls for maximum weight distribution.
Adjustable Bullet Feet
High-impact, corrosion-resistant plastic adjustable bullet feet allow for precise leveling of the sink on uneven floors, enhancing stability and safety.
Convenient Faucet Holes
Comes standard with two sets of 1-1/8" faucet holes, punched on 8" centers, ready for your preferred splash-mount faucets (faucets sold separately).
Basket Waste Drains Included
Each sink bowl is supplied with a 3-1/2" basket-type waste drain, featuring a 1-1/2" outlet for efficient wastewater disposal.
Certifications & Compliance
Warranty & Protection
1-year parts and labor limited warranty for the sink unit, not to exceed 18 months from shipment date.
