Eagle Group 414 Series Four-Compartment 24x24x13.5 Inch Stainless Steel Sink with 18 Inch Left Drainboard
Eagle Group 414 Series Four-Compartment 24x24x13.5 Inch Stainless Steel Sink with 18 Inch Left Drainboard
Full-Size, Coved Corner, 430 Stainless Steel Top, 304 Stainless Steel Bowls
Designed for demanding commercial kitchens, the Eagle Group 414 Series four-compartment sink provides exceptional durability and efficient washing capabilities with its coved corner design and robust stainless steel construction.
- Four deep-drawn seamless sink bowls, each 24" x 24" x 13.5" deep, with coved corners for easy cleaning and maximum capacity.
- Constructed with a heavy-gauge 430 stainless steel top and 304 stainless steel sink bowls for superior durability and corrosion resistance.
- Features an 18-inch left-hand drainboard with 'V' creasing for efficient water drainage and convenient prep space.
- Equipped with a 9½" high backsplash with a 1" upturn and tile edge to protect walls from splashes and simplify installation.
- Sturdy 1⅝" O.D. galvanized legs with front-to-back crossbracing and adjustable plastic bullet feet ensure stability.
- Includes two sets of 8" on-center splash mount faucet holes and four 3½" basket drains for immediate functionality.
Overall Dimensions:
124.75"W x 31.75"D x 44.0"HProduct Weight:

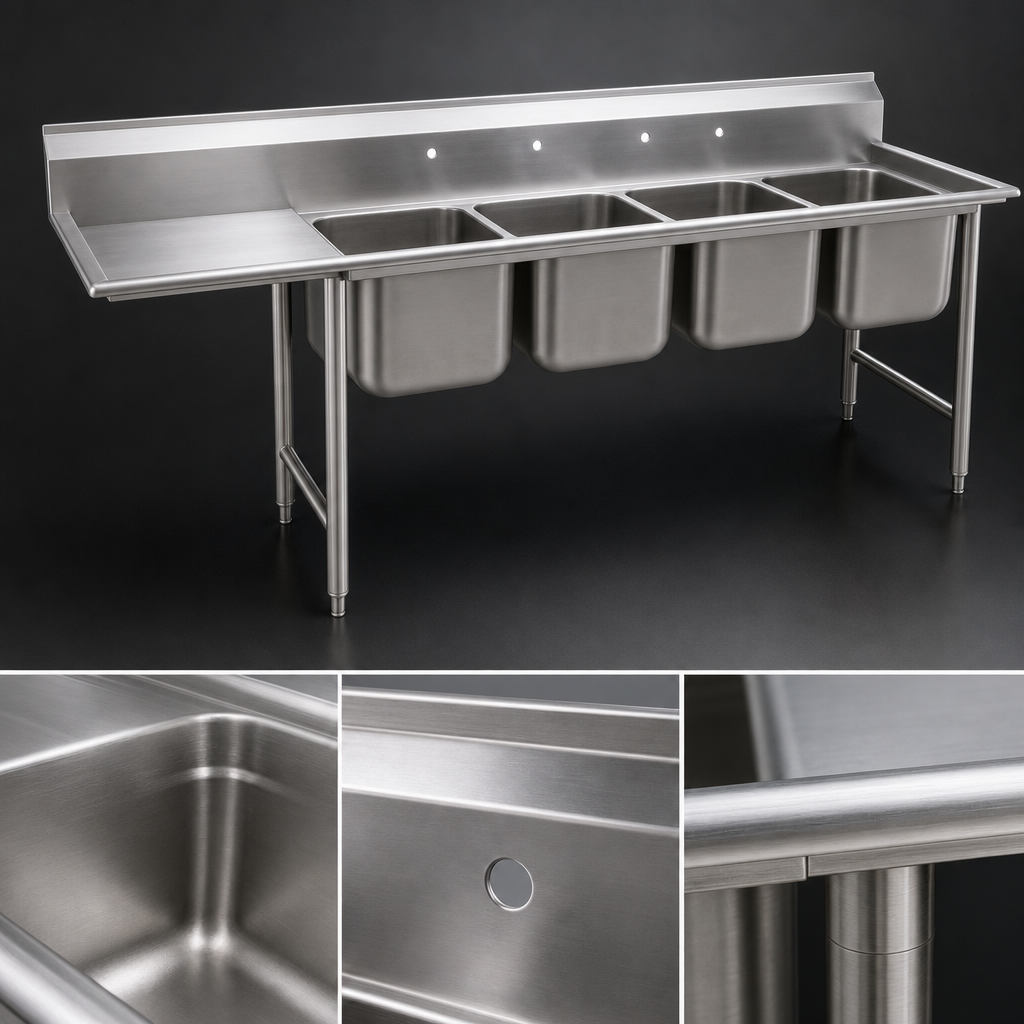

248.0 lbHeavy Gauge Stainless Steel Construction
Sink bowls are crafted from heavy gauge type 304 stainless steel, while the top, drainboards, backsplash, and Euro-style edging are made from heavy gauge type 430 stainless steel for durability and corrosion resistance.
Seamless Deep-Drawn Sink Bowls
Each of the four 24" x 24" x 13½" deep sink bowls features deep-drawn one-piece seamless construction and generous coved corners (minimum 3" radius) for enhanced hygiene and easier cleaning.
Integrated Left-Hand Drainboard
An 18-inch left-hand drainboard is integrated into the design, featuring 'V' creasing for positive drainage, providing ample space for drying dishes or food preparation.
High Backsplash with Tile Edge
A 9½" high backsplash includes a 1" upturn and tile edge, facilitating easy installation and protection for adjacent walls from splashes and spills.
Euro-Style Edging
The front and sides of the sink feature a 2-inch wide 'Euro-Style' edging, offering a clean, professional aesthetic and added structural rigidity.
Robust Leg and Support System
Equipped with 1⅝" O.D. galvanized tubing legs and front-to-back crossbracing, along with plated 12-gauge gussets welded adjacent to the sink bowls, ensuring maximum weight support and stability. Includes 1" high-impact plastic adjustable bullet feet.
Dual Faucet Hole Sets
Two sets of 1⅛" punched faucet holes on 8" centers are provided on the backsplash, ready for faucet installation.
Swirl-Away Drainage with Basket Drains
Designed with swirl-away drainage in each bowl and includes four 3½" basket-type waste drains with a 1½" outlet for efficient waste removal.
Certifications & Compliance
Warranty & Protection
1-year parts and labor limited warranty from the date of original installation (not to exceed 18 months from shipment date).
