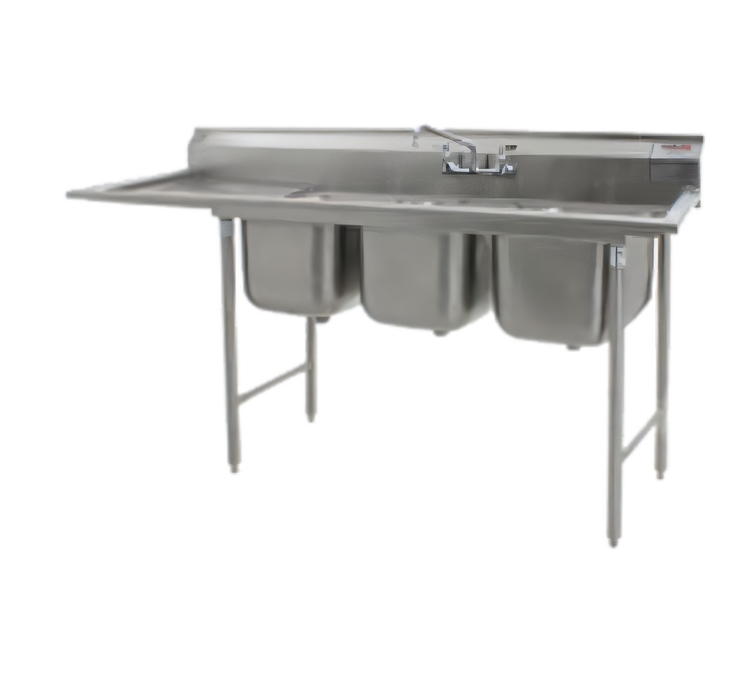

Eagle Group 414 Series Coved Corner Three-Compartment Sink with Left 18-Inch Drainboard

24 x 24 x 13-1/2 Inch Bowls, 430 Stainless Steel Top, 304 Stainless Steel Bowls

This durable three-compartment sink combines deep 24 x 24 Inch bowls, an 18-Inch left drainboard, and included basket drains to keep high-volume dish areas moving.

  • Floor-mounted three-compartment sink designed for wash, rinse, and sanitize workflows.
  • Deep 24 x 24 Inch bowls with 13-1/2 Inch depth provide generous working capacity.
  • 18-Inch left-hand drainboard adds a dedicated landing area for prep and drying.
  • 430 stainless steel top and 304 stainless steel sink bowls balance strength and corrosion resistance.
  • 9-1/2 Inch backsplash with 1-Inch upturn and tile edge helps protect the wall.
  • Includes three basket drains and adjustable bullet feet; faucet sold separately.

Overall Dimensions:

98.75"W x 31.75"D x 44.0"H

Product Weight:

226.0 lb

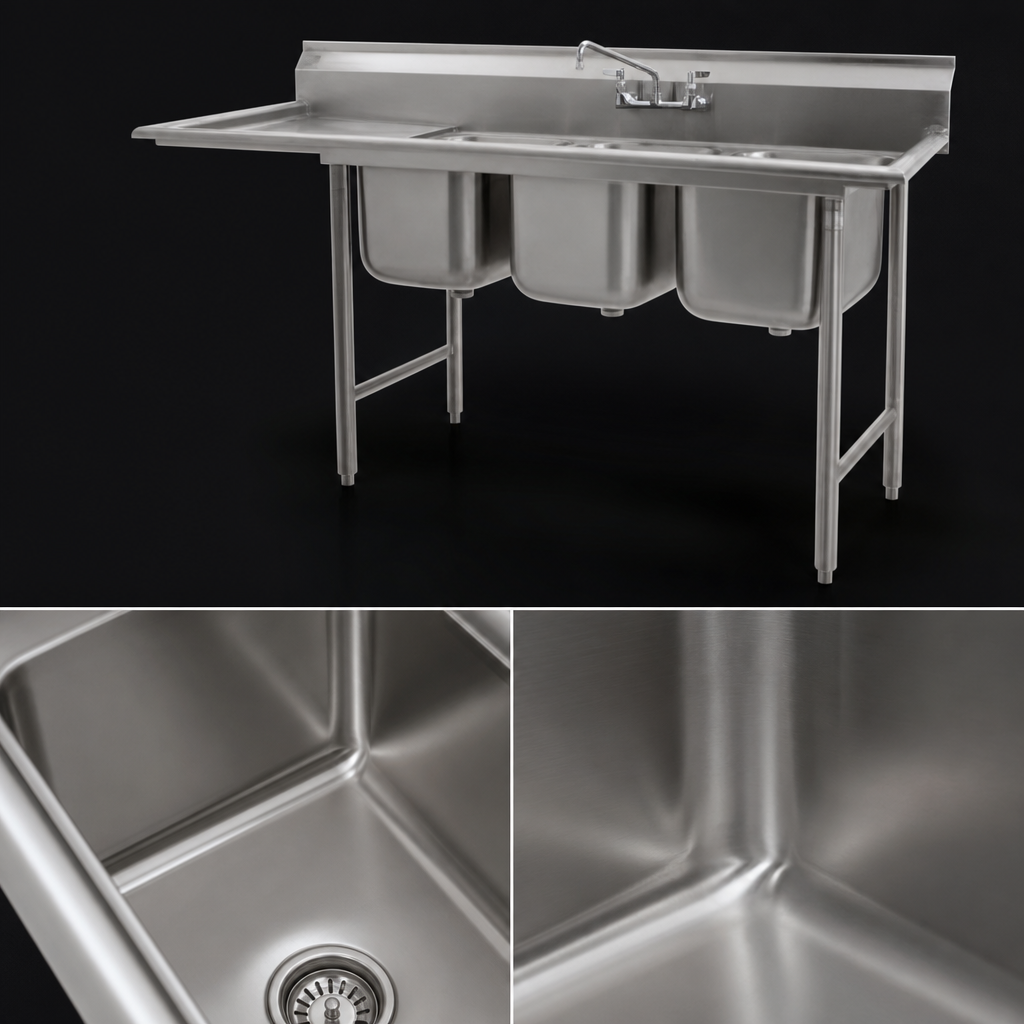

Seamless Coved-Corner Bowls

Deep-drawn 304 stainless steel sink bowls are seamless and coved for easier cleaning and improved sanitation.

Seamless Coved-Corner Bowls

430 Stainless Steel Top Assembly

The top, backsplash, drainboard, and Euro-style front and side edging are made from heavy-gauge 430 stainless steel.

Left 18-Inch Drainboard

A single left-hand drainboard provides extra landing space and features V-creased shaping for positive drainage.

High Backsplash

The 9-1/2 Inch backsplash includes a 1-Inch upturn and tile edge to simplify wall sealing and installation.

Two Sets of Faucet Holes

This model has two sets of 8-Inch O.C. splash-mount faucet holes for flexible faucet placement; faucet is not included.

Basket Drains Included

Includes three 3-1/2-Inch basket-type waste drains with 1-1/2-Inch outlets.

Galvanized Leg Base

Galvanized legs with front-to-back crossbracing and adjustable plastic bullet feet provide stable support and leveling.

Type Three-Compartment Sink
Style Coved Corner
Installation Type Floor Model
Compartments 3
Material Stainless Steel
Interior Finish 304 Stainless Steel
Sink Depth 13-1/2 Inches
Backsplash Height 9-1/2 Inches
Drainboard Length 18 Inches
Drainboard Location Left
Faucet Hole Centers 8 Inches O.C.
Faucet Hole Sets 2
Water Inlet Size 1/2 Inch IPS
Drain Connection Size 1-1/2 Inch NPS
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 99 Inches
Shipping Depth 32 Inches
Shipping Height 44 Inches
Shipping Weight 226 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure 1 PDF Download PDF Brochure 2 PDF Download PDF Installation sheet PDF Download PDF Care & maintenance PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Overall dimensions are 98-3/4 Inches wide x 31-3/4 Inches deep x 44 Inches high.
Each compartment is 24 x 24 Inches and 13-1/2 Inches deep.
This model has a single 18-Inch left-hand drainboard.
Yes. The sink includes three 3-1/2-Inch basket drains.
No. The faucet is sold separately, though the sink is punched for 8-Inch O.C. splash-mount faucet holes.
Water supply is 1/2 Inch IPS for hot and cold lines, and the drain connection uses a 1-1/2 Inch NPS outlet.
