Eagle Group

Eagle Group 414 Series Four-Compartment Stainless Steel Sink with Right-Hand Drainboard, 98-1/8 Inch Wide

SKU: 414-16-4-24R
$3,687.15
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

4-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Eagle Group New Arrivals Restaurant Equipment Sinks & Handwashing Stations

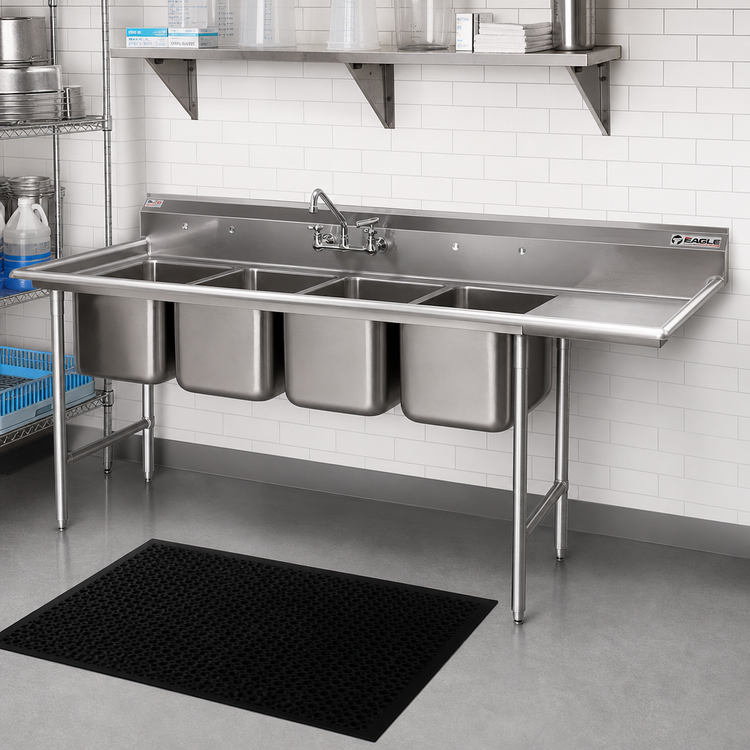

Eagle Group 414 Series Four-Compartment Stainless Steel Sink with Right-Hand Drainboard, 98-1/8 Inch Wide

430 Stainless Steel Top, 304 Stainless Steel Bowls, 9-1/2 Inch Backsplash

This heavy-duty four-compartment sink combines roomy coved-corner bowls, a right-hand drainboard, and stainless steel construction for efficient, high-volume wash stations.

  • 98-1/8-inch-wide four-compartment sink with a 24-inch right-hand drainboard.
  • Heavy-gauge 430 stainless steel top and 304 stainless steel bowls for commercial durability.
  • Deep-drawn, seamless coved-corner bowls help simplify cleaning and drainage.
  • 9-1/2-inch backsplash with 1-inch upturn and tile edge helps protect the wall.
  • Includes four basket drains and two sets of 8-inch on-center faucet holes.
  • Galvanized legs, crossbracing, and adjustable bullet feet provide stable floor support.

Overall Dimensions:

98.13"W x 27.5"D x 44.0"H

Product Weight:

235.0 lb

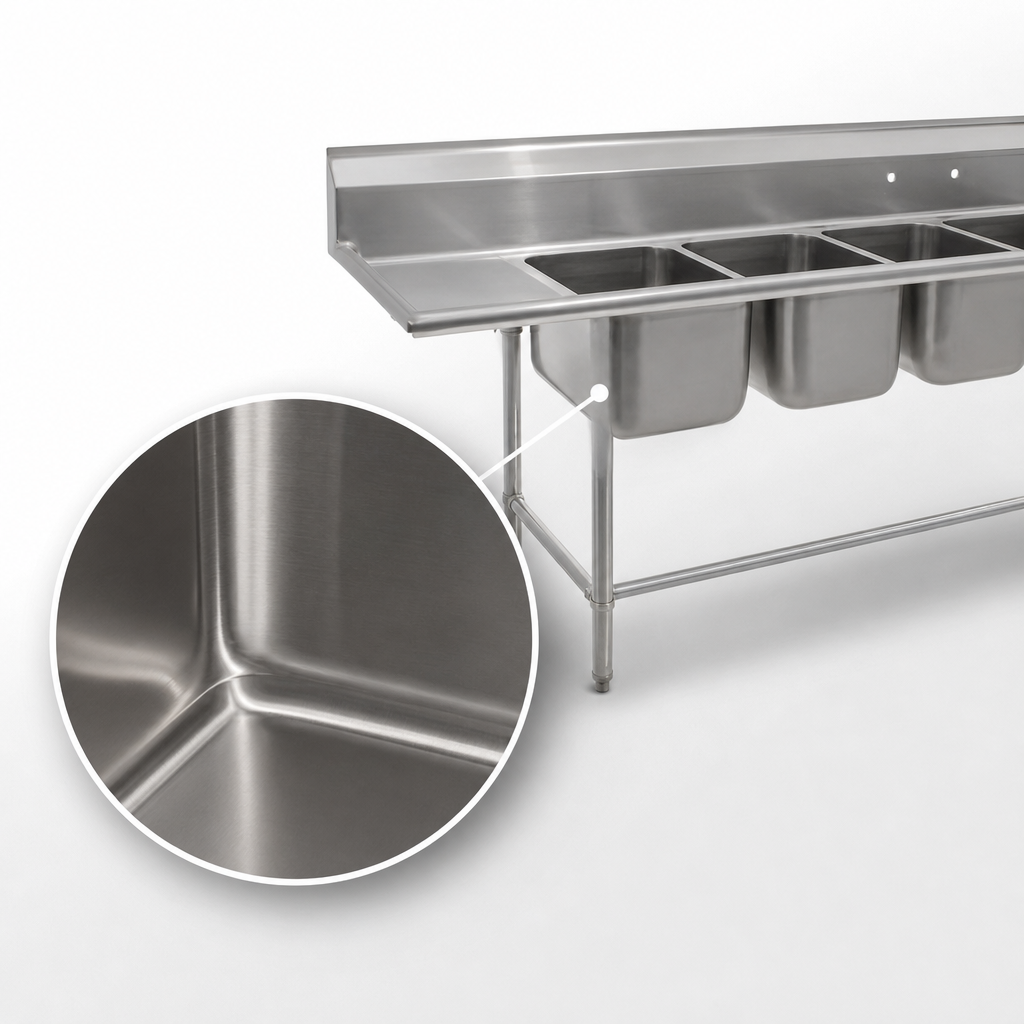

Coved Corner Bowls

Deep-drawn, one-piece seamless bowls with coved corners help reduce buildup and make cleanup easier.

Coved Corner Bowls

Stainless Steel Construction

The top, backsplash, drainboard, and edging are 430 stainless steel, while the sink bowls are 304 stainless steel.

Right-Hand Drainboard

A 24-inch drainboard on the right provides space for staging, drying, and draining.

Positive Drainage Surface

The drainboard is V-creased to promote positive drainage away from the work area.

High Backsplash

The 9-1/2-inch backsplash includes a 1-inch upturn and tile edge for easier wall sealing and protection.

Faucet Hole Layout

Two sets of 8-inch on-center splash-mount faucet holes are punched into the top.

Included Basket Drains

Four 3-1/2-inch basket-type waste drains with 1-1/2-inch outlets are included.

Heavy-Duty Leg Base

Galvanized tubular legs with front-to-back crossbracing and adjustable bullet feet support the sink.

Type Sink
Style Coved Corner
Installation Type Floor Model (With Legs)
Compartments 4
Drainboard Position Right
Drainboard Length 24 Inches
Material Stainless Steel
Interior Finish 304 Stainless Steel
Water Inlet Size 1/2 Inch IPS
Drain Connection Size 1-1/2 Inch NPS
Backsplash Height 9-1/2 Inches
Compartment Width 16 Inches
Compartment Length 20 Inches
Compartment Depth 13-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 99 Inches
Shipping Depth 28 Inches
Shipping Height 44 Inches
Shipping Weight 235 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure 1 PDF Download PDF Care & maintenance PDF Download PDF Brochure 2 PDF Download PDF Installation sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Each compartment measures 20 inches front-to-back, 16 inches wide, and 13-1/2 inches deep.
Yes. It has a 24-inch drainboard on the right side.
The top and backsplash are 430 stainless steel, the bowls are 304 stainless steel, and the legs are galvanized tubing.
Yes. The sink has two sets of 8-inch on-center splash-mount faucet holes.
The sink includes four 3-1/2-inch basket drains, galvanized legs, side crossbracing, and adjustable bullet feet.
The backsplash is 9-1/2 inches high and includes a 1-inch upturn with a tile edge.
