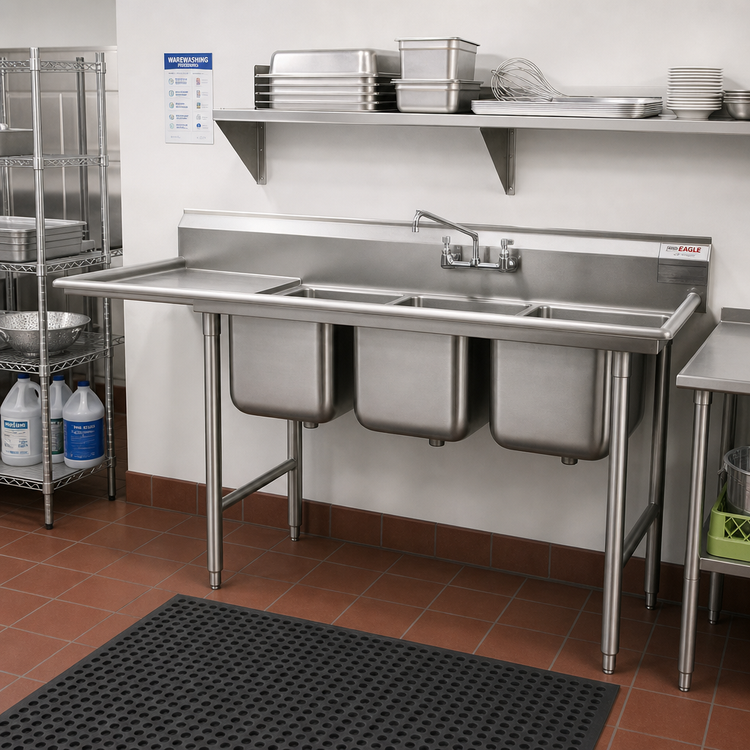

Eagle Group 414 Series Coved Corner Three-Compartment Sink with Left 18-Inch Drainboard

74-3/8 Inch Wide, 430 Stainless Steel Top, 304 Stainless Steel Bowls, Galvanized Legs

Built for busy prep and dish areas, this three-compartment sink combines durable stainless construction, a left-hand drainboard, and included basket drains to help keep workflow moving.

  • Three-compartment sink with a single 18-inch left-hand drainboard for efficient wash and rinse stations.
  • Heavy-gauge 430 stainless steel top and drainboard paired with 304 stainless steel sink bowls.
  • Deep-drawn, seamless coved-corner bowls with a 13-1/2-inch water level for generous working capacity.
  • 9-1/2-inch backsplash with 1-inch upturn and tile edge for easier wall installation.
  • Includes three 3-1/2-inch basket drains; faucet holes are punched on 8-inch centers.
  • Galvanized legs, crossbracing, and adjustable plastic bullet feet provide stable support.

Overall Dimensions:

74.38"W x 27.5"D x 44.0"H

Product Weight:

170.0 lb

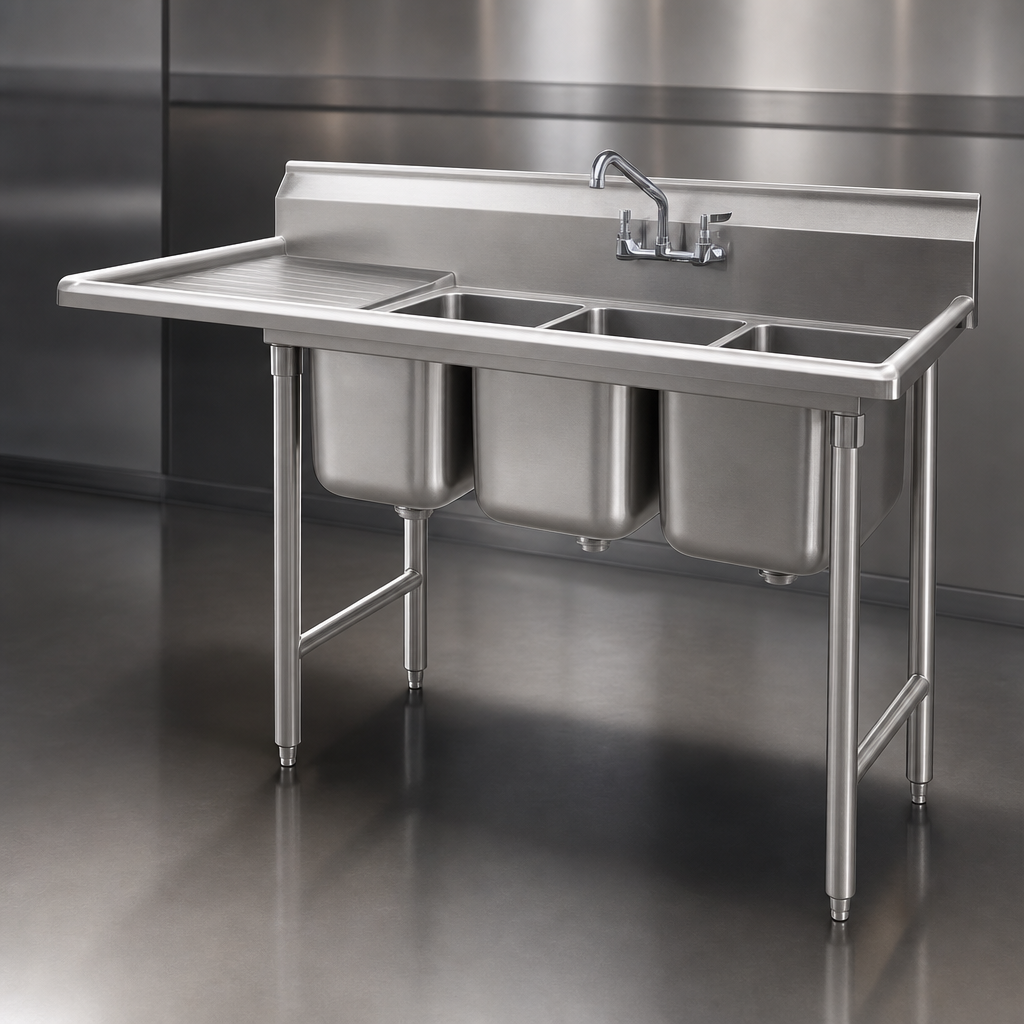

Heavy-Gauge Stainless Steel Construction

Top, backsplash, drainboard, and euro-style edging are 430 stainless steel, while the sink bowls are 304 stainless steel for durable commercial use.

Heavy-Gauge Stainless Steel Construction

Left-Hand 18-Inch Drainboard

A single 18-inch drainboard is mounted on the left side to support prep, draining, and staging tasks.

Deep-Drawn Coved Bowls

Seamless, deep-drawn bowls with coved corners help simplify cleaning and provide a spacious sink area.

High Backsplash

The 9-1/2-inch backsplash includes a 1-inch upturn and tile edge to help protect the wall and ease installation.

Plumbing-Ready Design

The backsplash is punched with 8-inch on-center faucet holes, and three basket-type waste drains are included.

Galvanized Support Base

Galvanized legs with crossbracing and adjustable plastic bullet feet provide a stable, level installation.

Type Three-Compartment Sink
Style Coved Corner
Installation Type Floor Model
Compartments 3
Compartment Width 16 Inches
Compartment Depth 20 Inches
Compartment Height 13-1/2 Inches
Drainboard Configuration Single Left-Hand 18-Inch Drainboard
Top Material 430 Stainless Steel
Bowl Material 304 Stainless Steel
Base Construction Galvanized Steel
Water Inlet Size 1/2 Inch IPS
Drain Connection Size 1-1/2 Inch NPS
Water Connection Required
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 75 Inches
Shipping Depth 28 Inches
Shipping Height 44 Inches
Shipping Weight 170 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure 2 PDF Download PDF Brochure 1 PDF Download PDF Installation sheet PDF Download PDF Care & maintenance PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. Faucet holes are punched on 8-inch centers, but the faucet is sold separately.
This model has a single 18-inch left-hand drainboard.
Each compartment measures 16 inches wide by 20 inches front-to-back by 13-1/2 inches deep.
The sink uses a 1/2-inch IPS water supply connection and a 1-1/2-inch NPS drain connection.
It includes three 3-1/2-inch basket drains, galvanized leg assemblies, crossbracing, and adjustable plastic bullet feet.
The warranty information states a 1-year limited warranty from original installation, not to exceed 18 months from shipment.
