Eagle Group

Eagle Group 412 Series 2-Compartment Commercial Sink with Right-Hand Drainboard, 62-5/8-Inch Wide, 430 Stainless Steel

SKU: 412-16-2-24R-X
$1,239.84
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

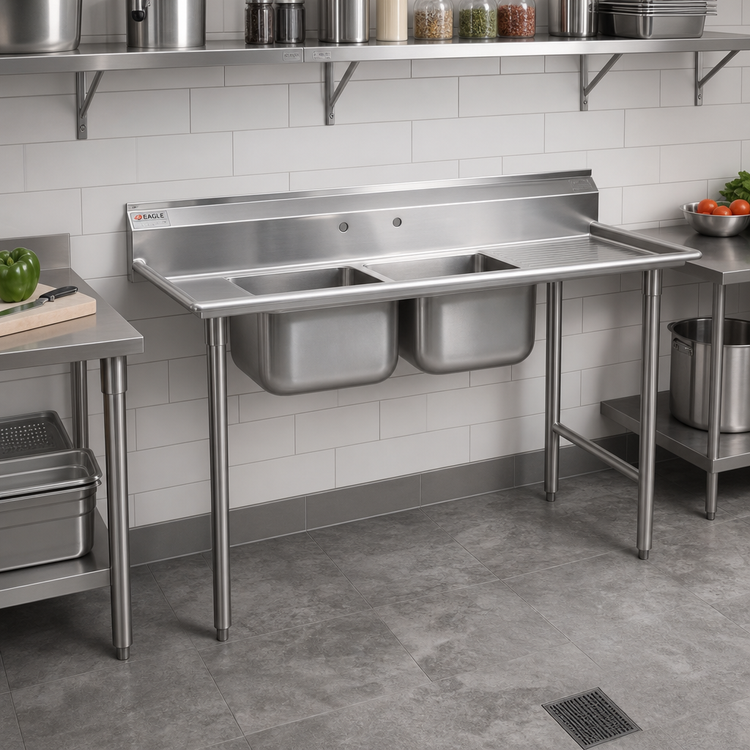

Eagle Group 412 Series 2-Compartment Commercial Sink with Right-Hand Drainboard, 62-5/8-Inch Wide, 430 Stainless Steel

Floor model with 16 x 20 x 10-1/2-inch compartments, 9-1/2-inch backsplash, and galvanized crossbraced legs

Built for demanding prep and wash areas, this floor-mounted sink combines dual compartments, a right-hand drainboard, and a stable galvanized leg base in one durable stainless steel unit.

  • Two-compartment sink with a right-hand 24-inch drainboard to separate wash and drip-dry space.
  • 430 stainless steel construction delivers a durable, easy-to-clean commercial work surface.
  • 16 x 20 x 10-1/2-inch compartments provide practical sink capacity for daily kitchen use.
  • 9-1/2-inch backsplash with a 1-inch upturn and tile edge helps protect the wall from splashes.
  • Galvanized crossbraced legs and adjustable plastic bullet feet provide stability and leveling.
  • 8-inch O.C. splash-mount faucet holes simplify faucet installation.

Overall Dimensions:

62.63"W x 27.5"D x 44.0"H

Product Weight:

156.0 lb

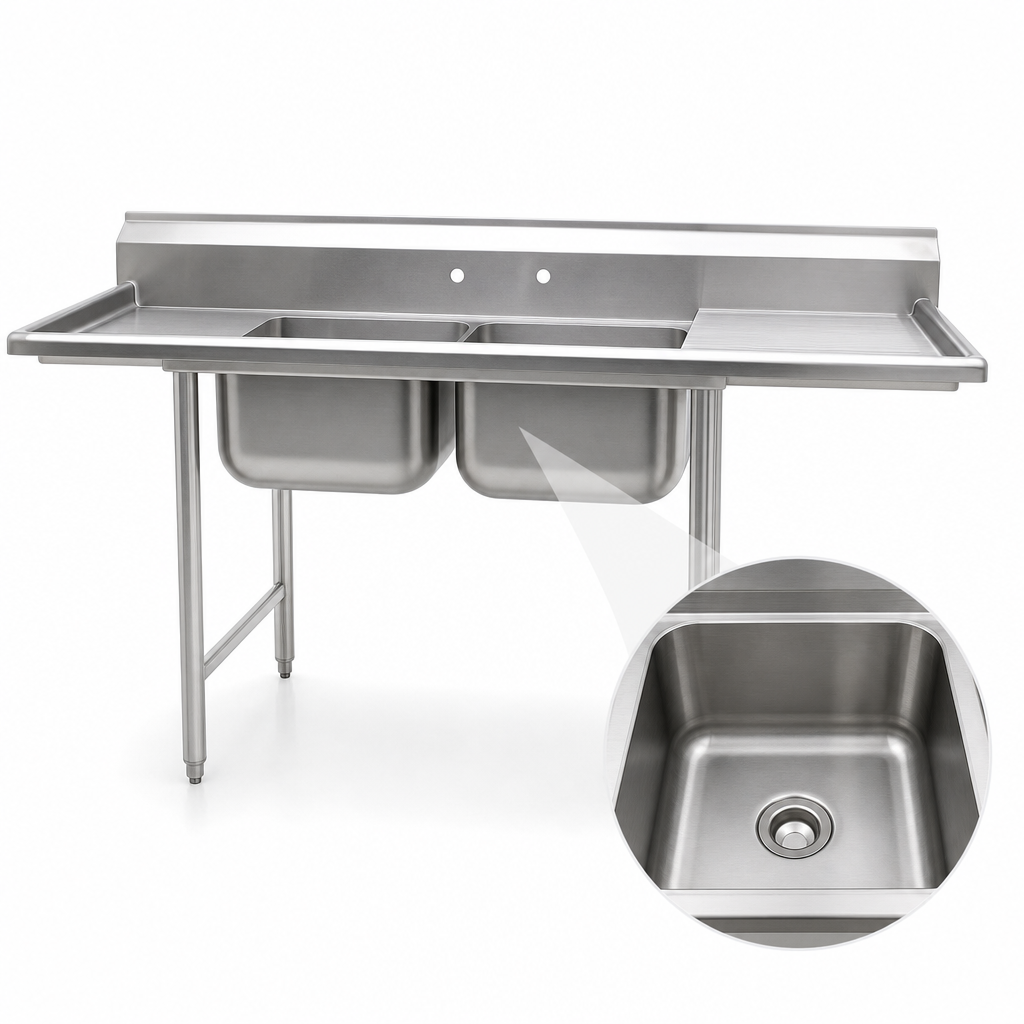

Two Deep Compartments

Each compartment measures 16 inches wide x 20 inches front-to-back x 10-1/2 inches deep for everyday washing and prep.

Two Deep Compartments

Right-Hand Drainboard

The 24-inch drainboard gives you a dedicated area for draining and staging clean items.

430 Stainless Steel Construction

Corrosion-resistant stainless steel top is built for commercial kitchen use and frequent cleaning.

9-1/2 Inch Backsplash

Includes a 1-inch upturn and tile edge to help contain splashes and protect the wall behind the sink.

8 Inch O.C. Faucet Holes

Splash-mount faucet openings are spaced for straightforward faucet installation.

3-1/2 Inch Basket Drains

Basket drains with 1-1/2-inch outlets help support efficient drainage.

Galvanized Crossbraced Legs

Leg assemblies with side crossbracing add rigidity and support to the sink base.

Adjustable Plastic Bullet Feet

Feet can be adjusted to help level the sink on uneven floors.

2-Inch Euro-Style Edge

Finished front and side edges add strength and a cleaner appearance.

Series 412 Series
Type 2-Compartment Sink
Style Right-Hand Drainboard
Installation Type Floor Model (With Legs)
Material 430 Stainless Steel
Base Type Legs with Side Crossrails
Base Construction Galvanized Steel
Compartments 2
Bowl Size 16 Inches x 20 Inches x 10-1/2 Inches
Backsplash Height 9-1/2 Inches
Drainboard Length 24 Inches
Faucet Hole Spacing 8 Inches O.C.
Drain Connection Size 1-1/2 Inches NPS
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 63 Inches
Shipping Depth 28 Inches
Shipping Height 44 Inches
Shipping Weight 156 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment.

Frequently Asked Questions

No. The faucet is provided separately and installs through the 8-inch O.C. splash-mount faucet holes.
Each compartment measures 16 inches wide x 20 inches front-to-back x 10-1/2 inches deep.
Yes. The installation sheet lists drain(s) with coupling nut, gasket, and sealing washer, and the sink uses 1-1/2-inch NPS drain connections.
The backsplash is 9-1/2 inches high and includes a 1-inch upturn with a tile edge.
It uses galvanized leg assemblies with side crossbracing and adjustable plastic bullet feet.
