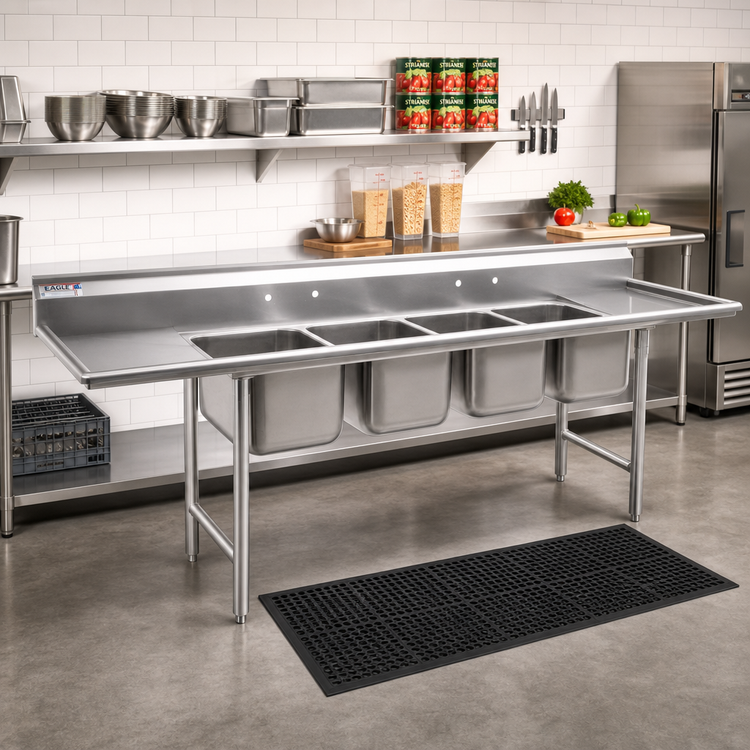

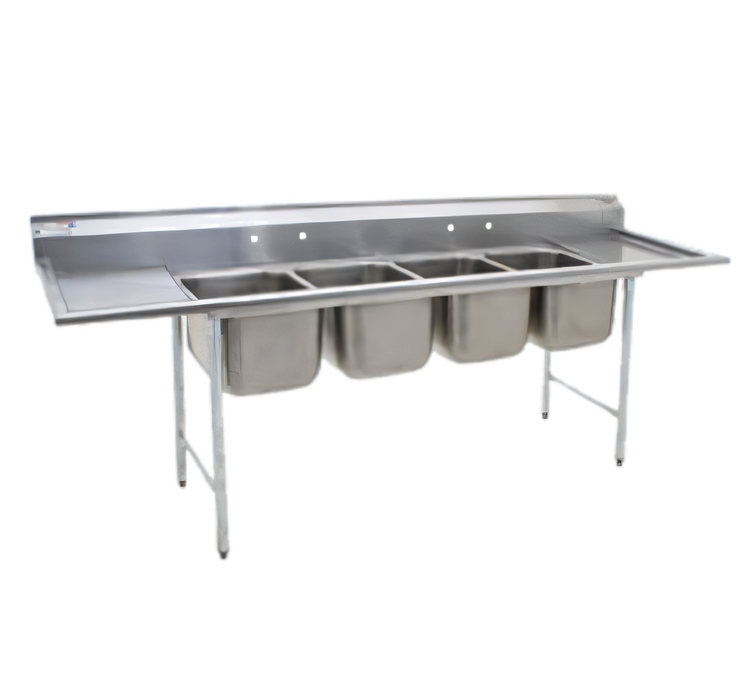

Eagle Group 314 Series Four-Compartment Stainless Steel Sink with 24x24x13.5 Inch Bowls

Floor Model, 304 Stainless Steel, 2" Euro-Style Edges, Without Drainboards

Designed for demanding commercial kitchens, this Eagle Group 314 Series sink offers exceptional durability and ample space for all your warewashing needs.

  • Constructed from heavy gauge type 304 stainless steel for superior corrosion resistance and longevity.
  • Features four deep-drawn, seamless 24" x 24" x 13½" coved corner sink bowls for maximum capacity and easy cleaning.
  • Equipped with 2" wide 'Euro-Style' edging on the front and sides to prevent spills and enhance aesthetic appeal.
  • Includes a 9½" high backsplash with a 1" upturn and tile edge for effective wall protection and seamless installation.
  • Supported by heavy-gauge galvanized legs with front-to-back crossbracing and adjustable bullet feet for stability and leveling.
  • Comes complete with four 3½" basket drains for efficient waste removal.

Overall Dimensions:

109.0"W x 31.0"D x 44.0"H

Product Weight:

231.0 lb

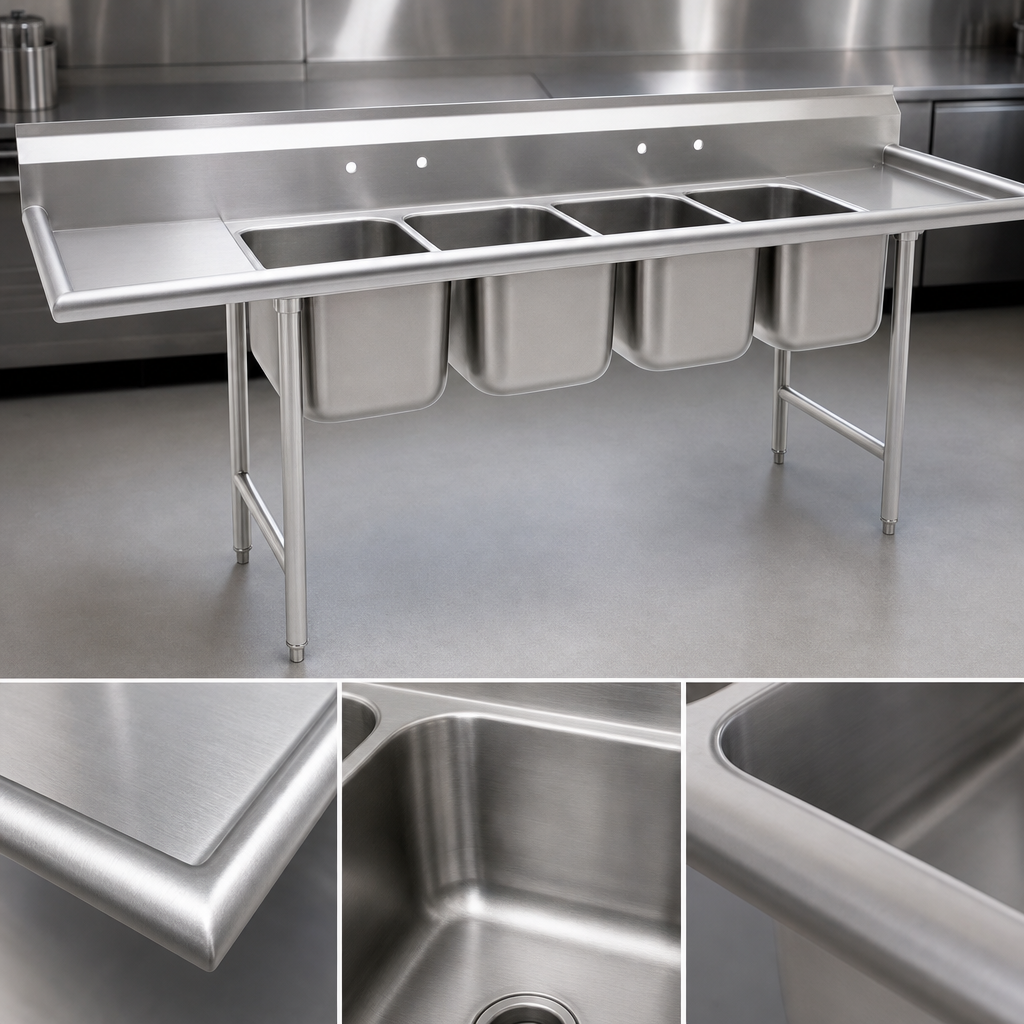

Heavy Gauge 304 Stainless Steel Construction

The sink top and bowls are made from durable heavy gauge type 304 stainless steel, ensuring exceptional resistance to corrosion, rust, and daily wear in a busy commercial environment.

Heavy Gauge 304 Stainless Steel Construction

Four Deep-Drawn Seamless Bowls

Each of the four 24" x 24" x 13½" deep sink bowls is fabricated with a deep-drawn, one-piece seamless process, eliminating crevices where dirt can accumulate and ensuring a watertight design with coved corners for easy cleaning.

2" Euro-Style Edging

The front and side edges feature a 2" wide 'Euro-Style' design, providing a refined appearance and effectively containing splashes and spills to keep your workspace cleaner.

Integrated Backsplash

A 9½" high backsplash with a 1" upturn and tile edge is included, offering crucial protection to adjacent walls from water splashes and allowing for easy installation and feathering to wall surfaces.

Galvanized Legs with Crossbracing

The unit stands on 1⅝" O.D. heavy-gauge galvanized tubing legs, reinforced with 1" O.D. front-to-back crossbracing for maximum stability and weight support.

Adjustable Bullet Feet

High-impact, corrosion-resistant fully adjustable bullet feet allow for precise leveling of the sink on uneven floors, ensuring a stable and secure setup.

Basket Waste Drains Included

Four 3½" basket-type waste drains are supplied with the sink, designed to fit the bowl openings and feature a 1½" outlet for efficient drainage.

Pre-Punched Faucet Holes

The backsplash is pre-punched with two sets of 1⅛" diameter faucet holes on 8" centers, ready for splash-mount faucets (sold separately).

Type Four-Compartment Sink
Installation Type Floor Model
Compartments 4
Compartment Width 24 Inches
Compartment Depth 24 Inches
Sink Depth 13-1/2 Inches
Material 304 Stainless Steel (Top & Bowls), Galvanized Steel (Legs & Crossbracing)
Interior Finish 304 Stainless Steel
Finish Stainless Steel (Top), Galvanized (Legs)
Backsplash Height 9-1/2 Inches
Edges 2 Inch Euro-Style
Faucet Hole Centers 8 Inches
Number of Faucet Holes 4
Water Connection Size 1/2 Inch IPS
Drain Opening Size 3-1/2 Inches
Drain Connection Size 1-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 109 Inches
Shipping Depth 31 Inches
Shipping Height 44 Inches
Shipping Weight 231 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty on parts and labor from original installation (not to exceed 18 months from shipment).

Documents

PDF Cutsheet PDF Download PDF Brochure 1 PDF Download PDF Installation sheet PDF Download PDF Care & maintenance PDF Download PDF Brochure 2 PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Each of the four sink compartments measures 24 inches wide by 24 inches deep, with a water level depth of 13½ inches.
The sink top, bowls, backsplash, and euro-style edging are constructed from heavy gauge type 304 stainless steel. The legs and crossbracing are made from heavy-gauge galvanized tubing.
No, faucets are not included with the sink. However, the backsplash comes with two sets of pre-punched 1⅛" diameter faucet holes on 8" centers, ready for splash-mount faucets (sold separately).
For best results, clean the sink thoroughly and flush with water after using detergents and sterilizers. Never leave solutions in the sink overnight. Avoid using solutions stronger than recommended by the manufacturer, and do not use high-chlorine content products. Wipe with a damp cloth between cleanings and only use stainless steel wool if scouring is needed. Never use ordinary steel wool or steel scrapers.
Eagle Group products, including this sink, are covered by a limited warranty for one year from the date of original installation, not to exceed 18 months from the date of shipment from Eagle. This warranty covers defects in materials and workmanship under normal use.
