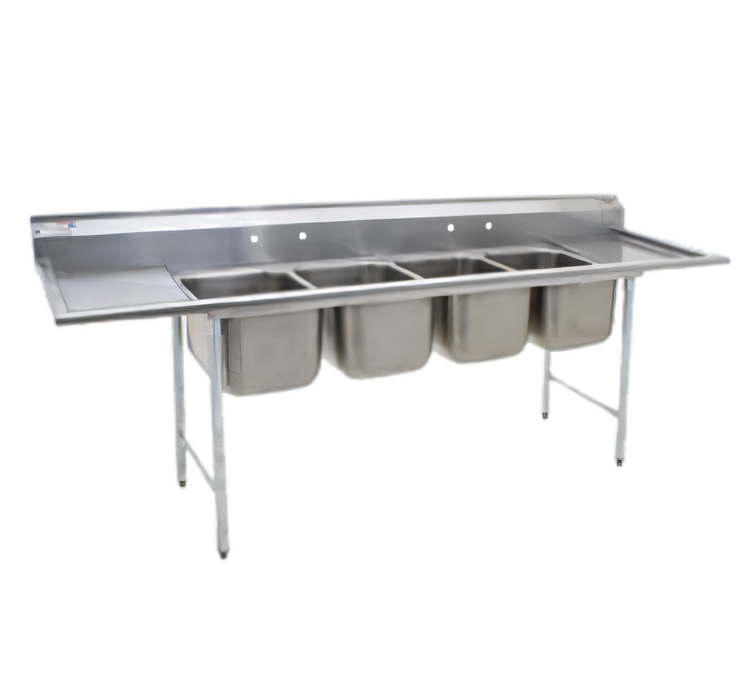

Eagle Group 314 Series Four-Compartment Stainless Steel Sink with 24-Inch Right Drainboard
Eagle Group 314 Series Four-Compartment Stainless Steel Sink with 24-Inch Right Drainboard
24" x 24" x 13-1/2" Deep Bowls, 304 Stainless Steel, Floor Model
Designed for heavy-duty commercial use, this Eagle Group 314 Series four-compartment sink offers ample washing and drying space with its durable 304 stainless steel construction and integrated right-hand drainboard.
- Four large 24" x 24" x 13-1/2" deep coved corner compartments for maximum washing capacity.
- Constructed from heavy gauge 304 stainless steel for superior durability and corrosion resistance.
- Features a spacious 24-inch right-hand drainboard with 'V' creasing for efficient water drainage.
- Equipped with 2-inch wide 'Euro-Style' edges on front and sides for strength and a professional appearance.
- Includes robust galvanized legs with front-to-back crossbracing and adjustable bullet feet for stability.
- 9-1/2" high backsplash with 1" upturn and tile edge ensures easy installation and wall protection.
Overall Dimensions:
130.75"W x 31.75"D x 44.0"HProduct Weight:

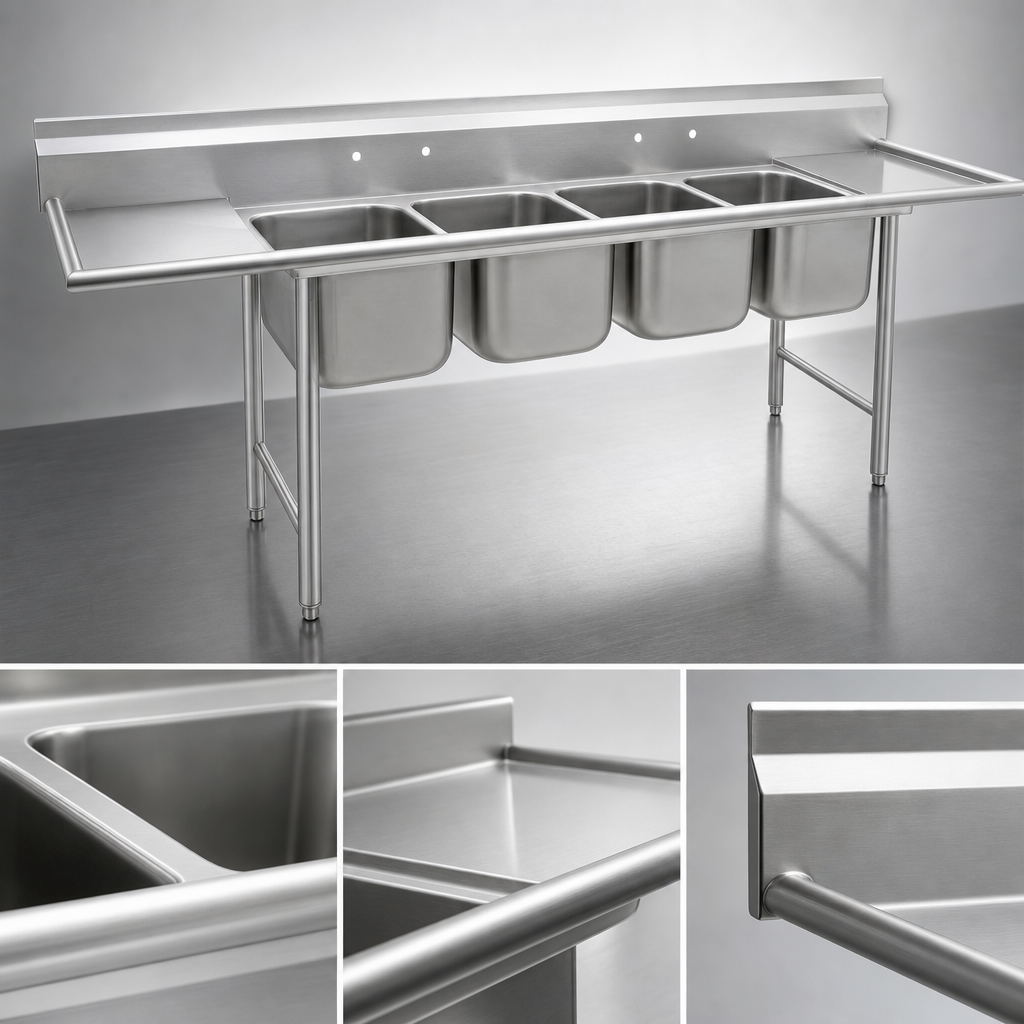

278.0 lbHeavy Gauge 304 Stainless Steel Construction
Sink bowls, top, drainboards, backsplash, and Euro-style edging are all made from heavy gauge type 304 stainless steel for exceptional durability and corrosion resistance.
Deep-Drawn Seamless Sink Bowls
All four sink bowls feature one-piece seamless construction with deep-drawn processing and coved corners, ensuring maximum capacity and easy cleaning.
Rectangular Bowl Design with Generous Radius
Rectangular bowls with a minimum 3" (76mm) radius maximize usable space and simplify cleaning.
24-Inch Right-Hand Drainboard
A 24-inch long drainboard on the right side provides ample space for drying dishes and features 'V' creasing for positive drainage.
Euro-Style Edging
Features 2-inch wide 'Euro-Style' edging on the front and sides for enhanced strength, improved aesthetics, and operator comfort.
High Backsplash with Tile Edge
A 9-1/2" (241mm) high backsplash with a 1" (25mm) upturn and tile edge facilitates easy installation and feathering to the wall surface, preventing splashes and spills.
Galvanized Leg Assemblies
Sturdy 1-5/8" O.D. heavy-gauge galvanized tubing legs with front-to-back crossbracing and plated 12-gauge gussets provide maximum weight support and stability.
Adjustable Bullet Feet
High-impact corrosion-resistant fully adjustable bullet feet allow for precise leveling on uneven floors.
Two Sets of Faucet Holes
Pre-punched with two sets of 1-1/8" (29mm) faucet holes on 8" (203mm) centers, ready for faucet installation (faucets sold separately).
Included Basket Drains
Comes with four basket-type waste drains that fit the sink bowls' 3-1/2" (89mm) opening and feature a 1-1/2" (38mm) outlet.
NSF Approved Sealant Requirement
Set screws used for leg assembly must be filled with NSF-approved sealant to ensure compliance with NSF guidelines.
Certifications & Compliance
Warranty & Protection
1-year limited warranty for parts and labor, not to exceed 18 months from shipment.
