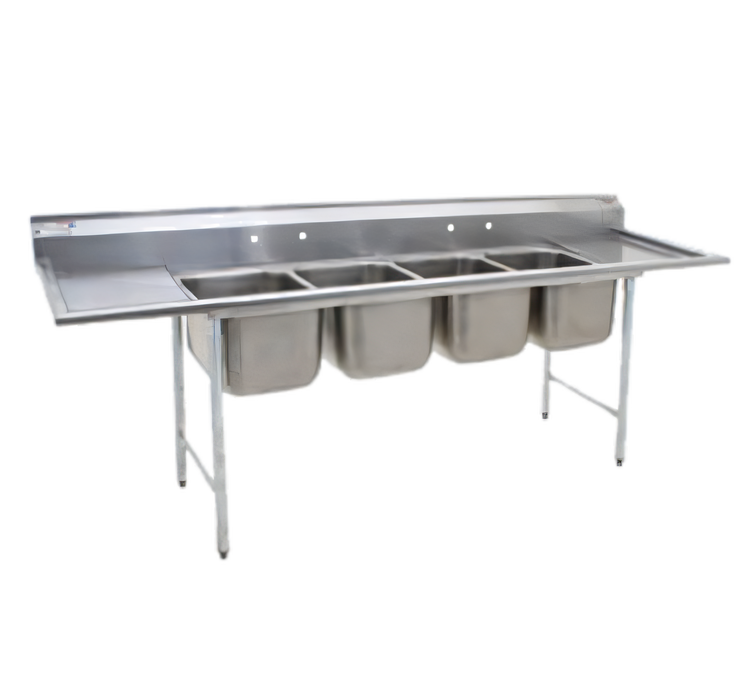

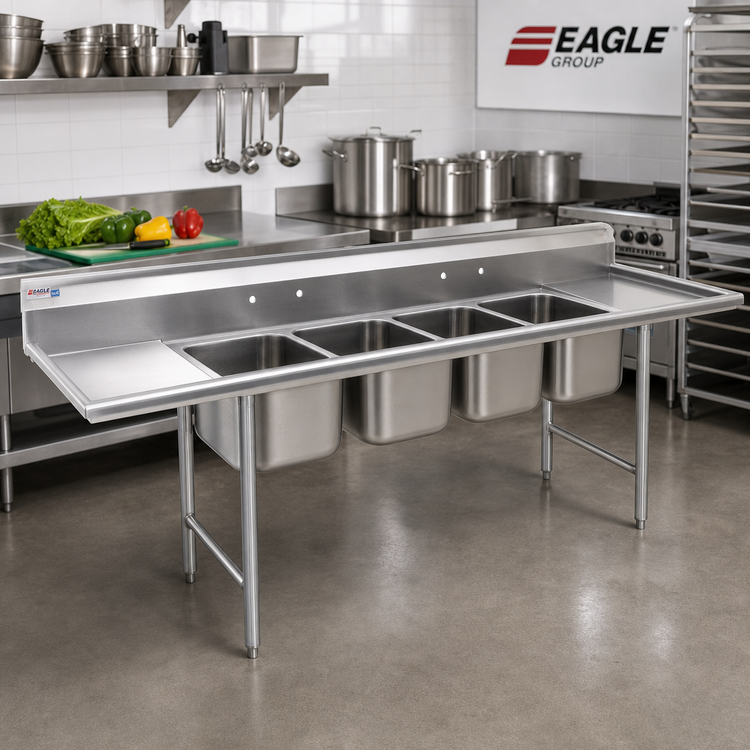

Eagle Group 314 Series Four-Compartment 304 Stainless Steel Sink with Dual 18-Inch Drainboards
Eagle Group 314 Series Four-Compartment 304 Stainless Steel Sink with Dual 18-Inch Drainboards
Floor Model, 24" x 24" x 13½" Deep Bowls, Left & Right 18" Drainboards
Designed for demanding commercial kitchens, this Eagle Group 314 series four-compartment sink offers exceptional durability and functionality with its heavy-gauge 304 stainless steel construction and dual drainboards.
- Constructed with heavy gauge Type 304 stainless steel for superior corrosion resistance and longevity.
- Features four deep-drawn, seamless, coved corner sink bowls, each measuring 24" x 24" x 13½" deep for maximum capacity.
- Includes left and right 18-inch 'V' creased drainboards for positive drainage and efficient drying.
- Equipped with a 9½" high backsplash with a 1" upturn and tile edge for easy installation and wall protection.
- Comes with galvanized legs and crossbracing, along with adjustable bullet feet for stability and leveling.
- Integrated 2" wide 'Euro-Style' edging on front and sides provides enhanced aesthetics and structural integrity.
Overall Dimensions:
140.0"W x 31.75"D x 44.0"HProduct Weight:

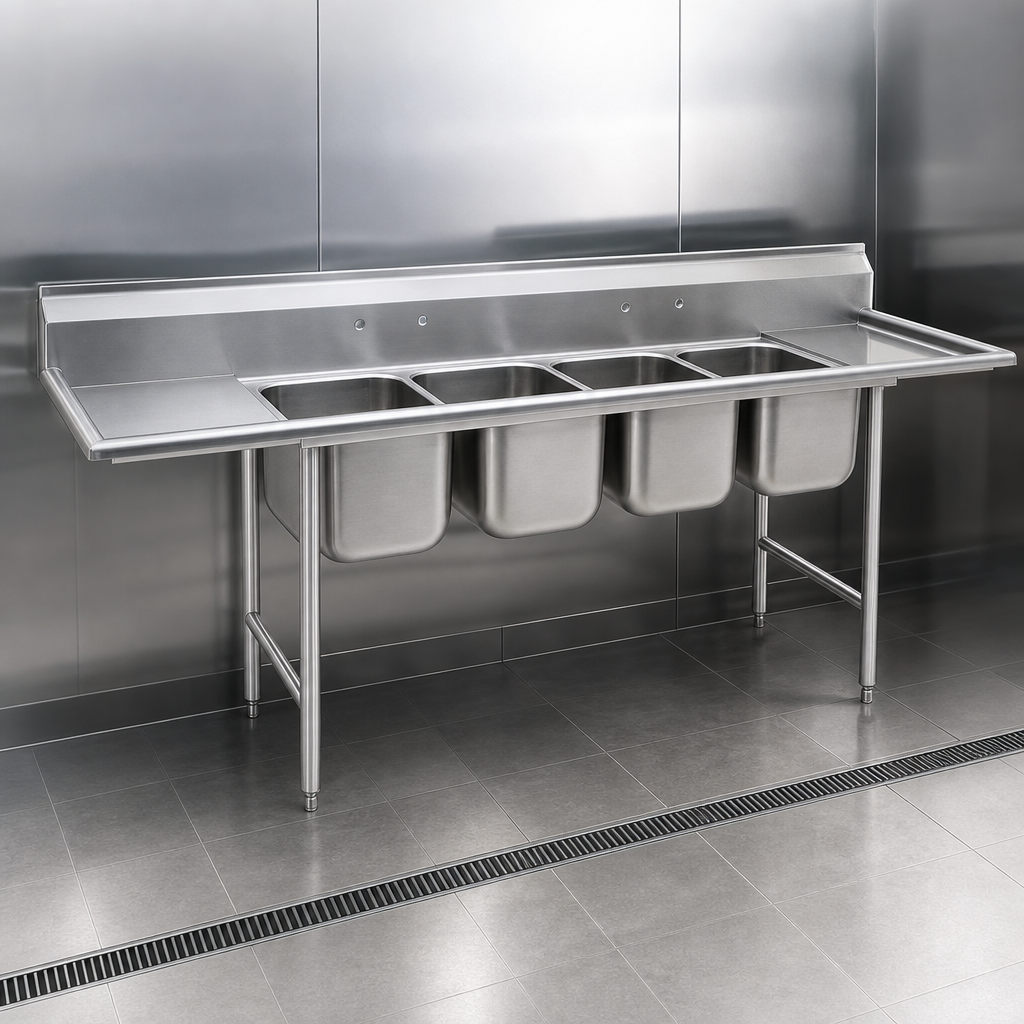

263.0 lbHeavy Gauge 304 Stainless Steel Construction
The sink top, bowls, drainboards, and backsplash are made from heavy gauge Type 304 stainless steel, offering excellent durability, hygiene, and resistance to corrosion and rust.
Deep-Drawn Seamless Bowls
Each of the four sink bowls features deep-drawn one-piece seamless construction, utilizing state-of-the-art hydraulic presses for strength and ease of cleaning.
Coved Corners and Generous Radius
All sink bowl corners are coved with a minimum dimension of 3 inches (76mm), preventing dirt and grime buildup and simplifying cleaning. Bowls are rectangular for maximum capacity.
Dual 'V' Creased Drainboards
Equipped with two 18-inch drainboards (left and right) that are 'V' creased to ensure positive drainage and prevent water pooling, enhancing drying efficiency.
9½" High Backsplash
A standard 9½" high backsplash includes a 1" upturn and tile edge, facilitating easy installation against a wall and protecting it from splashes.
2" Euro-Style Edging
The front and sides of the sink feature a 2-inch wide 'Euro-Style' edging, providing a clean, finished look and added structural rigidity.
Galvanized Leg Assemblies
The unit stands on 1⅝" diameter heavy-gauge galvanized tubing legs with front-to-back crossbracing for maximum stability and weight support. Plated 12-gauge gussets are welded adjacent to the sink bowls.
Adjustable Bullet Feet
High-impact corrosion-resistant 1" plastic adjustable bullet feet allow for easy leveling on uneven floors.
Faucet Holes
Two sets of 1⅛" punched faucet holes are provided on 8" centers, ready for splash mount faucet installation (faucets sold separately).
Basket Drains Included
Each sink bowl includes a 3½" basket-type waste drain with a 1½" outlet, designed to fit the sink bowls' openings.
Certifications & Compliance
Warranty & Protection
1-year limited warranty on products manufactured by Eagle Group from original installation date, not to exceed 18 months from shipment date.
