Eagle Group

Eagle 314 Series Two-Compartment 304 Stainless Steel Sink with Right-Hand 24 Inch Drainboard — 66.75 Inches W x 31.75 Inches D

SKU: 314-18-2-24R
$3,016.13
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Eagle Group New Arrivals Restaurant Equipment Sinks & Handwashing Stations

Eagle 314 Series Two-Compartment 304 Stainless Steel Sink with Right-Hand 24 Inch Drainboard — 66.75 Inches W x 31.75 Inches D

Two 18" x 24" bowls, 13.5" bowl depth; galvanized legs with adjustable bullet feet; NSF-listed

Durable 304 stainless steel commercial 2-compartment sink with a large right-hand drainboard, adjustable galvanized leg base, and NSF-listed construction.

  • Two 18 Inches x 24 Inches compartments with 13.5 Inches bowl depth for heavy-duty washing
  • Right-hand 24 Inches drainboard provides ample staging and drying area
  • 304 stainless steel top with coved corners for easy cleaning and sanitation
  • 9.5 Inches high backsplash with 1 Inch upturn and tile edge for wall protection and easy sealing
  • Includes 3-1/2 Inches basket drains with 1-1/2 Inches drain connection; faucets sold separately (8 Inches on-center splash mount holes)
  • Galvanized legs and side crossrails with adjustable bullet feet for stable, level installation; NSF-listed

Overall Dimensions:

66.75"W x 31.75"D x 44.0"H

Product Weight:

158.0 lb

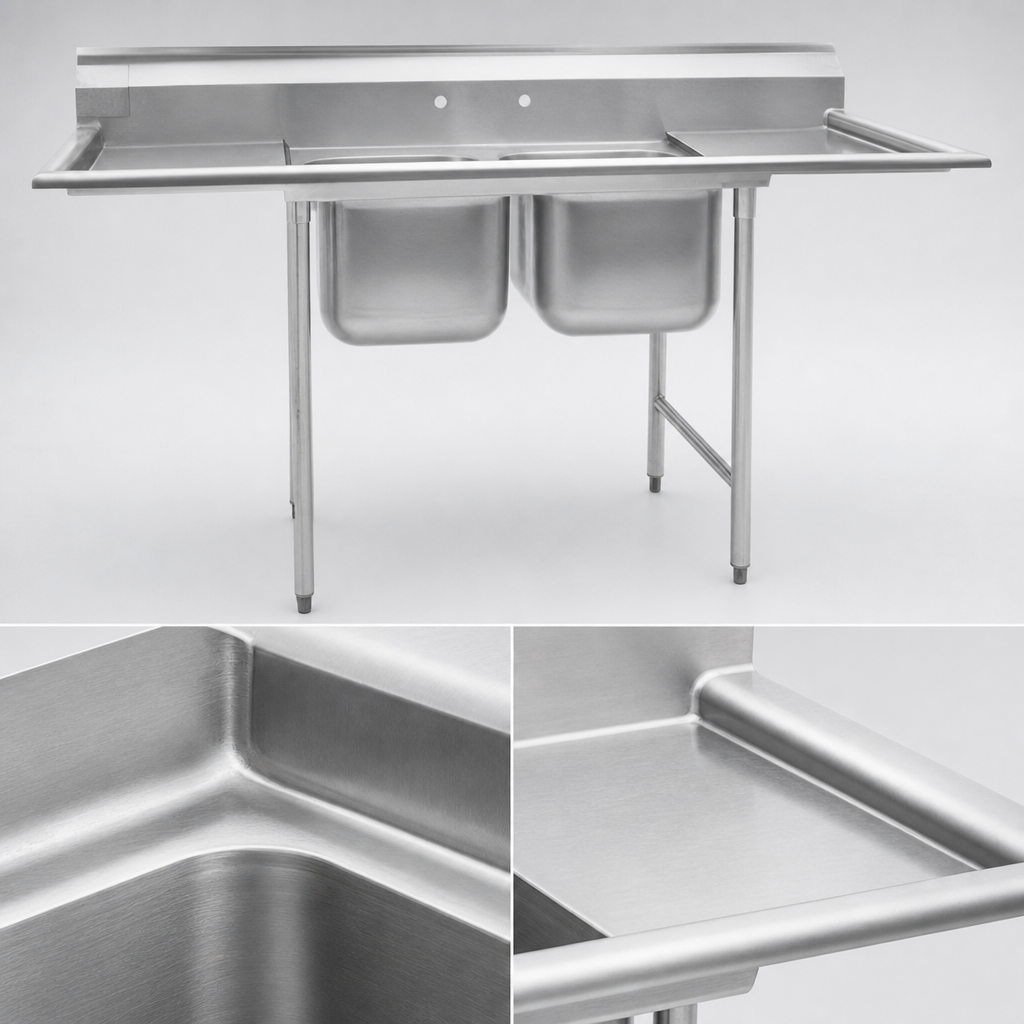

Construction

Top and bowls formed from 304 stainless steel with coved corners for a sanitary, easy-to-clean surface.

Construction

Bowl Configuration

Two compartments, each 18 Inches wide x 24 Inches front-to-back with 13.5 Inches bowl depth.

Drainboard

Integrated 24 Inches right-hand drainboard for drying and staging.

Backsplash

9.5 Inches high backsplash with 1 Inch upturn and tile edge to protect the wall and simplify sealing.

Drains

3-1/2 Inches basket drains included with 1-1/2 Inches I.P.S. drain outlets; drains ship with coupling nut, gasket and sealing washer.

Legs & Base

Galvanized leg assemblies and side crossrails; adjustable bullet feet included for leveling. Leg assemblies secure with set screws (allen wrench provided).

Faucet Mounting

8 Inches on-center splash mount faucet holes; faucet(s) are provided separately.

Certifications

NSF-listed for commercial foodservice use.

Type 2-Compartment Sink with Right-Hand Drainboard
Compartments 2
Material 304 Stainless Steel
Installation Type Floor Model (With Legs and Side Crossrails)
Base Construction Galvanized
Base Type Legs with Side Crossrails
Compartment Width 18 Inches
Compartment Front-To-Back 24 Inches
Sink Depth (Rim - Drain) 13.5 Inches
Drainboard Length 24 Inches (Right)
Splash Height 9.5 Inches
Edge Profile 2 Inches Euro-Style (Front and Sides)
Faucet Hole Spacing 8 Inches On Center (Splash Mount)
Basket Drain Size 3-1/2 Inches
Drain Connection Size 1-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 67 Inches
Shipping Depth 32 Inches
Shipping Height 44 Inches
Shipping Weight 158 lb.
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty on materials and workmanship from date of original installation (not to exceed 18 months from shipment).

Documents

PDF Cutsheet PDF Download PDF Brochure 1 PDF Download PDF Installation sheet PDF Download PDF Care & maintenance PDF Download PDF Brochure 2 PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. The unit ships with 3-1/2 Inch basket drains and 1-1/2 Inch I.P.S. drain outlets; drains include coupling nut, gasket and sealing washer. Quantity of drains matches the number of bowls (two drains for this 2-compartment model).
No. Faucets are provided separately. The sink has 8 Inches on-center splash mount faucet holes to accept standard splash-mount faucets.
Galvanized leg assemblies and side crossrails are included along with set screws and an Allen wrench; adjustable bullet feet allow leveling. For NSF compliance, set screw heads must be filled with NSF-approved sealant.
Apply NSF-approved sealant along the topmost flange of the backsplash or cover the flange with a finished wall as required by installation instructions.
Eagle provides a limited warranty for products manufactured by Eagle: one year from the date of original installation (not to exceed 18 months from date of shipment). See warranty details for exclusions and travel/repair limitations.
