Eagle Group 314 Series Three-Compartment Sink with Left Drainboard

74-3/8" W x 27-1/2" D, 304 Stainless Steel

A durable, NSF-listed three-compartment sink with a left drainboard, coved corners, and 304 stainless steel construction built for efficient wash-rinse-sanitize workflows.

  • Three compartments support efficient warewashing and prep workflows.
  • 18" left-hand drainboard adds landing and drying space.
  • 304 stainless steel construction and coved corners help promote durability and easier cleaning.
  • 9-1/2" backsplash with 1" upturn and tile edge helps protect the wall from splashes.
  • Includes three 3-1/2" basket drains and adjustable bullet feet.
  • 8" on-center splash-mount faucet holes simplify faucet installation.
  • Galvanized legs and side crossrails provide a stable floor-standing base.

Overall Dimensions:

74.38"W x 27.5"D x 44.0"H

Product Weight:

170.0 lb

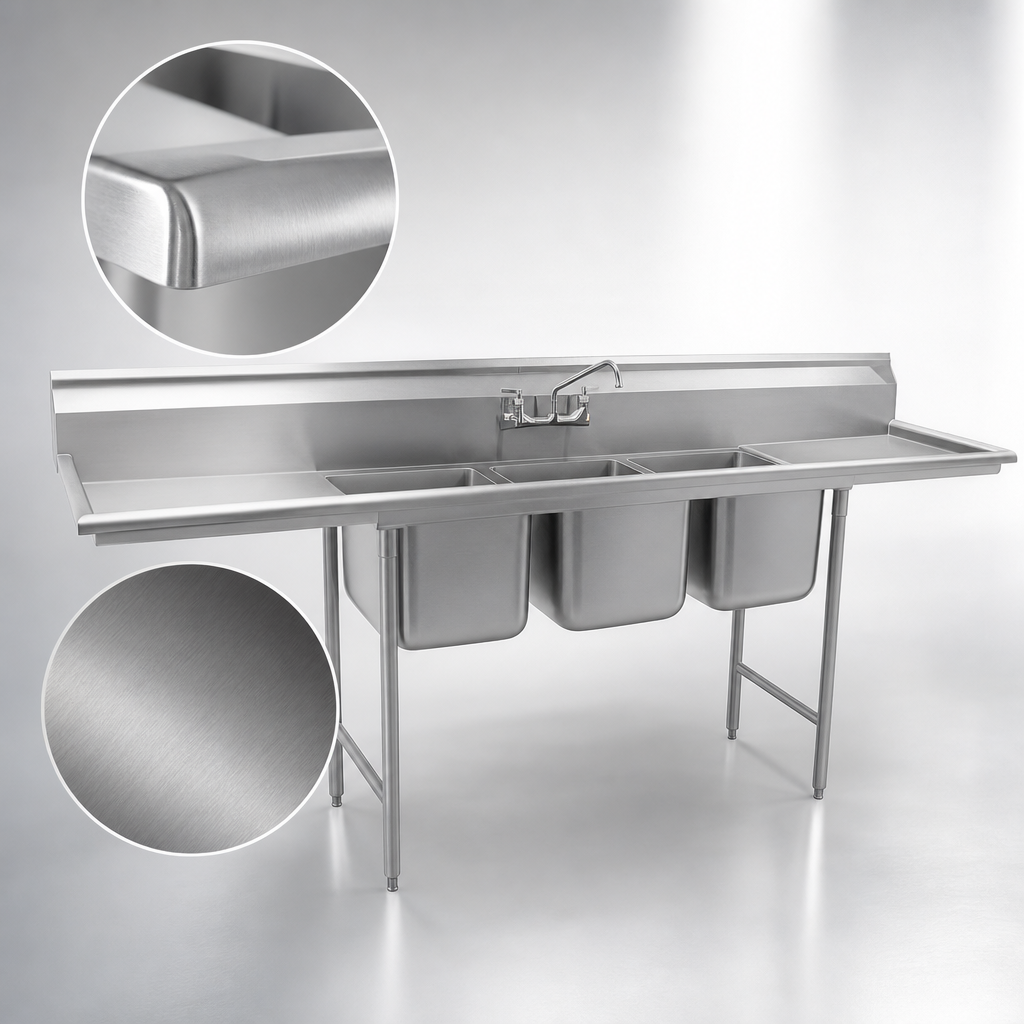

304 Stainless Steel Construction

Heavy-duty stainless steel top is built for long-term durability and corrosion resistance.

304 Stainless Steel Construction

Three-Compartment Layout

Three bowls support washing, rinsing, and sanitizing in one workstation.

Left-Hand Drainboard

An 18" drainboard on the left provides extra space for stacking, draining, or staging items.

Coved Corners

Rounded interior corners help reduce buildup and make cleaning easier.

9-1/2" Backsplash

Backsplash includes a 1" upturn and tile edge to help contain splashes and protect the wall.

Splash-Mount Faucet Holes

8" on-center faucet holes are pre-punched for faucet installation.

Galvanized Leg Base

Galvanized legs and side crossrails provide a sturdy floor-standing support structure.

Adjustable Bullet Feet

Level the sink on uneven floors with adjustable bullet feet.

Included Basket Drains

Comes with three 3-1/2" basket drains.

Euro-Style Front and Side Edges

2" euro-style edges on the front and sides add a finished look and help manage spills.

Type Sink
Style 3-Compartment
Installation Type Floor Model
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Compartments 3
Drainboard Location Left
Drainboard Length 18 Inches
Splash Height 9-1/2 Inches
Compartment Width 16 Inches
Compartment Front-To-Back 20 Inches
Compartment Depth 13-1/2 Inches
Drain Connection Size 1-1/2 Inches NPS
Faucet Hole Spacing 8 Inches On Center
Base Construction Galvanized Steel
Base Type Legs with Side Crossrails
Selling Unit Each
Units Per Case 1
Shipping Width 75 Inches
Shipping Depth 28 Inches
Shipping Height 44 Inches
Shipping Weight 170 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure 1 PDF Download PDF Installation sheet PDF Download PDF Care & maintenance PDF Download PDF Brochure 2 PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model has three compartments for washing, rinsing, and sanitizing.
Yes. It includes an 18" left-hand drainboard.
The sink is built from 304 stainless steel.
Yes. The sink has 8" on-center splash-mount faucet holes for faucet installation.
Each compartment measures 16" wide x 20" front-to-back x 13-1/2" deep.
Eagle provides a limited warranty of 1 year from the date of original installation, not to exceed 18 months from the date of shipment.
