Eagle Group EAGLEbrite 1448Z QuadTruss Wire Shelf, 48"W x 14"D, 800 lb Capacity, Zinc Finish Case of 4

SKU: 1448Z
$226.18
case of 4 $56.55/each
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

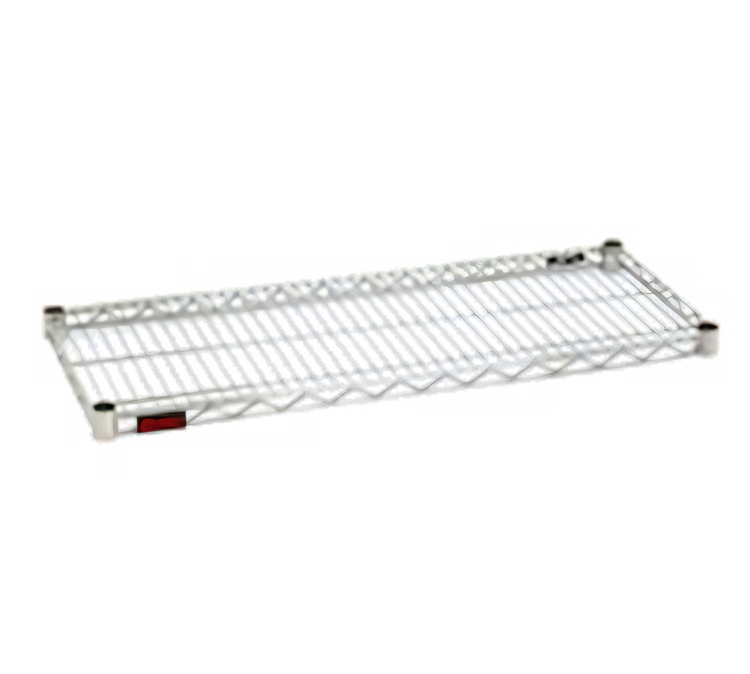

Shelf, wire, 48"W x 14"D, patented QuadTruss® design, includes (4) pairs of split sleeves per shelf, 800 lbs. capacity, EAGLEbrite® zinc finish, NSF

Overall Dimensions:

48.0"W x 14.0"D

Product Weight:

10.0 lb

Patented QuadTruss® Design

QuadTruss® 4-wire design (patent #5,390,803) increases shelf strength (up to ~25%) and provides a retaining ledge to help keep stored items in place.

High Load Capacity

Supports 800 lb evenly distributed static load for shelves up to 48" (363 kg). Shelving sets should not exceed 2400 lb per set of four posts.

EAGLEbrite® Zinc Finish

Bright zinc chloride plating with clear chromate and MasterSeal® sealer for improved rust protection; NSF-listed for dry storage environments.

Includes Split Sleeves

Each shelf includes four pairs of tapered, high-temperature-resistant ABS split sleeves to create a positive lock that becomes stronger as the load increases.

Tool-Free Assembly

Works with numerically grooved 1" O.D. posts (sold separately). Assembly: snap split sleeves onto post at desired height, then slide shelf collar over sleeves — creates a positive lock without tools.

Open-Wire Construction

Open-wire mat permits light transmission and air circulation, reducing moisture and dust build-up and improving effectiveness of fire-suppression systems.

Related Searches

Storage, Transport & Shelving Commercial Shelving Racks & Storage Systems Carts & Mobile Transport Dollies & Hand Trucks Insulated Food & Beverage Transport Secure Storage
Type Wire Shelf
Style QuadTruss®
Material Steel
Finish EAGLEbrite Zinc
Capacity 800 lb.
Selling Unit Each
Units Per Case 4
Width 48 Inches
Depth 14 Inches
Weight 10 lb.
Mat Wire Diameter 0.135 Inches (10 Gauge)
Top Truss Wire Diameter 0.187 Inches (6 Gauge)
Bottom Truss Wire Diameter 0.250 Inches (2 Gauge)

Warranty & Protection

Eagle shelving carries a 1-year limited warranty on materials and workmanship from date of shipment; the EAGLEbrite® zinc finish carries a 3-year limited corrosion/rust warranty.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Model 1448Z supports an 800 lb evenly distributed static load for shelves up to 48" long (363 kg).
1448Z is finished in EAGLEbrite® zinc (bright zinc chloride plating with clear chromate and MasterSeal® sealer). It is NSF-listed for dry storage environments. For wet or all-environment use consider Valu-Master/Valu-Gard epoxies, EAGLEgard® with MICROGARD®, or stainless steel variants (other model numbers).
Each shelf includes four pairs of tapered ABS split sleeves. Posts, shelf collars, casters and foot plates are sold separately.
48" (front-to-back 14") lengths are packed four to a box. Individual shelf weight is 10 lb.
Yes. Casters are available as an accessory for mobile applications (excluding 96" posts). See Eagle spec sheet for caster model details and mobile configuration instructions.
