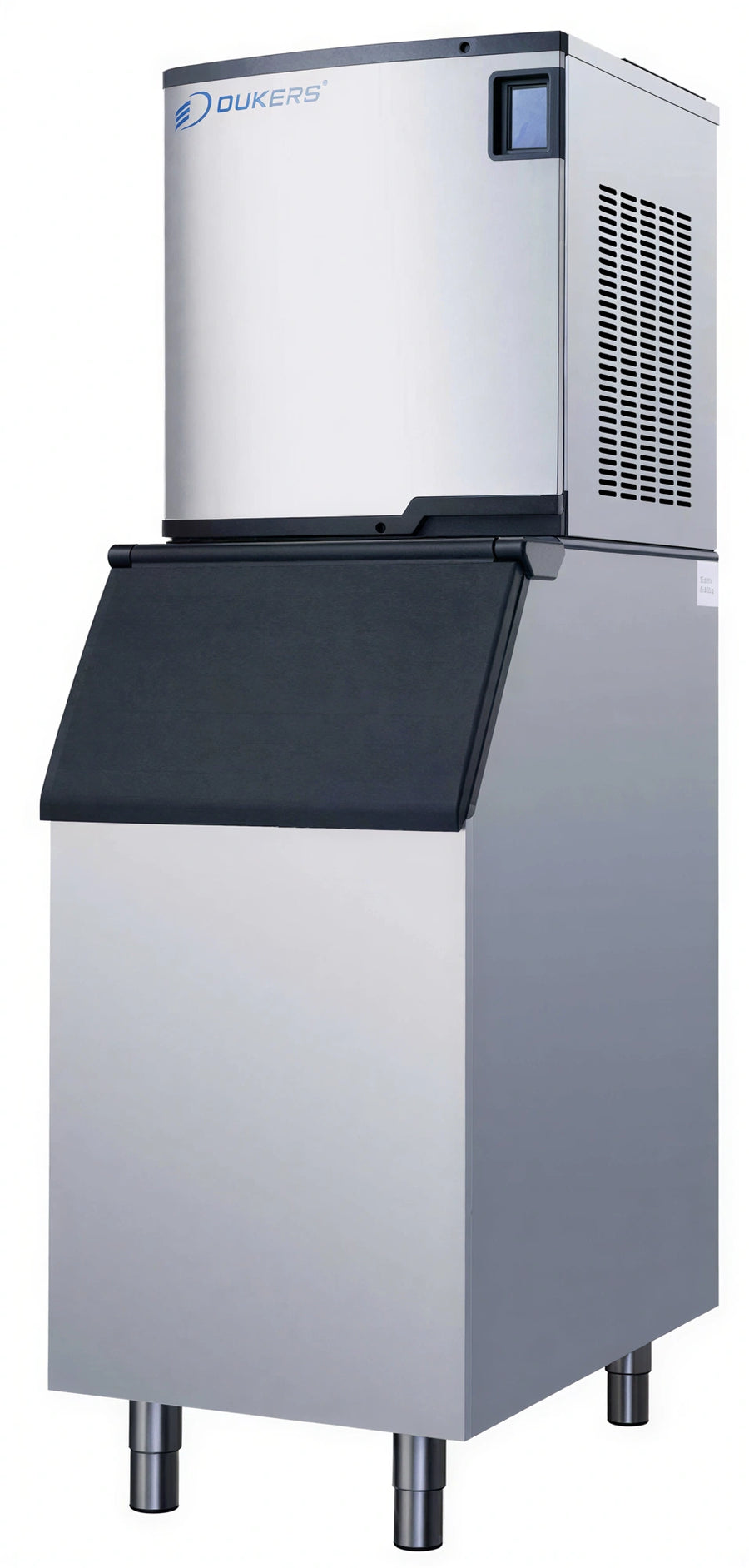

Dukers Appliance Co., USA Ltd. DIM-500A . Commercial Cube Ice Maker with 352-lb Bin, Air-Cooled, Self-Contained, 22"W

SKU: DIM-500A GTIN: 810060210994
$4,378.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Commercial Ice Makers Dukers Appliance Co., USA Ltd. Ice Machines Ice Machines & Handling Ice Makers & Bins Ice Production Equipment New Arrivals Refrigeration & Ice Restaurant Equipment

The DIM-500A is a commercial cube ice maker with a 352-lb storage bin, air-cooled self-contained refrigeration, and a stainless steel exterior.

  • Produces up to 496 lb of cube-style ice per 24 hours.
  • Uses R290 hydrocarbon refrigerant.
  • Includes a removable air filter for maintenance.
  • Operates at 115 V, 60 Hz, single phase, with a rated current of 3.7 A.

Overall Dimensions:

22.0"W x 34.8"D x 71.2"H

Product Weight:

141.0 lb

High ice production

Produces up to 496 lb of ice per 24 hours.

352-lb storage bin

Includes an ice storage bin with 352-lb capacity.

Cube-style ice

Produces full-size or dice cubes.

Air-cooled refrigeration

Uses an air-cooled, self-contained refrigeration system.

Removable air filter

Includes a removable air filter.

Stainless steel exterior

Features a stainless steel exterior.

R290 refrigerant

Uses R290 hydrocarbon refrigerant.

115 V electrical operation

Rated for 115 V, 60 Hz, single-phase power and 3.7 A.

Condenser Type Air-cooled
Refrigeration Self-contained
Ice Type Full-size / dice cubes
Ice Production per 24 Hours Up to 496 lb
Bin Storage 352 lb
Exterior Material Stainless steel
Refrigerant R290 hydrocarbon
Rated Voltage 115 V
Frequency 60 Hz
Phase Single phase
Rated Current 3.7 A
Rated Power 800 W
Air Filter Removable
NEMA Configuration 5-15P

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner’s manual PDF Download

Frequently Asked Questions

It produces up to 496 lb of ice in 24 hours. The specification also lists 400 lb at 90°F air and 70°F water conditions.
The storage bin holds 352 lb of ice.
It makes full-size or dice cube-style ice.
The DIM-500A measures 22.0 in wide by 34.8 in deep by 71.2 in high.
It is rated for 115 V, 60 Hz, single-phase power at 3.7 A and uses a NEMA 5-15P configuration.
