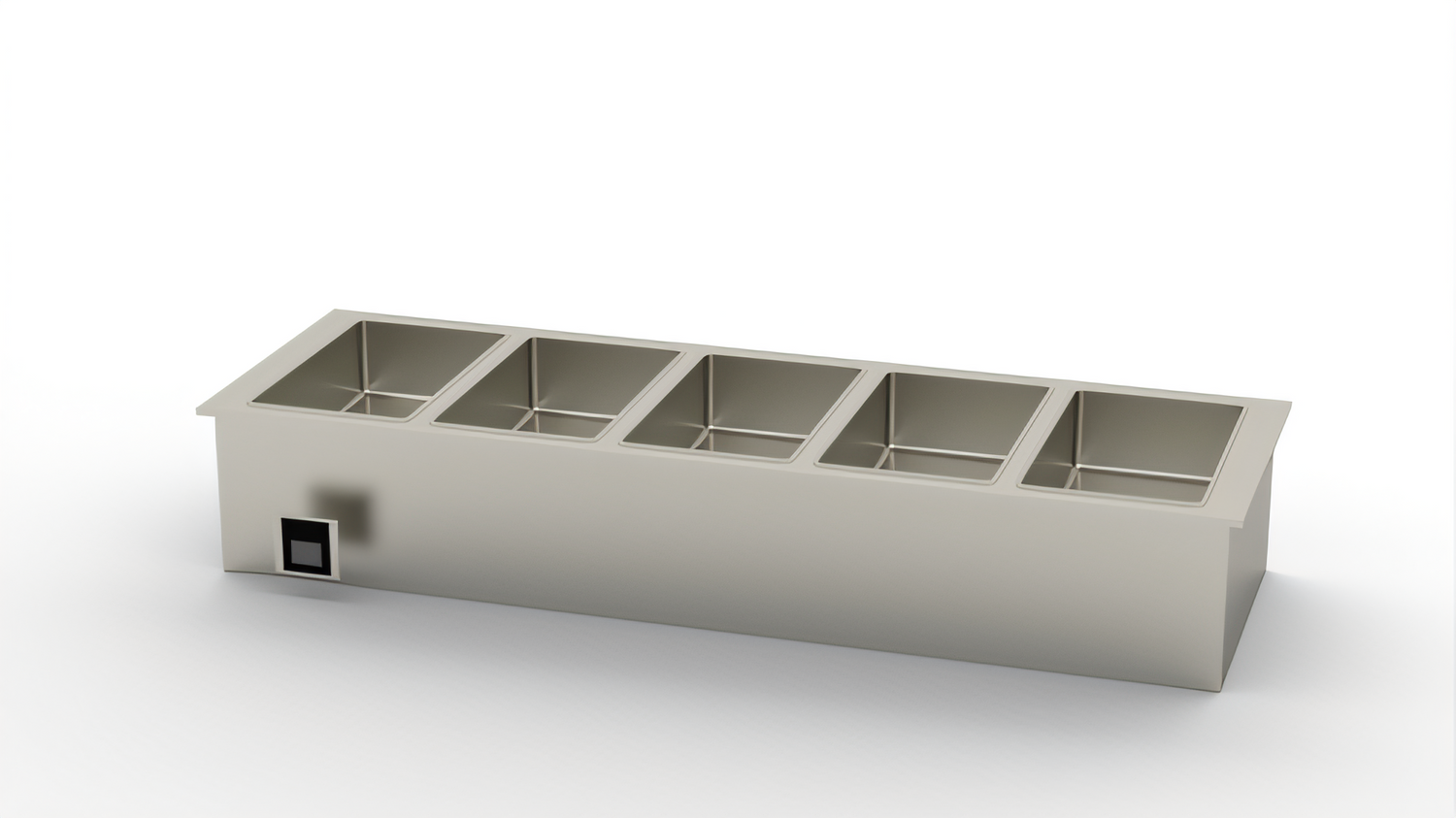

Duke WWG5 5-Well Drop-In Waterless Electric Hot Food Well

Full-Size, Dry Operation, Insulated

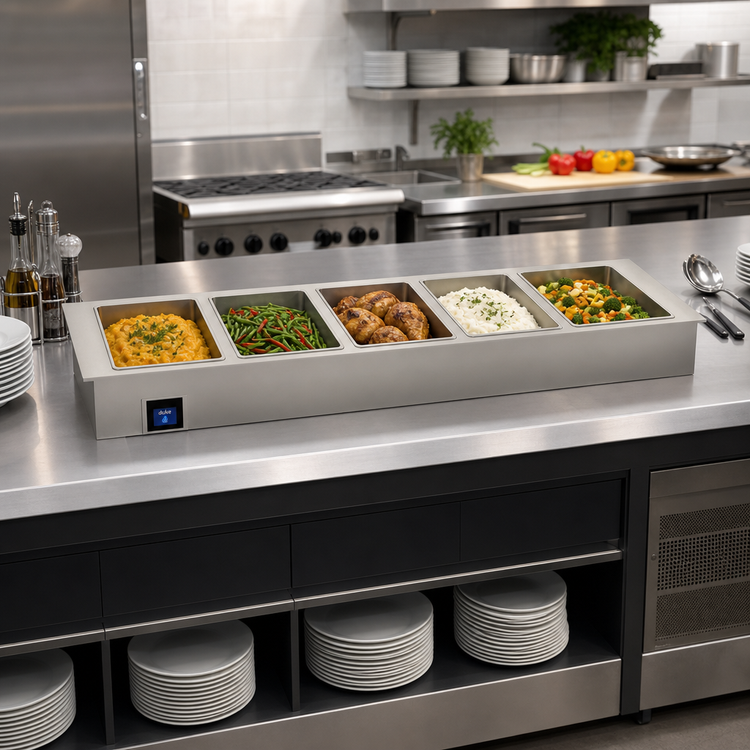

Efficiently keep your food hot and ready for serving with the Duke WWG5 5-well waterless hot food well, designed for seamless integration into any serving line.

  • Accommodates five full-size (12" x 20") food pans for ample capacity.
  • Utilizes dry operation, eliminating the need for plumbing and simplifying installation.
  • Features intuitive touch screen controls for easy temperature adjustments (LOW/MED/HIGH presets).
  • Fully insulated design ensures consistent heat retention and energy efficiency.
  • Constructed with a heavy gauge 300 series stainless steel top and galvanized exterior housing for durability.
  • Includes built-in WiFi and Bluetooth for future connectivity options.

Overall Dimensions:

74.25"W x 24.25"D x 12.75"H

Product Weight:

140.0 lb

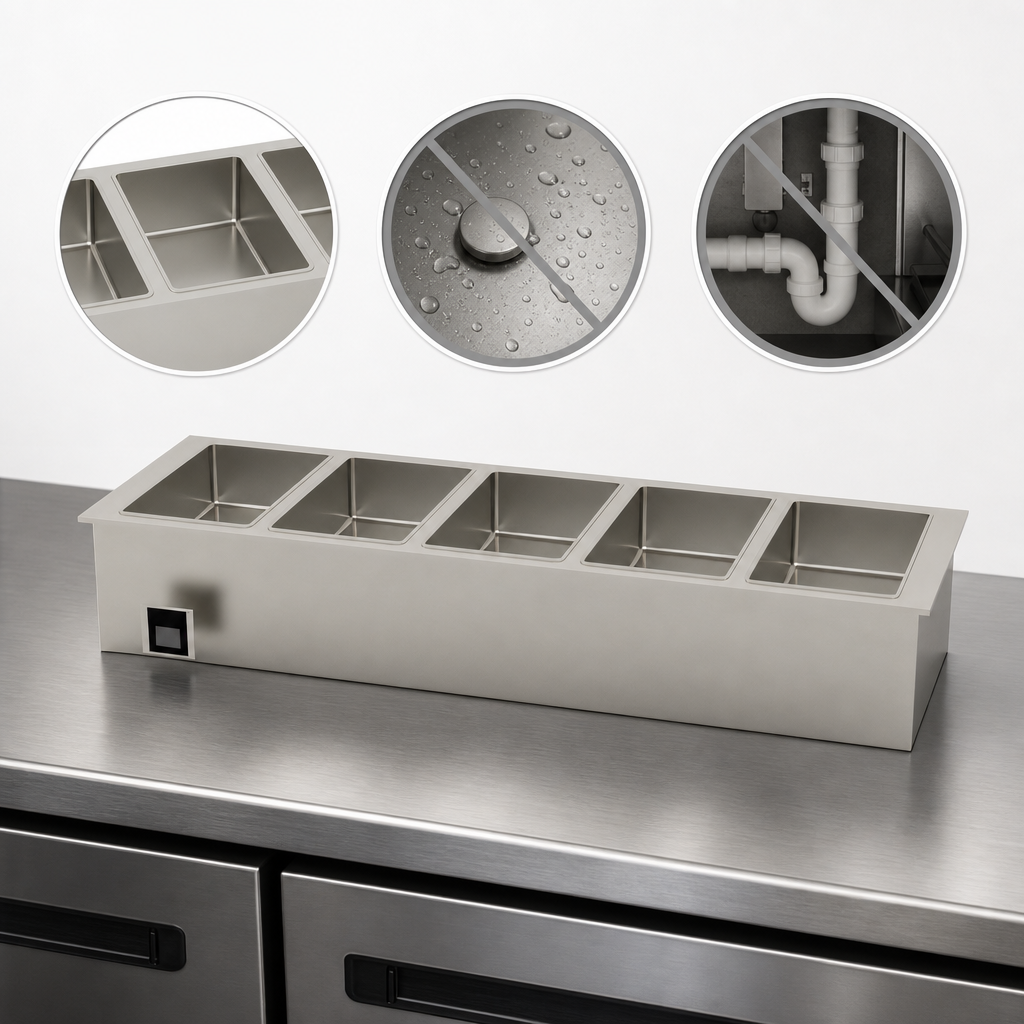

Dry Operation

Designed for dry operation only, eliminating the need for water, drains, or plumbing connections, simplifying installation and maintenance.

Five Full-Size Pan Capacity

Features five die-stamped openings, each measuring 11-7/8" x 19-7/8", perfectly sized for standard 12" x 20" full-size food pans.

Intuitive Touch Screen Control

Equipped with an easy-to-use touch screen control panel that manages all wells simultaneously, offering adjustable presets for LOW, MED, and HIGH heat settings.

Fully Insulated

Each heat compartment and the galvanized exterior housing are fully insulated, ensuring superior heat retention and energy efficiency.

Durable Construction

Built with a heavy gauge 300 Series stainless steel top, 6-1/4" deep stainless steel well liners, and a robust galvanized exterior housing for long-lasting commercial use.

Removable Silicone Bottom Pad

Each well includes a removable FDA approved silicone bottom pad for easy cleaning and protection.

Integrated Connectivity

Features built-in WiFi and Bluetooth capabilities, ready for future smart connectivity and management.

No Drain Required

As a waterless unit, no drain connection is necessary, further simplifying installation.

Overhang with Locking Tabs

Designed with an overhang on the front, back, and ends, complete with locking tabs for secure drop-in installation.

Type Hot Food Well
Style Ganged Waterless
Installation Type Drop-In
Wet or Dry Operation Dry
Controls Touch Screen
Pan Capacity 5 Full-Size Pans
Interior Finish Stainless Steel
Material 300 Series Stainless Steel Top, Galvanized Steel Exterior
Insulated or Non-Insulated Insulated
Drain Connection Not Required
Cord Length 6 Feet
Voltage 208 Volts, 240 Volts
Watts 2500 Watts (208V), 3325 Watts (240V)
Amps 12.1 Amps (208V), 13.9 Amps (240V)
Plug Type NEMA 6-20P
Selling Unit Each
Units Per Case 1
Shipping Width 75 Inches
Shipping Depth 25 Inches
Shipping Height 13 Inches
Shipping Weight 140 lb.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Installation and operation manual PDF Download PDF Waterless hot food well sale sheet PDF Download PDF Users guide PDF Download

Frequently Asked Questions

The Duke WWG5 is a waterless hot food well, meaning it operates dry and does not require water, drains, or plumbing connections.
This model is designed to hold five full-size (12" x 20") hot food pans, with each opening measuring 11-7/8" x 19-7/8".
The WWG5 comes with a standard intuitive touch screen control panel, allowing users to easily adjust presets for LOW, MED, and HIGH heat settings for all wells.
Yes, the Duke WWG5 features fully insulated heat compartments and exterior housing to ensure consistent heat retention and energy efficiency.
The WWG5 requires either 208 Volts (2500 Watts, 12.1 Amps) or 240 Volts (3325 Watts, 13.9 Amps), both utilizing a NEMA 6-20P plug.
