Play manufacturer video for Duke Manufacturing TS422-46 Single-Sided Stainless Steel Food Shield, 45-1/2"W, Adjustable Full/Self-Service, 3/8" Glass GuardDuke Manufacturing TS422-46 Single-Sided Stainless Steel Food Shield, 45-1/2"W, Adjustable Full/Self-Service, 3/8" Glass Guard
SKU: TS422-46
$3,742.20

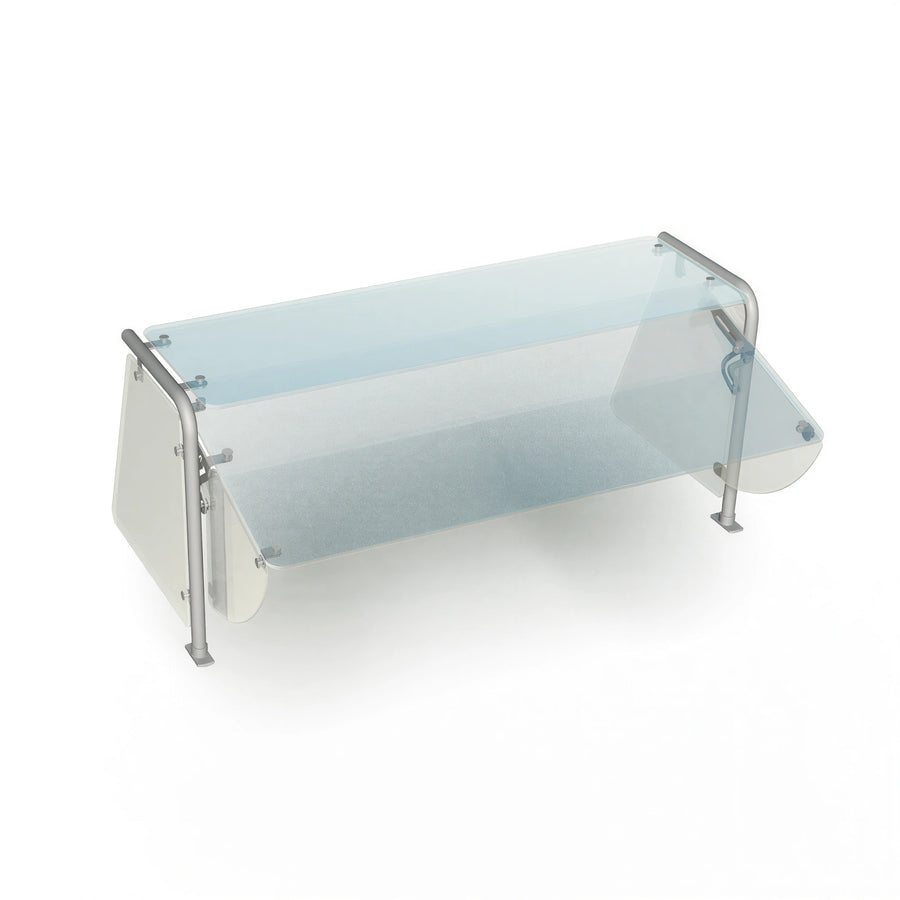

The Duke Manufacturing TS422-46 is a single-sided food shield with a stainless steel frame, single shelf, and adjustable guard for full-service or self-service use.
- Measures 45.5 inches wide by 19.58 inches deep by 20.18 inches high.
- Includes 3/8-inch tempered glass over-shelf and guard with 1/4-inch tempered glass ends.
- Glass features polished rounded edges.
- Constructed with 1-inch-diameter vertical stainless steel tube posts and vertical fixed end closures.
Overall Dimensions:
45.5"W x 19.58"D x 20.18"HProduct Weight:
48.0 lbAdjustable service guard
Adjusts from full-service to self-service in one movement.
Stainless steel construction
Features a stainless steel frame and 1-inch-diameter vertical stainless steel tube posts.
Tempered glass panels
Uses 3/8-inch tempered glass for the over-shelf and guard, with 1/4-inch tempered glass ends.
Polished rounded edges
The glass has polished rounded edges.
Single shelf
Includes one shelf.
Vertical fixed end closures
Includes vertical fixed end closures.
Single-sided design
Configured as a single-sided food shield.
Overall width
45.5 in.
Overall depth
19.58 in.
Overall height
20.18 in.
Product weight
48.0 lb
Service
Full / self-service
Configuration
Single-sided
Frame material
Stainless steel
Post diameter
1 in.
Shelf count
Single shelf
End closures
Vertical fixed
Glass construction
3/8 in. tempered over-shelf and guard; 1/4 in. tempered ends; polished rounded edges
Certification
NSF/ANSI 2
Certifications & Compliance
Warranty & Protection
Limited one-year warranty against defects in materials and workmanship.
Documents
Frequently Asked Questions
Yes. Its guard adjusts from full-service to self-service in one movement.
The overall dimensions are 45.5 inches wide by 19.58 inches deep by 20.18 inches high.
It uses 3/8-inch tempered glass for the over-shelf and guard and 1/4-inch tempered glass ends, with polished rounded edges.
The frame and vertical tube posts are stainless steel.
The TS422-46 has one shelf.
