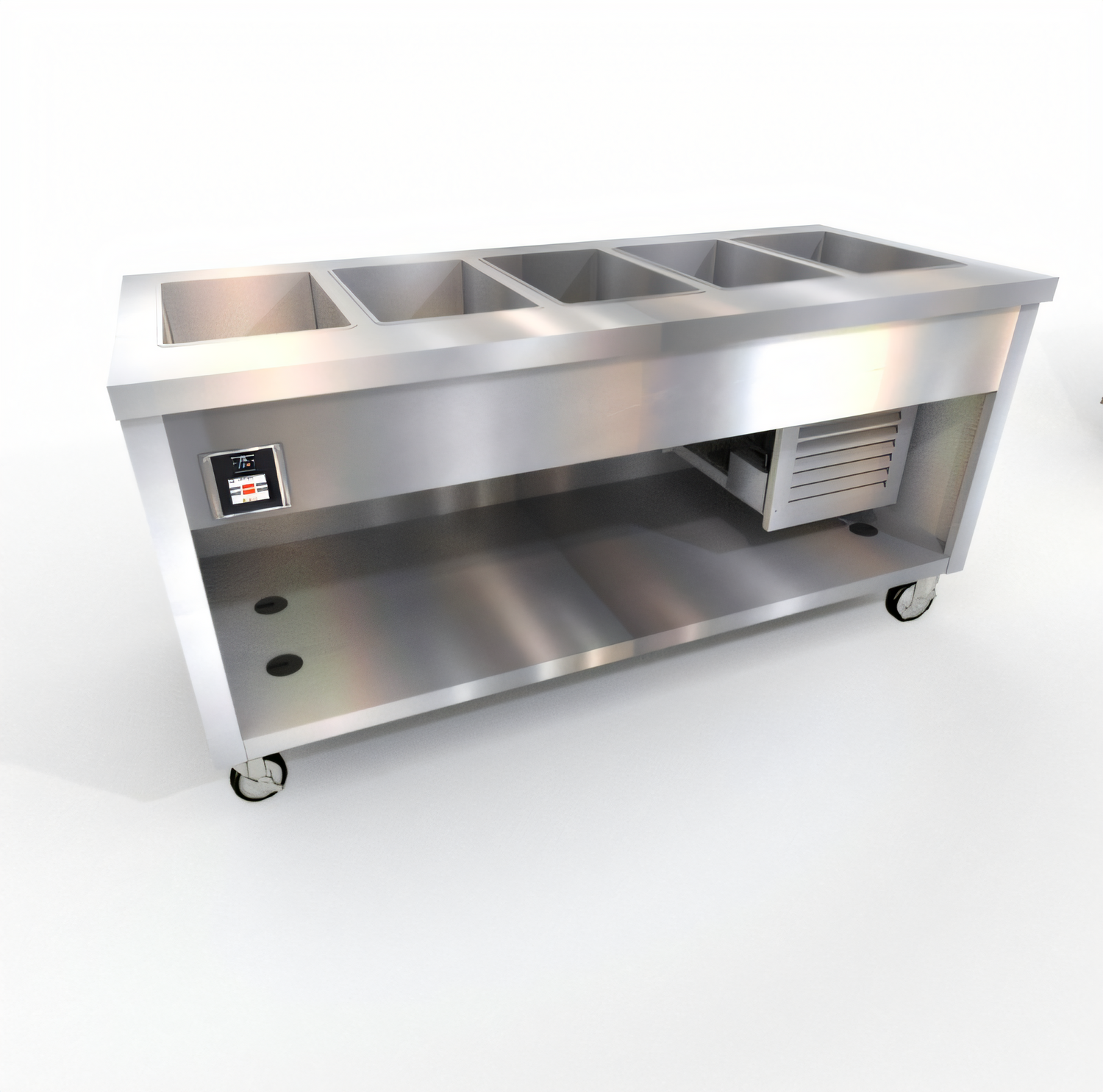

Thurmaduke TFCP-74SS-N7 74-Inch 5-Section Mobile Flush Mount Refrigerated Cold Pan
Thurmaduke TFCP-74SS-N7 74-Inch 5-Section Mobile Flush Mount Refrigerated Cold Pan
Self-Contained R290 Refrigeration, Digital Touchscreen Control, Stainless Steel Body
This mobile 74-inch Thurmaduke flush mount cold pan offers superior cold food holding and efficient self-service with its self-contained R290 refrigeration system and intuitive digital controls.
- Spacious 74-inch width with 5 distinct pan sections for high-capacity cold food holding.
- Flush mount design simplifies food pan access, refilling, and cleaning for staff efficiency.
- Features an intuitive digital touchscreen control with preset temperature settings for easy operation.
- Utilizes an eco-friendly and energy-efficient self-contained R290 hydrocarbon refrigeration system.
- Constructed with a durable 16 gauge 300 series stainless steel top and stainless steel body for commercial resilience.
- Equipped with 5-inch diameter swivel casters and brakes for effortless mobility and secure placement.

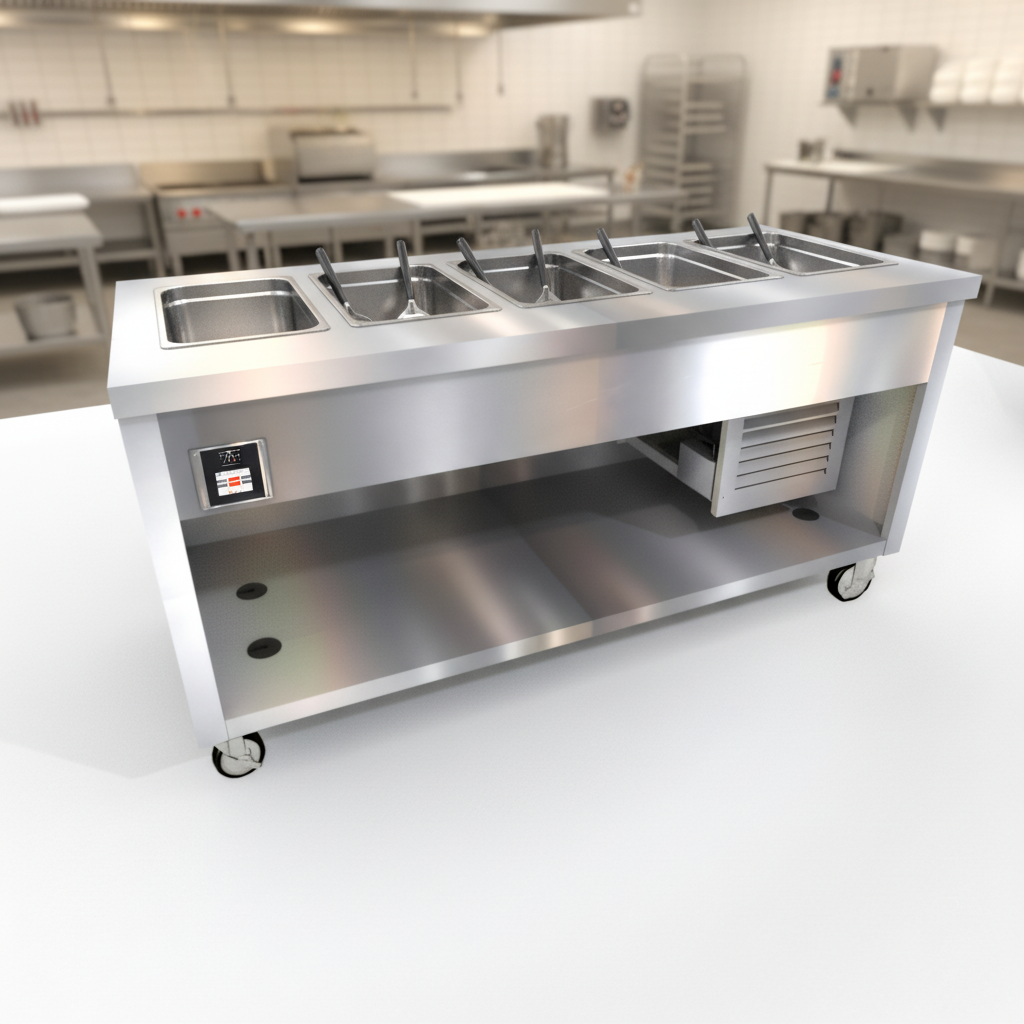

16 Gauge Stainless Steel Top
Provides a robust and hygienic food prep and holding surface, with edges flanged down on all four sides for enhanced structural integrity and a clean, integrated look.

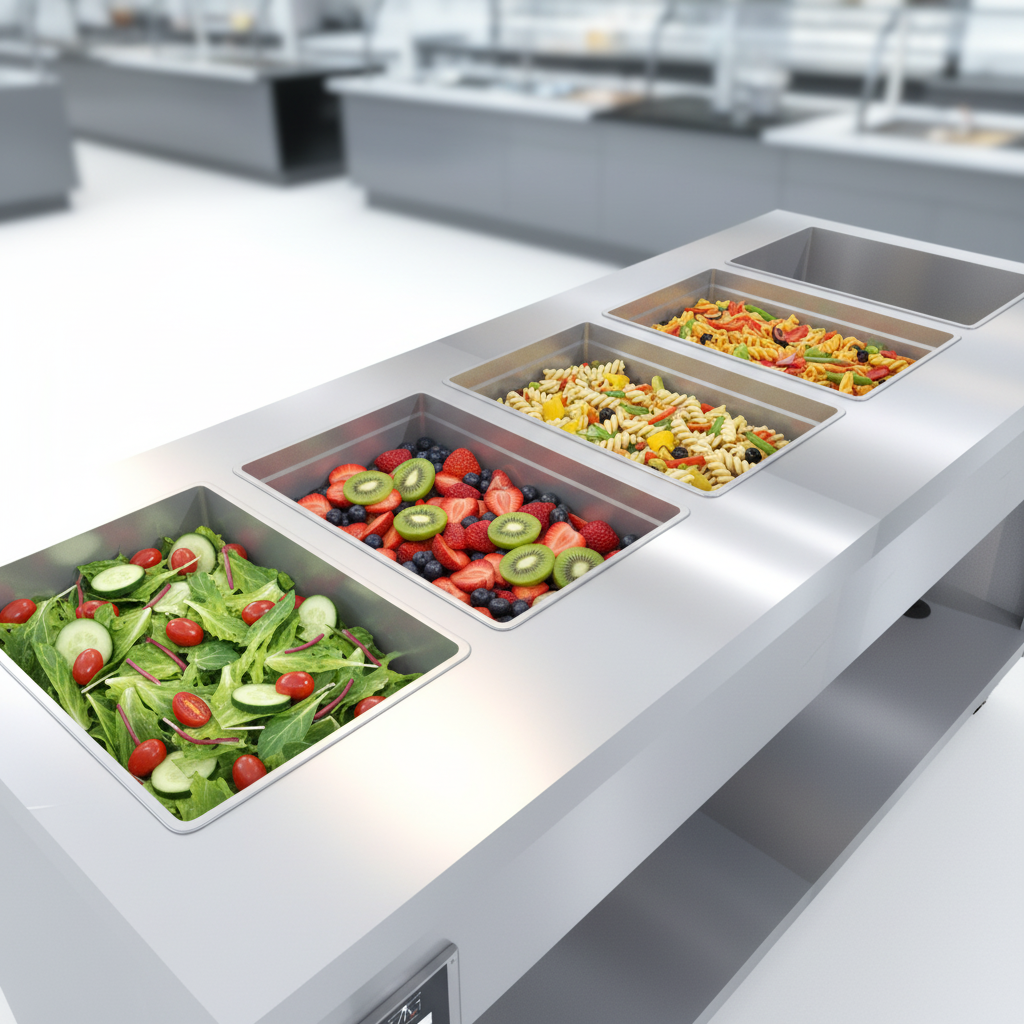

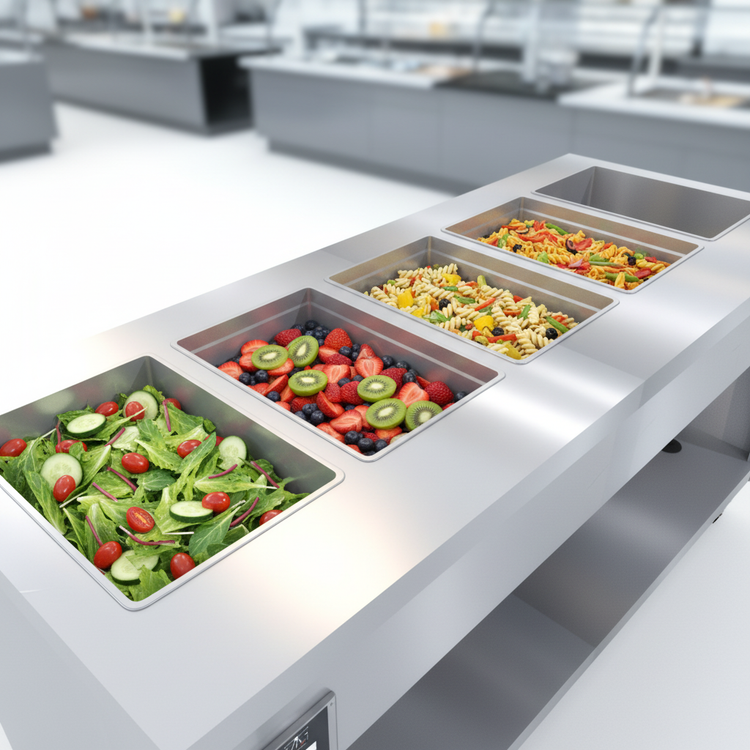

300 Series Stainless Steel Cold Pan Liner
Insulated on all four sides and the bottom, designed to accommodate food pans up to 6 inches deep, ensuring consistent and optimal cold holding temperatures.

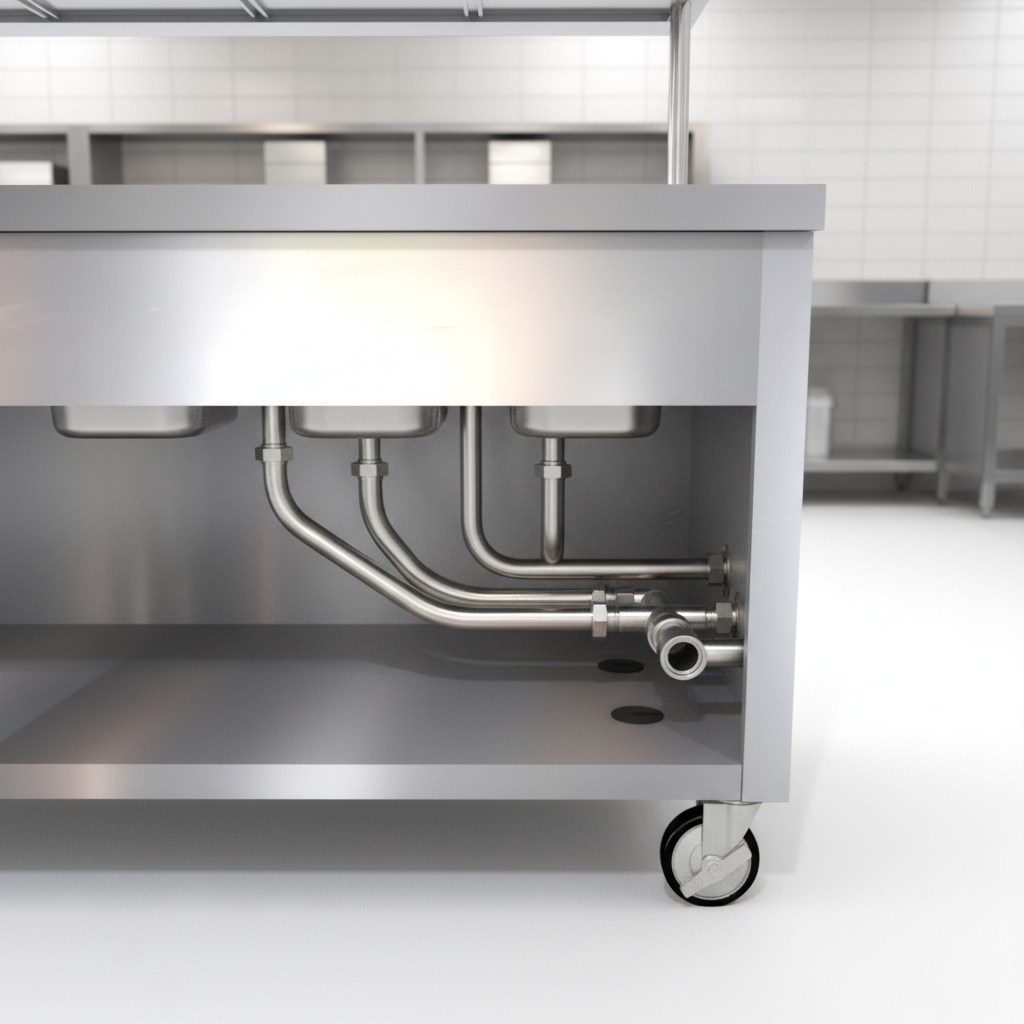

Manifolded Drain System
Each cold well includes a drain, all efficiently manifolded to a single exterior connection point for simplified plumbing installation and maintenance.
Self-Contained R290 Refrigeration
An environmentally friendly and energy-efficient R290 hydrocarbon refrigerant system with the condensing unit conveniently located below the top, accessible via a hinged louvered panel for service.
Digital Touchscreen Control
Features a user-friendly touchscreen interface with three preset temperature settings (LOW/MED/HIGH), strategically positioned in the apron for easy access and precise temperature management.
Stainless Steel Body and Undershelf
Offers a durable and easy-to-clean exterior, with the operator's side featuring an open design to the bottom shelf and the customer side and ends fully enclosed for a professional appearance.
Mobile Design with Casters
Equipped with heavy-duty 5-inch diameter swivel casters, each with brakes, allowing for effortless repositioning of the unit and secure locking during operation.
Flush Mount Design
Enhances operational efficiency by making it easier for staff to access, lift, and refill food pans, while also simplifying countertop cleaning by eliminating recessed areas.
On-Screen Notifications
Provides helpful visual alerts and notifications for basic functionality issues, enabling staff to proactively identify and address potential problems.
Specifications
| Type | Cold Pan Unit |
|---|---|
| Style | Flush Mount |
| Installation Type | Floor Model (With Casters) |
| Pan Capacity | 5 Full-Size Pans (up to 6 Inches Deep) |
| Material | Stainless Steel |
| Interior Finish | 300 Series Stainless Steel |
| Top Construction | 16 Gauge 300 Series Stainless Steel |
| Controls | Digital Touchscreen |
| Refrigeration Type | Self-Contained |
| Refrigerant Type | R290 |
| Refrigerant Charge | 130 Grams |
| Voltage | 120 Volts |
| Hertz | 60 Hz |
| Phase | 1-Phase |
| Amps | 6.8 Amps |
| Watts | 816 Watts |
| Plug Type | NEMA 5-15 |
| Cord Length | 10 Feet |
| Drain Connection | Required |
| Shipping Width | 74 Inches |
| Shipping Depth | 32 Inches |
| Shipping Height | 36 Inches |
| Shipping Weight | 477 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
Overall Dimensions:
74.0"W x 32.0"D x 36.0"HProduct Weight:
477.0 lbCertifications & Compliance
