Duke Manufacturing

Thurmaduke TFCP-60SS-N7 60" Mobile Flush Mount Refrigerated Cold Pan with 4 Sections

SKU: TFCP-60SS-N7
$11,833.34
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

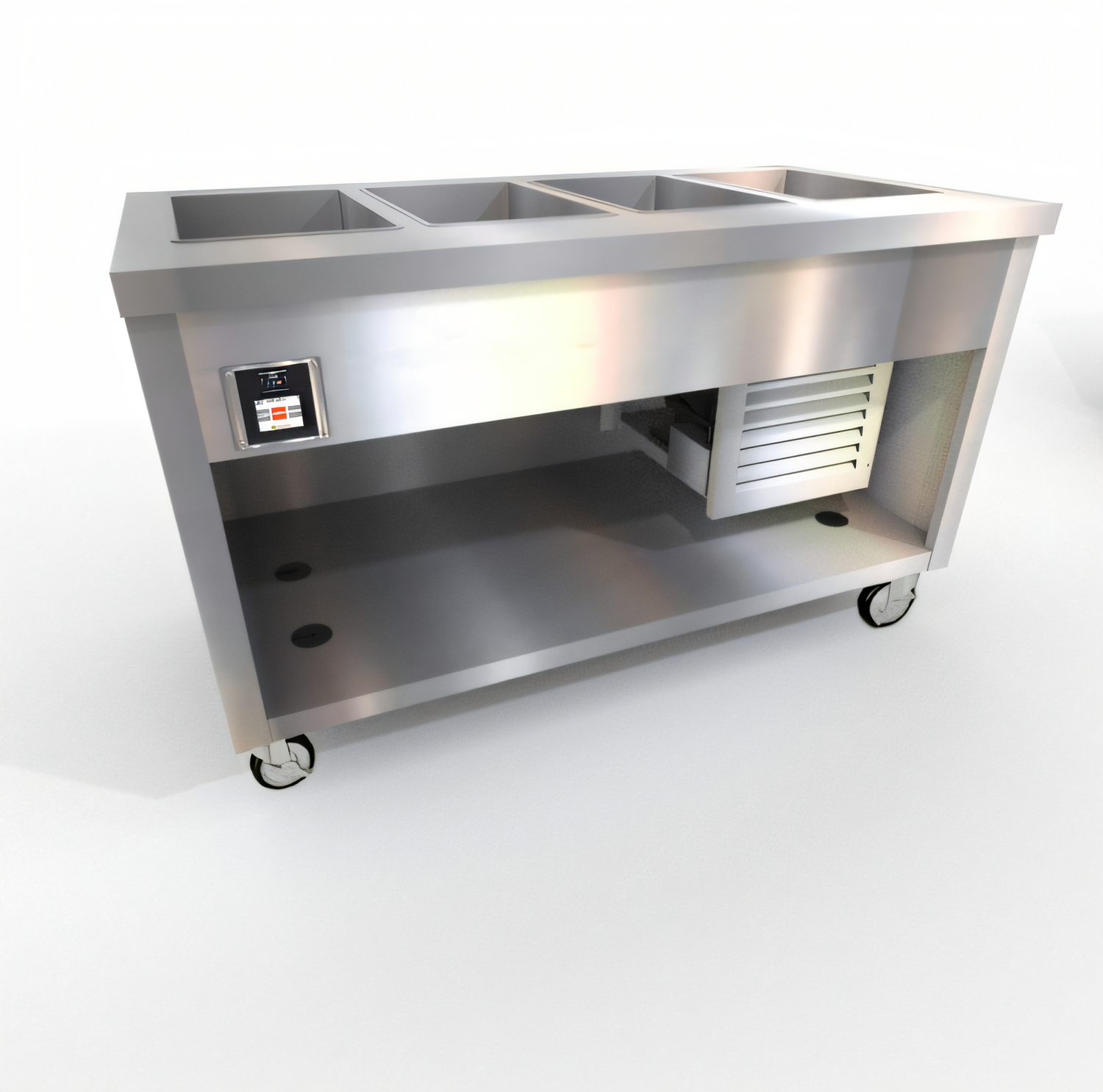

Thurmaduke TFCP-60SS-N7 60" Mobile Flush Mount Refrigerated Cold Pan with 4 Sections

Self-Contained R290 Refrigeration, Digital Touchscreen Control, Stainless Steel Body

Designed for optimal food merchandising and easy self-service, this Thurmaduke cold pan unit provides reliable, NSF 7 compliant refrigerated holding for a variety of food items.

  • 60-inch mobile flush mount cold pan featuring 4 pan sections for versatile food display.
  • Self-contained R290 refrigeration system ensures efficient and environmentally friendly cooling.
  • Intuitive digital touchscreen control offers preset temperature settings for simple, precise operation.
  • Constructed with a durable 16 gauge 300 Series stainless steel top and body for longevity and easy cleaning.
  • Features individually drained wells manifolded to a single location for streamlined maintenance.
  • Equipped with 5-inch swivel casters with brakes, providing effortless mobility and secure positioning.

Flush Mount Design

The innovative flush mount makes it easier for staff to grab, lift, and refill food pans, while also simplifying countertop cleaning as there is no recessed edge.

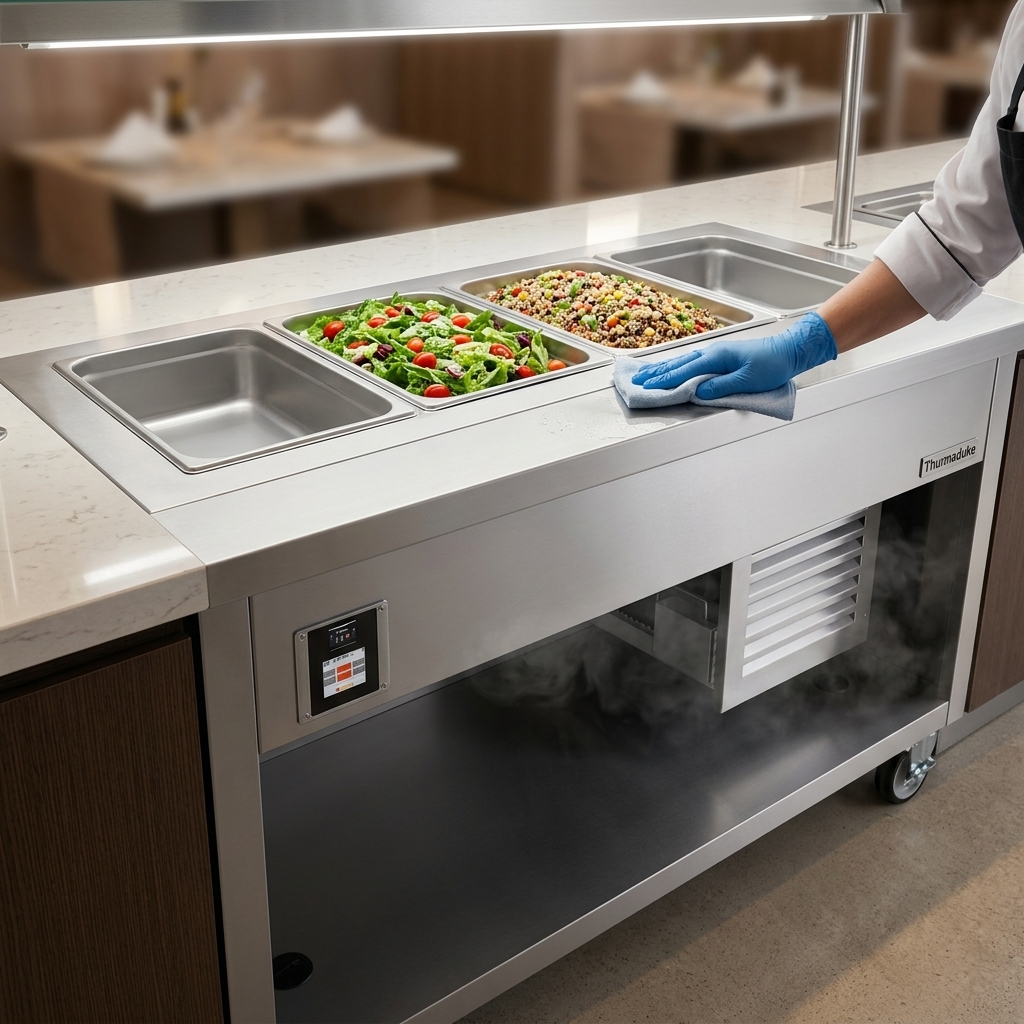

Its innovative flush mount design allows for effortless cleaning and seamless integration into any commercial counter.

Digital Touchscreen Control

An intuitive and colorful touchscreen interface provides simple access to 3 preset temperature settings (LOW/MED/HIGH), minimal touches for function changes, and helpful visual alerts for optimal operation.

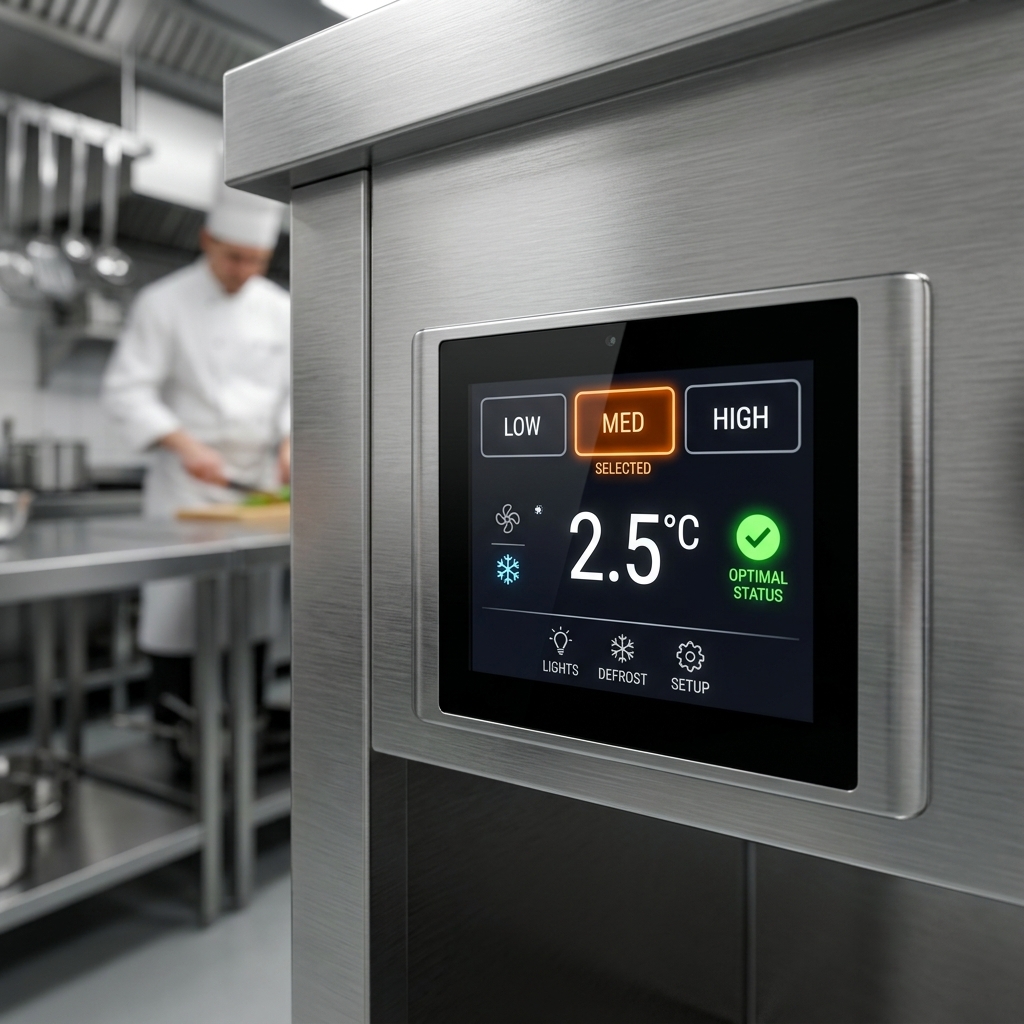

Effortlessly manage temperatures with the intuitive digital touchscreen control, offering simple access to presets and helpful visual alerts for optimal operation.

Self-Contained R290 Refrigeration

Utilizes R290 refrigerant for efficient and environmentally conscious cooling, with the condensing unit conveniently located under the top on the operator's right, accessible via a hinged louvered panel.

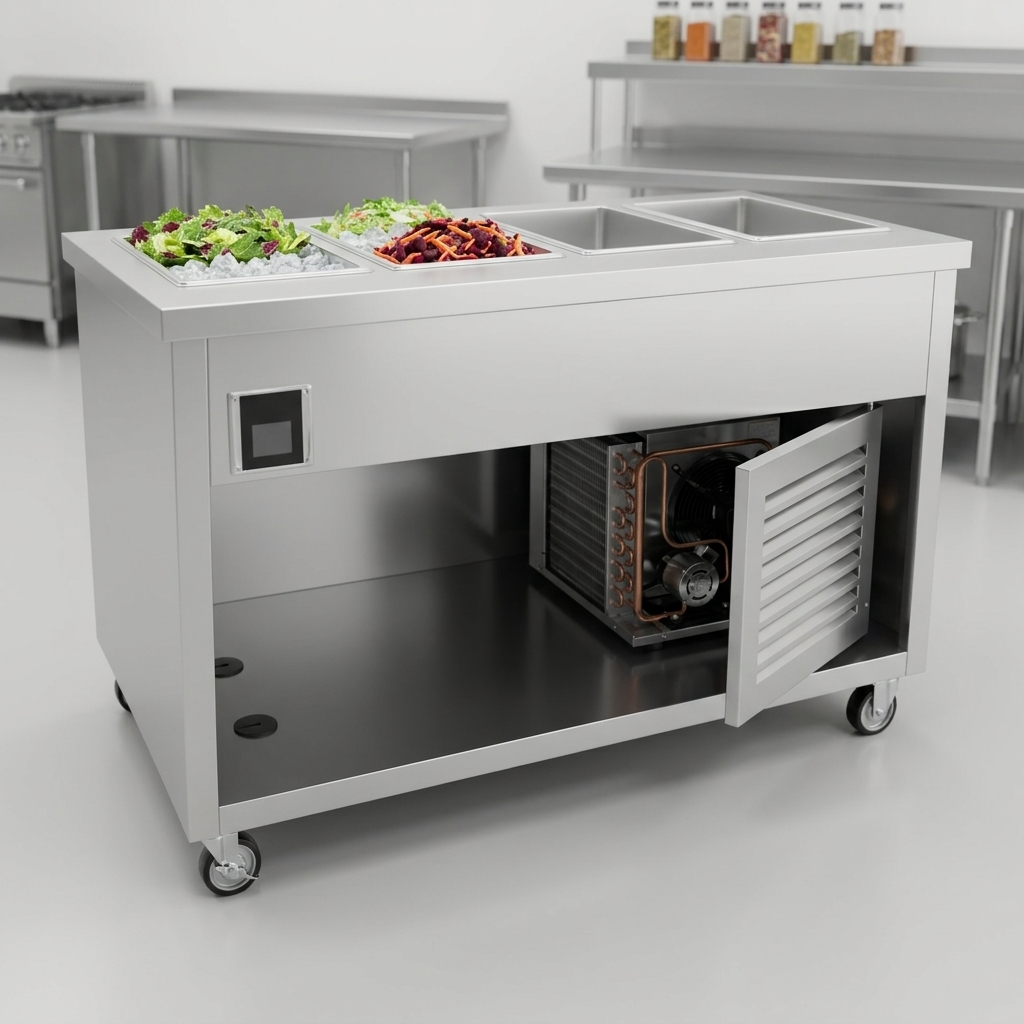

This image highlights the Thurmaduke 60" Cold Pan's self-contained R290 refrigeration unit, easily accessible through its hinged louvered panel for convenient maintenance.

Durable Stainless Steel Construction

Built with a 16 gauge 300 Series stainless steel top and cold pan liner, alongside a stainless steel body and undershelf, ensuring long-lasting durability and ease of sanitation.

Manifolded Drain System

Each well includes its own drain, which is manifolded to a single connection point for convenient and efficient waste removal.

Mobile with Brakes

Fitted with 5-inch diameter swivel casters that include brakes, allowing for easy repositioning and stable locking during use.

Insulated Cold Pan Liner

The 300 Series stainless steel cold pan liner is insulated on all four sides and bottom to maintain consistent and safe food holding temperatures.

Service Access

The traditional refrigeration design system is easy to service, and the operator's side is open to the bottom shelf for convenient access, while the customer side and ends are fully enclosed.

Specifications

Type Flush Mount Cold Pan Unit
Style Mobile
Installation Type Floor Model (With Casters)
Material Stainless Steel
Top Construction 16 Gauge 300 Series Stainless Steel
Interior Finish 300 Series Stainless Steel
Pan Capacity 4 Sections
Capacity Accepts up to 6" Deep Food Pans
Controls Digital Touchscreen
Refrigeration Type Self-Contained
Refrigerant Type R290
Voltage 120 Volts
Phase 1-Phase
Hertz 60 Hz
Amps 6.8 Amps
Watts 816 Watts
Plug Type NEMA 5-15P
Cord Length 10 Feet
Drain Connection Required
Casters 5" Diameter Swivel Casters with Brakes
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 32 Inches
Shipping Height 36 Inches
Shipping Weight 386 lb.

Overall Dimensions:

60.0"W x 32.0"D x 36.0"H

Product Weight:

386.0 lb
Manufacturer Duke Manufacturing
Brand name Thurmaduke
Certifications ["cULus", "UL EPH Classified"]
Height 36.0in
Width 60.0in
Depth 32.0in
Shipping Weight 386.0lbs
Base Design open rear
Pan Capacity unspecified
Base Finish specify
Mobile or Stationary mobile
Overall Width (side - side) 55" - 60"
Top Construction stainless steel top
Working Height 36"
Cooling Type refrigerated
Base Construction stainless steel
Specifications Thurmaduke™ Flush Mount Cold Pan Unit, mobile, 60"W x 32"D x 36"H, 16ga stainless steel top, (4) pan size, digital control, self-contained refrigeration, drain for each well manifolded to one location, hinged stainless steel louvered grill, stainless steel body & undershelf, 5" dia. swivel casters with brakes, 10' cord & plug, 120v/60/1-ph, R290, NEMA 5-15, 6.8 amps, CULus, UL EPH Classified

Frequently Asked Questions

The TFCP-60SS-N7 features a user-friendly touchscreen control with three preset temperature settings (LOW/MED/HIGH) for easy and precise temperature management.
The cold pan liner is designed to accept standard food pans up to 6 inches deep, offering flexibility for various food holding needs.
The condenser coil should be regularly cleaned. For light dust, use a brush or vacuum. For heavier buildup or grease, use compressed air to blow through from the inside out, potentially with a degreasing agent. Neglecting cleaning can void warranties.
This unit requires 120 Volts, 1-Phase, 60 Hz, drawing 6.8 Amps, and comes with a 10-foot cord and NEMA 5-15P plug.
Yes, the unit is mobile, equipped with 5-inch diameter swivel casters with brakes, allowing for easy repositioning and secure locking in place.
The flush mount design makes it easier for staff to access, lift, and refill food pans compared to recessed models. It also simplifies cleaning, as there is no 3-inch recess to clean around.
