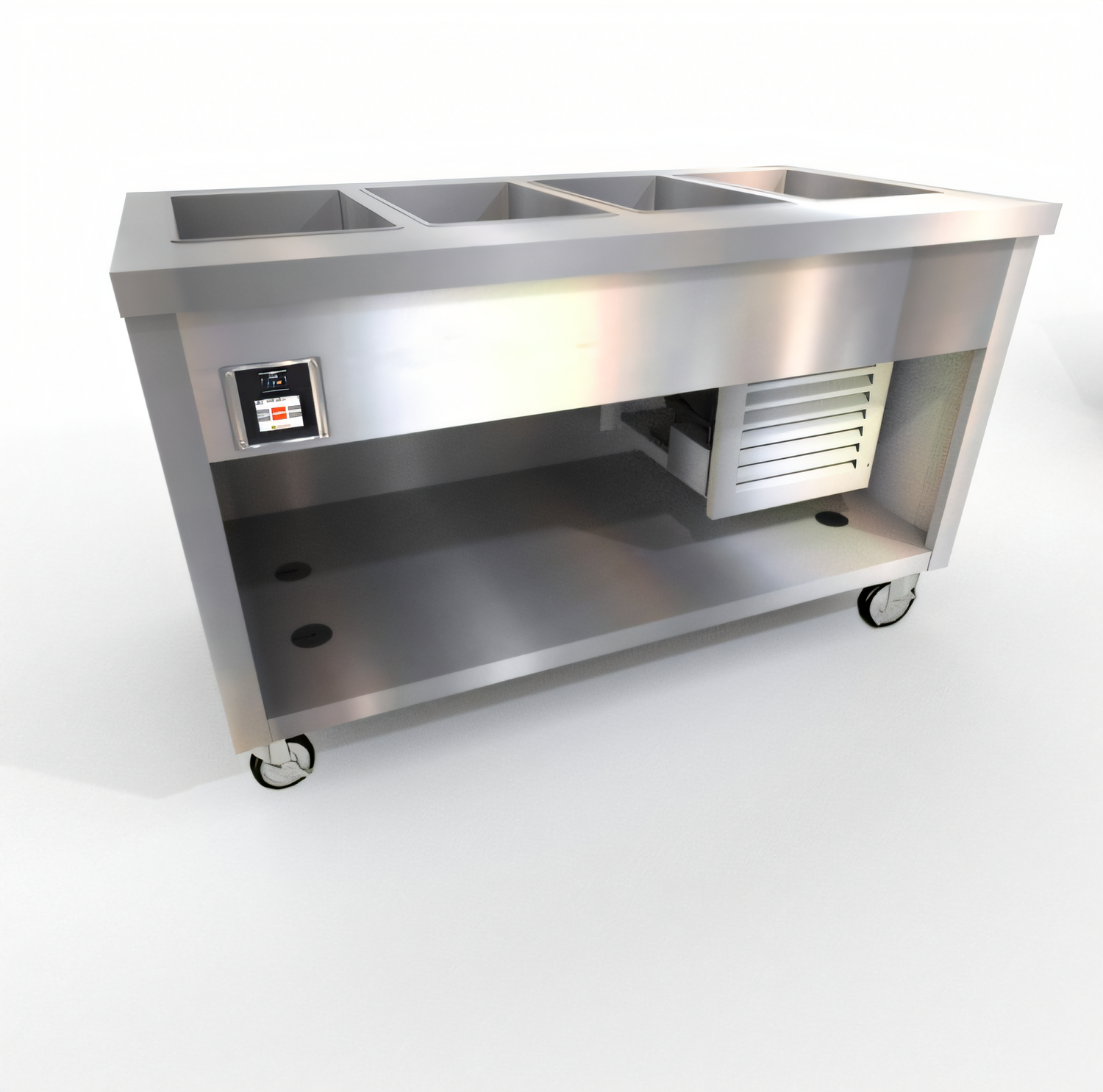

Thurmaduke TFCP-60PG-N7 Flush Mount Mobile Cold Pan Unit, 60-Inch, 4-Section

60-Inch Width, 4 Pan Capacity, Self-Contained Refrigeration, Digital Control, Mobile

Showcase your chilled culinary creations with the Thurmaduke TFCP-60PG-N7, a mobile, flush-mount cold pan unit designed for enhanced food merchandising and easy self-service.

  • Mobile design with 5-inch swivel casters with brakes for flexible placement and secure positioning.
  • Flush mount cold pan liner makes food easier to reach, clean, and refill, reducing effort for staff.
  • Self-contained R290 refrigeration system ensures efficient and environmentally friendly cooling.
  • Intuitive touchscreen control offers three preset temperature settings for simple operation.
  • Durable 16 gauge 300 Series stainless steel top and cold pan liner for lasting commercial use.
  • Four-section capacity accommodates standard food pans up to 6 inches deep, ideal for various food items.
  • Drains for each well are manifolded to a single location for simplified plumbing connections.

Overall Dimensions:

60.0"W x 32.0"D x 36.0"H

Product Weight:

386.0 lb

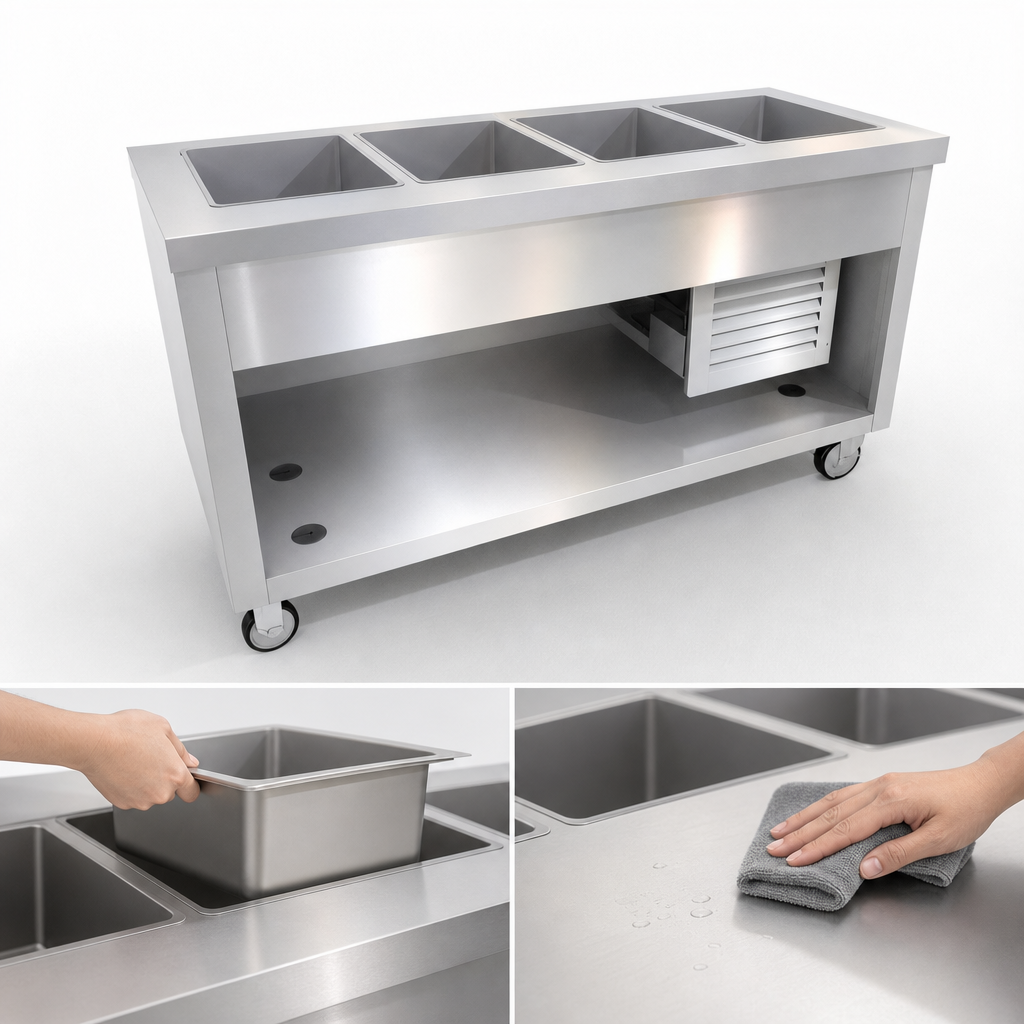

Flush Mount Cold Pan Design

The innovative flush mount design makes it easier for staff to grab, lift, and refill food pans, while also simplifying countertop cleaning by eliminating recessed areas.

Self-Contained R290 Refrigeration

Equipped with an R290 refrigerant condensing unit located below the top on the operator's right, accessible via a hinged louvered panel for easy maintenance. R290 is a natural, environmentally friendly refrigerant.

Digital Touchscreen Control

Features a left-justified touchscreen control in the apron with simple touch functionality and three preset temperature settings (LOW, MED, HIGH), providing intuitive temperature management and helpful visual alerts.

Four Pan Sections

The cold pan liner is constructed from 300 Series stainless steel and is insulated on all four sides and bottom, designed to accept four full-size food pans up to 6 inches deep.

Manifolded Drain System

Each cold well includes a drain that is manifolded to a single, convenient location, streamlining plumbing connections and ensuring efficient water removal.

Durable Construction

Built with a 16 gauge, 300 Series stainless steel top with flanged edges and a paint grip steel body and undershelf for robust commercial performance.

Mobile Design with Casters

Features 5-inch diameter swivel casters with brakes, allowing for effortless movement and secure placement within your serving area.

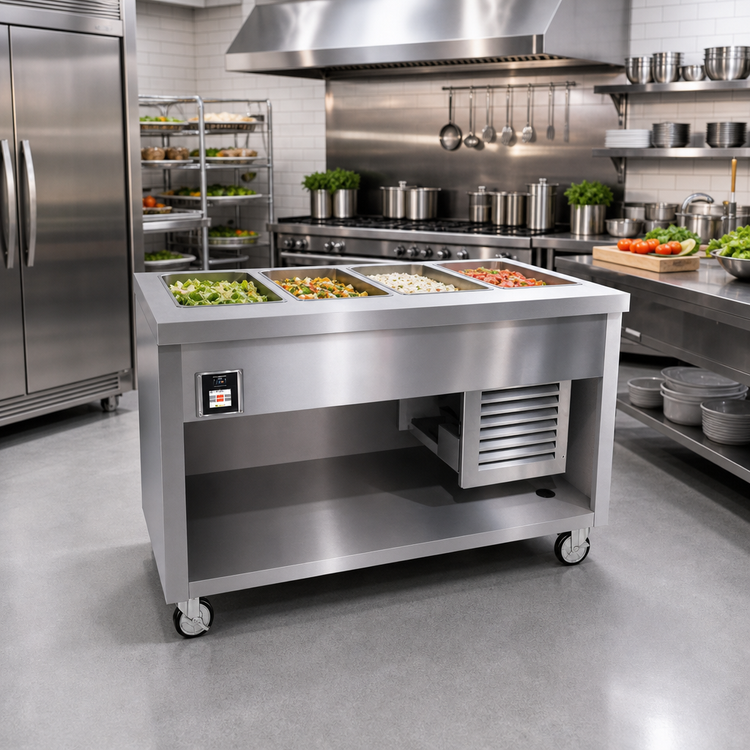

Enhanced Food Merchandising

With minimal equipment visibility, the unit enhances food display, making food easier to see and reach, which promotes greater sales and improves self-service efficiency.

Type Flush Mount Cold Pan Unit
Style Mobile
Installation Type Floor Model (With Casters)
Material 300 Series Stainless Steel (Top and Liner), Paint Grip Steel (Body and Undershelf)
Top Construction 16 Gauge 300 Series Stainless Steel
Exterior Finish Paint Grip Steel
Interior Finish 300 Series Stainless Steel
Pan Capacity 4 Sections (Holds 6 Inch Deep Pans)
Refrigeration Type Self-Contained, Mechanically Cooled
Refrigerant Type R290
Refrigerant Charge 120 Grams
Controls Touchscreen Digital with Presets
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 6.8 Amps
Watts 816 Watts
Plug Type NEMA 5-15
Cord Length 10 Feet
Water Connection Not Required
Drain Connection Required
Shipping Width 60 Inches
Shipping Depth 32 Inches
Shipping Height 36 Inches
Shipping Weight 386 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Refer to manufacturer documentation for specific warranty duration.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Illustrated parts list PDF Download PDF Salesheet PDF Download PDF Quick reference guide PDF Download PDF Installation and operation manual PDF Download

Frequently Asked Questions

The TFCP-60PG-N7 utilizes a self-contained, mechanically cooled refrigeration system that uses R290 refrigerant. This system is designed to meet NSF Standard 7 for cold food holding.
The TFCP-60PG-N7 is a 4-section unit, capable of holding four full-size food pans up to 6 inches deep. This allows for versatile food presentation options.
This unit is equipped with a modern touchscreen digital control panel, featuring three preset temperature settings (LOW, MED, HIGH) for easy operation. Other models in the series may offer a basic mechanical control as an alternative option.
Yes, its flush mount design simplifies cleaning around the countertop and refilling food pans. For general cleaning, use warm, soapy water and a plastic scouring pad. It's crucial to regularly clean the condenser coil with a brush, vacuum, or compressed air to prevent buildup, which can cause high temperatures and potentially void the warranty.
The TFCP-60PG-N7 requires a 120 Volt, 1-Phase, 60 Hz electrical connection, drawing 6.8 Amps. It comes with a NEMA 5-15 plug and a 10-foot cord.
No, the TFCP-60PG-N7 does not require a direct water connection for its refrigeration operation. It does, however, have drains for each well that are manifolded to one location, requiring a connection for drainage.
