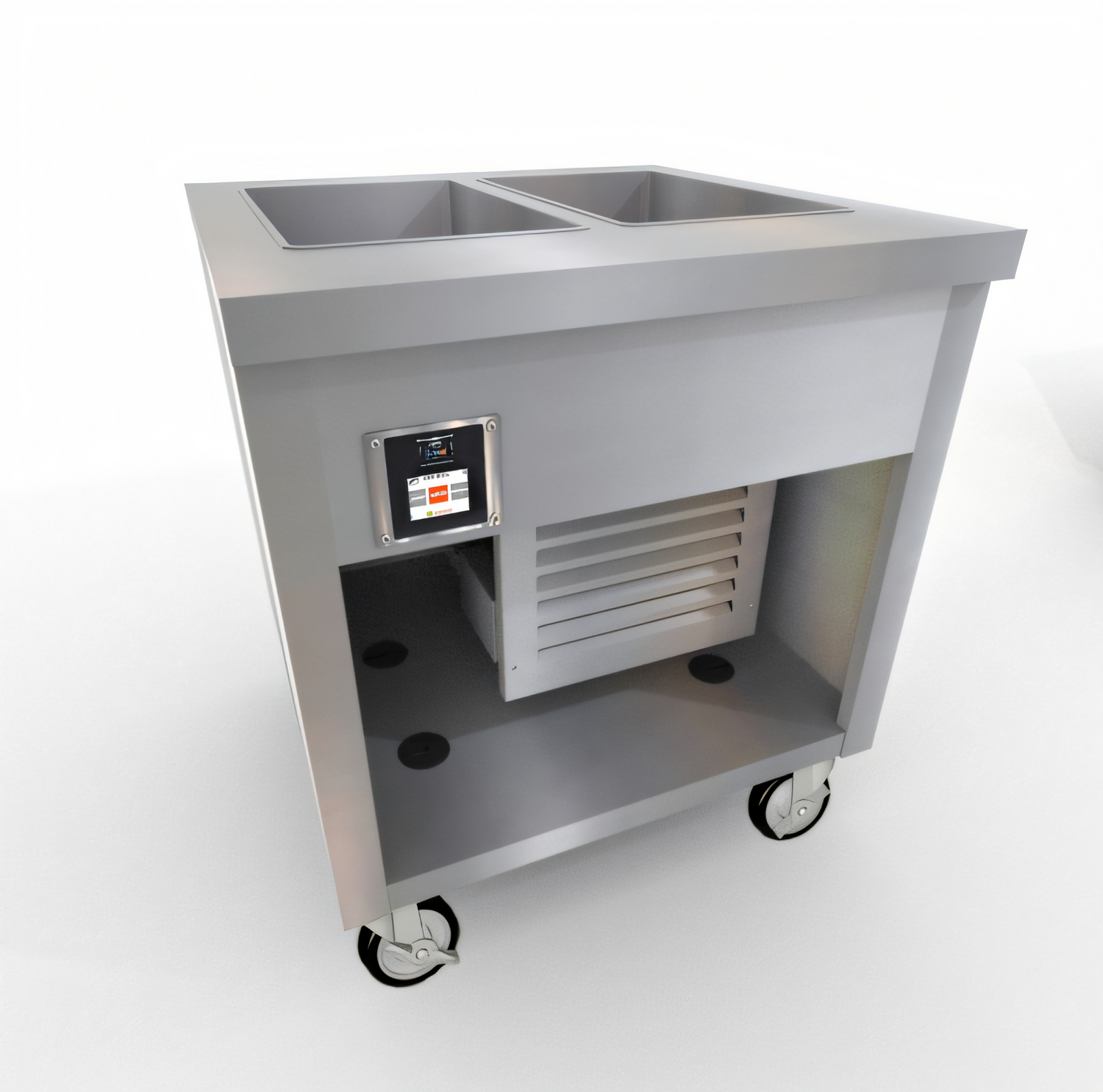

Thurmaduke TFCP-32PG-N7 32" Mobile 2-Section Flush Mount Cold Pan Unit with Self-Contained R290 Refrigeration
Thurmaduke TFCP-32PG-N7 32" Mobile 2-Section Flush Mount Cold Pan Unit with Self-Contained R290 Refrigeration
Mobile, 2-Section, Self-Contained R290 Refrigeration, 120V, Paint Grip Steel Body
Optimize your serving line with the Thurmaduke TFCP-32PG-N7 mobile cold pan unit, designed for superior food merchandising, easy staff access, and efficient cold holding.
- Mobile design with 5" swivel casters for flexible placement and easy relocation.
- Flush mount cold pan liner facilitates effortless food pan access, refilling, and cleaning.
- Self-contained R290 refrigeration system ensures efficient and environmentally friendly cooling.
- Intuitive touchscreen digital control offers simple temperature management with preset options.
- Durable 16 gauge 300 Series stainless steel top and insulated cold pan liner meet NSF Standard 7.
- Manifolded drains for each well ensure convenient and centralized waste disposal.

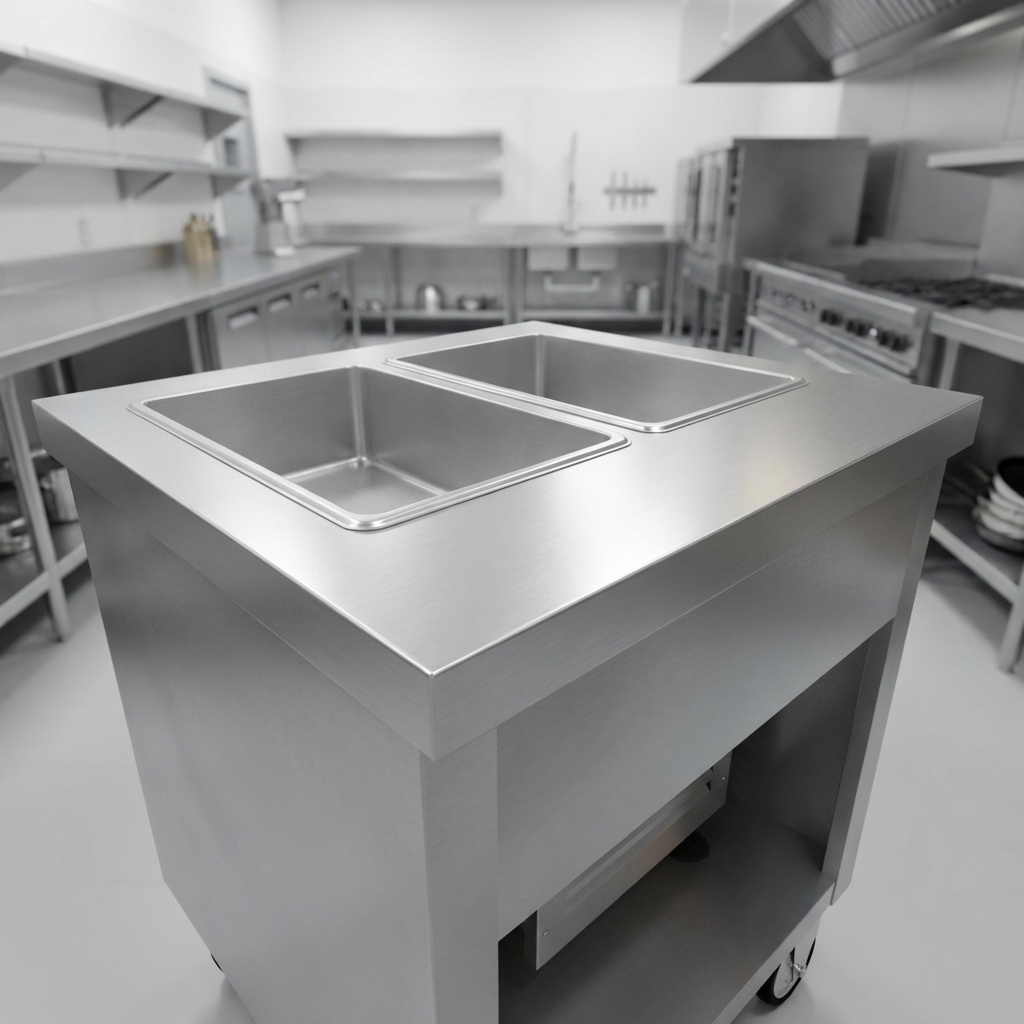

16 Gauge 300 Series Stainless Steel Top
Provides a robust and hygienic surface that is flanged down 2 inches at 90° on all four sides, with inside edges flanged down against the liner for a seamless fit.

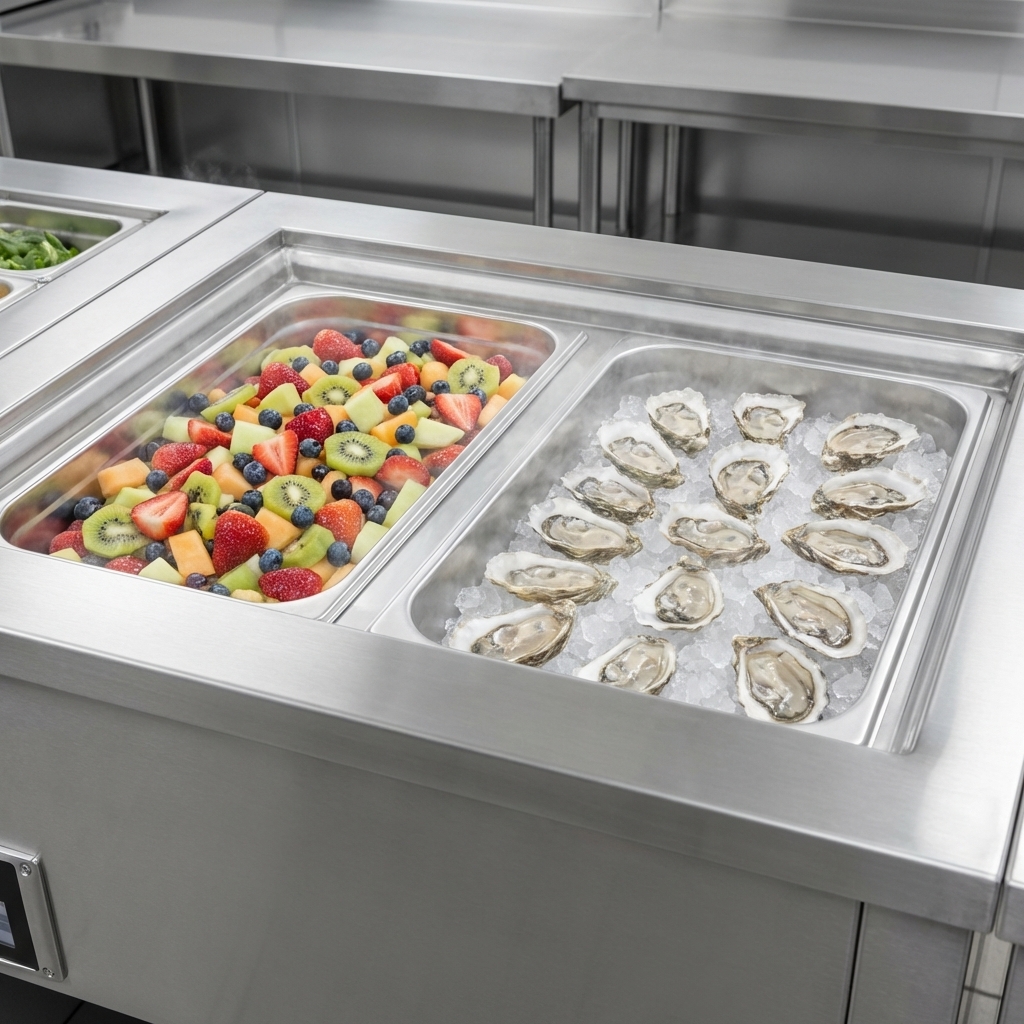

300 Series Stainless Steel Cold Pan Liner
Insulated on all four sides and bottom, this liner accepts food pans up to 6 inches deep, ensuring efficient cold holding and compliance with NSF Standard 7.

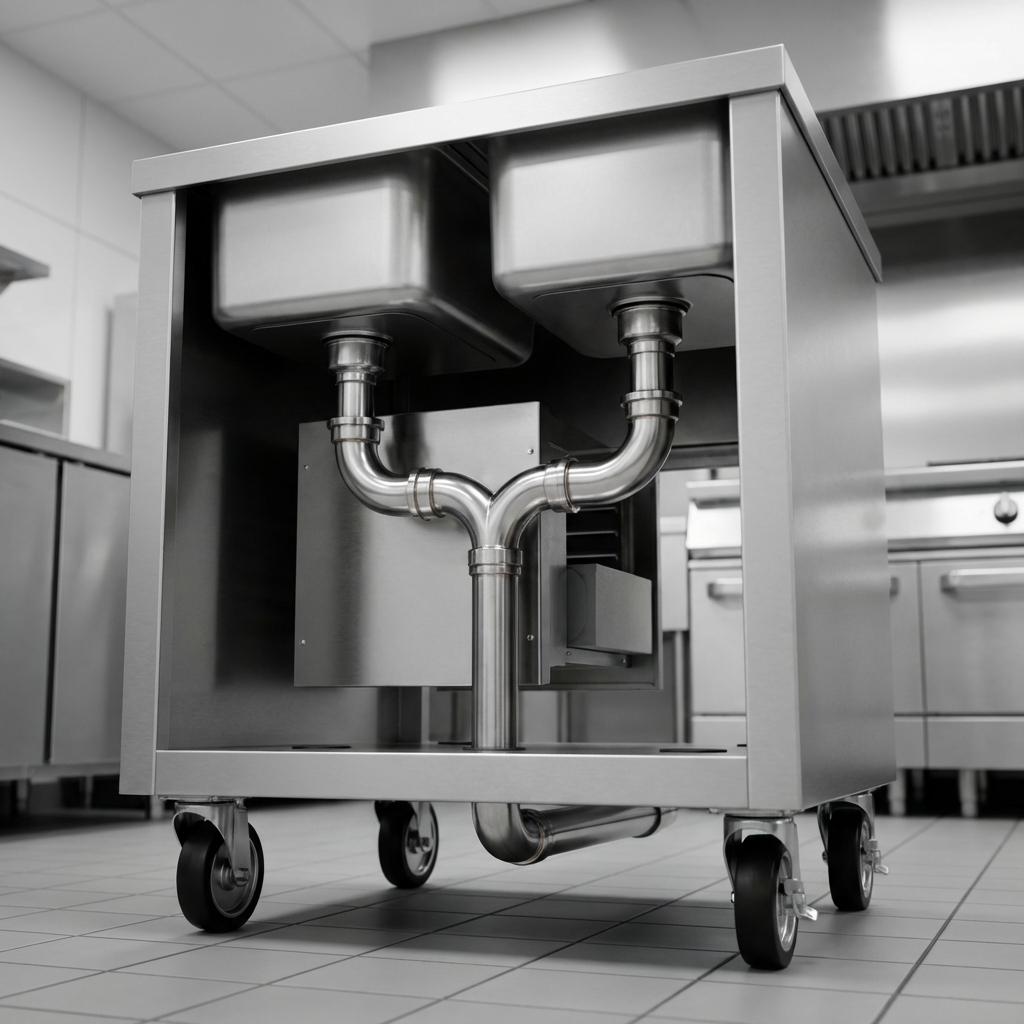

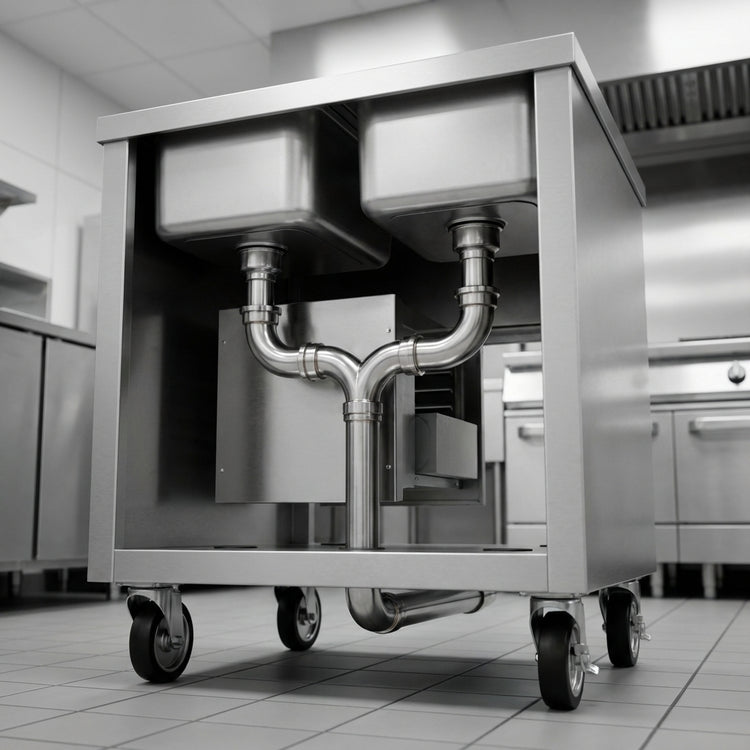

Manifolded Drain System
Each cold well features an individual drain, all manifolded to a single location for streamlined plumbing and easy waste management.
Self-Contained R290 Refrigeration
Equipped with an energy-efficient R290 refrigerant system and a condensing unit located below the top on the operator's right, ensuring reliable and eco-friendly cooling.
Hinged Louvered Panel
A hinged louvered panel provides convenient access to the refrigeration area for maintenance and service.
Touchscreen Digital Control
Features a user-friendly touchscreen control, left-justified in the apron, with simple LOW/MED/HIGH temperature presets for precise climate management.
Durable Body Construction
Constructed with a paint grip steel body and undershelf, designed for long-lasting performance. The customer side and ends are fully enclosed, while the operator's side remains open to the bottom shelf.
5" Swivel Casters with Brakes
Heavy-duty 5-inch diameter swivel casters with brakes allow for effortless mobility and secure positioning of the unit.
Specifications
| Type | Cold Pan Unit |
|---|---|
| Style | Flush Mount |
| Installation Type | Floor Model (With Casters) |
| Pan Capacity | 2 Sections; Accepts 6" deep food pans |
| Material | 16 gauge 300 Series Stainless Steel Top, Paint Grip Steel Body |
| Interior Finish | 300 Series Stainless Steel |
| Controls | Touchscreen Digital |
| Refrigeration Type | Self-Contained |
| Refrigerant Type | R290 |
| Voltage | 120 Volts |
| Hertz | 60 Hz |
| Phase | 1-Phase |
| Amps | 3.9 Amps |
| Watts | 568 Watts |
| Plug Type | NEMA 5-15P |
| Cord Length | 10 Feet |
| Drain Connection | Required |
| Shipping Width | 32 Inches |
| Shipping Depth | 32 Inches |
| Shipping Height | 36 Inches |
| Shipping Weight | 285 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
Overall Dimensions:
32.0"W x 32.0"D x 36.0"HProduct Weight:
285.0 lbCertifications & Compliance
Warranty & Protection
See manufacturer for warranty details.
