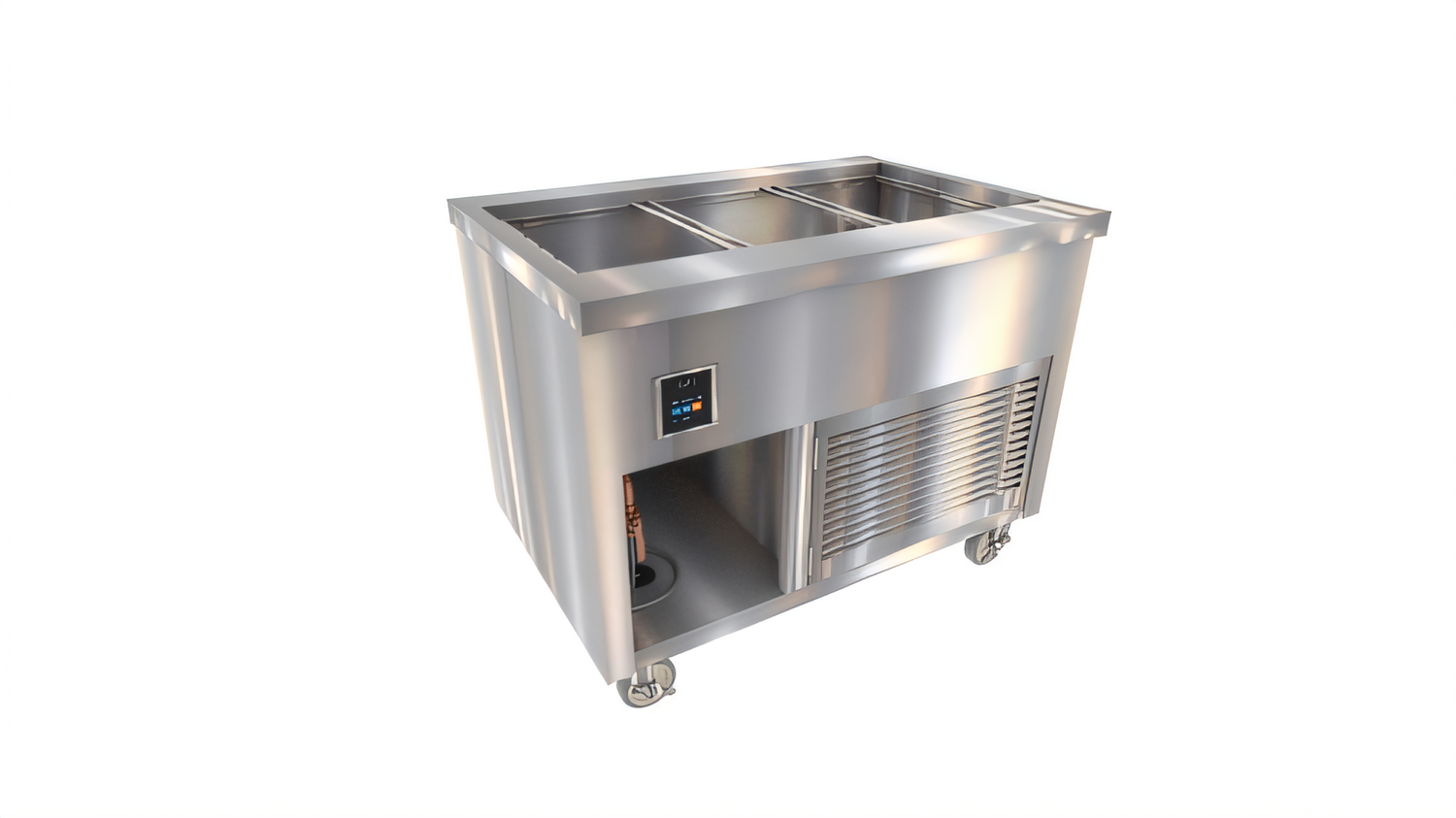

Thurmaduke TCM-46PG-N7 Mobile 46-Inch Refrigerated Cold Food Well with NSF 7 Pan
Thurmaduke TCM-46PG-N7 Mobile 46-Inch Refrigerated Cold Food Well with NSF 7 Pan
Floor Model, 46-Inch Wide, Touchscreen Control, Paint Grip Steel Body
The Thurmaduke TCM-46PG-N7 offers reliable and efficient cold food holding with a mobile design, perfect for dynamic serving environments.
- Mobile design with 5-inch swivel casters for easy relocation and flexible serving setups.
- NSF 7 certified mechanical cold pan ensures safe and consistent food temperatures.
- Durable 16-gauge stainless steel top construction designed for heavy-duty commercial use.
- Intuitive touchscreen control with three pre-set temperatures for precise temperature management.
- Environmentally friendly R290 refrigerant provides efficient cooling.
- Robust paint grip steel body and undershelf offer long-lasting durability.
- Equipped with a 1-inch drain line and shut-off valve for convenient cleaning.

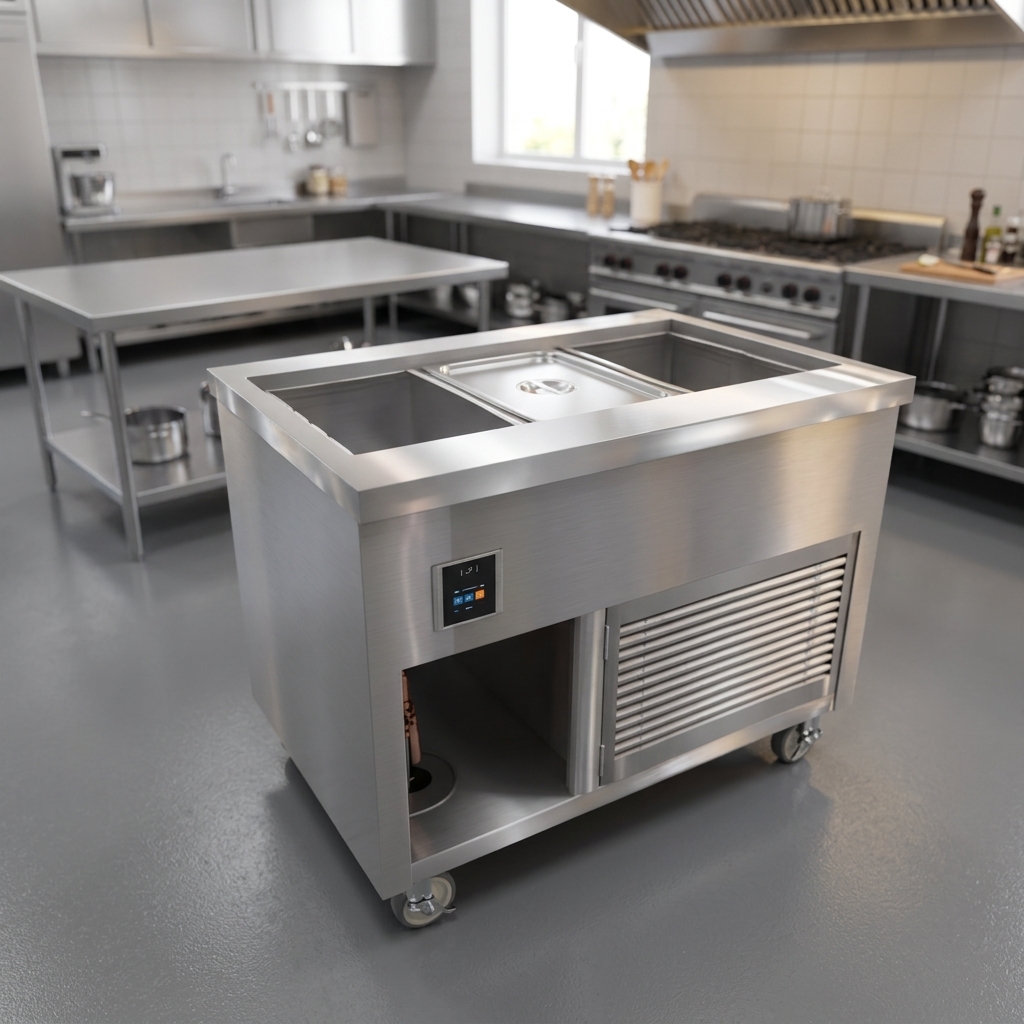

Heavy-Duty Stainless Steel Top
Constructed from 16 gauge, 300 Series stainless steel with edges flanged down 2 inches at 90° on all four sides for durability and easy cleaning.

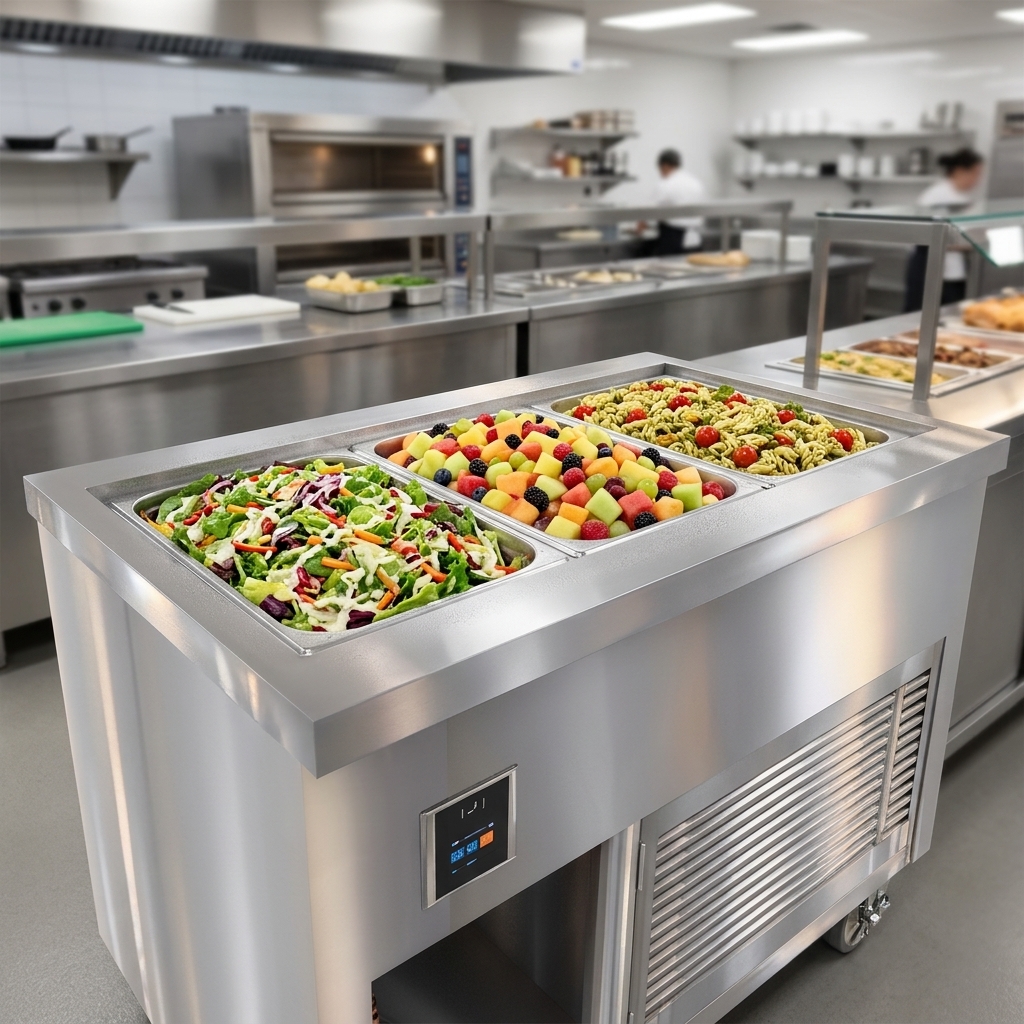

NSF 7 Mechanical Cold Pan
Features an 8-inch deep, 300 Series stainless steel cold pan liner, insulated on all four sides and bottom to maintain proper food temperatures.

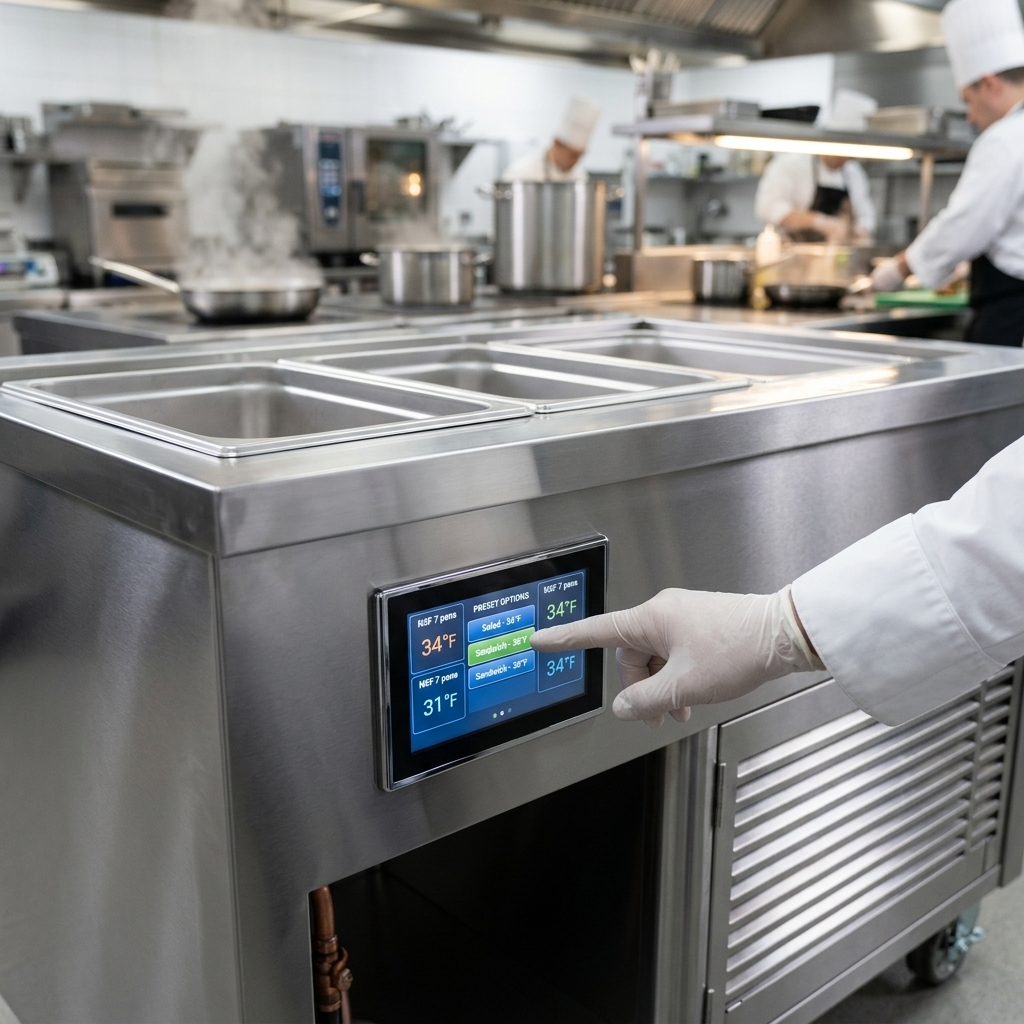

Intuitive Touchscreen Control
Equipped with an easy-to-use touchscreen control that includes 3 pre-set temperatures for precise and consistent refrigeration.
Environmentally Friendly Refrigeration
Utilizes R290 refrigerant and a condensing unit positioned below the top on the operator's right, with a stainless steel louvered grille for efficient air circulation.
Mobile Design with Casters
Comes with 5-inch diameter swivel casters and brakes for effortless mobility and secure placement.
Durable Paint Grip Steel Body
Features a paint grip steel body and undershelf, with the operator's side open to the bottom shelf and the customer side and ends fully enclosed.
Integrated Drain System
Includes a 1-inch drain pipe and shut-off valve located on the operator's right side for convenient water drainage and cleaning.
Specifications
| Type | Cold Food Unit |
|---|---|
| Style | Mobile |
| Installation Type | Floor Model (Mobile) |
| Top Material | 16 Gauge 300 Series Stainless Steel |
| Interior Finish | 300 Series Stainless Steel (Cold Pan Liner) |
| Body Material | Paint Grip Steel |
| Voltage | 120 Volts |
| Hertz | 60 Hz |
| Phase | 1-Phase |
| Amps | 5.2 Amps |
| Plug Type | NEMA 5-15 |
| Cord Length | 6 Feet |
| Refrigerant Type | R290 |
| Refrigeration Type | Mechanical Cold Pan |
| Cold Pan Liner Dimensions | 42 1/2 Inches x 21 3/4 Inches |
| Cold Pan Liner Depth | 8 Inches |
| Drain Connection Size | 1 Inch |
| Drain Connection | Required |
| Controls | Touchscreen |
| Working Height | 36 Inches |
| Shipping Width | 46 Inches |
| Shipping Depth | 32 Inches |
| Shipping Height | 36 Inches |
| Shipping Weight | 354 lb. |
| Country of Origin | USA |
| Selling Unit | Each |
| Units Per Case | 1 |
Overall Dimensions:
46.0"W x 32.0"D x 36.0"HProduct Weight:
354.0 lbCertifications & Compliance
Warranty & Protection
1-year parts and labor, 4-year replacement for refrigeration compressor (parts only)
