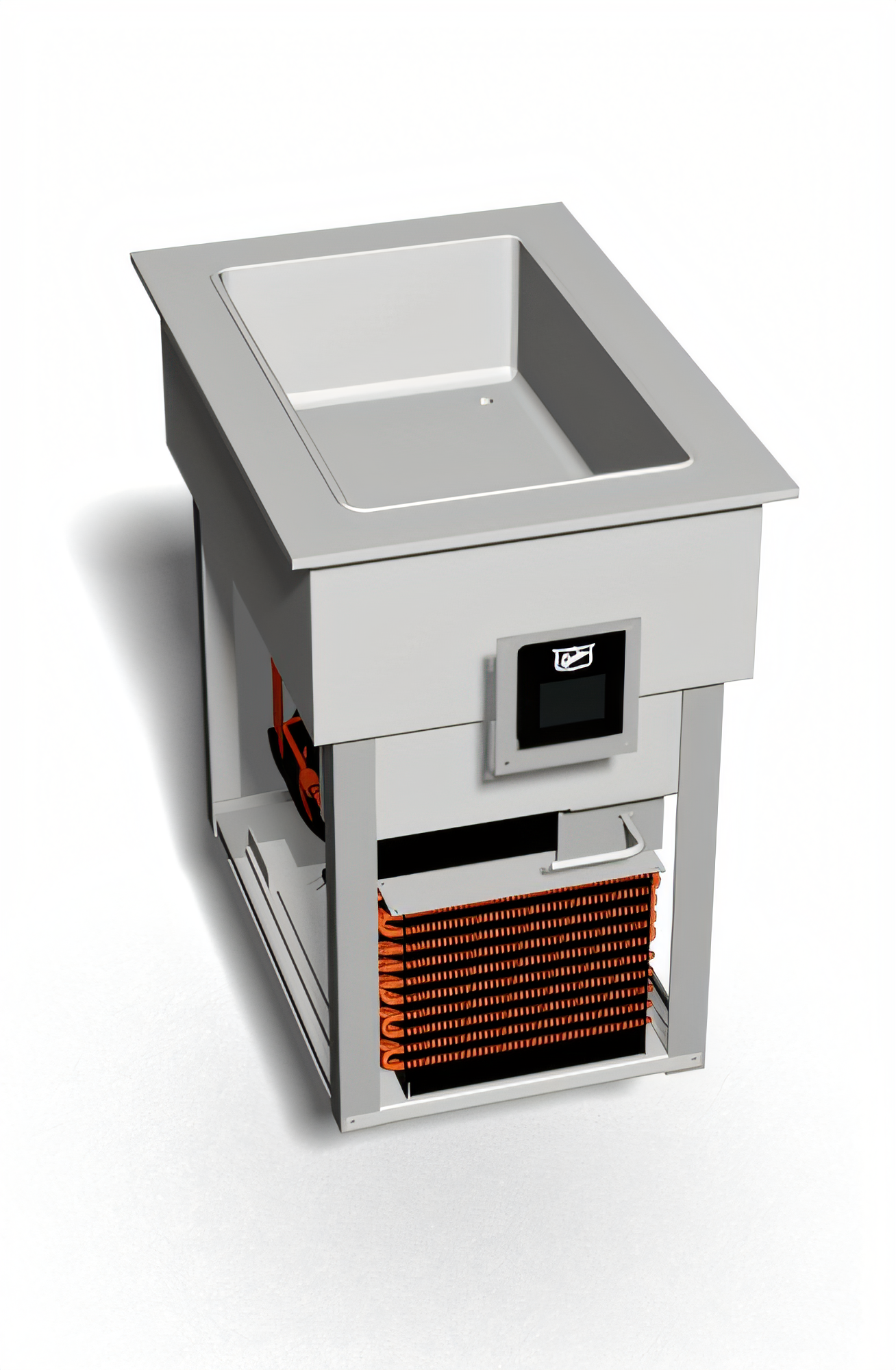

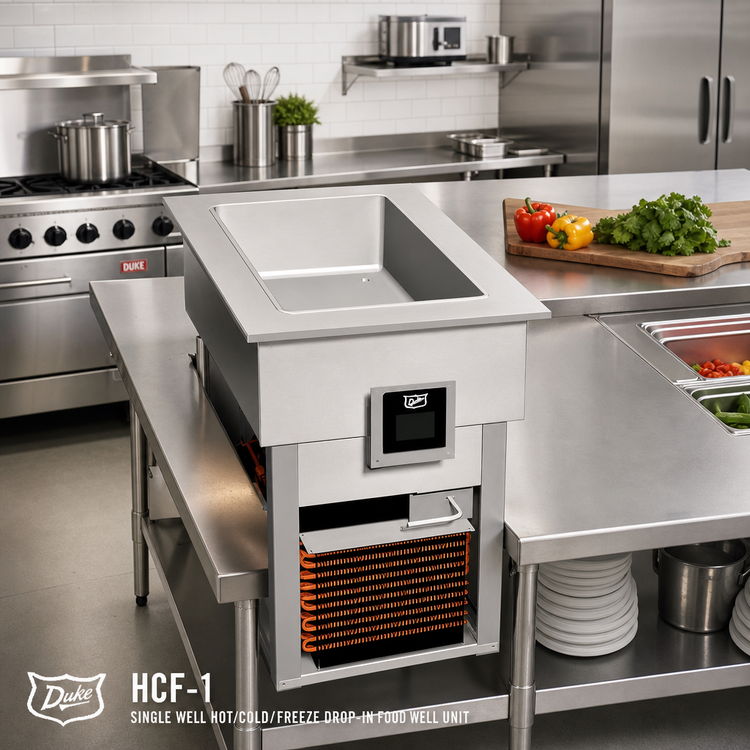

Duke HCF-1 Single Well Hot/Cold/Freeze Drop-In Food Well Unit
12" x 20" Pan Capacity, Flush Mount, R290 Refrigerant
Experience unparalleled versatility with the Duke HCF-1 Hot/Cold/Freeze drop-in food well, capable of holding food at precise hot, cold, or freeze temperatures within a single unit.
- Operates in hot (wet/dry), cold, and freeze modes for maximum menu flexibility.
- Accommodates one standard 12" x 20" steam table pan up to 6" deep.
- Intuitive digital touchscreen controls allow for easy mode and temperature adjustments.
- Durable stainless steel top, well, and exterior for long-lasting commercial use.
- Environmentally friendly R290 refrigerant system with a 5-year compressor replacement warranty.
- Designed for convenient in-counter serviceability with a slide-out compressor and remote-mountable controls.
Overall Dimensions:
17.5"W x 25.5"D x 25.94"HProduct Weight:

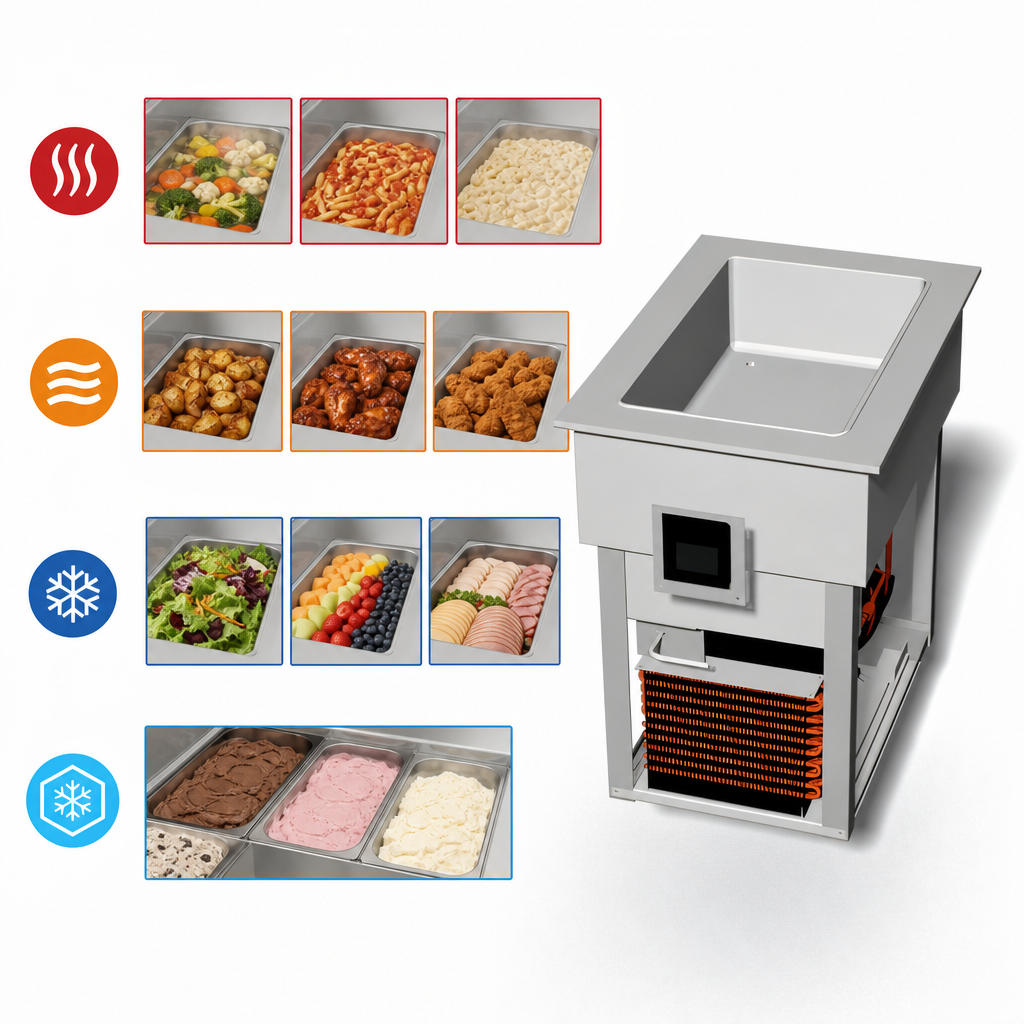

95.0 lbMulti-Mode Operation
Offers three wet heat, three dry heat, three refrigerated, and one freeze mode, providing exceptional versatility for various food holding needs.
Flush Mount Design
Designed for top mounting with flush mount pans, creating a seamless and integrated look in any serving line.
Stainless Steel Construction
Constructed from formed, welded, and polished stainless steel for durability, corrosion resistance, and easy cleaning.
Individual Drain
Features an individual drain at each well for efficient water removal during wet heat operation or defrost cycles.
Intuitive Touch Screen Control
Equipped with an easy-to-use digital touchscreen that allows operators to quickly change the mode of operation and adjust temperature settings.
Individual Control Per Well
Each food well has its own dedicated control for precise and independent temperature management.
Wifi Modem and Redundant Controls
Includes a built-in Wifi modem and redundant controls capabilities for future activation and enhanced connectivity.
Remote Mountable Controls
The unit ships with a 10-inch cable between the control and touchscreen, and includes a 6-foot cable for remote mounting the controls.
R290 Refrigerant System
Utilizes R290 A3 refrigerant, an environmentally friendly option for refrigeration.
Slide-Out Compressor
The compressor slides out 15.375 inches for easy in-counter service without the need to remove the entire unit.
Ten Foot Cord and Plug
Supplied with a 10-foot cord and plug for convenient installation.
Certifications & Compliance
Warranty & Protection
5-year compressor replacement warranty
