Duke Manufacturing

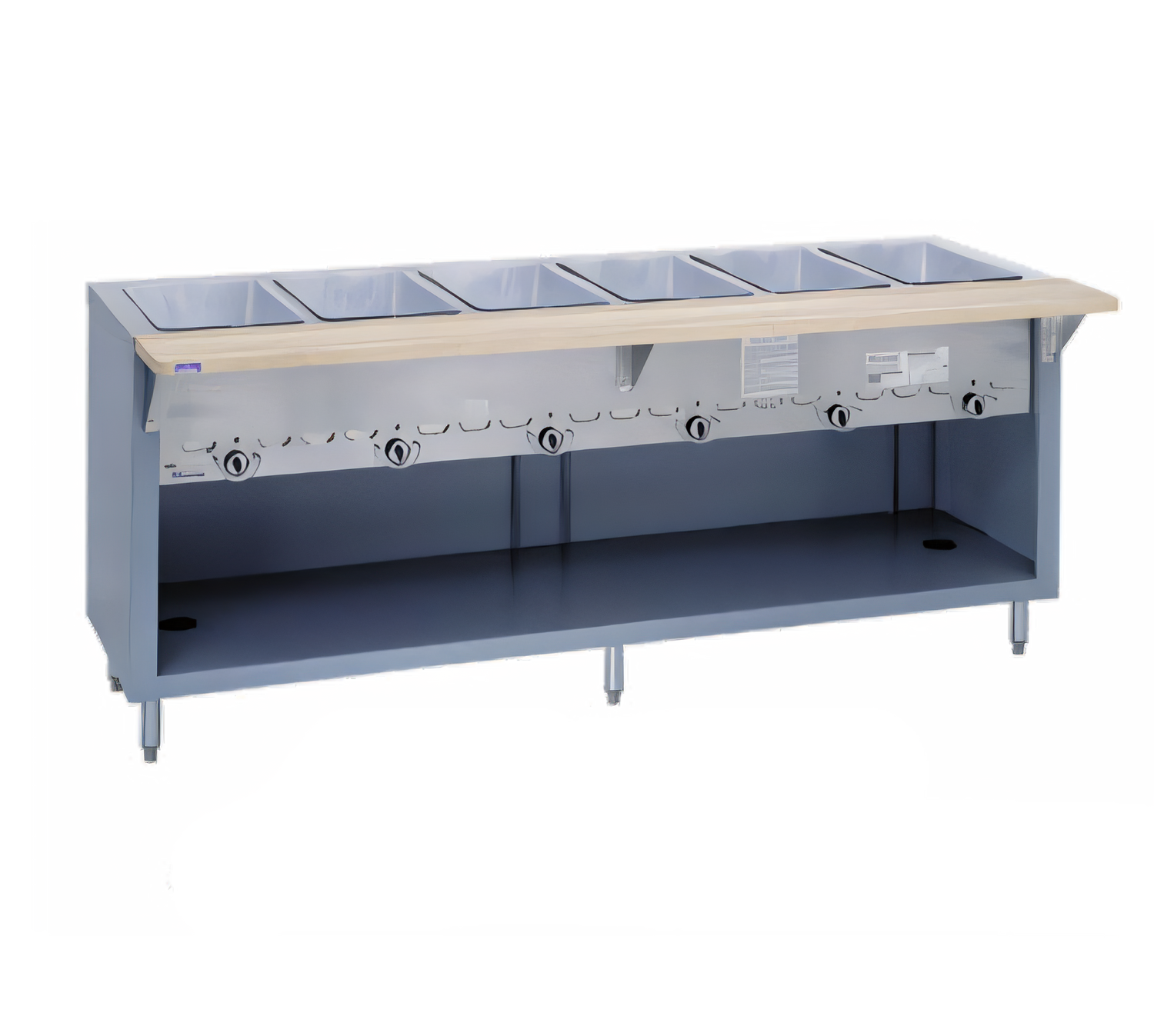

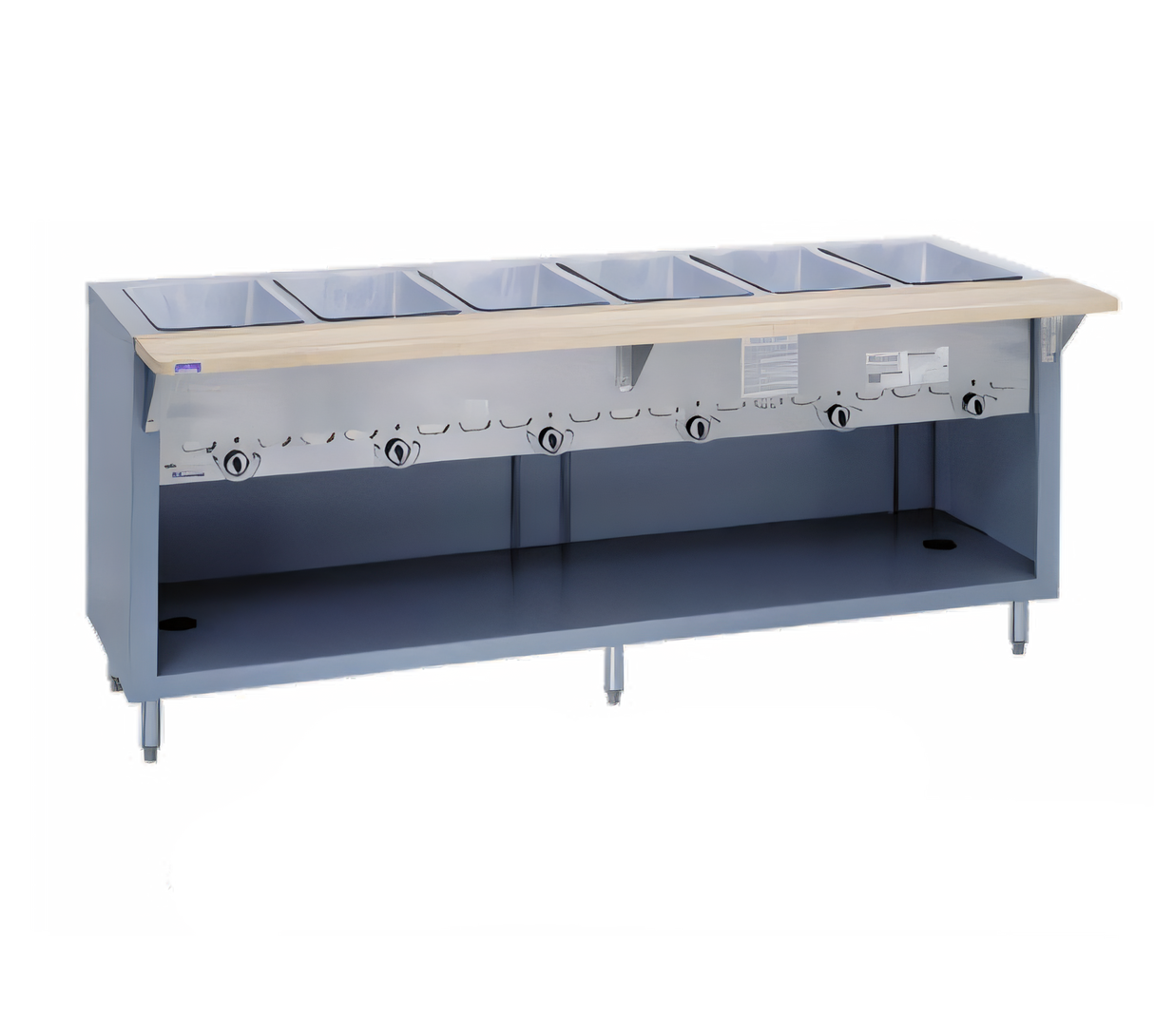

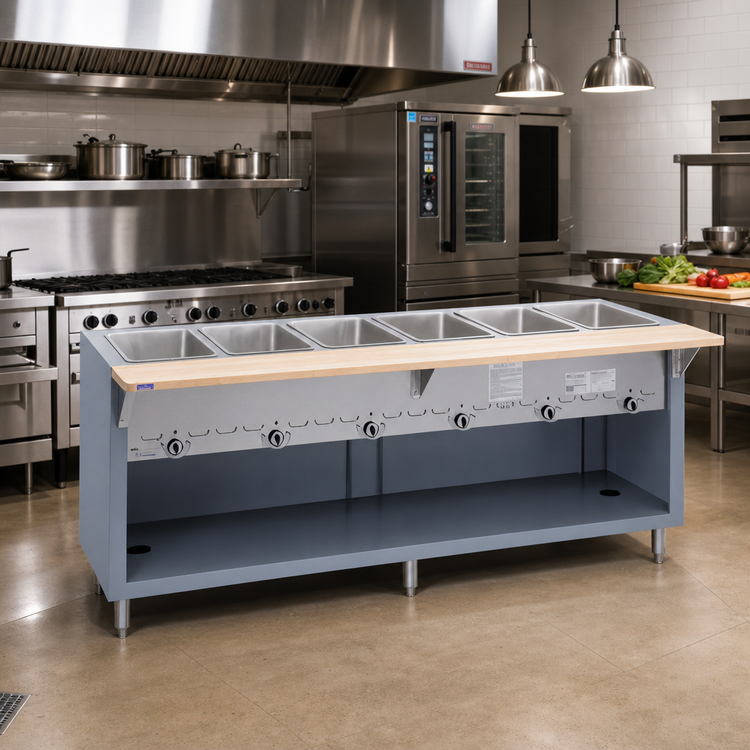

Thurmaduke G-6-CBPG 6-Pan Full-Size Gas Dry Heat Steamtable Unit with Paint Grip Steel Base

SKU: G-6-CBPG
$6,430.73
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Steam Table Duke Manufacturing Food Bars & Buffets Food Wells & Serving Lines New Arrivals Restaurant Equipment Serving & Display Equipment Serving Counters

Thurmaduke G-6-CBPG 6-Pan Full-Size Gas Dry Heat Steamtable Unit with Paint Grip Steel Base

88-Inch Width, Natural Gas or Propane, Enclosed Base with Undershelf

The Thurmaduke G-6-CBPG steamtable provides reliable, individually controlled dry heat for up to six full-size pans, ensuring optimal food temperature and presentation.

  • Durable 16 gauge 300 series stainless steel top for lasting performance
  • Six individual 12" x 20" dry heat wells accommodate full-size food pans
  • Each well features independent burner and gas valve controls for precise heating
  • Robust 20 gauge paint grip steel body with a convenient open undershelf
  • Equipped with safety pilots and a gas pressure regulator for enhanced safety
  • Adjustable 6" polished stainless steel legs provide stability and easy leveling

Overall Dimensions:

88.0"W x 35.5"D x 36.0"H

Product Weight:

527.0 lb

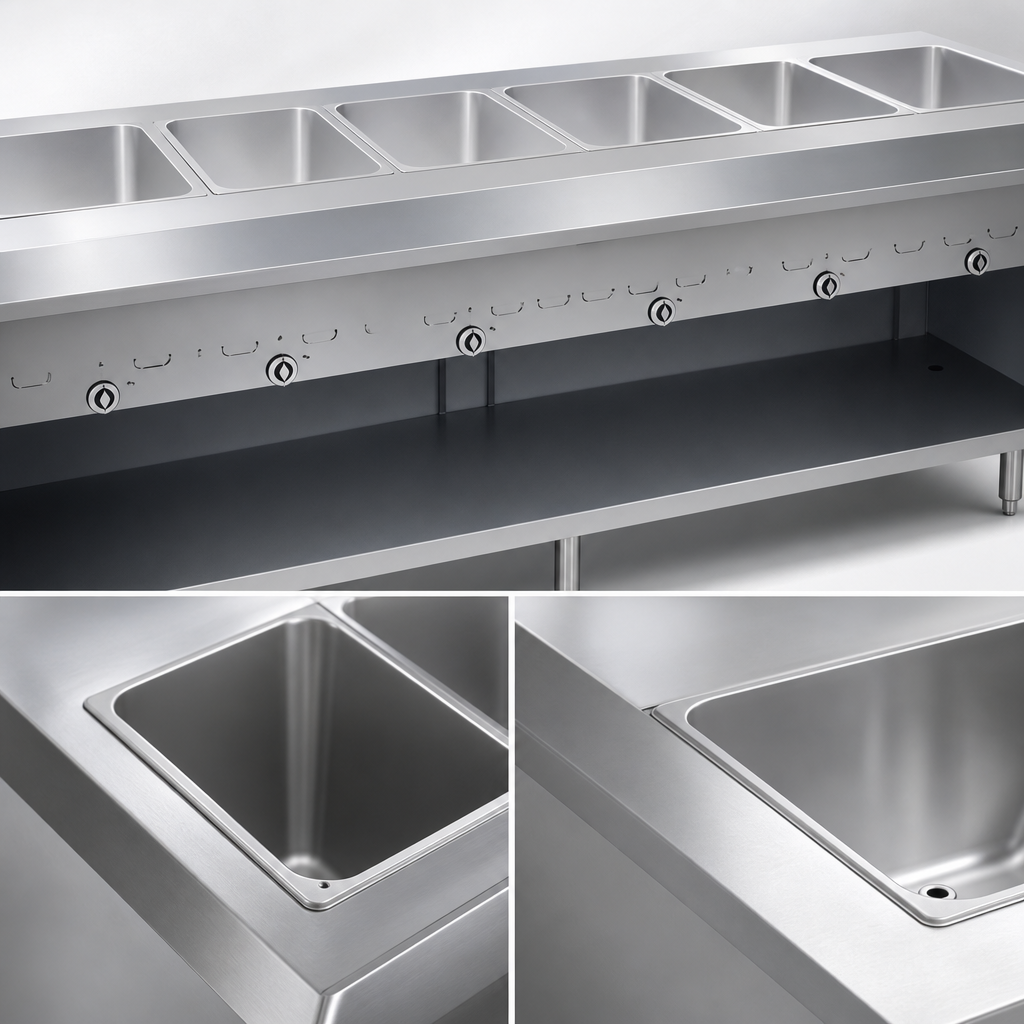

One-Piece Stainless Steel Top

Constructed from 16 gauge, 300 Series stainless steel, providing exceptional durability and an easy-to-clean surface for commercial use.

Individual Dry Heat Wells

Features six die-stamped 12" x 20" top openings, each with an 8" deep stainless steel liner, designed to hold full-size food pans for versatile serving options.

Independent Burner Controls

Each well is equipped with an individual 3500 BTU/hour burner and adjustable gas valve, allowing for precise and independent temperature management across all compartments.

Enhanced Safety Features

Includes individual safety pilots for reliable ignition and a gas pressure regulator for consistent gas flow, ensuring safe and efficient operation.

Durable Body Construction

The body and interior shelf are made from 20 gauge paint grip steel, offering a sturdy, enclosed base with an additional undershelf for storage.

Adjustable Stainless Steel Legs

Comes with 6" polished stainless steel adjustable legs and feet, providing stability and allowing for easy leveling on uneven floor surfaces.

Vented Control Panel

A stainless steel vented control panel protects the controls while allowing for proper air circulation, and wire knob guards prevent accidental adjustments.

Type Steamtable Unit
Style Hot Food Unit
Installation Type Floor Model (With Stand)
Pan Capacity 6 Full-Size Pans
Compartments 6
BTU 15,000 BTU
BTU Per Burner 3500 BTU/hour
Gas Type Natural Gas or Propane
Gas Connection Size 1/2 Inch IPS
Controls Individual Valve Controls with Safety Pilots
Top Material 16 Gauge 300 Series Stainless Steel
Interior Finish Stainless Steel
Body Material 20 Gauge Paint Grip Steel
Legs 6 Inches Stainless Steel Adjustable Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 88 Inches
Shipping Depth 36 Inches
Shipping Height 36 Inches
Shipping Weight 527.0 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor limited warranty

Documents

PDF Cutsheet PDF Download PDF Color chart PDF Download PDF Warranty PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

This steamtable unit uses dry heat technology, with individual burners for each food well, ensuring consistent warmth without water.
Yes, the unit can be configured for either natural gas or propane. It is important to specify the desired gas type when ordering.
The Thurmaduke G-6-CBPG is designed to hold six full-size (12" x 20") food pans, each in its own individual dry heat well.
Yes, each of the six wells is equipped with an individual burner and adjustable gas valve, allowing for separate temperature control for each pan.
No, casters and sliding doors are explicitly stated as not available for this gas steamtable model.
The Thurmaduke G-6-CBPG comes with a 1-year limited warranty on parts and labor, starting from the date of installation or six months from the date of shipment, whichever is sooner. Specific conditions and exclusions apply, as detailed in the warranty information.
