Duke Manufacturing

Thurmaduke G-5-DLSS 5-Well Deluxe Gas Hot Food Steam Table

SKU: G-5-DLSS
$11,443.68
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Steam Table Duke Manufacturing Food Bars & Buffets Food Wells & Serving Lines New Arrivals Restaurant Equipment Serving & Display Equipment Serving Counters

Thurmaduke G-5-DLSS 5-Well Deluxe Gas Hot Food Steam Table

74-Inch Wide, Stainless Steel, Dry Heat Wells

Designed for demanding commercial kitchens, the Thurmaduke G-5-DLSS steam table provides reliable, even dry heat for five full-size food pans.

  • Durable 16 gauge 300 Series stainless steel top ensures longevity and ease of cleaning.
  • Features five individual dry heat wells, each with its own burner and adjustable gas valve for precise temperature control.
  • Integral 8 1/2-inch wide stainless steel dish shelf and cutting board provide convenient workspace.
  • Sturdy 300 Series stainless steel body and undershelf offer ample storage and robust construction.
  • Flexible fuel options, designed for both natural gas and propane, with a factory-installed gas pressure regulator.
  • Includes 6-inch polished stainless steel adjustable legs for stable floor mounting.

Heavy-Duty Stainless Steel Top

Constructed from one-piece, 16 gauge, 300 Series stainless steel for superior durability and hygiene in commercial environments.

Experience the superior durability and hygiene of the steam table's heavy-duty, one-piece 16-gauge stainless steel top, built for demanding commercial environments.

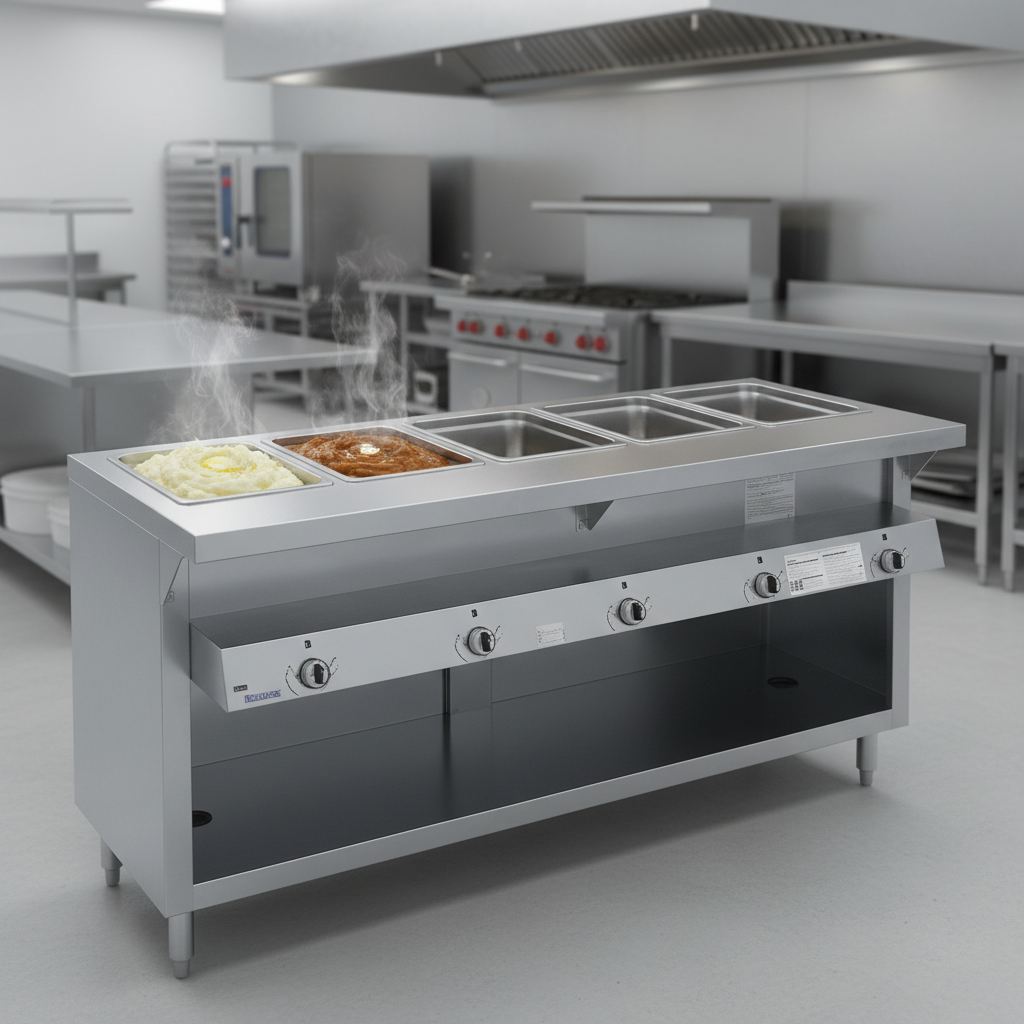

Five Dry Heat Compartments

Equipped with five 12" x 20" die-stamped top openings, each featuring a stainless steel liner and designed for dry heat operation, eliminating the need for water.

Effortlessly keep five different dishes perfectly warm with the Thurmaduke's convenient, waterless dry heat compartments.

Individual Burners and Controls

Each compartment includes an individual burner, adjustable gas valve, and safety pilot for independent temperature management and operational safety.

Achieve precise and independent temperature control for each food pan with individual burners, adjustable gas valves, and safety pilots.

Integrated Gas Pressure Regulator

Comes with a factory-installed gas pressure regulator for consistent and safe gas flow.

Integral Stainless Steel Work Surfaces

Features an integral 8 1/2-inch wide, heavy gauge, one-piece stainless steel dish shelf and a stainless steel cutting board, providing essential workspace.

Wire Knob Guards

Control knobs are protected by wire guards, preventing accidental adjustments and enhancing durability.

Robust Stainless Steel Body

The body and interior undershelf are made from durable 300 Series stainless steel, offering an enclosed base with an open undershelf for storage.

Adjustable Stainless Steel Legs

Supported by 6-inch polished stainless steel adjustable legs, ensuring stability on uneven floors and meeting sanitation requirements.

Specifications

Type Hot Food Steam Table
Style Deluxe
Installation Type Floor Model (With 6 Inch Legs)
Material Stainless Steel
Interior Finish Stainless Steel
Pan Capacity 5 Full-Size Pans (12 x 20 Inches)
BTU 17,500 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1/2 Inch IPS
Controls Individual Adjustable Gas Valves with Safety Pilots
Working Height 36 Inches
Design Enclosed Base with Open Undershelf
Base Finish Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 74 Inches
Shipping Depth 34 Inches
Shipping Height 36 Inches
Shipping Weight 495 lb.

Overall Dimensions:

74.0"W x 34.0"D x 36.0"H

Product Weight:

495.0 lb
Manufacturer Duke Manufacturing
Brand name Thurmaduke
Certifications ["UL EPH Classified", "CSA Star"]
Height 36.0in
Width 74.0in
Depth 34.0in
Shipping Weight 495.0lbs
Working Height 36"
Design enclosed base with open undershelf
Base Finish stainless steel
Pan Capacity (5) pan
Overall Width (side - side) 73" - 78"
Well Type open well
Specifications Thurmaduke™ Steamtable Unit, gas, 74"W x 34"D x 36"H, 16ga stainless steel top, (5) stainless steel dry heat wells, (5) stainless steel water pans, safety pilots, gas regulator, valve controls, integral stainless steel cutting board, dish shelf, 20ga stainless steel body & undershelf, 6"H stainless steel legs & adjustable feet, CSA STAR, UL EPH Classified

Certifications & Compliance

Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor warranty.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty PDF Download PDF Color chart PDF Download

Frequently Asked Questions

The G-5-DLSS is a dry heat steam table, meaning it does not require water to keep food warm. This can reduce maintenance and improve energy efficiency.
Yes, you must specify either natural gas or propane gas when ordering. The unit comes with a gas pressure regulator for consistent operation with the chosen gas type.
The Thurmaduke G-5-DLSS features five 12" x 20" die-stamped top openings, designed to hold five full-size food pans.
If operating at a high elevation, you must specify the elevation when ordering to ensure the correct high-altitude orifice is provided for optimal performance.
The top is made from one-piece, 16 gauge, 300 Series stainless steel. The body and interior undershelf are also constructed from 300 Series stainless steel for durability.
