Duke Manufacturing

Thurmaduke G-4-DLPG 60" 4-Well Deluxe Gas Dry Heat Steamtable

SKU: G-4-DLPG
$8,714.52
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Steam Table Duke Manufacturing Food Bars & Buffets Food Wells & Serving Lines New Arrivals Restaurant Equipment Serving & Display Equipment Serving Counters

Thurmaduke G-4-DLPG 60" 4-Well Deluxe Gas Dry Heat Steamtable

Full-Size, Propane Gas, Dry Heat Wells, Paint Grip Steel Base

Designed for commercial kitchens, the Thurmaduke G-4-DLPG steamtable provides efficient and precise dry heat for holding a variety of hot food items.

  • Equipped with four 12" x 20" dry heat wells, accommodating full-size pans for versatile food service.
  • Features individual burner controls and safety pilots for precise temperature management per well.
  • Constructed with a durable 16 gauge stainless steel top and a robust 20 gauge paint grip steel body.
  • Includes an integral stainless steel cutting board and a heavy gauge dish shelf for enhanced functionality.
  • Operates on propane gas with a total output of 14,000 BTU, ideal for busy commercial environments.
  • Supported by 6" polished stainless steel adjustable legs for stable floor placement and easy cleaning.

Overall Dimensions:

60.0"W x 34.0"D x 36.0"H

Product Weight:

410.0 lb

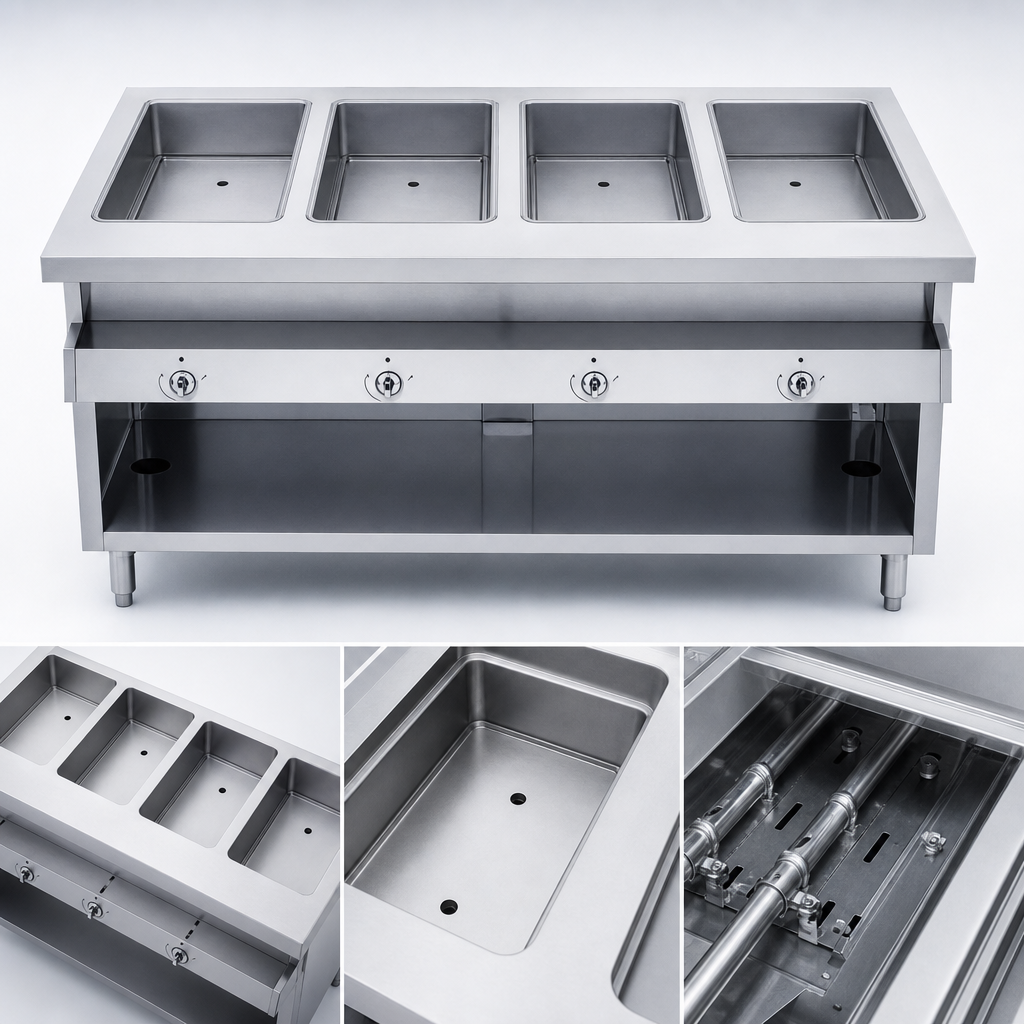

Dry Heat Wells

Four 12" x 20" stainless steel dry heat wells, 8" deep, with individual burners and radiation plates for precise temperature control without the need for water.

Individual Gas Controls

Each well is equipped with individual adjustable gas valves and safety pilots, allowing for independent temperature management of different food items.

Durable Construction

Features a heavy-duty one-piece 16 gauge 300 Series stainless steel top, a 20 gauge paint grip steel body and undershelf, and die-stamped end panels for longevity.

Integral Work Surfaces

Includes an integral stainless steel carving/work surface and an 8 1/2" wide heavy gauge one-piece stainless steel dish shelf, providing convenient space for food preparation and serving.

Gas Pressure Regulator

A gas pressure regulator for the unit ensures consistent and safe operation.

Adjustable Legs

Supported by 6" polished stainless steel adjustable legs, offering stability and easy leveling on uneven floors.

Wire Knob Guards

Control knobs are housed behind wire guards for protection and to prevent accidental adjustments.

Type Commercial Steam Table
Style Hot Food Unit
Installation Type Floor Model (With Legs)
Pan Capacity 4 Full-Size Pans
Compartments 4
Material 16 Gauge Stainless Steel (Top), 20 Gauge Paint Grip Steel (Body/Undershelf)
Interior Finish Stainless Steel (Well Liners)
Finish Painted (Body), Polished (Legs)
BTU 14,000 BTU
BTU Per Burner 2500 BTU/hour
Gas Type Propane
Gas Connection Size 1/2" I.P.S.
Controls Individual Adjustable Gas Valves
Cooking Surface Width 12 Inches Per Well
Cooking Surface Depth 20 Inches Per Well
Well Depth 8 Inches
Working Height 36 Inches
Dish Shelf Width 8 1/2 Inches
Shipping Width 60 Inches
Shipping Depth 34 Inches
Shipping Height 36 Inches
Shipping Weight 410 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor warranty.

Documents

PDF Cutsheet PDF Download PDF Color chart PDF Download PDF Warranty PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The G-4-DLPG model uses dry heat wells, which are individually heated by gas burners and do not require water for operation.
This unit features four top openings, each 12" x 20", designed to accommodate four full-size steam table pans.
No, casters are not available for this Thurmaduke gas steamtable unit. It is equipped with 6-inch adjustable stainless steel legs.
The 'DLPG' in the model name indicates that this specific unit operates on Propane gas. However, other Thurmaduke gas steamtables can be specified for natural gas.
No, it is explicitly stated that no combustible materials should be stored on the bottom shelf of any gas unit for safety reasons.
