Key specifications

Amps
14.9 Amps at 208 Volts; 17 Amps at 240 Volts
Phase
1-Phase
Dimensions
88.0"W × 25.5"D × 36.0"H
Type
Hot Food Well
Style
Ganged
Installation Type
Floor Model
Spec sheet
Duke SKU: EW-6-CBSS

Duke Thurmaduke EW-6-CBSS 6-Pan Waterless Hot Food Well

$11,156.39
/each
Estimated to ship in 16–19 business days
Wells
Base material
ElectricalRequired
Top gauge
Cord and plug length
Caster lock
Factory Add-Ons

Need something else? Contact us.

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,032/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Well
Style Ganged
Installation Type Floor Model
Material Stainless Steel
Top Material 16 Gauge Stainless Steel
Body Material 20 Gauge Stainless Steel
Pan Capacity 6 Pans
Well Type Sealed Well
Operation Waterless
Controls Touch Screen
Design Open Storage Base
Voltage 208/240 Volts
Amps 14.9 Amps at 208 Volts; 17 Amps at 240 Volts
Watts 3.092 kW at 208 Volts; 4.082 kW at 240 Volts
Phase 1-Phase
Plug Type NEMA 6-20 at 208 Volts; NEMA L6-30 at 240 Volts

Description

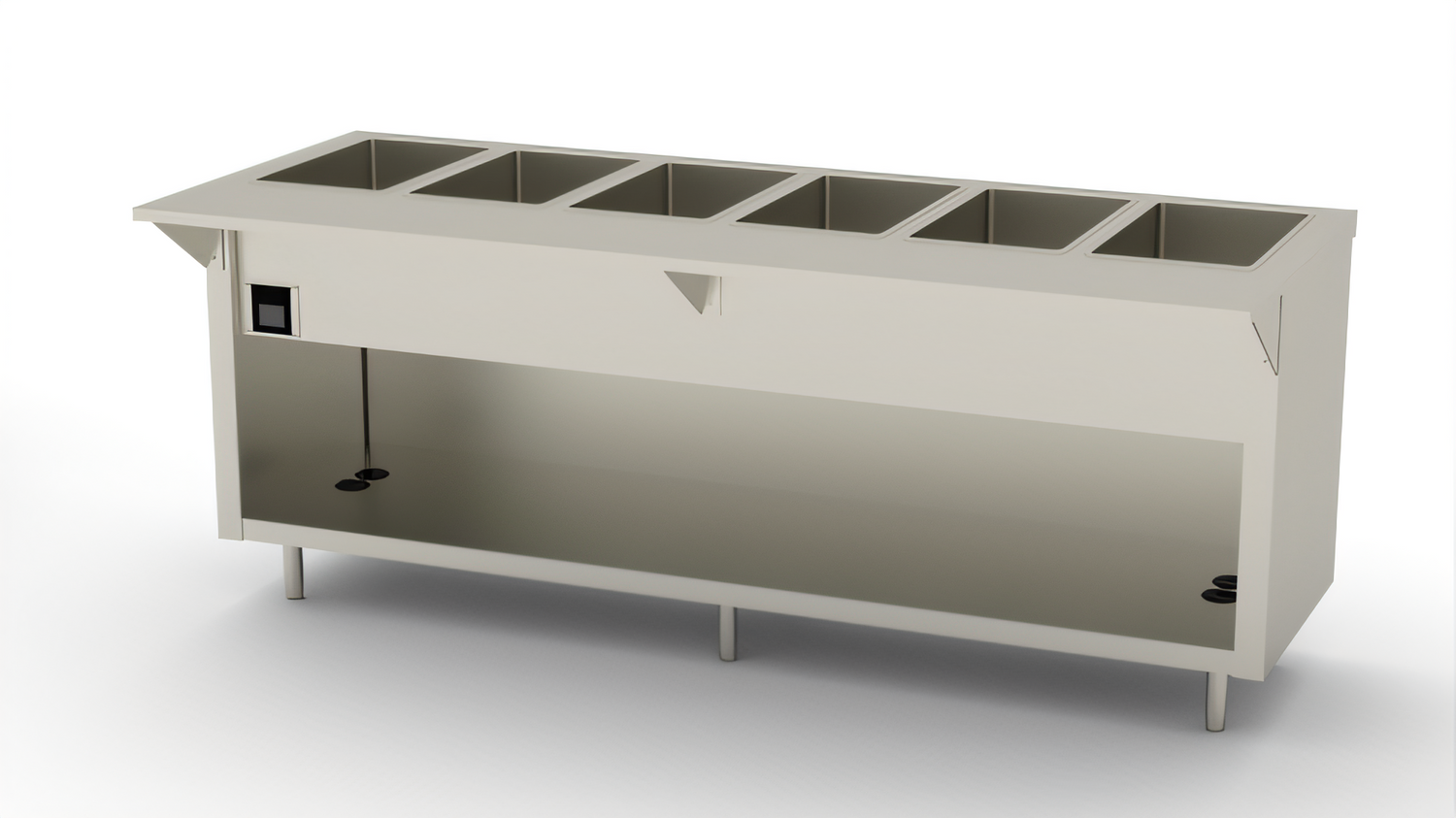

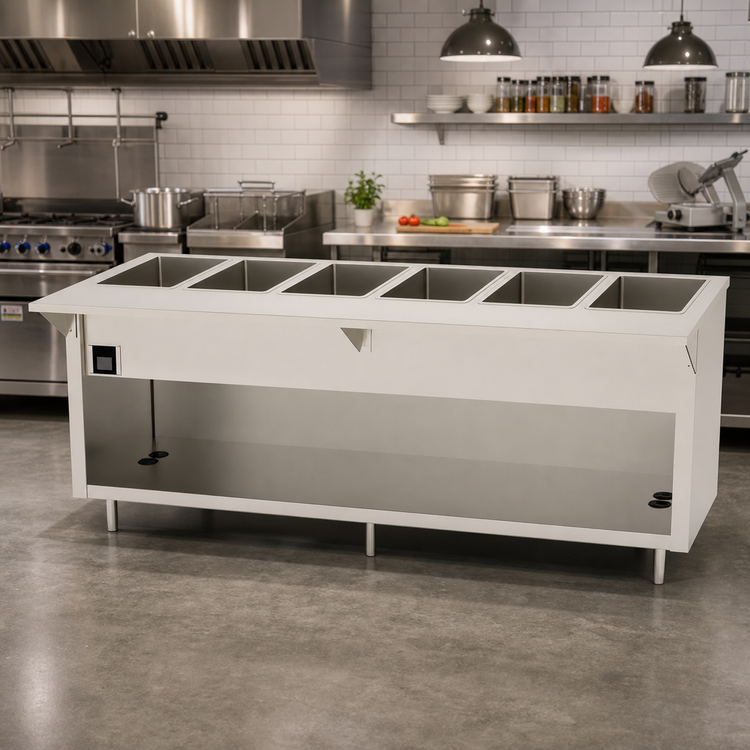

The EW-6-CBSS is an electric, ganged waterless hot food well unit with six stainless steel sealed wells.

  • Stainless steel construction: 16 gauge stainless steel top with 20 gauge stainless steel body and undershelf.
  • Touch screen control: Low, Medium and High presets support operation of the wells.
  • Floor model design: Includes a 36-inch working height, open storage base, and 6-inch stainless steel legs with adjustable feet.
  • Dry operation: The wells are designed for waterless operation; do not add water.

The unit measures 88 inches wide by 25.5 inches deep by 36 inches high. Electrical specifications are 208 Volts or 240 Volts; cord and plug are not included.

Overall Dimensions:

88.0"W x 25.5"D x 36.0"H

Product Weight:

527.0 lb

Six Sealed Wells

Provides six stainless steel sealed wells for waterless hot-food holding.

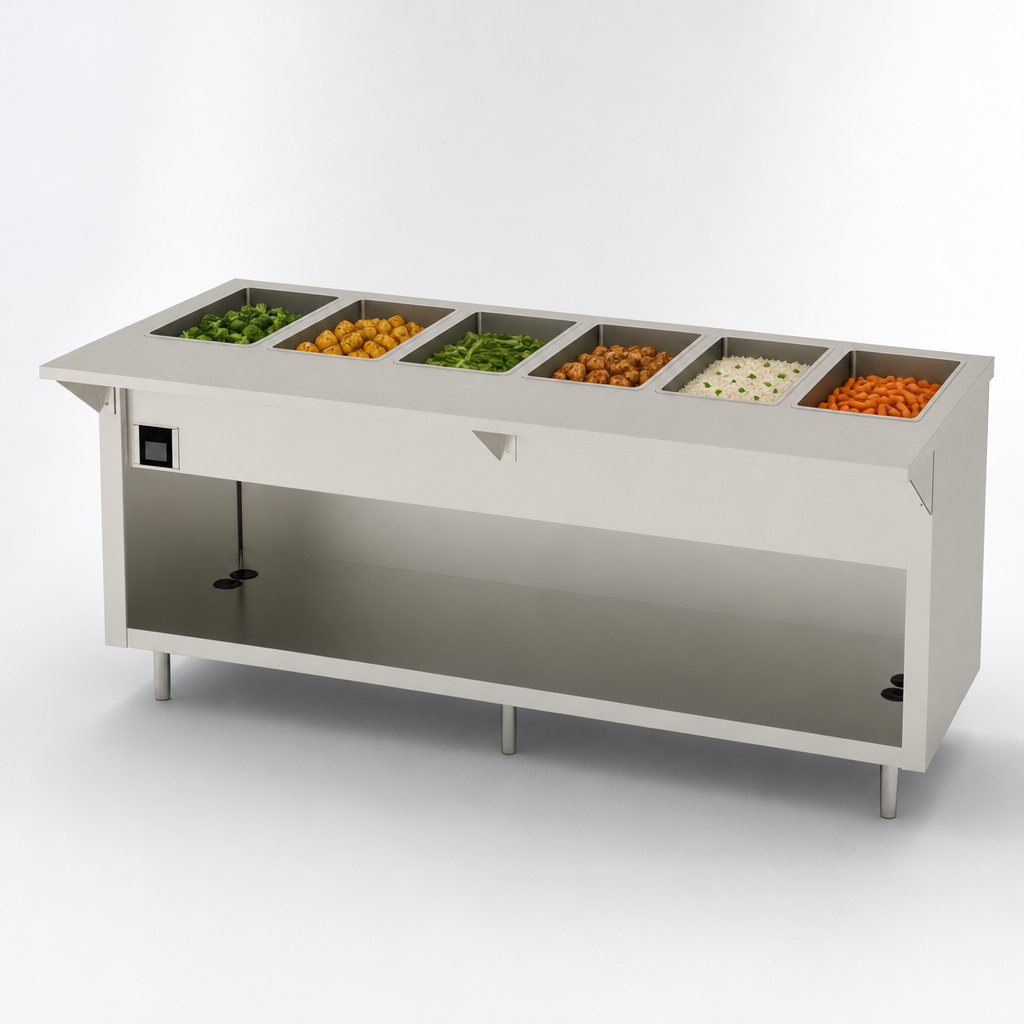

Waterless Operation

The wells are designed for dry operation, and the user guide instructs operators not to add water.

Touch Screen Control

Includes touch screen control with Low, Medium and High presets.

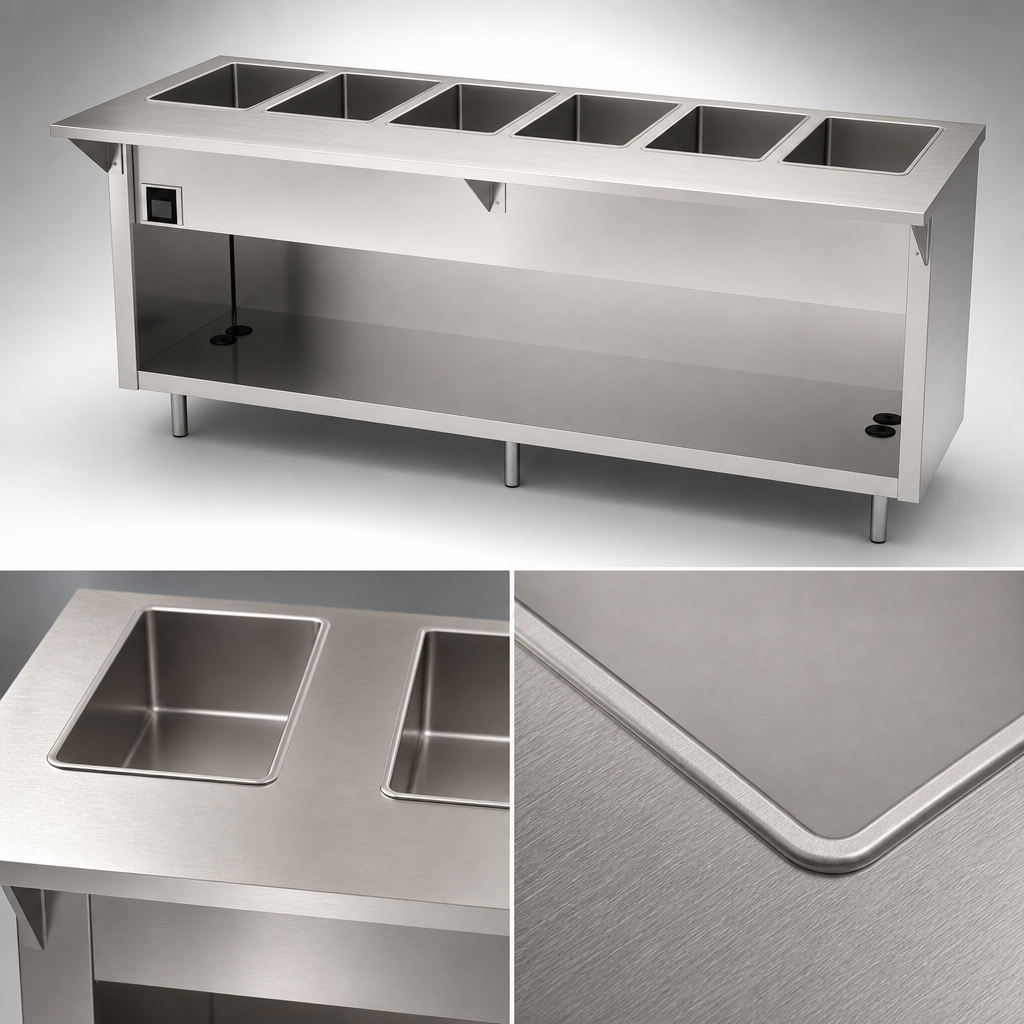

Stainless Steel Construction

Features a 16 gauge stainless steel top and 20 gauge stainless steel body and undershelf.

Open Storage Base

The stationary floor unit includes an open storage base.

Adjustable Feet

Includes 6-inch stainless steel legs with adjustable feet.

Electrical Configurations

The exact model is specified for 208 Volts or 240 Volts. Cord and plug are not included.

Proposition 65: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Frequently Asked Questions

It has six stainless steel sealed wells.
No. It is designed for waterless, dry operation, and the user guide instructs operators not to add water.
It uses a touch screen control with Low, Medium and High presets.
The cutsheet lists 208 Volts at 3.092 kW and 14.9 Amps with a NEMA 6-20 connection, or 240 Volts at 4.082 kW and 17 Amps with a NEMA L6-30 connection. Cord and plug are not included.
The unit measures 88 inches wide, 25.5 inches deep, and 36 inches high, with a listed weight of 527 pounds.
