Duke Manufacturing

Thurmaduke EW-5-CBPG 5-Well Ganged Waterless Electric Hot Food Unit

SKU: EW-5-CBPG
$7,663.65
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Duke Manufacturing Food Warmers & Holding Equipment New Arrivals Restaurant Equipment Serving & Display Equipment Serving Counters

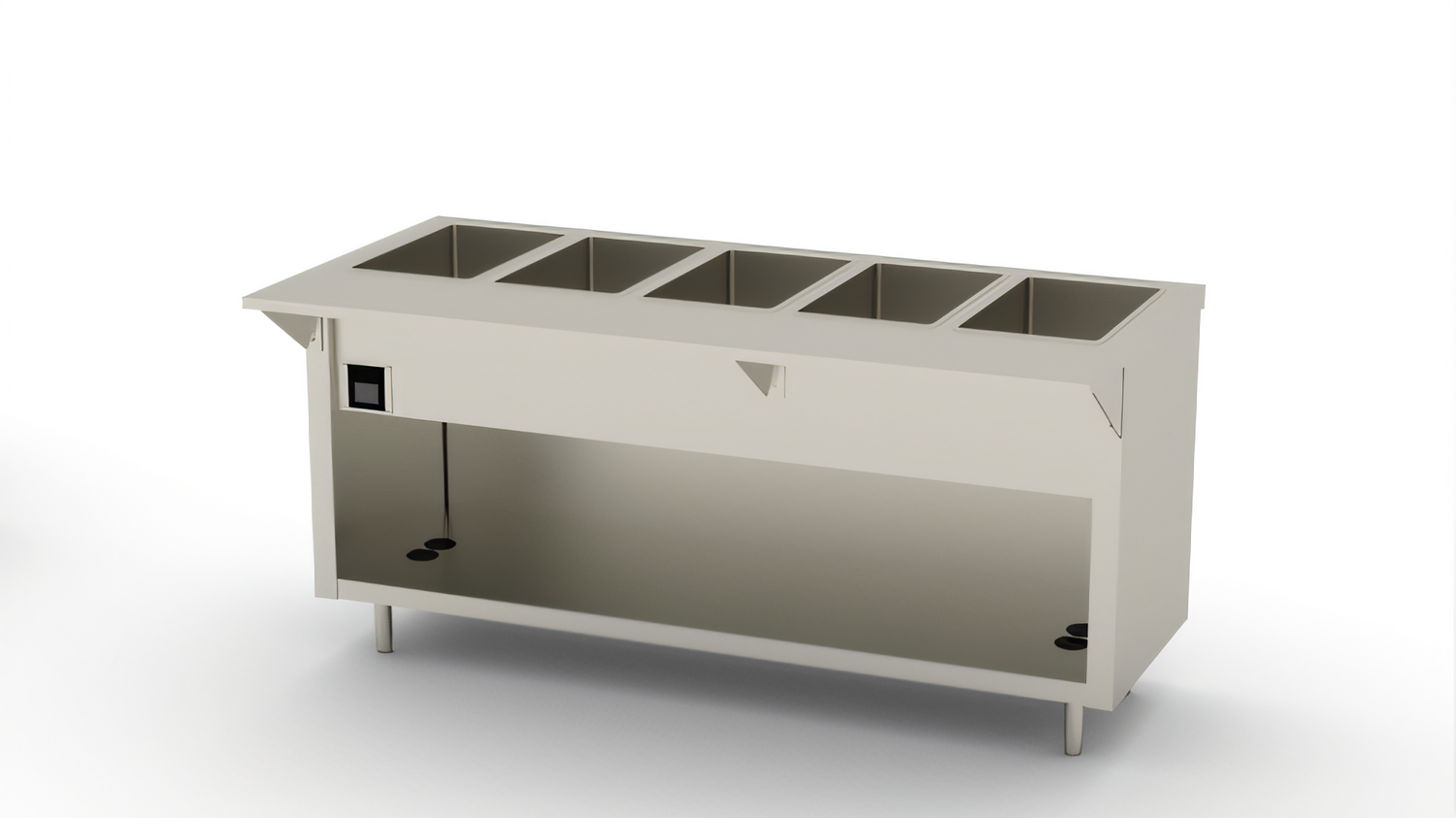

Thurmaduke EW-5-CBPG 5-Well Ganged Waterless Electric Hot Food Unit

74 Inch Width, Painted Body, Touch Screen Control, Floor Model

Experience precise and efficient food warming with the Thurmaduke EW-5-CBPG, a 5-well ganged waterless electric hot food unit designed for versatile commercial holding.

  • Features five 6 1/2" deep sealed wells for optimal dry heat food holding.
  • Equipped with an intuitive touch screen control for easy temperature management across all wells.
  • Constructed with a durable 16 gauge stainless steel top and a 20 gauge paint grip steel body.
  • Waterless operation simplifies setup by eliminating plumbing requirements.
  • Built-in Wi-Fi and Bluetooth offer advanced connectivity for future integration.
  • Floor model design with 6" adjustable stainless steel legs for stable installation.

Overall Dimensions:

74.0"W x 25.5"D x 36.0"H

Product Weight:

433.0 lb

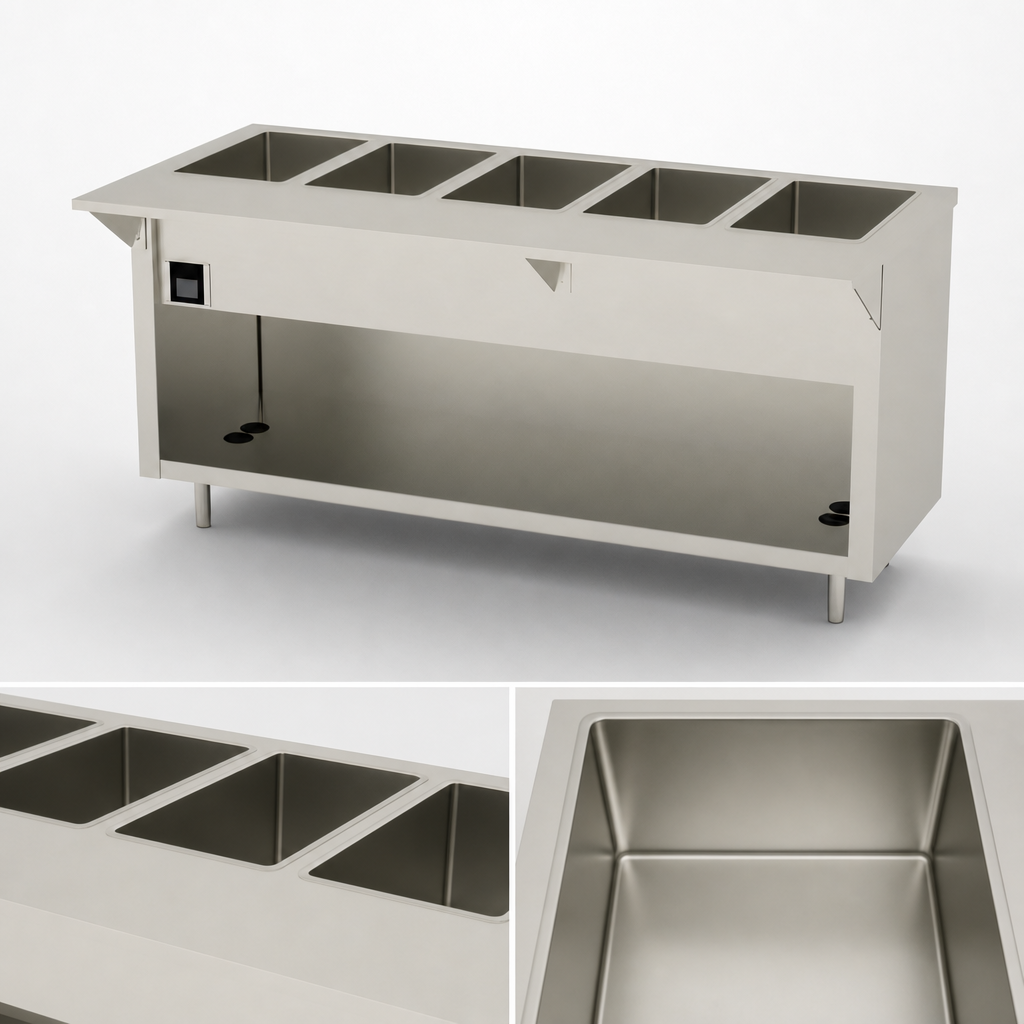

Five Waterless Wells

Features five 6 1/2" deep sealed stainless steel wells, designed exclusively for dry operation, eliminating the need for plumbing and simplifying installation.

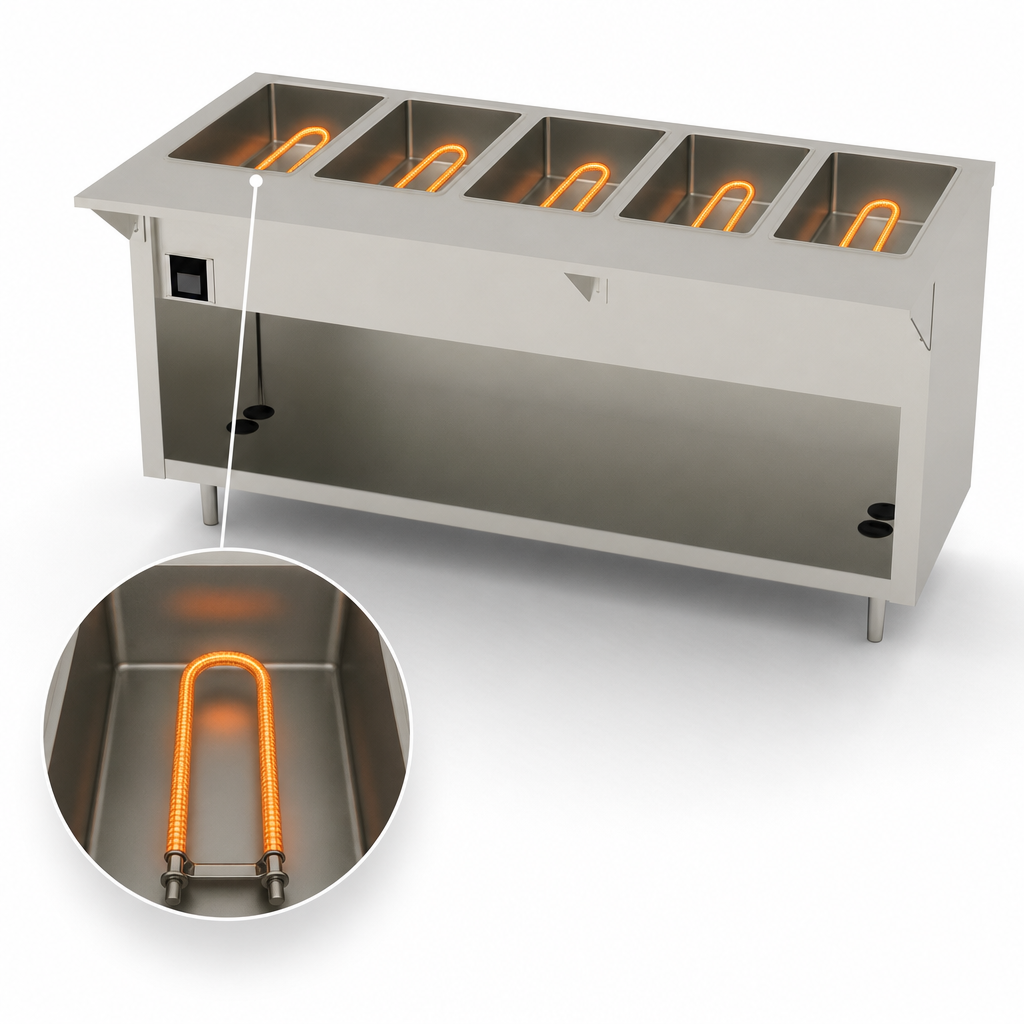

Individual Rope Elements

Each well is equipped with a dedicated rope heating element to ensure consistent and controlled temperatures.

Fully Insulated Wells

All wells are fully insulated and include silicone bottom pads to maximize heat retention and energy efficiency.

Intuitive Touch Screen Control

An advanced touch screen interface provides centralized control for all wells, offering easy adjustment of LOW/MED/HIGH temperature presets.

Smart Connectivity

Integrated WIFI and Bluetooth capabilities are included for future connectivity and smart operational enhancements.

Robust Stainless Steel Top

The top is fabricated from durable 16 gauge, 300 Series stainless steel with die-stamped openings measuring 11 7/8" x 19 7/8".

Painted Steel Body

The unit features a 20 gauge paint grip steel body and a full bottom shelf, both with a durable painted finish.

Adjustable Stainless Steel Legs

Supported by 6" polished stainless steel adjustable legs, allowing for precise leveling and stable placement.

Type Ganged Waterless Well Unit
Style Hot Food Unit
Installation Type Floor Model (With 6" Adjustable Legs)
Pan Capacity 5 Full-Size Pans
Compartments 5
Controls Programmable Digital Touch Screen
Top Construction 16 Gauge 300 Series Stainless Steel
Interior Finish Stainless Steel
Material Stainless Steel (Top), Paint Grip Steel (Body)
Finish Painted (Body), Polished (Legs)
Water Connection Not Required
Drain Connection Not Required
Phase 1-Phase
Selling Unit Each
Units Per Case 1
Shipping Width 74 Inches
Shipping Depth 26 Inches
Shipping Height 36 Inches
Shipping Weight 433 lb.
Country of Origin USA

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

null

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Waterless hot food well sale sheet PDF Download PDF Installation and operation manual PDF Download PDF Users guide PDF Download PDF Parts list PDF Download

Frequently Asked Questions

The Thurmaduke EW-5-CBPG utilizes five 6 1/2" deep sealed stainless steel wells designed for dry operation only, eliminating the need for water.
This unit features an intuitive touch screen control that manages all five wells with easily adjustable LOW/MED/HIGH presets. It also includes built-in WIFI and Bluetooth for future connectivity.
No, the EW-5-CBPG is a waterless well unit, so it does not require any plumbing connections for water supply or drainage.
The unit features a 16 gauge, 300 Series stainless steel top and a 20 gauge paint grip steel body with a painted finish. It is supported by 6" polished stainless steel adjustable legs.
The EW-5-CBPG model is available in 120V, 208V, or 240V single-phase electrical configurations. The specific wattage, amperage, and NEMA plug type will vary based on the selected voltage.
