Duke Manufacturing

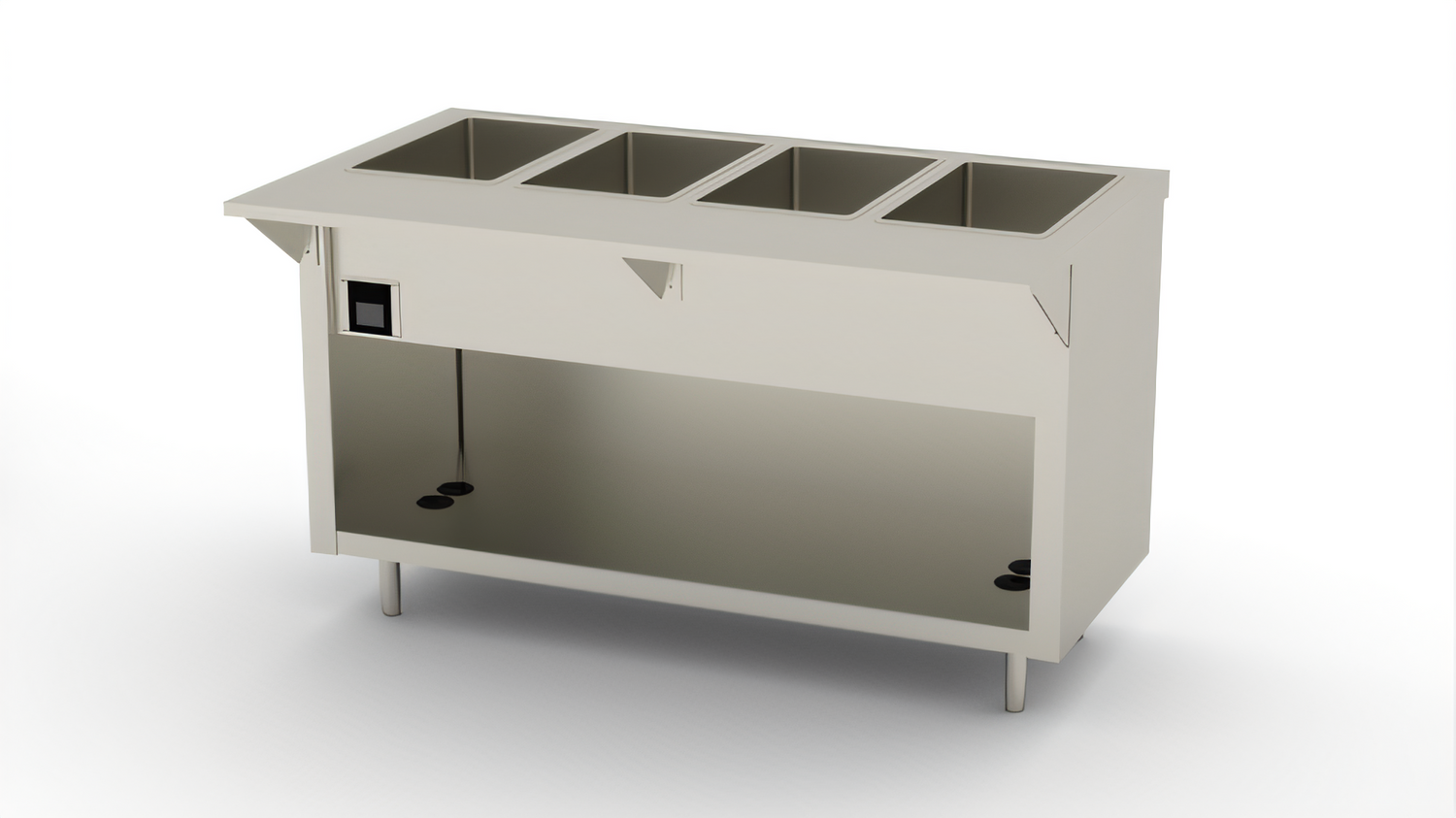

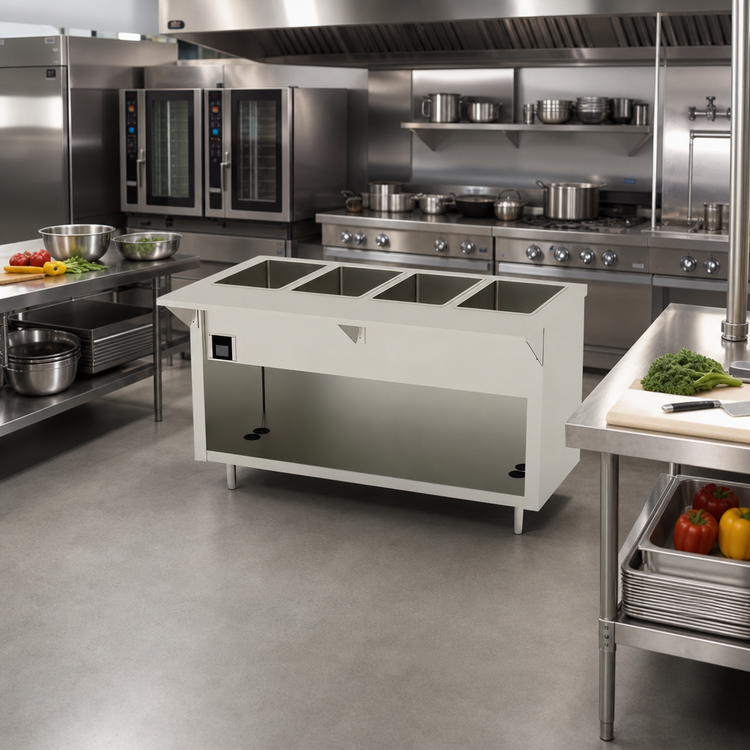

Thurmaduke EW-4-CBSS Ganged Waterless Well Unit, 4-Pan, Electric, 60"W

SKU: EW-4-CBSS
$7,384.15
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Thurmaduke EW-4-CBSS Ganged Waterless Well Unit, 4-Pan, Electric, 60"W

4 Sealed Wells, Touch Screen Control, Stainless Steel Open Base

This Thurmaduke ganged waterless well unit offers efficient, consistent hot food holding for up to four full-size pans, featuring intuitive touch screen controls and durable stainless steel construction.

  • Equipped with (4) 6 1/2" deep, fully insulated wells for waterless operation of full-size food pans.
  • Features a user-friendly touch screen control for all wells with adjustable LOW/MED/HIGH presets.
  • Built-in WiFi and Bluetooth provide future connectivity options for enhanced management.
  • Constructed with a heavy-duty 16-gauge, 300 Series stainless steel top and 20-gauge stainless steel body.
  • Includes 6" polished stainless steel adjustable legs for stable floor model installation.
  • Designed for commercial use, offering durability and reliability for busy kitchen environments.

Overall Dimensions:

60.0"W x 25.5"D x 36.0"H

Product Weight:

344.0 lb

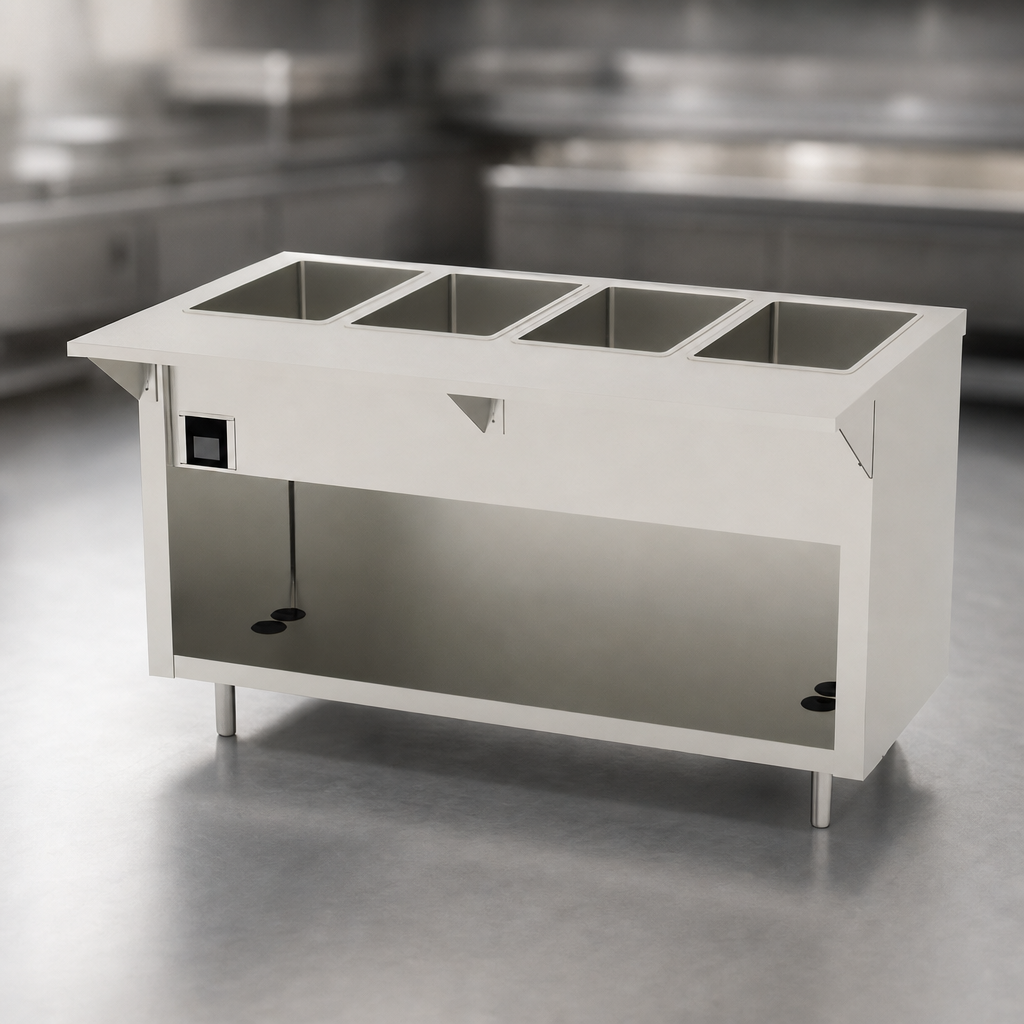

Waterless Well Operation

Four 6 1/2" deep, fully insulated wells are designed for dry operation only, eliminating the need for plumbing connections and reducing maintenance.

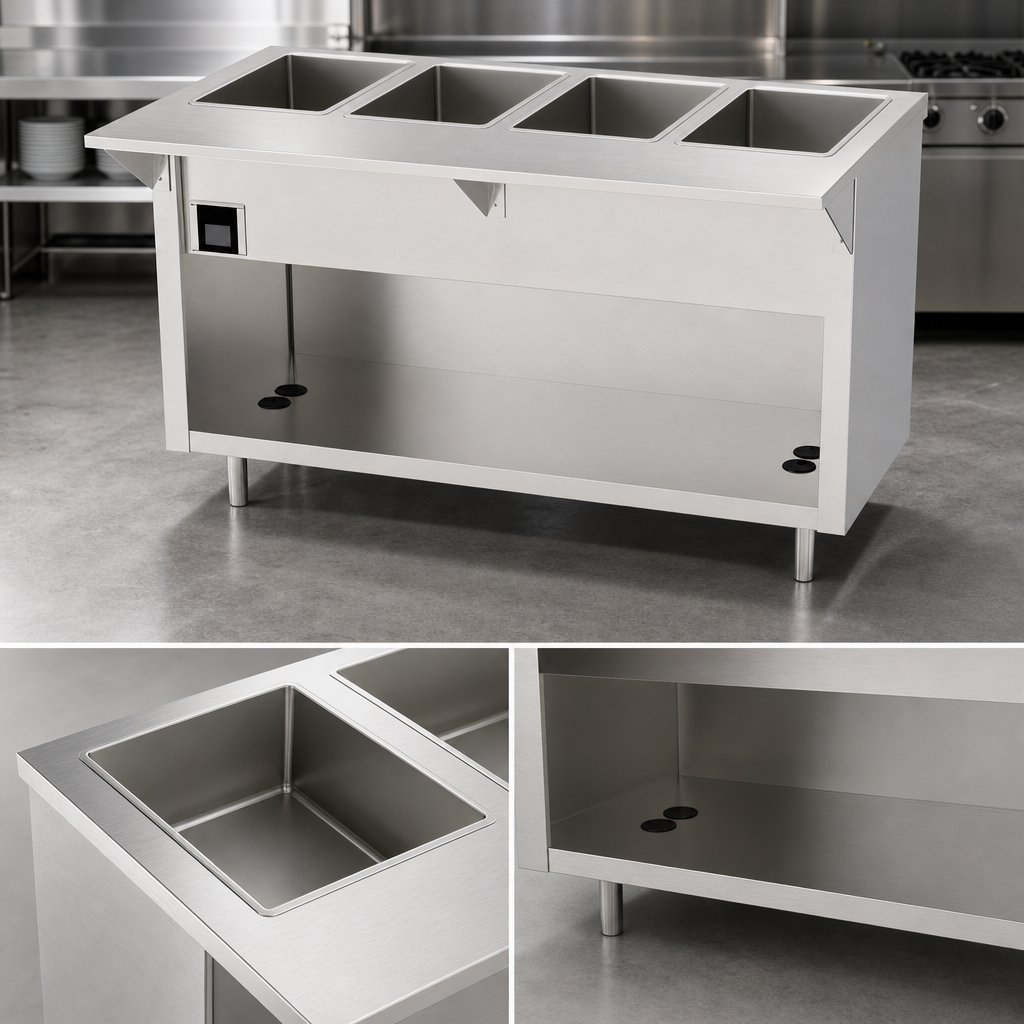

Durable Stainless Steel Construction

Features a heavy-duty 16-gauge, 300 Series stainless steel top with die-stamped openings (11 7/8" x 19 7/8") and a 20-gauge stainless steel body and undershelf for commercial-grade durability.

Advanced Touch Screen Control

Standard intuitive, easy-to-use touch screen control manages all wells from a single interface, offering easily adjusted LOW/MED/HIGH presets.

Future-Ready Connectivity

Built-in WiFi and Bluetooth capabilities ensure the unit is ready for future connectivity and potential smart kitchen integrations.

Efficient Heating Elements

Each heat compartment includes a rope element and a silicone bottom pad for uniform and efficient heating.

Adjustable Stainless Steel Legs

Comes with 6" polished stainless steel adjustable legs, providing stability and allowing for leveling on uneven floors.

Type Food Warmer
Style Ganged Waterless Well
Installation Type Floor Model (With Legs)
Pan Capacity 4 Full-Size
Controls Touch Screen
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 120 Volts
Amps 22.9 Amps
Watts 2.75 kW
Phase 1-Phase
Plug Type NEMA L5-30P
Shipping Width 60 Inches
Shipping Depth 26 Inches
Shipping Height 36 Inches
Shipping Weight 344 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Frequently Asked Questions

This unit is designed to hold four full-size food pans. Each top opening measures 11 7/8" x 19 7/8", suitable for standard full-size pans.
No, the Thurmaduke EW-4-CBSS is a waterless well unit designed for dry operation only, eliminating the need for plumbing and simplifying installation.
The EW-4-CBSS is configurable for 1-phase electrical operation and is available in 120V (22.9 Amps, NEMA L5-30P), 208V (10 Amps, NEMA 6-20P), or 240V (11.5 Amps, NEMA 6-20P) options.
The unit features a 16-gauge, 300 Series stainless steel top and a 20-gauge stainless steel body and undershelf, ensuring durability and ease of cleaning.
Yes, the unit comes with built-in WiFi and Bluetooth capabilities, providing future connectivity for enhanced monitoring and management.
