Key specifications

Amps
11.8 Amps at 120 Volts; 5.2 Amps at 208 Volts; 5.9 Amps at 240 Volts
Phase
1-Phase
Dimensions
32.0"W × 34.0"D × 36.0"H
Type
Waterless Well
Style
Ganged Deluxe
Installation Type
Floor Model
Spec sheet
Duke SKU: EW-2-DLSS

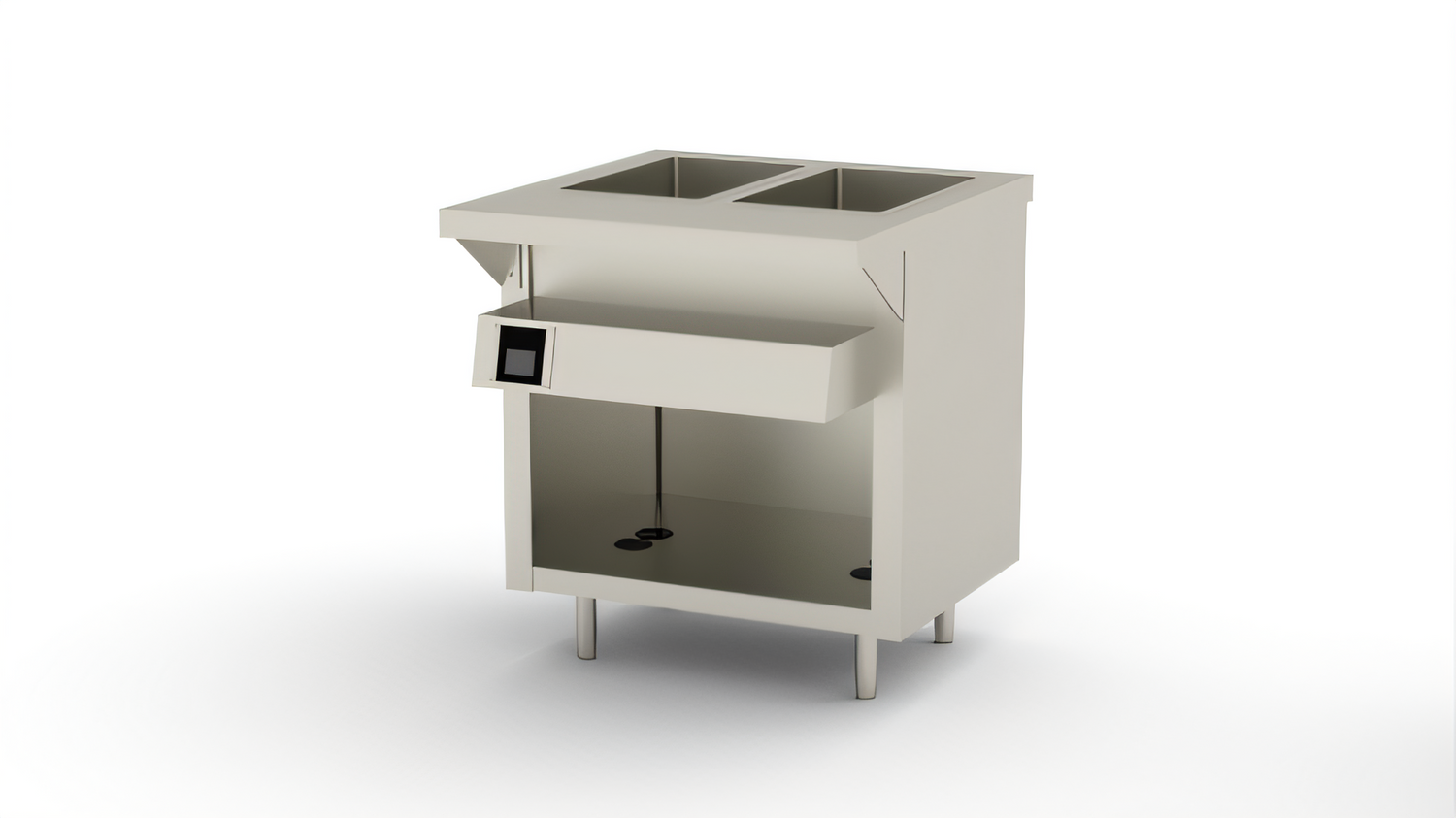

Duke Thurmaduke EW-2-DLSS 2-Pan Waterless Well Unit

$7,729.41
/each
Estimated to ship in 16–19 business days
Wells
Body
ElectricalRequired
Top gauge
Top style
Cutting surface
Factory Add-Ons

Need something else? Contact us.

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $715/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Waterless Well
Style Ganged Deluxe
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Base Design Open Storage Base
Pan Capacity 2 Pans
Well Type Sealed Well
Operation Waterless
Controls Touchscreen
Top Gauge 16 Gauge
Body Gauge 20 Gauge
Leg Height 6 in
Dish Shelf Width 8.5 in
Voltage 120/208/240 Volts
Watts 1,414 Watts at 120/240 Volts; 1,084 Watts at 208 Volts
Amps 11.8 Amps at 120 Volts; 5.2 Amps at 208 Volts; 5.9 Amps at 240 Volts
Phase 1-Phase

Description

The Thurmaduke EW-2-DLSS is an electric waterless well unit with two stainless steel sealed wells and touchscreen controls for dry-operation hot food service.

  • Two sealed wells: Provides a two-pan configuration with stainless steel sealed wells.
  • Waterless operation: The wells are specified for dry operation only.
  • Touchscreen controls: One control operates all wells with Low, Medium, and High presets.
  • Stainless steel construction: Includes a 16-gauge stainless steel top, 20-gauge stainless steel body, and stainless steel undershelf.
  • Integrated work surfaces: Includes a stainless steel cutting board and an 8.5-inch-wide stainless steel dish shelf.
  • Floor-standing design: Includes 6-inch stainless steel legs with adjustable feet and an open storage base.

The unit measures 32 inches wide by 34 inches deep by 36 inches high and is documented for 120-, 208-, or 240-volt, single-phase operation.

Overall Dimensions:

32.0"W x 34.0"D x 36.0"H

Product Weight:

255.0 lb

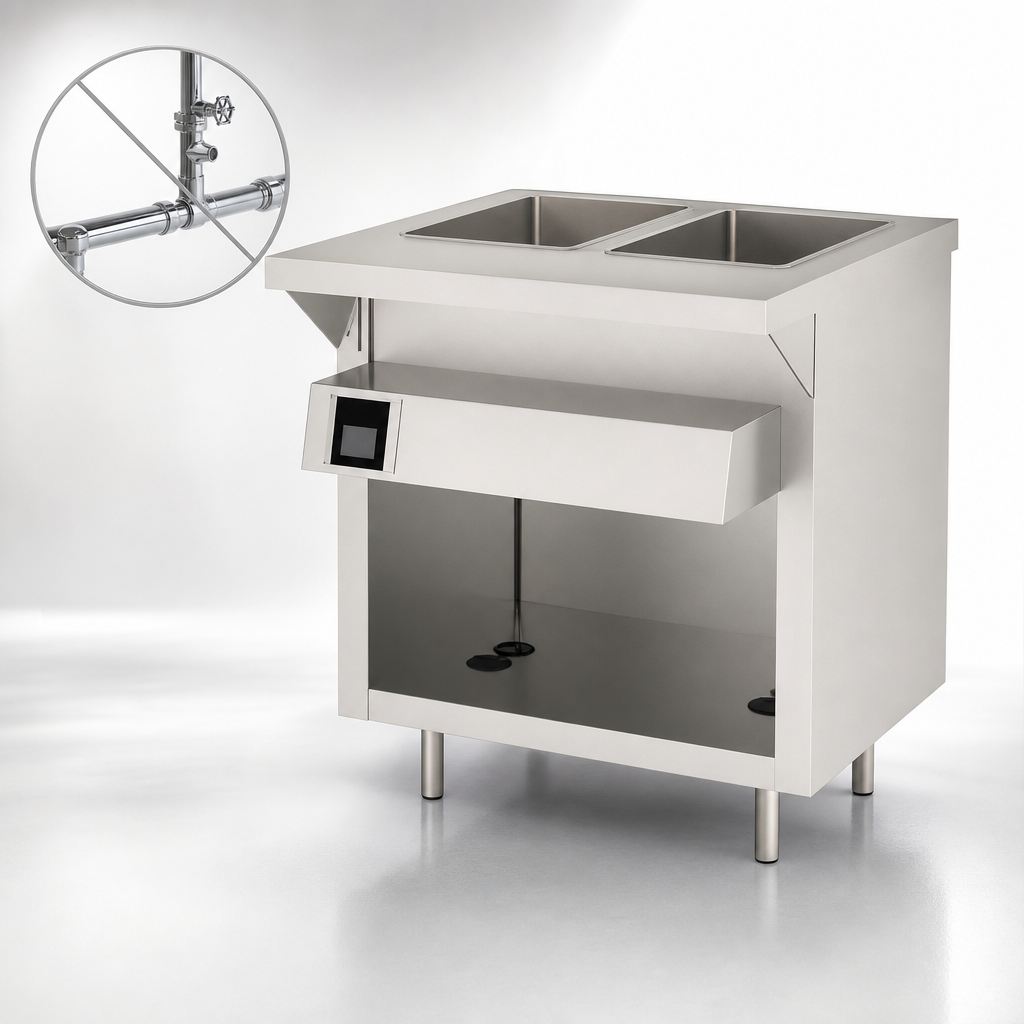

Waterless operation

The wells are specified for dry operation only, and the user guide instructs operators not to add water.

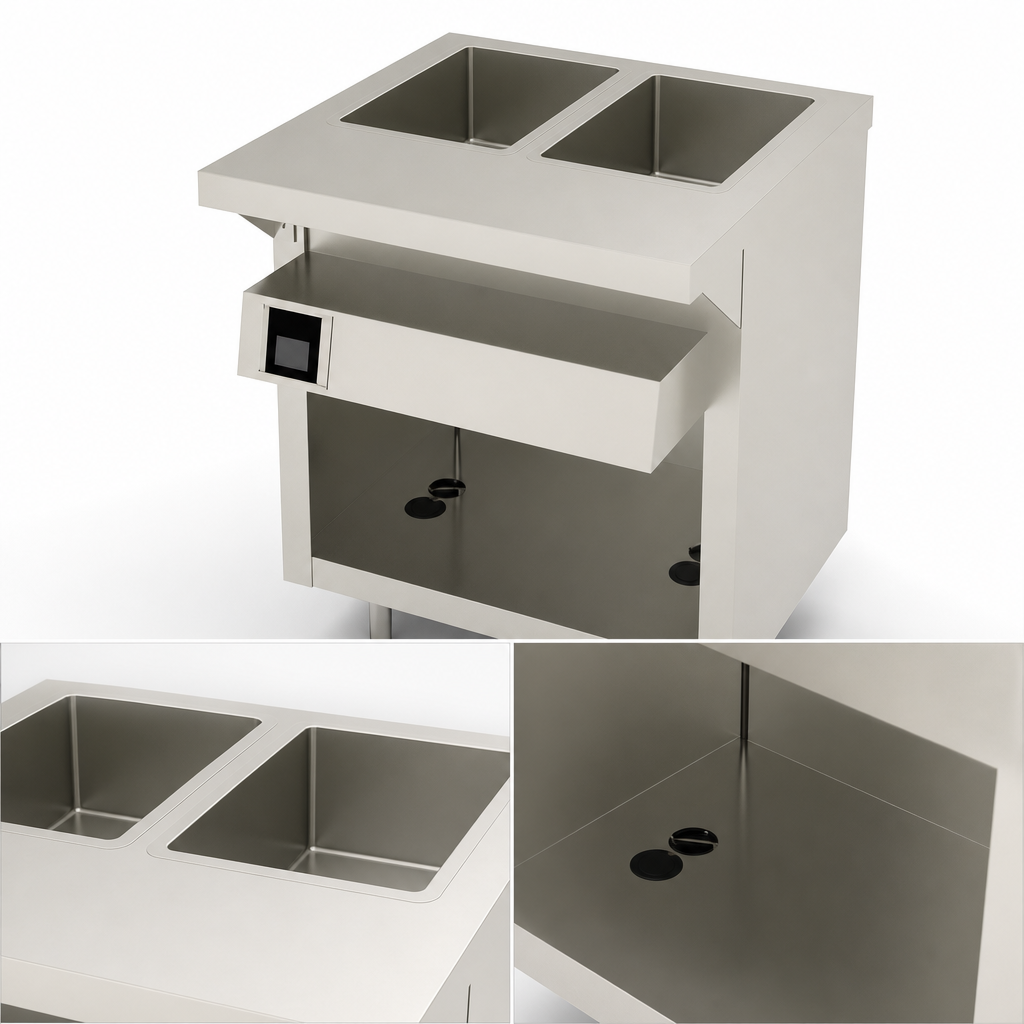

Two sealed wells

The unit has two stainless steel sealed wells for the two-pan configuration.

Touchscreen controls

One touchscreen control operates all wells and provides Low, Medium, and High presets.

Stainless steel construction

The top is 16-gauge stainless steel, while the body and undershelf are 20-gauge stainless steel.

Integrated work and serving surfaces

Includes an integral stainless steel cutting board and an 8.5-inch-wide stainless steel dish shelf.

Adjustable support legs

Includes 6-inch stainless steel legs with adjustable feet.

Open storage base

The unit has an open storage base with a stainless steel undershelf.

Proposition 65: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Frequently Asked Questions

No. The cutsheet specifies dry operation only, and the user guide says not to add water to the well.
The EW-2-DLSS has two stainless steel sealed wells.
The unit measures 32 inches wide by 34 inches deep by 36 inches high and weighs 255 pounds.
The unit is documented for 120, 208, or 240 Volts on single-phase power. It is rated at 1,414 Watts and 11.8 Amps at 120 Volts, 1,084 Watts and 5.2 Amps at 208 Volts, or 1,414 Watts and 5.9 Amps at 240 Volts.
No. The cutsheet states that the cord and NEMA plug are not included.
One touchscreen control operates all wells and provides Low, Medium, and High presets.
Switch the unit off, allow it to cool, and wipe it with warm soapy water. The guide advises against abrasives, steel wool, or similar materials.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
