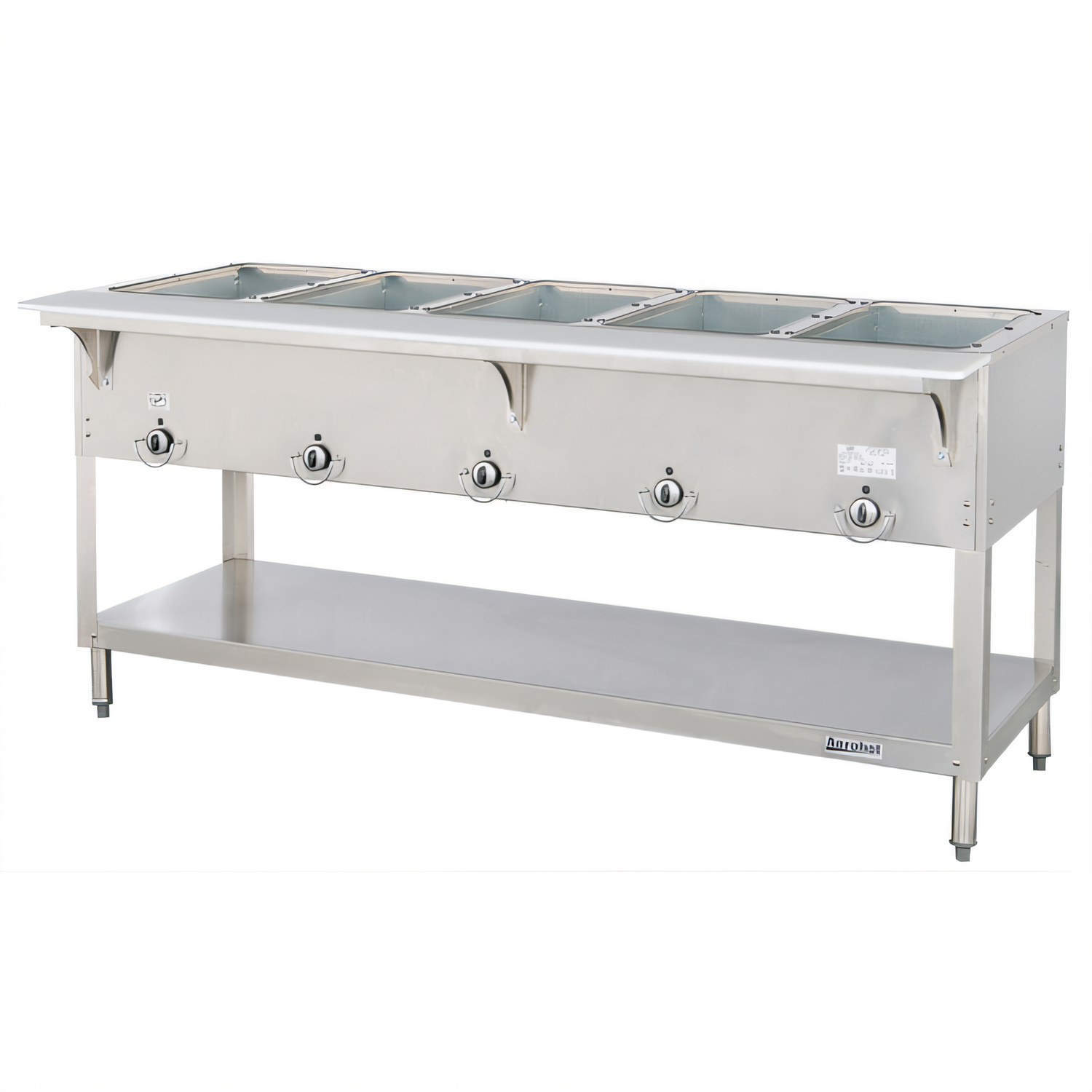

Aerohot E305 Electric 5-Well Hot Food Station with Stainless Steel Open Base and Poly Carving Board

72-3/8" Wide, 12" x 20" Wells, 34" High

Designed for busy service lines, this 5-well electric holding station combines independent heat control, stainless steel construction, and an integrated carving board.

  • Holds five 12" x 20" pans in a large 72-3/8" wide footprint.
  • Stainless steel top, body, and undershelf deliver durable, easy-clean performance.
  • Individual infinite controls let operators adjust heat for each well separately.
  • Integrated 7" poly carving board adds a convenient serving and prep surface.
  • Open base design includes an undershelf, tubular legs, adjustable feet, and a 6' cord with plug.

Overall Dimensions:

72.38"W x 22.44"D x 34.0"H

Product Weight:

165.0 lb

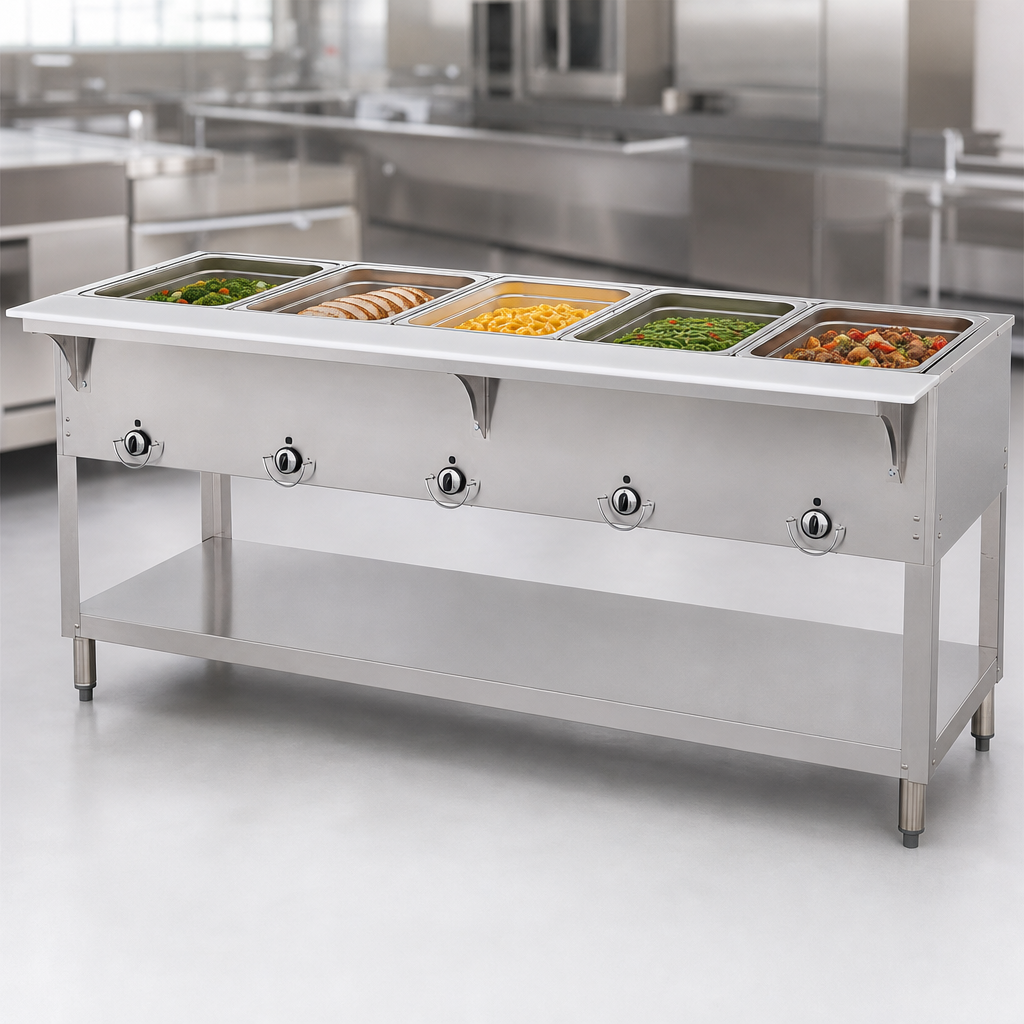

Five 12" x 20" Openings

Die-stamped top openings are sized for five full-size food pans or wells.

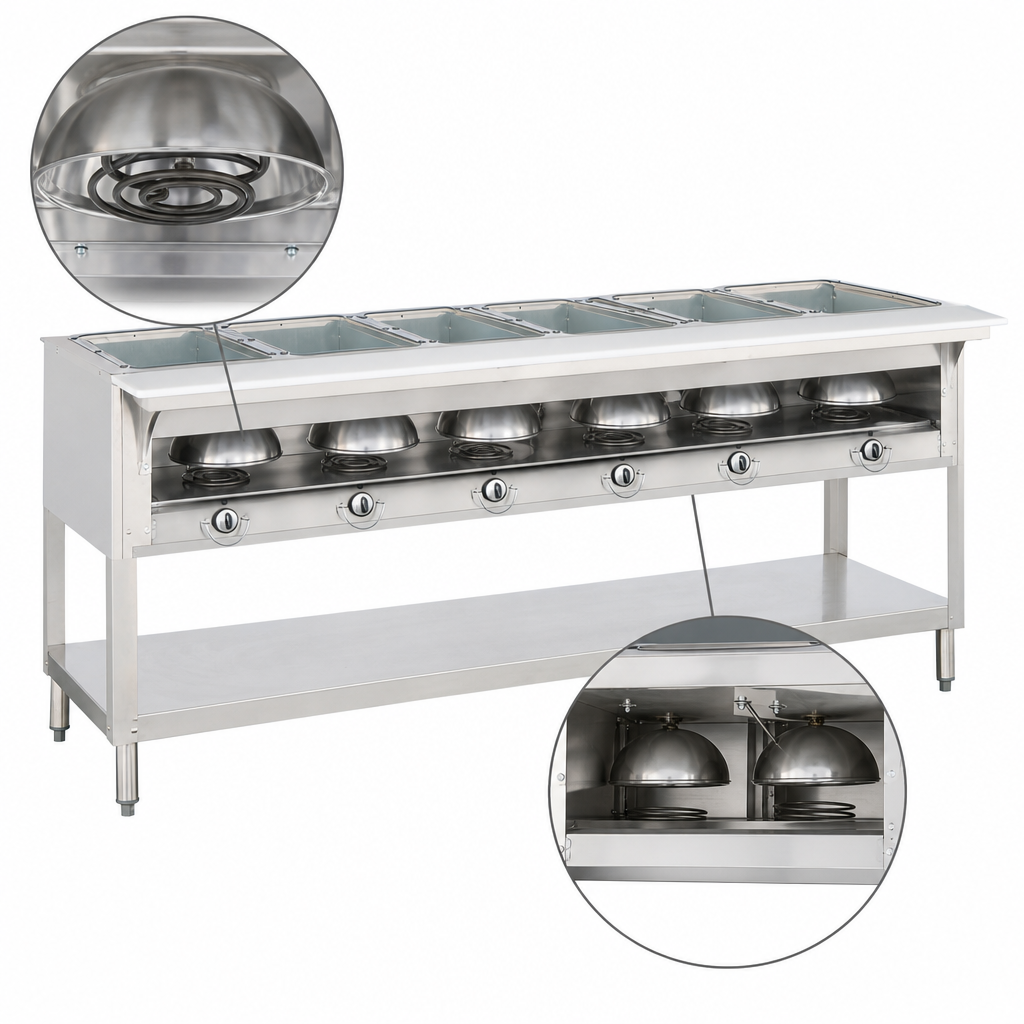

Exposed Heating Elements

Each compartment uses a dome-type heating element for direct, responsive heat.

Infinite Switch Controls

Each section has its own infinite control for straightforward temperature adjustment.

Stainless Steel Construction

A 20-gauge stainless steel top, 430 series stainless steel body, and stainless undershelf provide durability.

Integrated Poly Carving Board

A 7-inch-wide, 1/2-inch-thick poly carving board is supported by stainless steel brackets and shelf support.

Insulated Heat Compartments

Each well includes a die-formed 8-inch-deep galvanized liner with fiberglass insulation on all four sides and the bottom.

Open Base With Legs And Feet

The open base includes a stainless steel undershelf, tubular legs, and adjustable plastic feet.

6-Foot Cord And Plug

A permanently wired 6-foot cord and plug are included for installation convenience.

Type Hot Food Station
Style Stationary
Installation Type Floor Model
Pan Capacity 5 Pans
Pan Size 12 x 20 Inches
Controls Infinite Switch
Material Stainless Steel
Interior Finish Galvanized Steel
Finish Stainless Steel
Cord Length 6 Feet
Selling Unit Each
Units Per Case 1
Shipping Width 73 Inches
Shipping Depth 23 Inches
Shipping Height 34 Inches
Shipping Weight 165 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor from date of installation

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Color chart PDF Download PDF Owner's manual PDF Download PDF Warranty PDF Download

Frequently Asked Questions

This model has five 12" x 20" top openings.
Each section uses an infinite switch control.
Yes. A 6-foot cord and plug are provided.
The unit can be wired for 120, 208, or 240 volts, with single- or three-phase options; consult the factory for 3-phase requirements and other options.
The product is warranted for one year from the date of installation against defects in material and workmanship, with parts and labor covered during the warranty period.
