Key specifications

Phase
1-Phase
Dimensions
46.0"W × 34.0"D × 36.0"H
Type
Steam Table
Style
Open Storage Base
Installation Type
Floor Model
Material
Painted Steel
Spec sheet
Duke SKU: E-3-DLPG

Duke Thurmaduke E-3-DLPG 46-Inch 3-Pan Steam Table

$7,297.51
/each
Estimated to ship in 16–19 business days
Width
Body and undershelf
ElectricalRequired
Top construction
Top gauge
Height
Cord and plug length

Need something else? Contact us.

Included: Duke warranty One-year limited warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $675/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Steam Table
Style Open Storage Base
Installation Type Floor Model
Material Painted Steel
Finish Painted
Top Material Stainless Steel
Pan Capacity 3 Pans
Well Type Sealed Well
Well Depth 6 1/2 in
Width 46 in
Depth 34 in
Height 36 in
Leg Height 6 in
Top Gauge 16 Gauge
Body Gauge 20 Gauge
Controls Thermostat
Heating Method Wet Heat
Watts 750 Watts
Phase 1-Phase

Description

The Duke Thurmaduke E-3-DLPG is an electric steam table with three stainless steel sealed wells, drains, and an open storage base.

It features a 16-gauge stainless steel top, thermostat controls, copper manifolds, one brass valve, an integral stainless steel cutting board, and a dish shelf.

The unit measures 46 in W x 34 in D x 36 in H and has a 20-gauge painted steel body and undershelf with 6 in stainless steel legs and adjustable feet.

Overall Dimensions:

46.0"W x 34.0"D x 36.0"H

Product Weight:

335.0 lb

Three Sealed Wells

Three 6 1/2 in deep stainless steel sealed wells include drains for wet-heat operation.

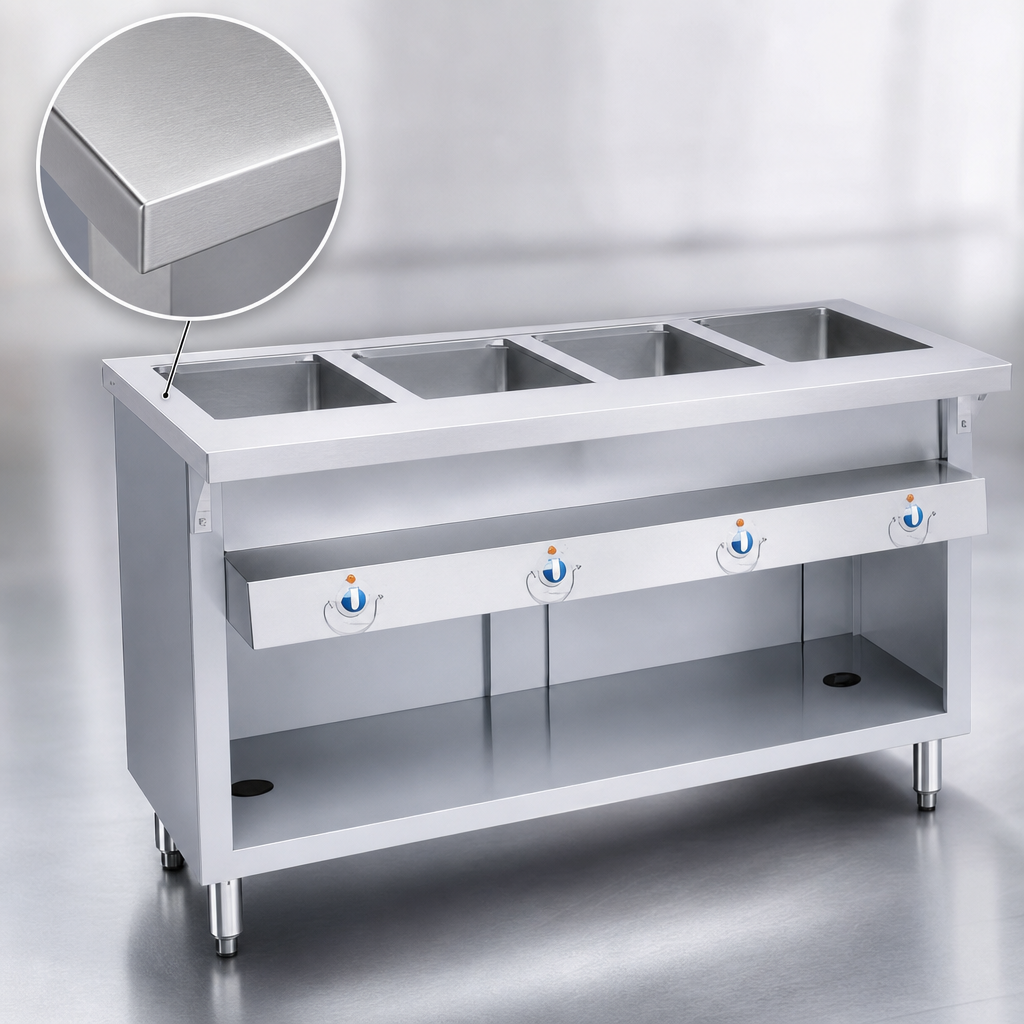

Stainless Steel Top

The top is constructed from 16-gauge stainless steel.

Open Storage Base

The open storage base has a 20-gauge painted steel body and undershelf.

Thermostat Controls

Thermostat controls regulate the steam table.

Integrated Work Surfaces

The unit includes an integral stainless steel cutting board and an 8 in wide stainless steel dish shelf.

Adjustable Legs

Six-inch stainless steel legs include adjustable feet.

Proposition 65: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Frequently Asked Questions

It has three stainless steel sealed wells with drains.
The unit measures 46 in wide, 34 in deep, and 36 in high.
The body and undershelf are made of 20-gauge painted steel, with an open storage base.
It uses thermostat controls.
No. The cutsheet states that the cord and NEMA plug are not included.
The product is cULus and UL EPH Classified.
