Key specifications

Amps
18.8 Amps at 120 Volts; 10.8 Amps at 208 Volts; 9.4 Amps at 240 Volts
Phase
1-Phase
Dimensions
46.0"W × 35.5"D × 36.0"H
Type
Steamtable
Style
Open Storage Base
Installation Type
Floor Model
Spec sheet
Duke SKU: E-3-CBPG

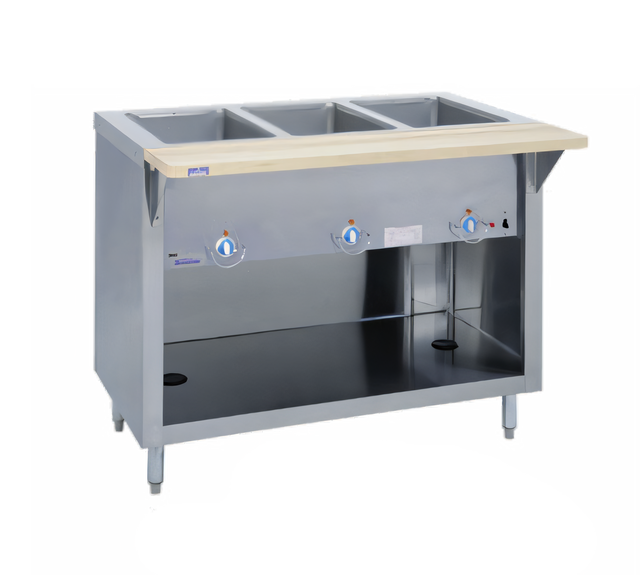

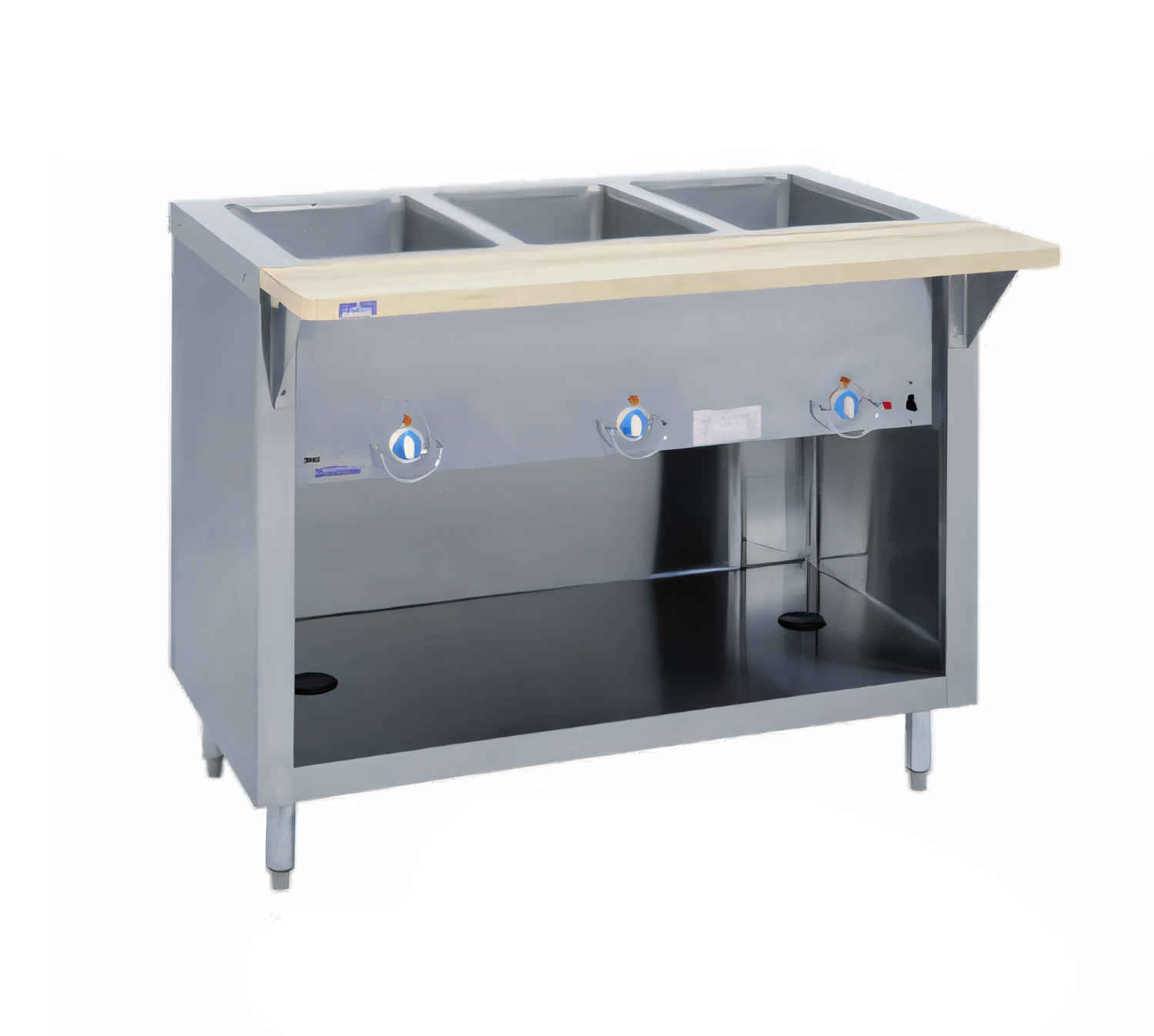

Duke Thurmaduke E-3-CBPG 3-Well Hot Food Table with Storage

$3,865.23
/each
Estimated to ship in 16–19 business days
Width
Base finish
ElectricalRequired
Heating element wattage
Heat well design
Top gauge
Cord length

Need something else? Contact us.

Included: Duke warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $358/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Steamtable
Style Open Storage Base
Installation Type Floor Model
Material Painted Steel
Top Material Stainless Steel
Finish Painted
Pan Capacity 3 Pans
Well Type Sealed Well
Controls Thermostat
Top Gauge 16 Gauge
Body Gauge 20 Gauge
Heat Well Depth 6.5 Inches
Leg Height 6 Inches
Voltage 120 Volts; 208 Volts; 240 Volts
Amps 18.8 Amps at 120 Volts; 10.8 Amps at 208 Volts; 9.4 Amps at 240 Volts
Watts 2,250 Watts
Phase 1-Phase
Plug Type NEMA L5-30 at 120 Volts; NEMA 6-20 at 208 Volts and 240 Volts

Description

The Duke Thurmaduke E-3-CBPG is an electric steamtable with three sealed heat wells, drains, and thermostat controls.

It features a 16-gauge stainless steel top, painted steel body and undershelf, open storage, and six-inch stainless steel legs with adjustable feet.

Overall Dimensions:

46.0"W x 35.5"D x 36.0"H

Product Weight:

264.0 lb

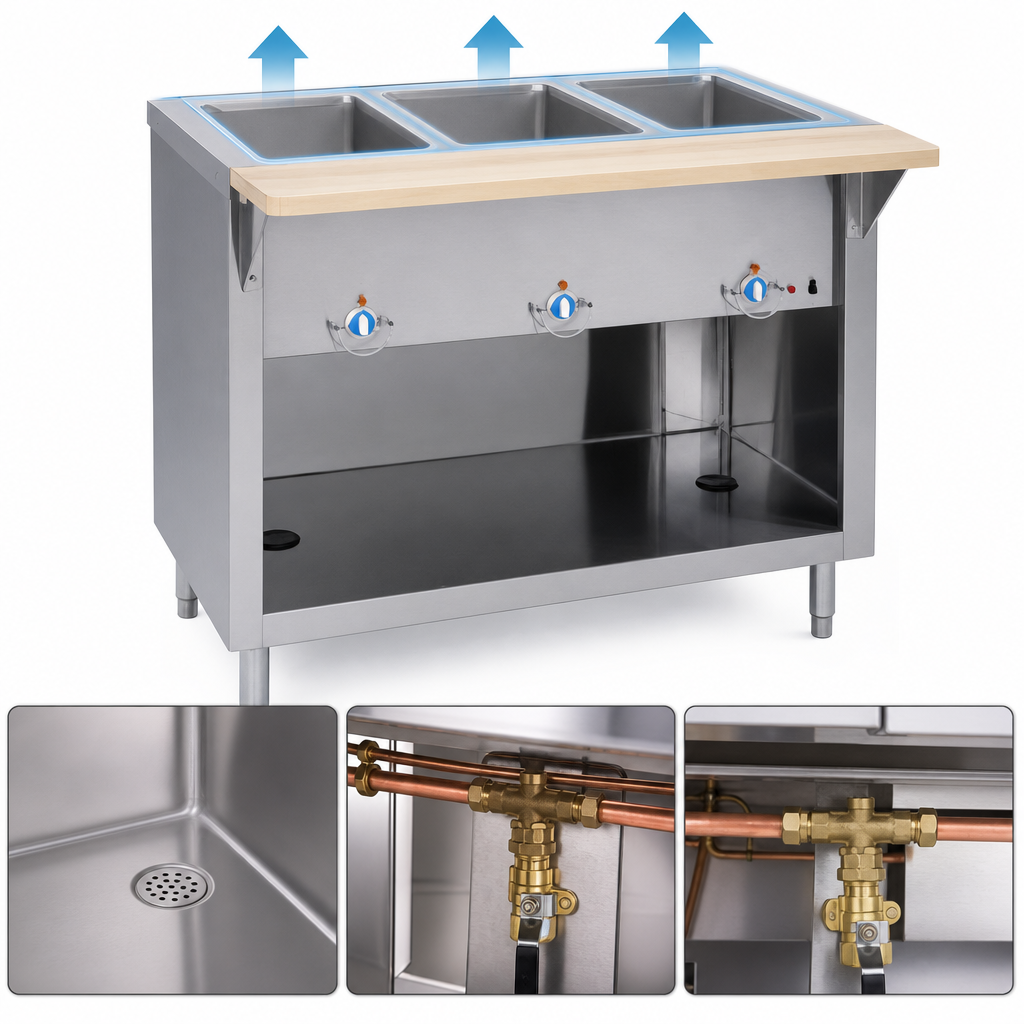

Three Sealed Heat Wells

The unit has three stainless steel sealed heat wells with drains.

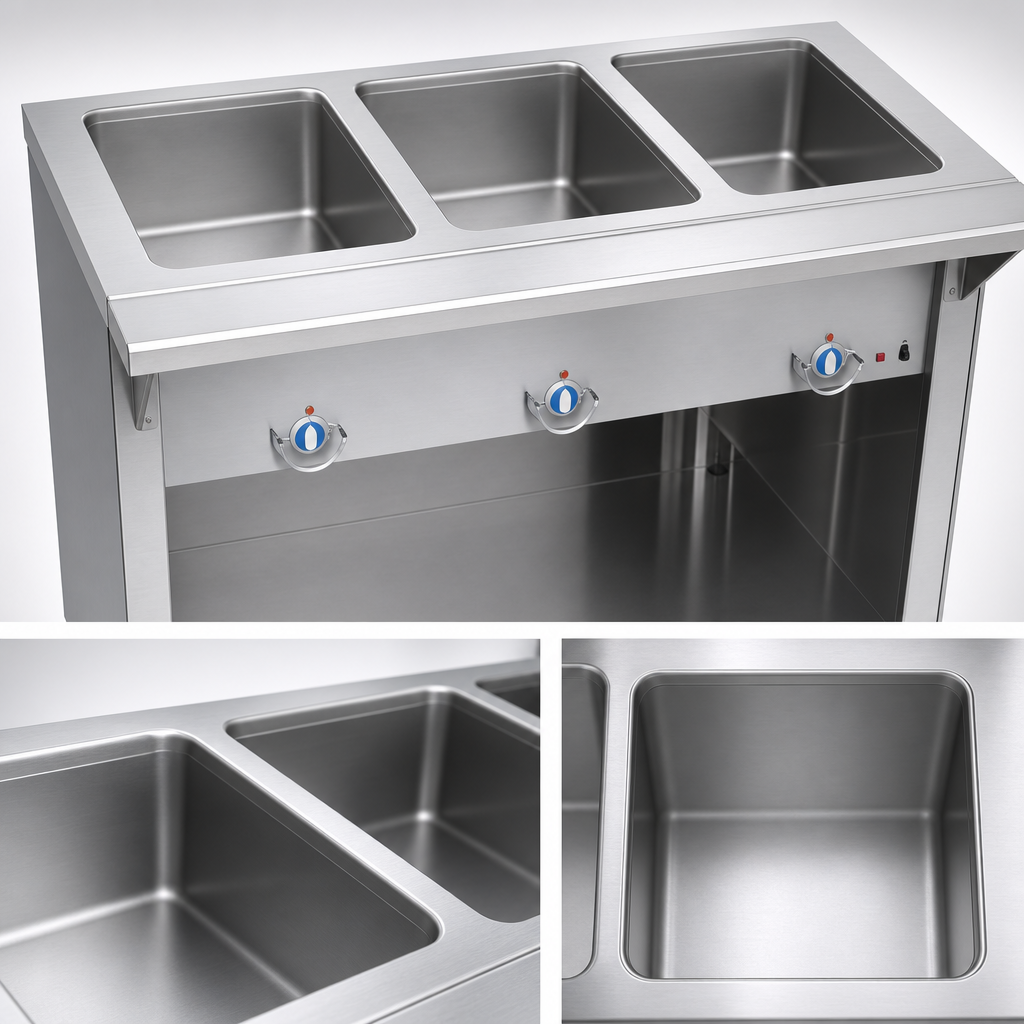

Stainless Steel Top

The top is constructed from 16-gauge stainless steel.

Open Storage Base

The base provides open storage beneath the steamtable.

Thermostat Controls

Thermostat controls regulate the unit.

Painted Steel Body

The body and undershelf are made from 20-gauge paint grip steel.

Adjustable Support Legs

Six-inch stainless steel legs include adjustable feet.

Electrical Configuration

The standard single-phase configuration is listed at 120, 208, or 240 volts with 2,250 watts; amperage and plug specifications vary by voltage.

Proposition 65: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Frequently Asked Questions

It has three sealed heat wells with drains.
Yes. The E-3-CBPG has an open storage base with an undershelf.
No. The product cutsheet states that the cord and NEMA plug are not included.
The standard single-phase configuration is listed at 120, 208, or 240 volts with 2,250 watts. Amperage and plug specifications vary by voltage.
Yes. It has six-inch stainless steel legs with adjustable feet.
