Duke Manufacturing CP6-SB-DC-D 6-Pan Full-Size Drop-In Cold Food Well, Self-Contained Refrigeration, Touchscreen Control

SKU: CP6-SB-DC-D
$8,217.72
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

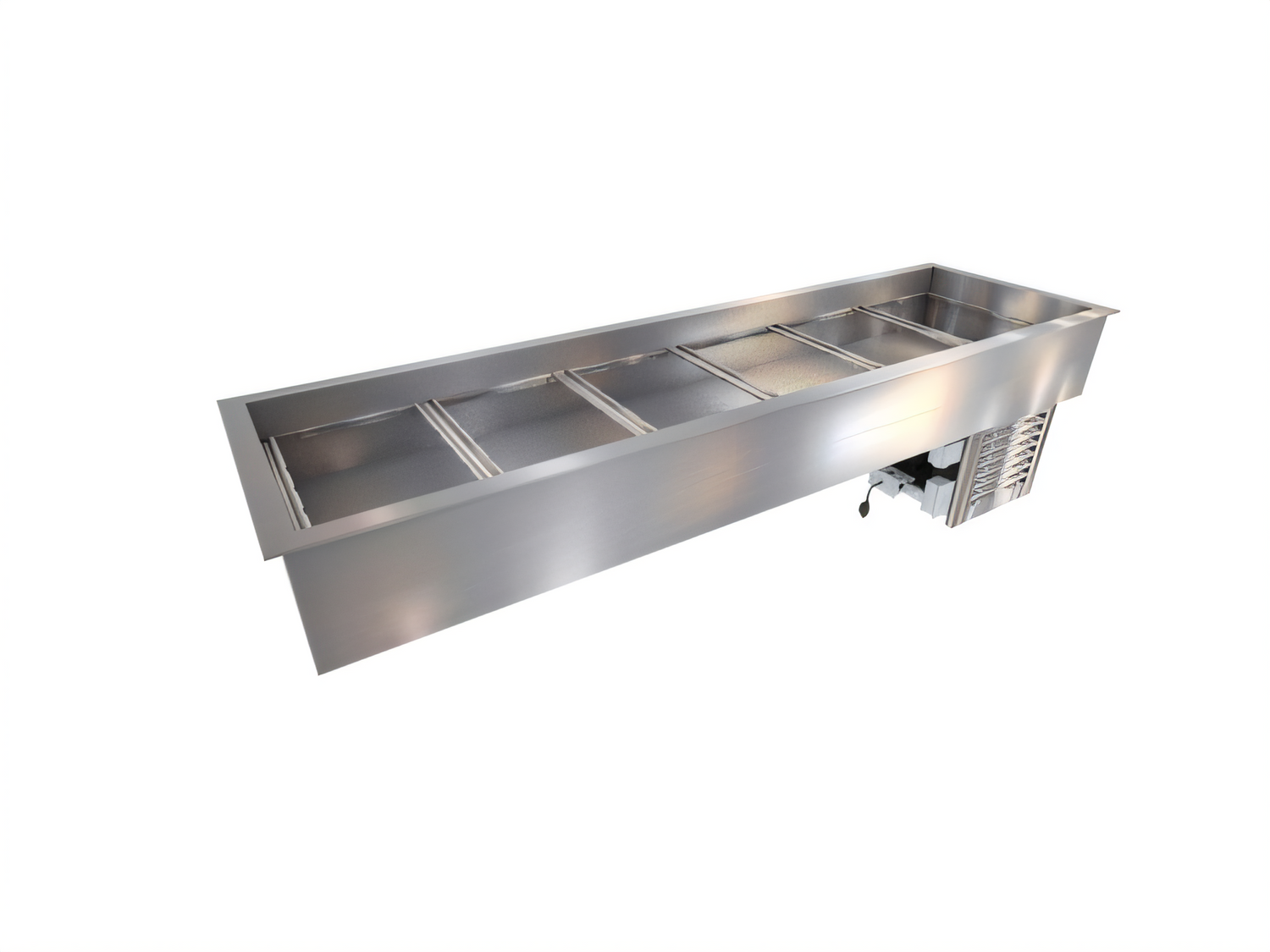

Duke CP6-SB-DC-D Drop-In Cold Food Well, 6-Pan, Refrigerated, Touchscreen Control

6 Full-Size Pan Capacity, Self-Contained Refrigeration, Drop-In, Standard Depth

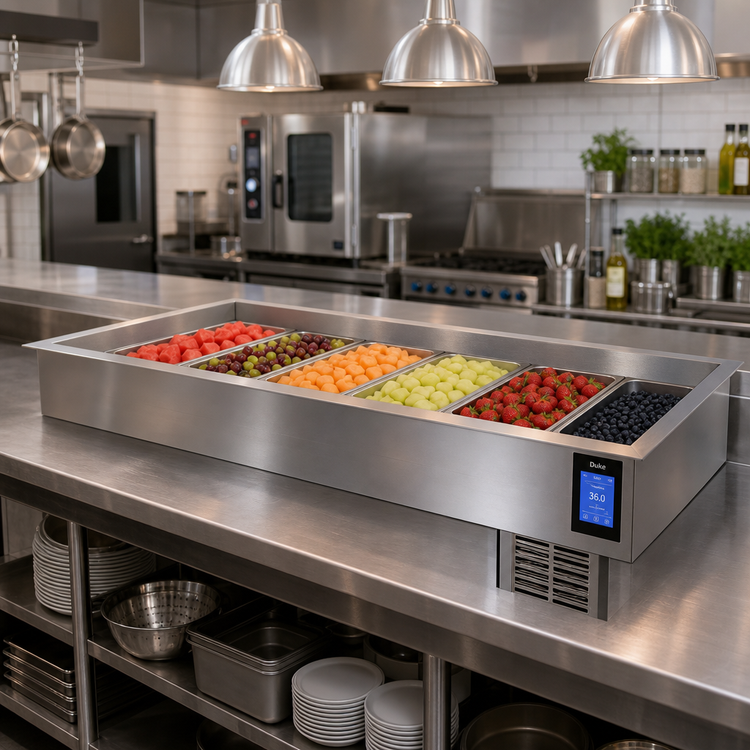

Keep your food items perfectly chilled and ready for serving with the Duke CP6-SB-DC-D drop-in cold food well, designed for seamless integration into any buffet or serving line.

  • Accommodates (6) full-size food pans up to 6 inches deep for ample capacity.
  • Features an intuitive touchscreen control with 3 pre-set temperatures for easy operation.
  • Constructed with a heavy gauge 300 series stainless steel top and cold pan liner for durability and hygiene.
  • Utilizes environmentally safe R290 refrigerant with zero global warming potential and zero ozone depletion potential.
  • Designed for easy installation with a 3/4 inch recess below the countertop surface.
  • Includes a 1 inch brass drain and plug for convenient cleaning and maintenance.
  • Equipped with built-in Wi-Fi and Bluetooth for future connectivity and enhanced management.

Overall Dimensions:

88.13"W x 25.5"D x 24.58"H

Product Weight:

280.0 lb

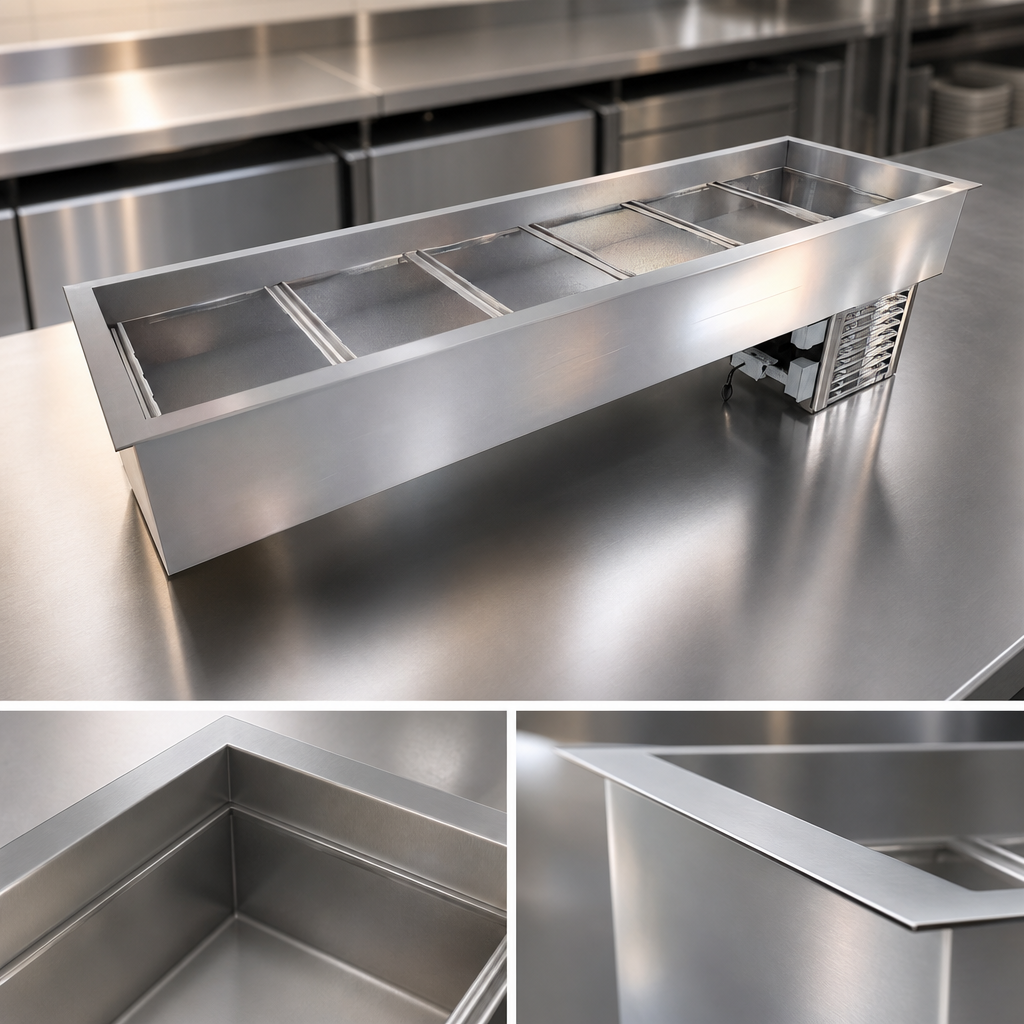

Heavy Gauge Stainless Steel Construction

The top and cold pan liner are made from heavy gauge 300 series stainless steel with a 90-degree turndown, ensuring durability, corrosion resistance, and easy cleaning.

Heavy Gauge Stainless Steel Construction

Optimal Insulation

High-density CFC-free polyurethane foam insulation, with zero global warming potential (GWP) and zero ozone depletion potential (ODP), maintains consistent cold temperatures efficiently.

Touchscreen Control

Comes standard with an intuitive, easy-to-use touchscreen control offering 3 pre-set temperatures, along with a convenient on/off switch.

Advanced Refrigeration System

Features a self-contained refrigeration system using environmentally safe R290 refrigerant, a TXV control for optimal performance, and copper coils attached to all sides of the liner for even cooling.

Versatile Pan Capacity

Designed to accommodate (6) full-size (12" x 20") food pans up to 6" deep, and can also accept 1/2 and 1/3 size pans.

Integrated Drain System

Equipped with a 1 inch cast brass drain and plug for easy and efficient draining of condensation.

Connectivity Options

Includes built-in Wi-Fi and Bluetooth capabilities, ready for future connectivity and smart management features.

Durable Exterior Housing

Features heavy gauge paint grip steel exterior housing for robust protection and longevity.

Related Searches

Refrigeration, Freezing & Ice Reach-In Refrigerators & Freezers Undercounter, Worktop & Countertop Refrigeration Merchandising & Display Refrigeration Bar, Beverage & Wine Cooling Ice Machines & Ice Equipment Walk-In Coolers & Freezers Chest, Glass-Door & Specialty Freezers Blast Chillers & Specialty Cooling Frozen Dessert & Ice Cream Equipment
Type Drop-In Cold Food Pan
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 6 Full-Size Pans
Pan Size Full-Size (12" x 20")
Capacity Up to 6 Inches Deep Food Pans
Material 300 Series Stainless Steel Top & Liner, Paint Grip Steel Exterior
Interior Finish 300 Series Stainless Steel
Controls Touchscreen
Refrigerant Type R290
Refrigeration Type Self-Contained
Drain Connection Size 1 Inch
Drain Connection Required
Voltage 120 Volts
Hertz 60 Hz
Amps 6.9 Amps
Watts 828 Watts
Plug Type NEMA 5-15
Selling Unit Each
Units Per Case 1
Weight 280 lb.
Width 89 Inches
Depth 26 Inches
Height 25 Inches

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

A countertop cutout of 87.5 inches width by 24.63 inches depth is required for proper installation of the Duke CP6-SB-DC-D cold well.
The Duke CP6-SB-DC-D is designed to accommodate six full-size (12" x 20") food pans up to 6 inches deep. It can also accept 1/2 and 1/3 size pans.
Yes, this cold well uses R290 refrigerant, which is environmentally safe with zero global warming potential (GWP) and zero ozone depletion potential (ODP).
The unit features an intuitive, easy-to-use touchscreen control with 3 pre-set temperatures and an on/off switch. It also has built-in Wi-Fi and Bluetooth for future connectivity.
Yes, the CP6-SB-DC-D model includes a 1 inch cast brass drain and plug, and a drain connection is required for operation to manage condensation. A 'No-Drain' option is available, which is required for California installations.
