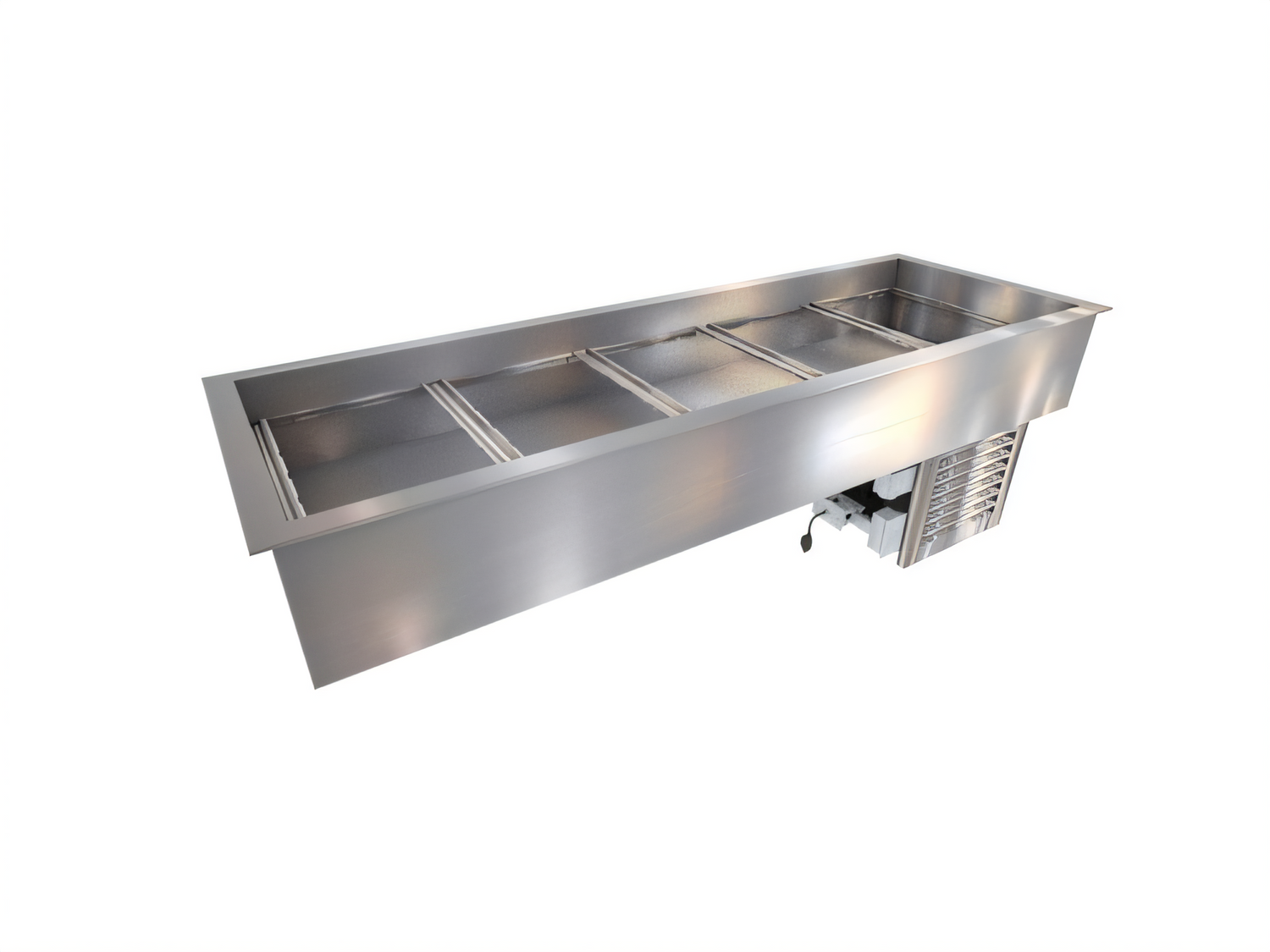

Duke CP5-SB-DC-D Drop-In 5-Pan Refrigerated Cold Food Well with Touchscreen Control

Full-Size Pan Capacity, R290 Refrigerant, Self-Contained

Keep your cold food items perfectly chilled and accessible with the Duke CP5-SB-DC-D drop-in cold food well, featuring precise touchscreen controls and environmentally safe R290 refrigerant.

  • Accommodates (5) full-size 12" x 20" food pans up to 6" deep for versatile cold food service.
  • Features an intuitive touchscreen control with 3 pre-set temperatures for easy and accurate operation.
  • Utilizes environmentally safe R290 refrigerant and CFC-free foam insulation for superior efficiency and sustainability.
  • Constructed with a heavy gauge 300 series stainless steel top and cold pan liner for exceptional durability and hygiene.
  • Designed for seamless countertop integration with a 3/4" product recess and heavy gauge paint grip steel exterior housing.
  • Equipped with built-in WiFi and Bluetooth for future connectivity and enhanced management.

Overall Dimensions:

74.13"W x 25.5"D x 24.58"H

Product Weight:

230.0 lb

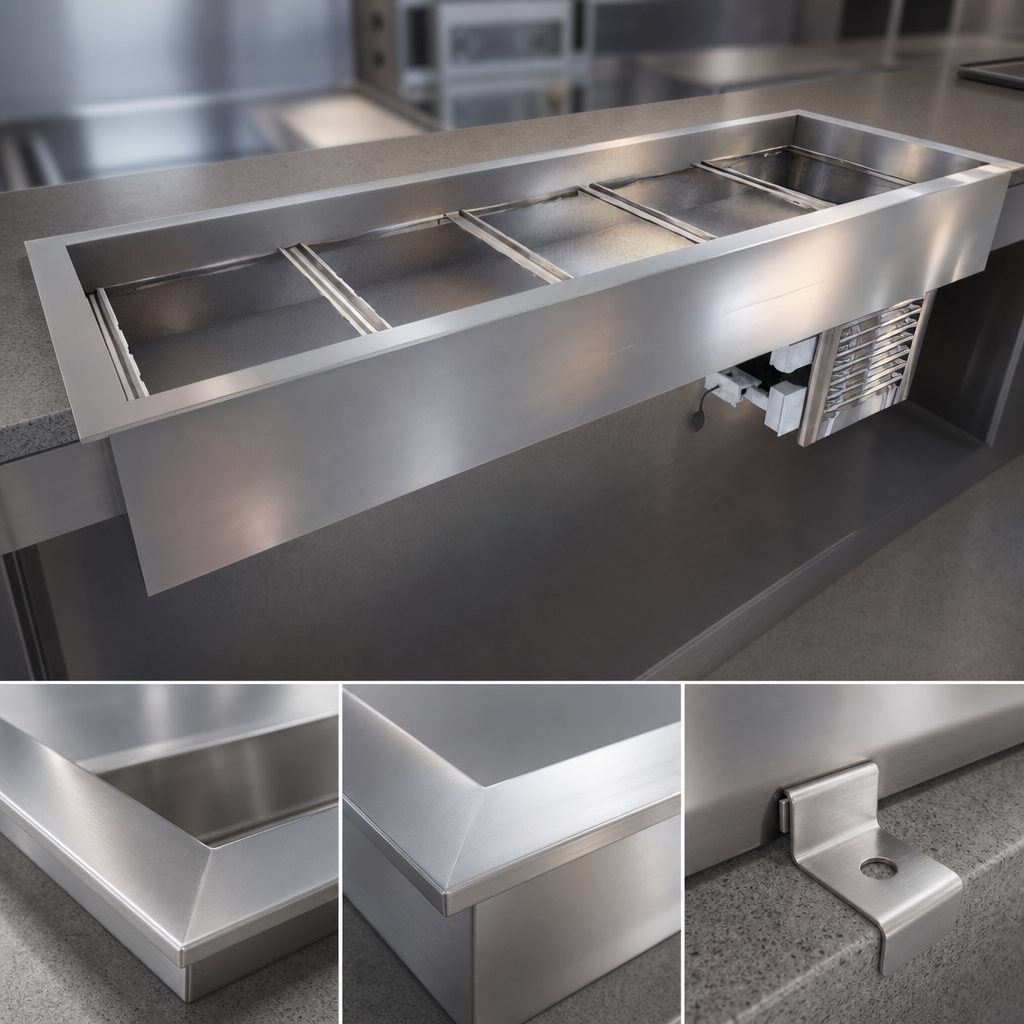

Heavy Gauge 300 Series Stainless Steel Top

Features a 90-degree turndown, overhang on the front, back, and ends, and locking tabs for secure and integrated installation.

300 Series Stainless Steel Cold Pan Liner

Ensures a durable, hygienic, and easy-to-clean interior for food storage.

3/4 Inch Product Recess

Designed so food pans sit 3/4 inch below the top surface, providing an integrated and sleek look while keeping food chilled.

High-Density CFC-Free Polyurethane Foam Insulation

Provides excellent thermal efficiency with zero global warming potential (GWP) and zero ozone depletion potential (ODP).

1 Inch Cast Brass Drain and Plug

Allows for easy draining and cleaning of the cold pan.

Removable Stainless Steel Brackets

Located 3/4 inch below the top, these brackets offer flexibility for pan arrangements.

Heavy Gauge Paint Grip Steel Exterior Housing

Provides robust construction and protection for the internal components.

Environmentally Safe R290 Refrigerant

Utilizes a hydrocarbon refrigerant with low environmental impact for efficient cooling.

TXV Control

Ensures optimal refrigeration performance and precise temperature management.

Intuitive Touchscreen Control

Easy-to-use control panel with 3 pre-set temperatures for quick and consistent temperature settings.

Built-in WiFi and Bluetooth

Offers future connectivity options for monitoring and control.

Compressor Enclosed in Perforated Aluminum

Protects the compressor while ensuring proper ventilation.

Copper Coils Attached to All Sides of Liner

Delivers consistent and even cooling across the entire cold pan liner.

Type Drop-In Cold Pan
Style Self-Contained Refrigeration
Installation Type Drop-In
Compartments 5
Pan Capacity 5 Full-Size Food Pans
Pan Size 12 Inches x 20 Inches
Pan Depth Up to 6 Inches
Controls Touchscreen
Material Stainless Steel
Interior Finish 300 Series Stainless Steel
Refrigerant Type R290
Drain Connection Size 1 Inch
Drain Connection Required
Voltage 120 Volts
Hertz 60 Hz
Amps 6.9 Amps
Watts 828 Watts
Plug Type NEMA 5-15
Shipping Width 75 Inches
Shipping Depth 26 Inches
Shipping Height 25 Inches
Shipping Weight 230 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The Duke CP5-SB-DC-D is designed to accommodate five full-size 12" x 20" food pans up to 6" deep. It can also be configured to hold 1/2 and 1/3 size pans.
This unit requires 120 Volts, 60 Hz, and draws 6.9 Amps. It comes with a NEMA 5-15 plug for connection.
Yes, the CP5-SB-DC-D comes standard with a 1-inch cast brass drain and plug for easy cleaning. A 'No-Drain' option is also available as a configuration.
The cold well features an intuitive touchscreen control with 3 pre-set temperatures. It also includes built-in WiFi and Bluetooth for future connectivity.
For proper installation, a countertop cutout measuring 73-1/2 inches (Length) by 24-5/8 inches (Width) is required for the unit to drop in.
Yes, the Duke CP5-SB-DC-D uses environmentally safe R290 hydrocarbon refrigerant and features high-density CFC-free polyurethane foam insulation, both of which have zero global warming potential (GWP) and zero ozone depletion potential (ODP).
