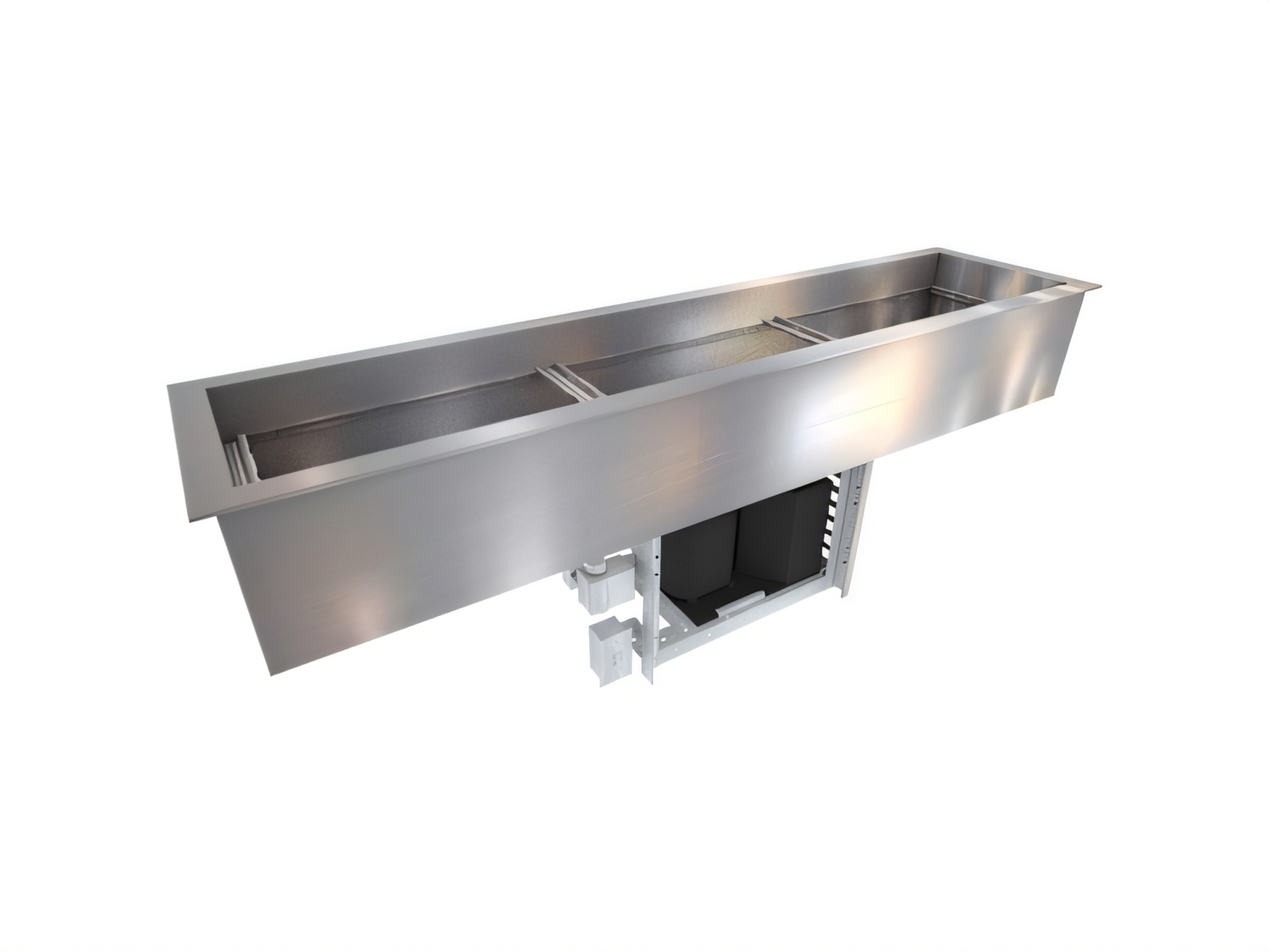

Duke CP3-SL-DC-D Drop-In Self-Contained Refrigerated Cold Food Well, 3-Pan

Full-Size, N7 Refrigeration, Standard Depth

Keep your culinary creations perfectly chilled and ready for serving with this efficient, self-contained drop-in cold food well.

  • Accommodates three full-size 12" x 20" food pans up to 6" deep, ideal for various cold dishes.
  • Features self-contained N7 refrigeration system using eco-friendly R290 refrigerant for consistent temperature control.
  • Durable construction with a 300 series stainless steel top and robust steel exterior housing.
  • Equipped with modern touchscreen controls for easy temperature management and operation.
  • Designed for seamless integration into your serving line with a drop-in installation and a 3/4" top recess.

Overall Dimensions:

70.83"W x 17.37"D x 24.58"H

Product Weight:

225.0 lb

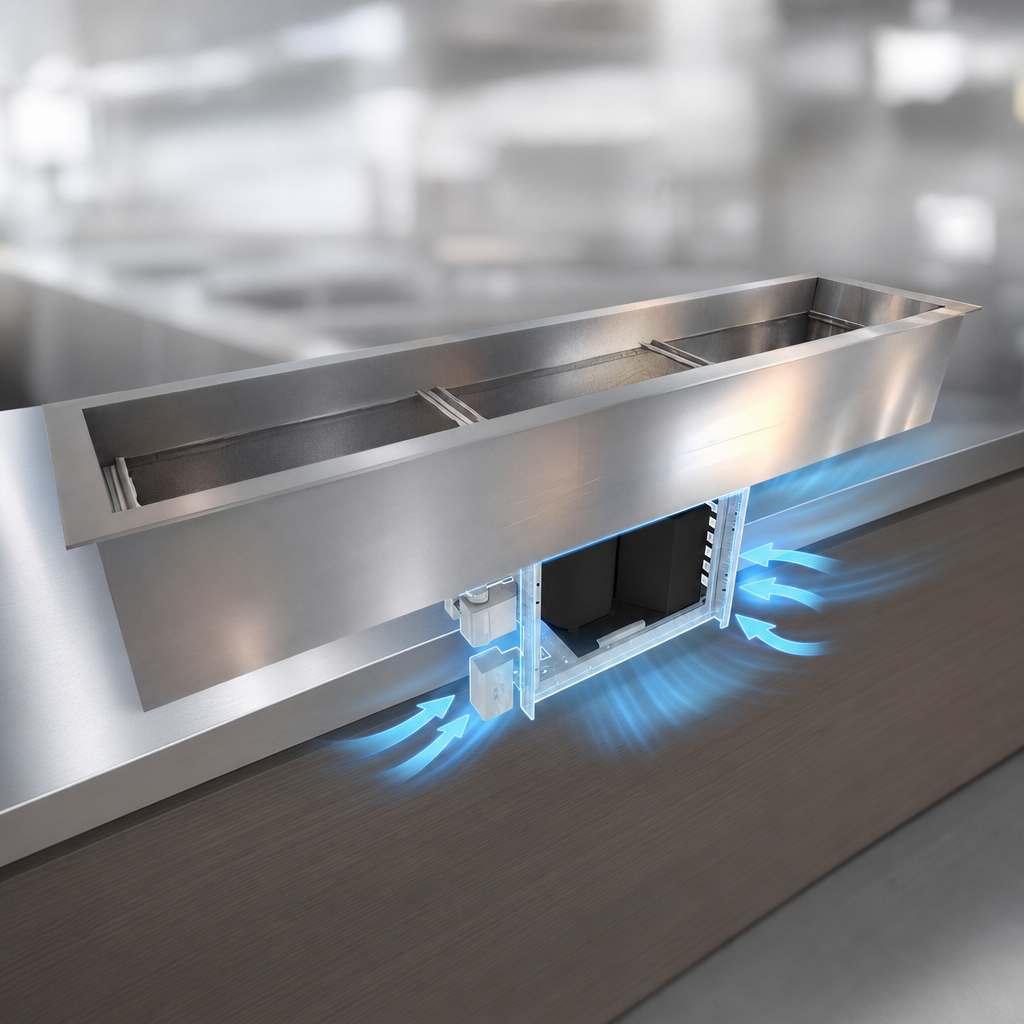

Self-Contained Refrigeration

Features a self-contained N7 refrigeration system that provides efficient and consistent cooling for perishable food items.

Eco-Friendly Refrigerant

Utilizes R290 natural refrigerant, offering an environmentally conscious choice for refrigeration.

Touchscreen Control

Equipped with intuitive touchscreen controls for precise temperature adjustments and user-friendly operation.

Heavy-Duty Construction

Constructed with a 300 series stainless steel top, featuring an overhang and locking tabs, paired with a durable steel exterior housing for longevity.

Integrated Drain System

Includes a 1-inch brass drain and plug for easy cleaning and maintenance.

Generous Pan Capacity

Designed to hold three full-size (12" x 20") food pans, each up to 6" deep, maximizing serving options.

Standard Drop-In Design

Features a 3/4" top recess and requires a 16-3/4"W x 69-3/4"D cutout for seamless drop-in installation into countertops.

Type Drop-In Cold Food Pan
Style Self-Contained Refrigeration
Pan Capacity 3 Full-Size Pans
Pan Size Full-Size (12" x 20")
Controls Touchscreen
Material 300 Series Stainless Steel Top, Steel Exterior
Installation Type Drop-In
Refrigerant Type R290
Refrigeration Type Self-Contained
Voltage 120 Volts
Hertz 60 Hz
Amps 4.4 Amps
Plug Type NEMA 5-15P
Drain Connection Size 1 Inch
Selling Unit Each
Units Per Case 1
Shipping Width 71 Inches
Shipping Depth 18 Inches
Shipping Height 25 Inches
Shipping Weight 225.0 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

This cold well is designed to accommodate three full-size (12" x 20") food pans, with a maximum depth of 6 inches.
It features a self-contained N7 refrigeration system that uses R290 natural refrigerant, providing efficient and environmentally friendly cooling.
The unit requires 120 Volts, 60 Hz, and draws 4.4 Amps, with a NEMA 5-15P plug type.
For proper drop-in installation, a countertop cutout of 16-3/4 inches wide by 69-3/4 inches deep is required.
Yes, while the standard configuration includes a touchscreen control, an optional mechanical control is available as a configuration choice.
