Duke CP3-SB-DC-D 3-Pan Drop-In Refrigerated Cold Food Pan with Touchscreen Control

SKU: CP3-SB-DC-D
$5,053.89
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Duke Manufacturing Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells

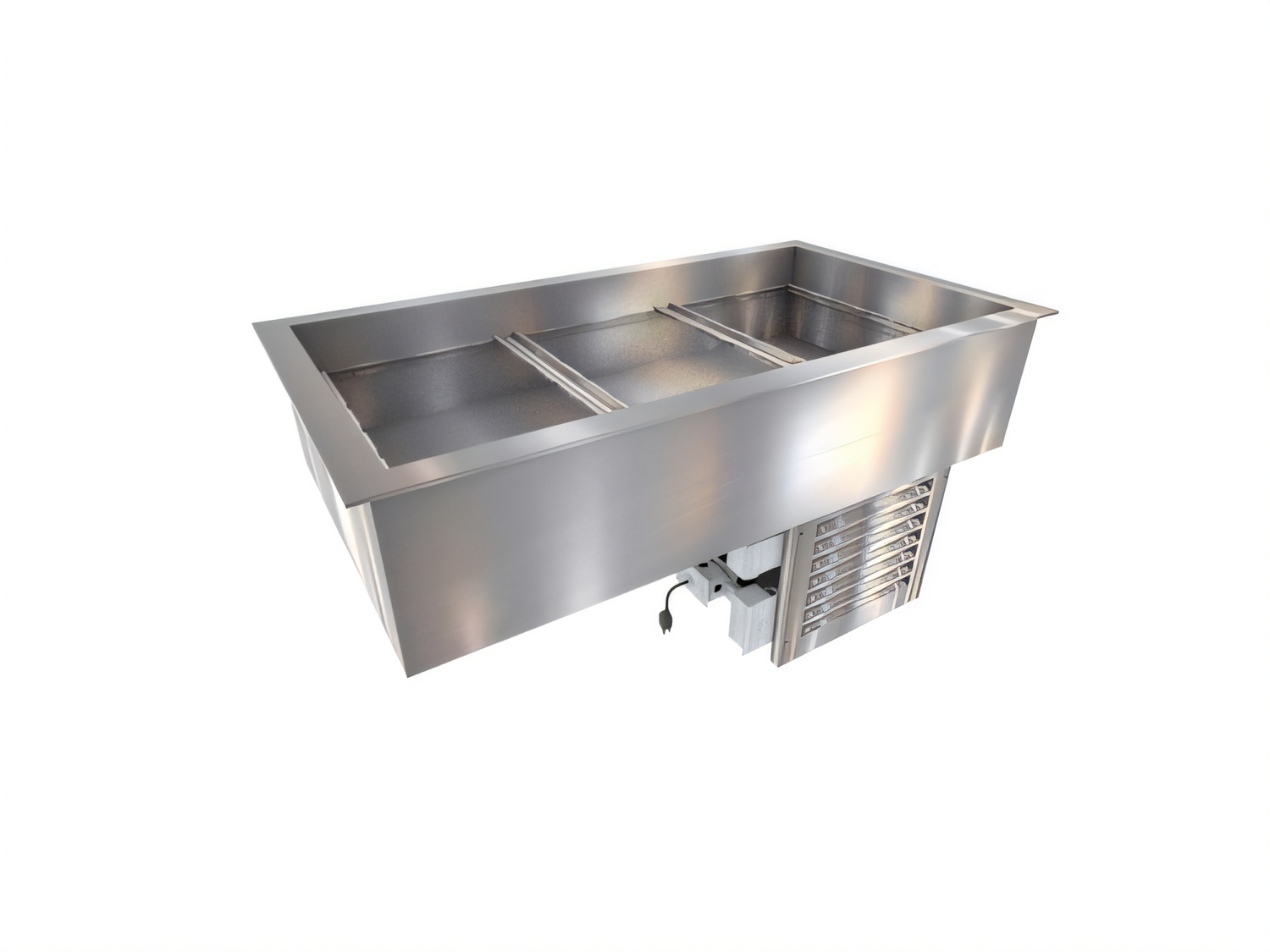

Duke CP3-SB-DC-D 3-Pan Drop-In Refrigerated Cold Food Pan with Touchscreen Control

Full-Size, 3-Section, Self-Contained

Effortlessly maintain optimal food temperatures with this self-contained drop-in cold pan, featuring a durable stainless steel design and advanced touchscreen controls for commercial kitchen efficiency.

  • Accommodates three 12" x 20" full-size food pans up to 6 inches deep.
  • Utilizes environmentally safe R290 refrigerant with zero GWP and ODP for efficient cooling.
  • Constructed with heavy gauge 300 series stainless steel top and liner for durability and hygiene.
  • Features an intuitive touchscreen control with three pre-set temperatures for easy operation.
  • Designed for seamless drop-in installation with a 3/4" top recess and vinyl foam gasket sealant.
  • Includes a 1" cast brass drain and plug for convenient cleaning and maintenance.
  • Equipped with built-in Wi-Fi and Bluetooth connectivity for future smart features.

Overall Dimensions:

46.13"W x 25.5"D x 24.58"H

Product Weight:

175.0 lb

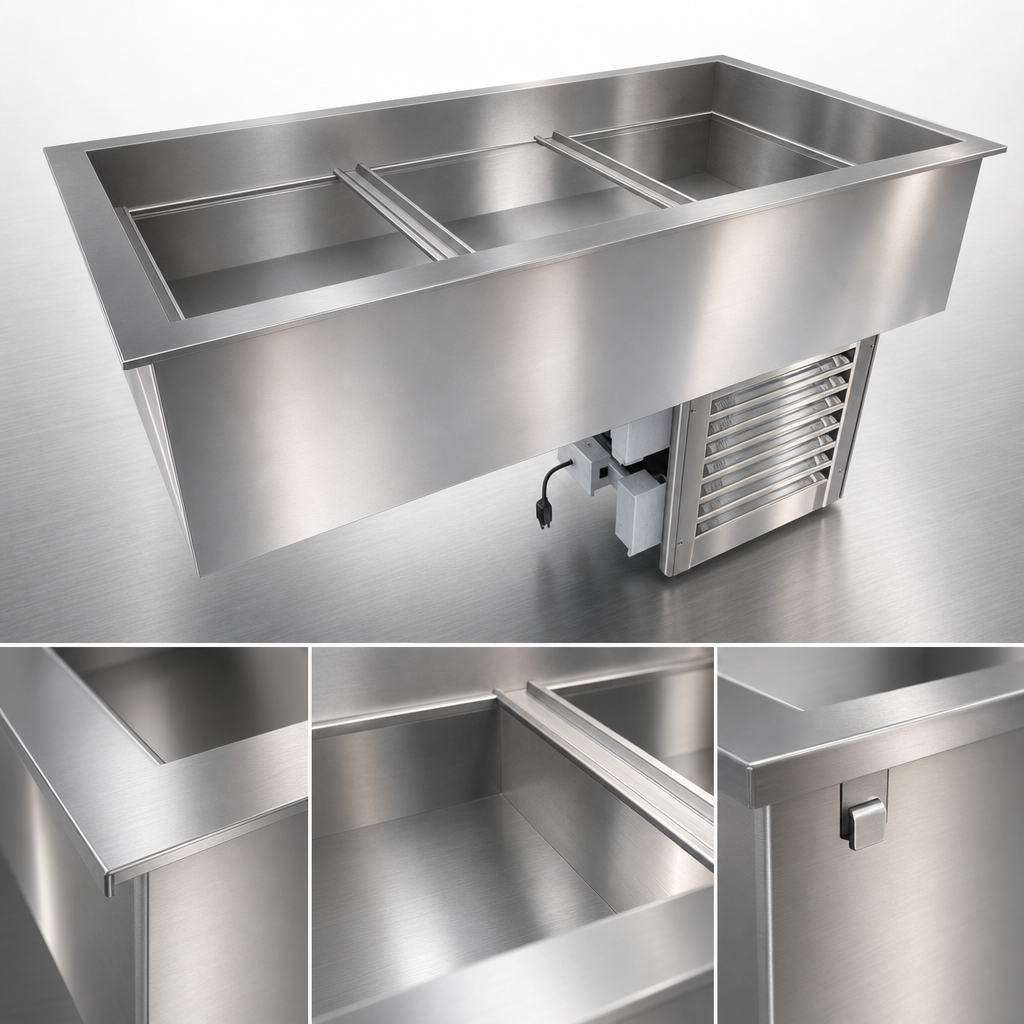

Heavy Gauge Stainless Steel Construction

Features a heavy gauge 300 series stainless steel top with a 90-degree turndown, overhang on front, back, and ends with locking tabs, and a 300 series stainless steel cold pan liner for exceptional durability and sanitation.

Eco-Friendly R290 Refrigeration

Utilizes environmentally safe R290 refrigerant, ensuring zero global warming potential (GWP) and zero ozone depletion potential (ODP) for responsible and efficient cooling.

Advanced Touchscreen Control

Comes standard with an intuitive, easy-to-use touchscreen control panel, offering three pre-set temperatures for precise food holding and includes built-in Wi-Fi and Bluetooth for future connectivity.

High-Density CFC-Free Insulation

Insulated with high-density CFC-free polyurethane foam, providing excellent thermal retention without harmful environmental impact.

Versatile Pan Capacity

Designed to accommodate three 12" x 20" full-size food pans up to 6 inches deep, and can also hold 1/3rd size pans, offering flexibility for various food presentations.

Integrated 1" Cast Brass Drain

Equipped with a 1-inch cast brass drain and plug for efficient water removal and easy cleaning.

Removable Stainless Brackets

Includes removable stainless steel brackets positioned 3/4" below the top, providing support for pans.

Durable Exterior Housing

Features a heavy gauge paint grip steel exterior housing, providing robust protection for the internal components.

Type Drop-In Cold Pan
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 3 Full-Size Pans (up to 6 Inches Deep)
Pan Size 12" x 20" (Full-Size)
Controls Touchscreen (3 Pre-Set Temperatures)
Material 300 Series Stainless Steel
Interior Finish 300 Series Stainless Steel
Refrigerant Type R290
Drain Connection Required
Drain Connection Size 1 Inch Brass
Recess Depth 3/4 Inch
Voltage 120 Volts
Hertz 60 Hz
Amps 5.2 Amps
Watts 624 Watts
Plug Type NEMA 5-15
Shipping Weight 175 lb.
Shipping Width 47 Inches
Shipping Depth 26 Inches
Shipping Height 25 Inches

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

This cold food pan is designed to accommodate three 12" x 20" full-size food pans, or equivalent 1/3rd size pans, up to 6 inches deep.
The Duke CP3-SB-DC-D uses environmentally safe R290 refrigerant, which has zero global warming potential (GWP) and zero ozone depletion potential (ODP).
It comes standard with an intuitive, easy-to-use touchscreen control panel that offers three pre-set temperatures, along with built-in Wi-Fi and Bluetooth for future connectivity.
Yes, this cold pan includes a 1" cast brass drain and plug, indicating it requires a drain connection for proper operation and cleaning.
A countertop cutout measuring 45-1/2 inches wide by 24-5/8 inches deep is required for proper installation of this unit.
