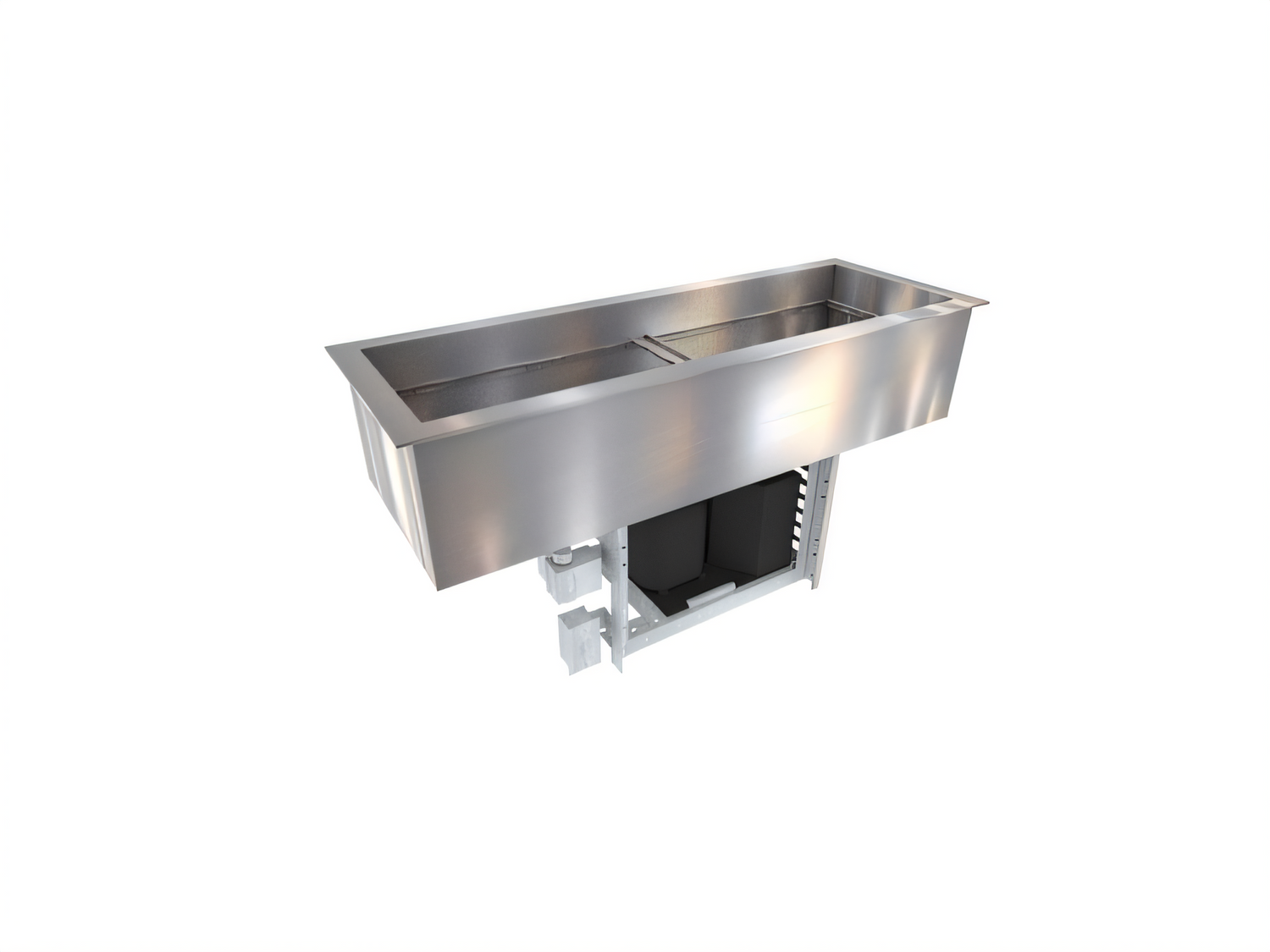

Duke CP2-SL-DC-D Drop-In 2-Pan Refrigerated Cold Food Well with Touchscreen Controls

Full-Size, Self-Contained Refrigeration

Designed for seamless integration into your serving line, this Duke drop-in cold food well keeps ingredients perfectly chilled with efficient self-contained refrigeration.

  • Accommodates two full-size (12" x 20") food pans up to 6" deep.
  • Features self-contained R290 refrigeration for consistent cooling performance.
  • Constructed with a durable 300 series stainless steel top and steel exterior housing.
  • Equipped with an intuitive touchscreen control for precise temperature management.
  • Convenient 1" brass drain with plug for easy cleaning and water removal.
  • Designed for a 3/4" top recess installation, providing a flush and integrated appearance.

Overall Dimensions:

48.83"W x 17.37"D x 24.58"H

Product Weight:

165.0 lb

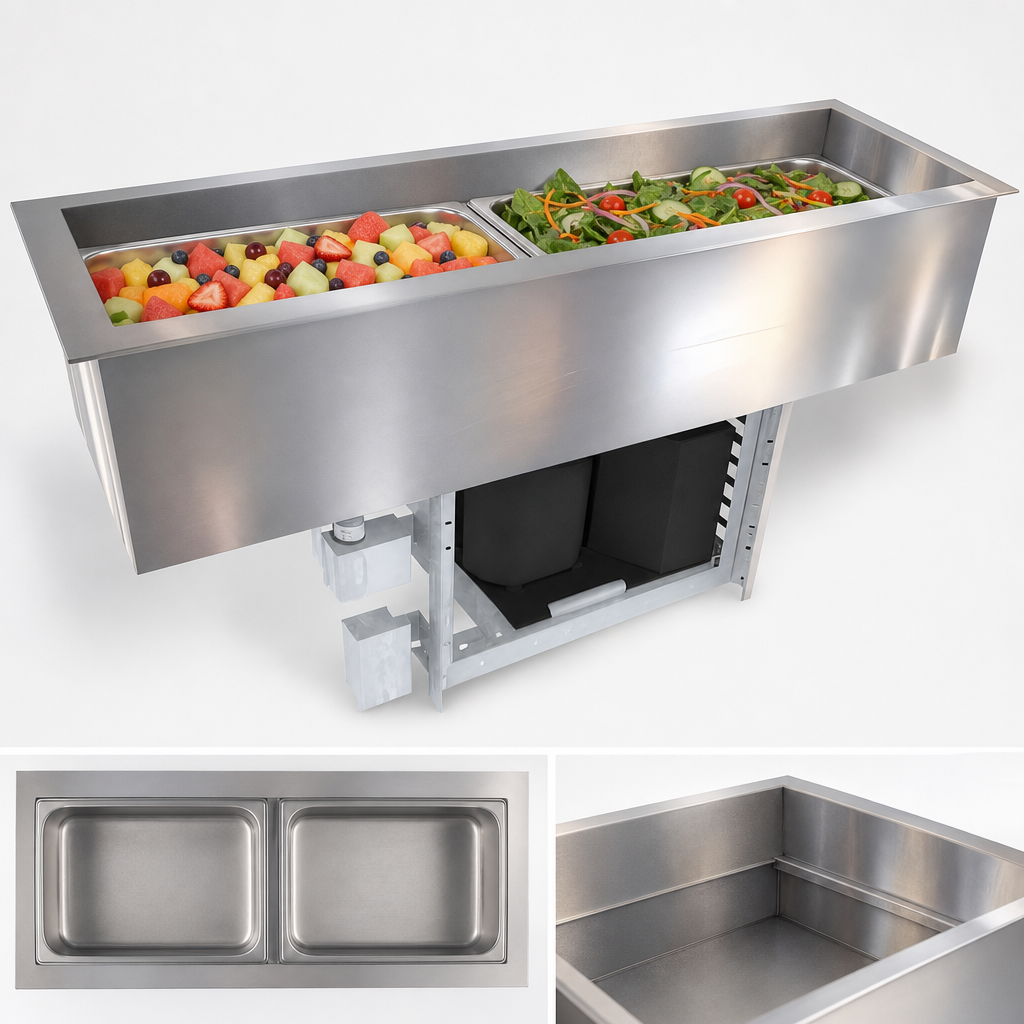

2-Pan Capacity

Holds two full-size (12" x 20") food pans, up to 6 inches deep, ideal for keeping various cold food items ready for service.

Self-Contained Refrigeration

Utilizes R290 refrigerant within a self-contained system for efficient and reliable cooling without external connections, simplifying installation.

Durable Construction

Features a 300 series stainless steel top with an overhang and locking tabs, paired with a robust steel exterior housing for lasting commercial use.

Touchscreen Control

Provides precise and user-friendly temperature management through a modern touchscreen interface.

Integrated Drain

Includes a 1" brass drain with a plug, making cleanup and water removal straightforward.

Drop-In Design

Engineered for a 3/4" top recess installation, ensuring a clean, integrated look within any countertop or serving line. Requires a 16-3/4"W x 47-3/4"D cutout.

Type Cold Food Well
Style Refrigerated
Installation Type Drop-In
Pan Capacity 2 Full-Size Pans
Pan Size 12" x 20"
Controls Touchscreen
Material 300 Series Stainless Steel Top, Steel Housing
Refrigerant Type R290
Refrigeration Type Self-Contained
Voltage 120 Volts
Hertz 60 Hz
Amps 4.4 Amps
Plug Type NEMA 5-15
Drain Connection Size 1 Inch
Drain Connection Required
Shipping Width 49 Inches
Shipping Depth 18 Inches
Shipping Height 25 Inches
Shipping Weight 165.0 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

This cold well is designed to accommodate two full-size (12" x 20") food pans, up to 6 inches deep.
It features self-contained refrigeration using R290 refrigerant, providing efficient and reliable cooling.
The unit comes standard with a touchscreen control, and an optional mechanical control is available as a configuration choice.
A countertop cutout of 16-3/4"W x 47-3/4"D is required for proper installation of this drop-in unit.
Yes, it includes a 1" brass drain with a plug, so a drain connection is required for efficient water removal and cleaning.
