Duke Manufacturing

Duke Drop-In Refrigerated Cold Food Pan with Drain, 1 Full-Size Pan, Touchscreen Control, R290, 120V

SKU: CP1-SB-DC-D
$4,395.05
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Duke Manufacturing Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells

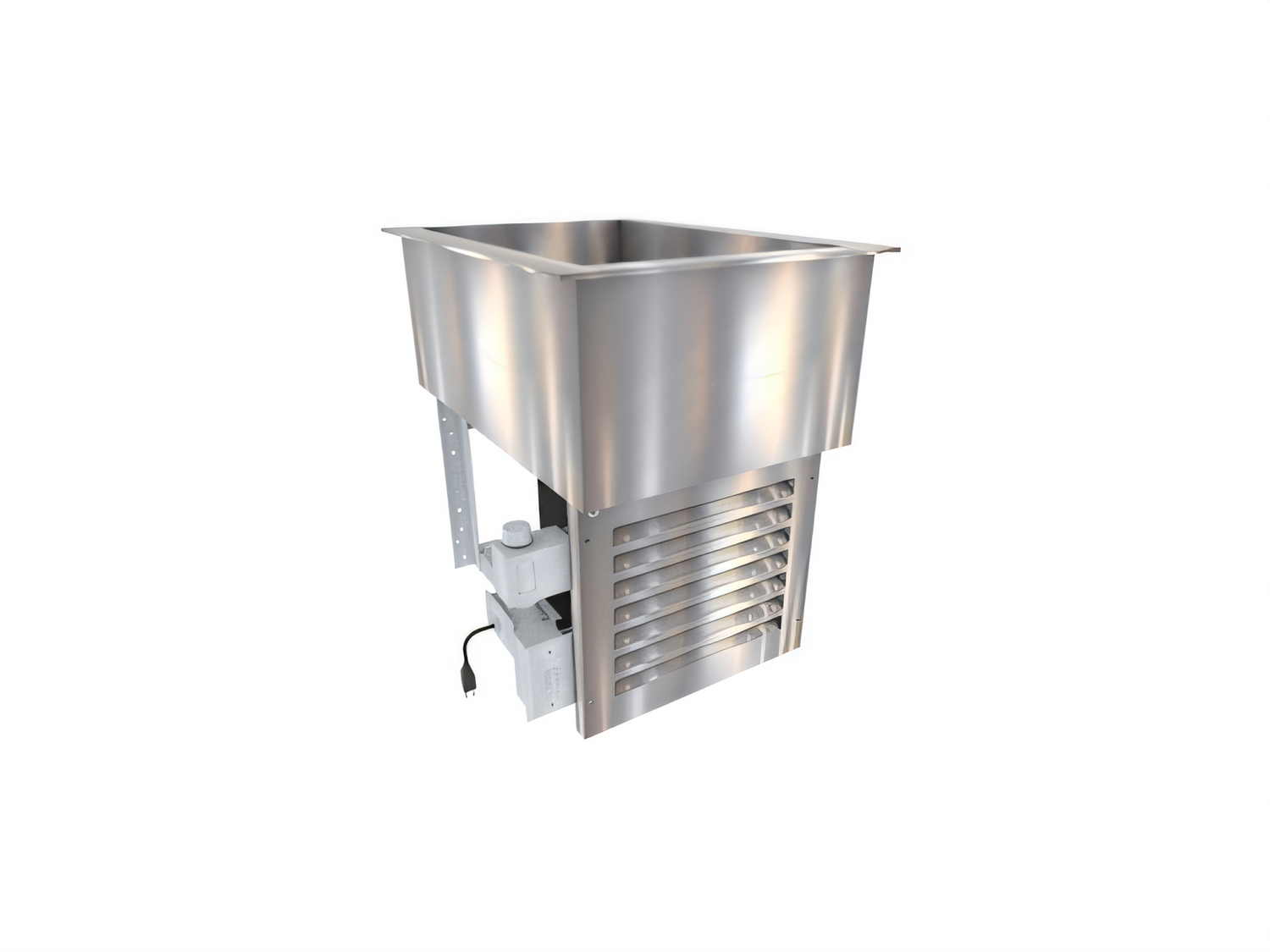

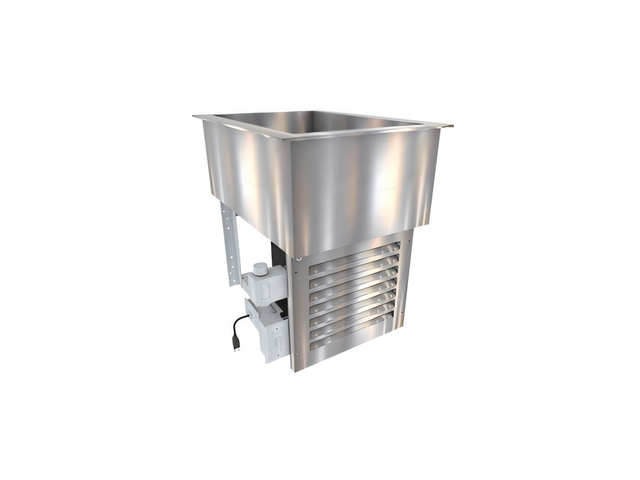

Duke Drop-In Refrigerated Cold Food Pan with Drain, 1 Full-Size Pan, Touchscreen Control, R290, 120V

3/4-inch recessed top, self-contained refrigeration, 300 series stainless steel top

This self-contained drop-in cold pan keeps ingredients safely chilled with touchscreen control and standard 120V power in a compact one-pan footprint.

  • Designed for one full-size 12" x 20" food pan up to 6" deep.
  • Standard touchscreen control includes 3 preset temperatures and an on/off switch.
  • Heavy-gauge 300 series stainless steel top and liner with a durable steel exterior housing.
  • 3/4" recessed installation with locking tabs, overhang, and a 1" brass drain and plug.
  • Runs on 120V/60 Hz power with R290 refrigerant and a NEMA 5-15 plug.
  • Built-in WiFi and Bluetooth provide future connectivity support.

Overall Dimensions:

18.13"W x 25.5"D x 24.58"H

Product Weight:

150.0 lb

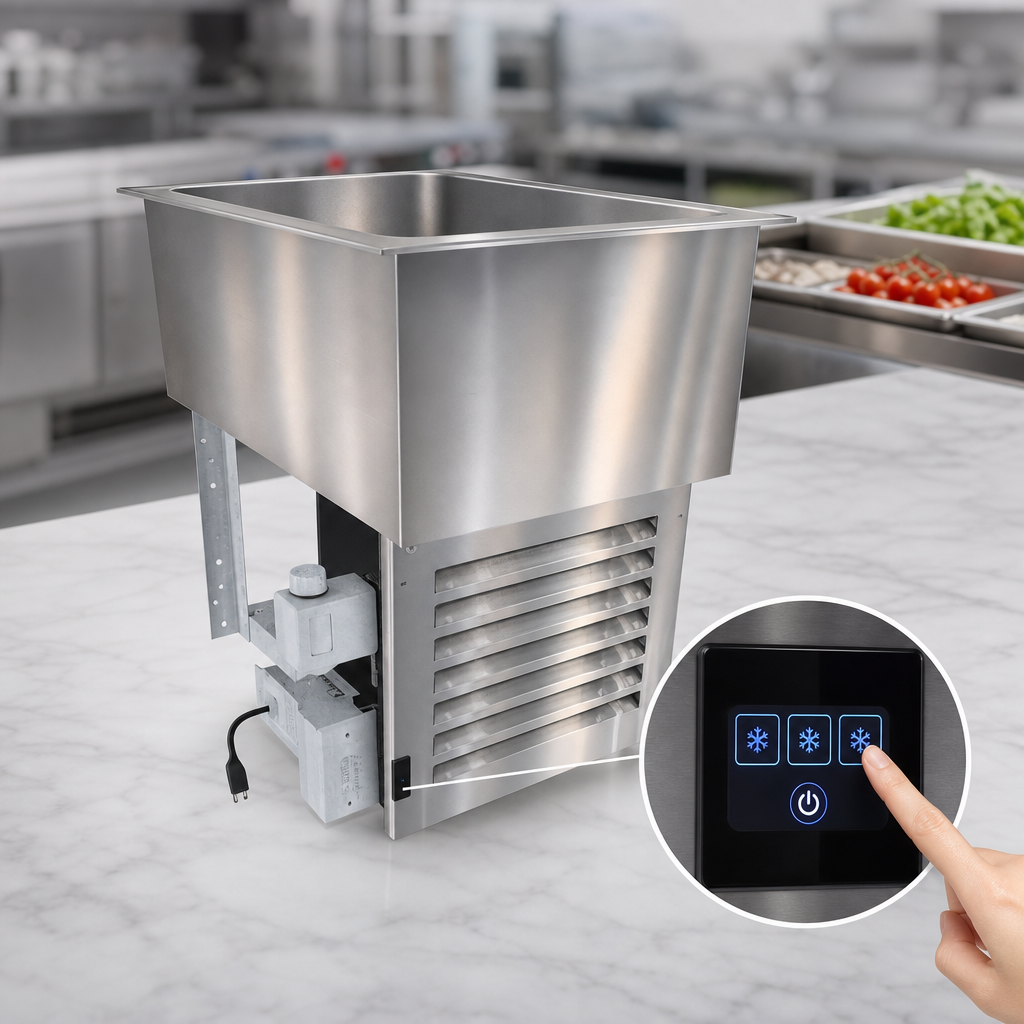

Touchscreen Control

Standard intuitive touchscreen operation with 3 preset temperatures and an on/off switch.

Optional Basic Control

A basic control option is available for alternate operation.

R290 Refrigerant

Uses environmentally safe R290 refrigerant for self-contained refrigeration.

300 Series Stainless Steel Top

Heavy-gauge top with 90-degree turndown and locking tabs for secure drop-in installation.

3/4-Inch Recessed Installation

The pan is recessed 3/4" below the top for a clean, integrated fit.

Drain System

Includes a 1" cast brass drain and plug.

Pan Compatibility

Accommodates one full-size 12" x 20" pan up to 6" deep.

Insulated Construction

High-density CFC-free polyurethane foam insulation helps maintain temperature efficiency.

Connectivity Ready

Built-in WiFi and Bluetooth support future connectivity needs.

Refrigeration Components

TXV control, a compressor enclosed in perforated aluminum, and copper coils attached to all sides of the liner improve performance.

Type Cold Pan
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 1
Pan Size Full-Size (12" x 20")
Controls Touchscreen
Material Stainless Steel
Interior Finish 300 Series Stainless Steel
Drain Connection Size 1 Inch
Refrigerant Type R290
Voltage 120 Volts
Amps 4.4 Amps
Watts 528 Watts
Hertz 60 Hz
Plug Type NEMA 5-15
Shipping Width 19 Inches
Shipping Depth 26 Inches
Shipping Height 25 Inches
Shipping Weight 150 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It accommodates one full-size 12" x 20" food pan up to 6" deep.
It operates on 120V, 60 Hz power and draws 4.4 amps with a NEMA 5-15 plug.
Yes, it includes a 1" cast brass drain and plug.
A 17-1/2"W x 24-5/8"D cutout is required.
Yes, a basic control option is available in addition to the standard touchscreen control.
Yes, it has built-in WiFi and Bluetooth for future connectivity.
