Duke Manufacturing

Duke 613-G1XX Single Deck Full-Size Gas Convection Oven with Solid State Controls

SKU: 613-G1XX
$10,965.24
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

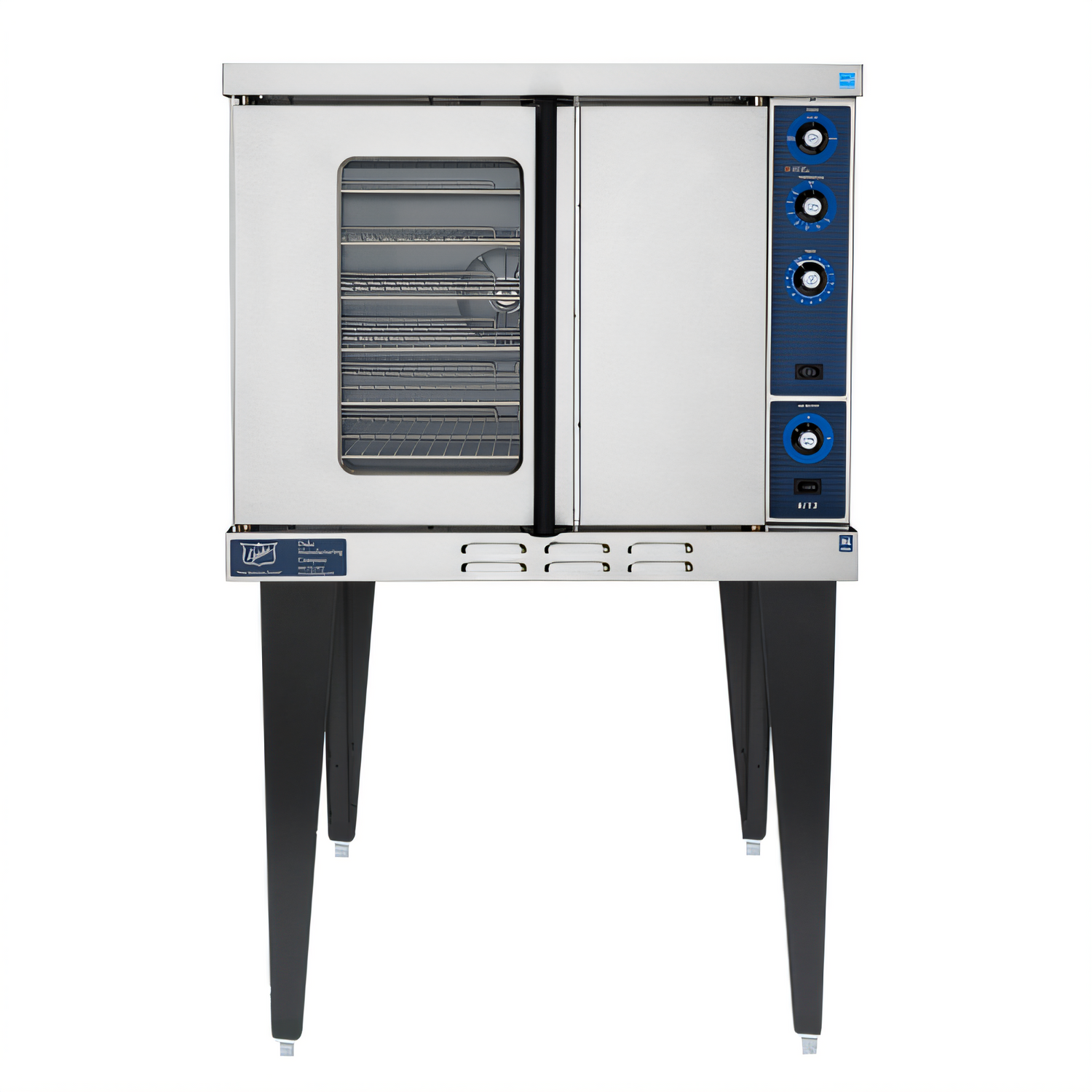

Duke 613-G1XX Single Deck Full-Size Gas Convection Oven with Solid State Controls

Single Deck, Standard Depth, Natural Gas or Propane, Full-Size

Experience efficient and precise baking with the Duke 613-G1XX, a robust single-deck gas convection oven designed for demanding commercial kitchens.

  • Equipped with advanced solid state digital controls for precise temperature management and a 12-hour countdown timer.
  • Features Cook and Hold capability and a two-speed fan with pulse function for versatile cooking options.
  • Durable stainless steel front, sides, and top with a porcelain interior for easy cleaning and long-lasting performance.
  • Includes six oven racks and 13 rack positions to accommodate various baking and roasting needs.
  • Designed with 65/35 stainless steel dependent doors, featuring double-pane glass in the 65 door for visibility.
  • Operates on 40,000 BTU/Hr for quick preheating and consistent cooking results.

Overall Dimensions:

38.0"W x 39.5"D x 60.0"H

Product Weight:

540.0 lb

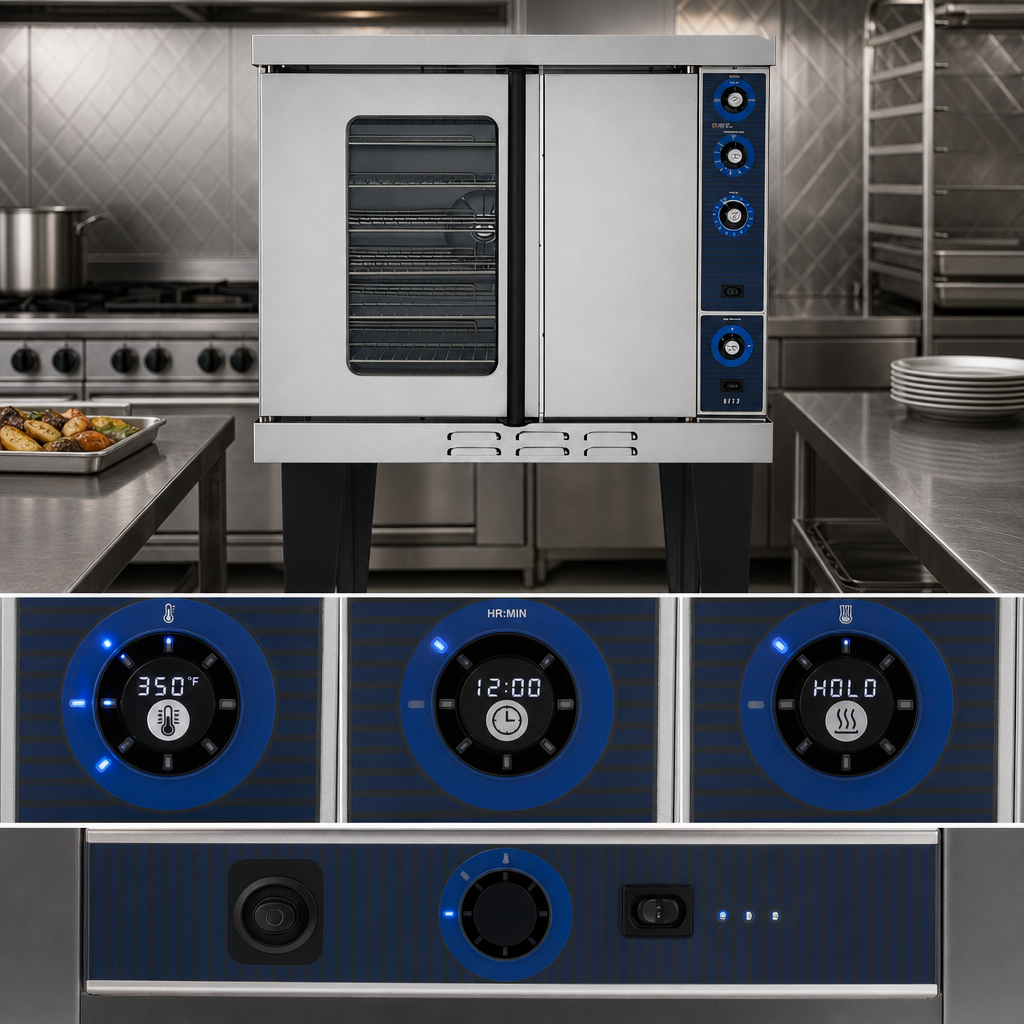

Solid State Digital Controls

Precisely manage cooking with digital time and temperature controls, a 12-hour countdown timer, and Cook and Hold functionality.

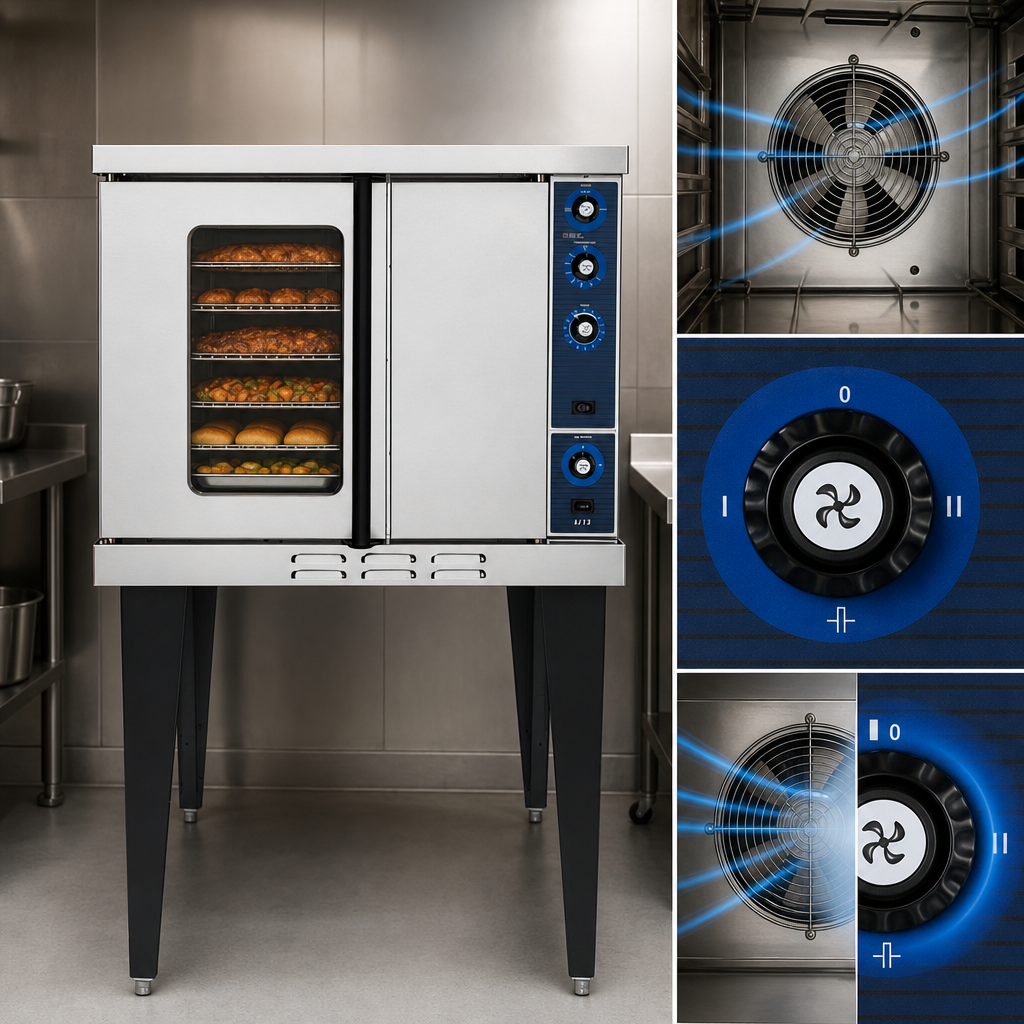

Two-Speed Fan with Pulse Capability

Customize air circulation for optimal baking and roasting with a two-speed fan, including a pulse fan option.

Dependent Doors with Window

Features 65/35 stainless steel dependent doors, chain-driven for smooth operation, with a double-pane glass window in the 65 door for monitoring.

Porcelain Interior

The oven cavity boasts a durable porcelain interior finish, making it easy to clean and maintain.

High Capacity

Comes with six oven racks and 13 rack positions to accommodate a wide range of full-size pans and dishes.

Stainless Steel Construction

Constructed with a stainless steel front, sides, and top for superior durability and a professional appearance.

Efficient Insulation

Enhanced insulation with 1 1/2 inches on the bottom, sides, and back, and 3 inches on top, to maintain consistent temperatures and energy efficiency.

Interior Lights

Built-in interior lights provide clear visibility of the cooking process without opening the doors.

Built-in Gas Regulator

Includes a built-in gas regulator and main gas shut off valve for safe and efficient operation.

Type Convection Oven
Style Single Deck
Installation Type Floor Model (With Legs)
Gas Type Natural Gas or Propane
BTU 40,000 BTU/Hr
Gas Connection Size 3/4 Inch Male NPT
Gas Inlet Pressure 3.5 Inches W.C. (Natural Gas) / 10 Inches W.C. (Propane)
Voltage 115 Volts
Amps 3.5 Amps
Hertz 60 Hz
Phase 1-Phase
Cord Length 7 Feet
Controls Solid State Digital
Temperature Range 200°-500°F
Pan Capacity 6 Full-Size Pans
Racks 6
Rack Positions 13
Interior Finish Porcelain
Material Stainless Steel
Shipping Width 38 Inches
Shipping Depth 40 Inches
Shipping Height 60 Inches
Shipping Weight 540 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor, 10-year limited door warranty

Frequently Asked Questions

The Duke 613-G1XX convection oven can operate on either Natural Gas or Propane. Please specify your gas type when ordering.
This convection oven requires 115 Volts, 1-Phase, 3.5 Amps, and 60 Hz electrical service. It comes with a 7-foot power cord and plug.
The oven has a temperature range of 200°F to 500°F, controlled by its solid state digital thermostat.
The Duke 613-G1XX comes standard with six oven racks and offers 13 rack positions for flexible cooking.
Yes, the 613-G1XX model features solid state digital controls which include a 'Cook and Hold' capability, along with a 12-hour countdown timer.
The oven includes a 1-year limited parts and labor warranty, and a 10-year limited warranty on the oven door (excluding wear items and glass window). An optional 2-year limited parts and labor warranty is also available.
