Duke Manufacturing

Duke 613-E3XX/PFB-2 Electric Single-Deck Full-Size Convection Oven with Proofer Base

SKU: 613-E3XX/PFB-2
$16,754.04
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

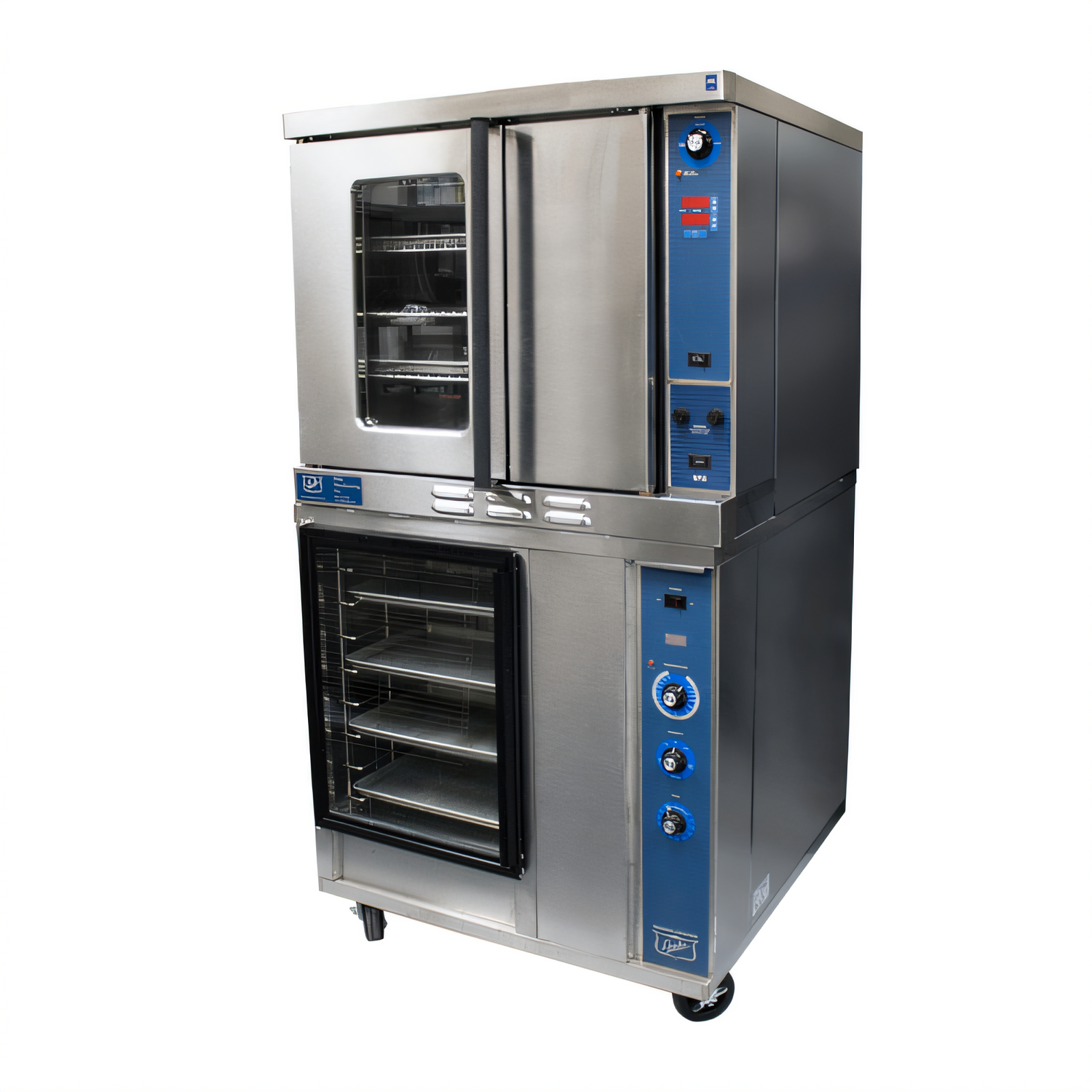

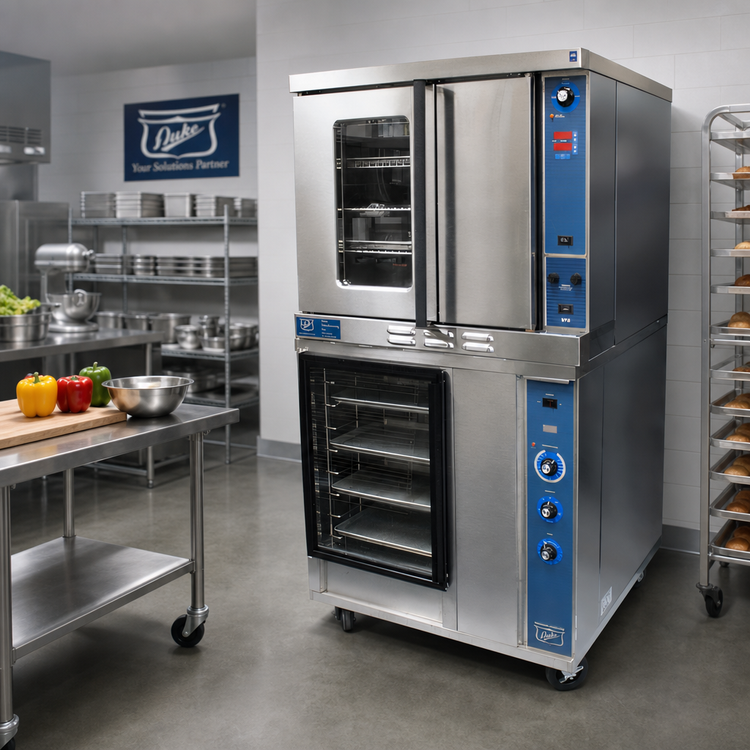

Duke 613-E3XX/PFB-2 Electric Single-Deck Full-Size Convection Oven with Proofer Base

Electric, Single-Deck Full-Size Oven, 16-Pan Proofer

Achieve exceptional baking results with the Duke 613-E3XX/PFB-2, combining a powerful full-size electric convection oven and a spacious 16-pan proofer base in one efficient unit.

  • Integrated full-size electric convection oven and proofer base for complete baking workflows.
  • Oven features solid state digital controls with a 200°-500°F temperature range and Cook & Hold functionality.
  • Proofer base accommodates 16 pans with solid state temperature control and a 1-hour dial timer.
  • Durable stainless steel exterior construction ensures longevity in commercial kitchen environments.
  • Equipped with a 2-speed fan and pulse fan capability for consistent and even heat distribution.
  • NSF and cETLus certified, meeting strict standards for safety and sanitation.

Overall Dimensions:

38.0"W x 43.5"D x 72.5"H

Product Weight:

840.0 lb

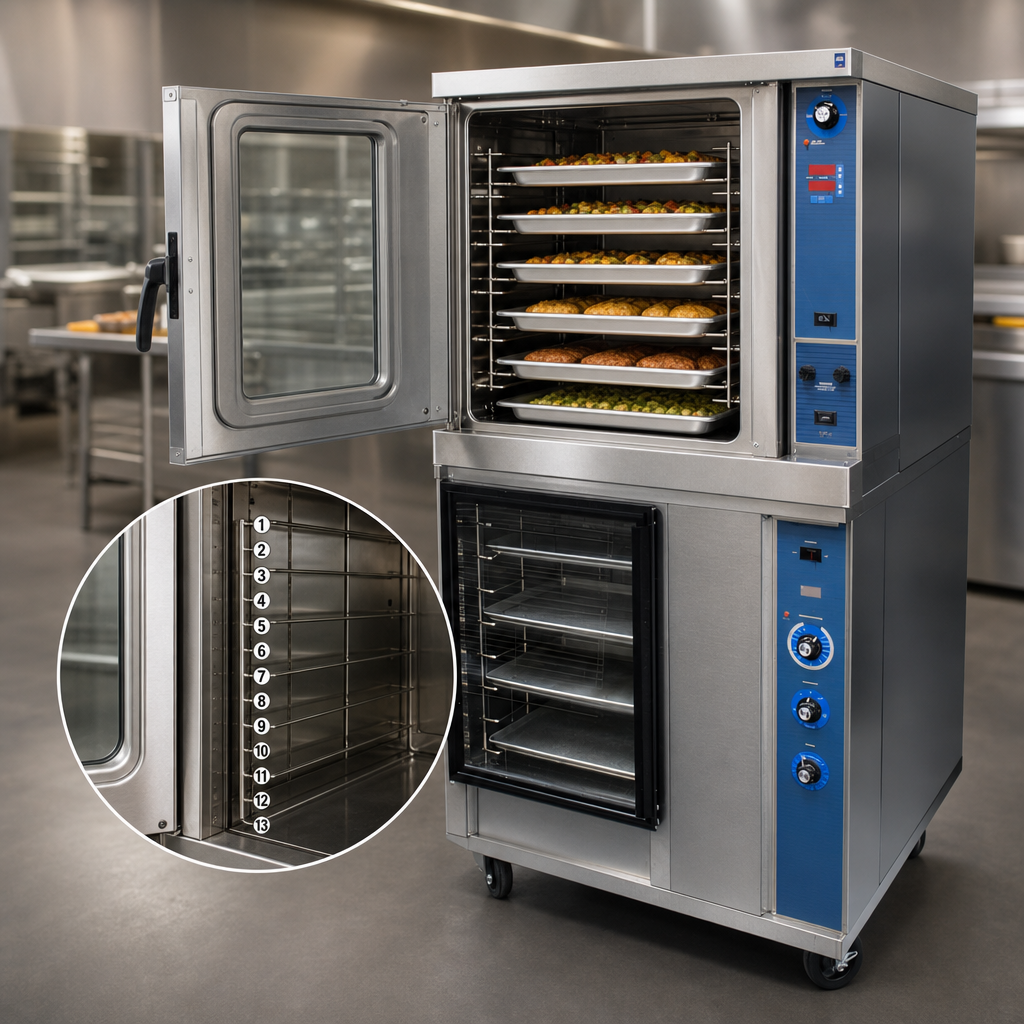

Full-Size Oven Capacity

The oven section is designed to hold 6 full-size pans, featuring 13 rack positions for versatile cooking.

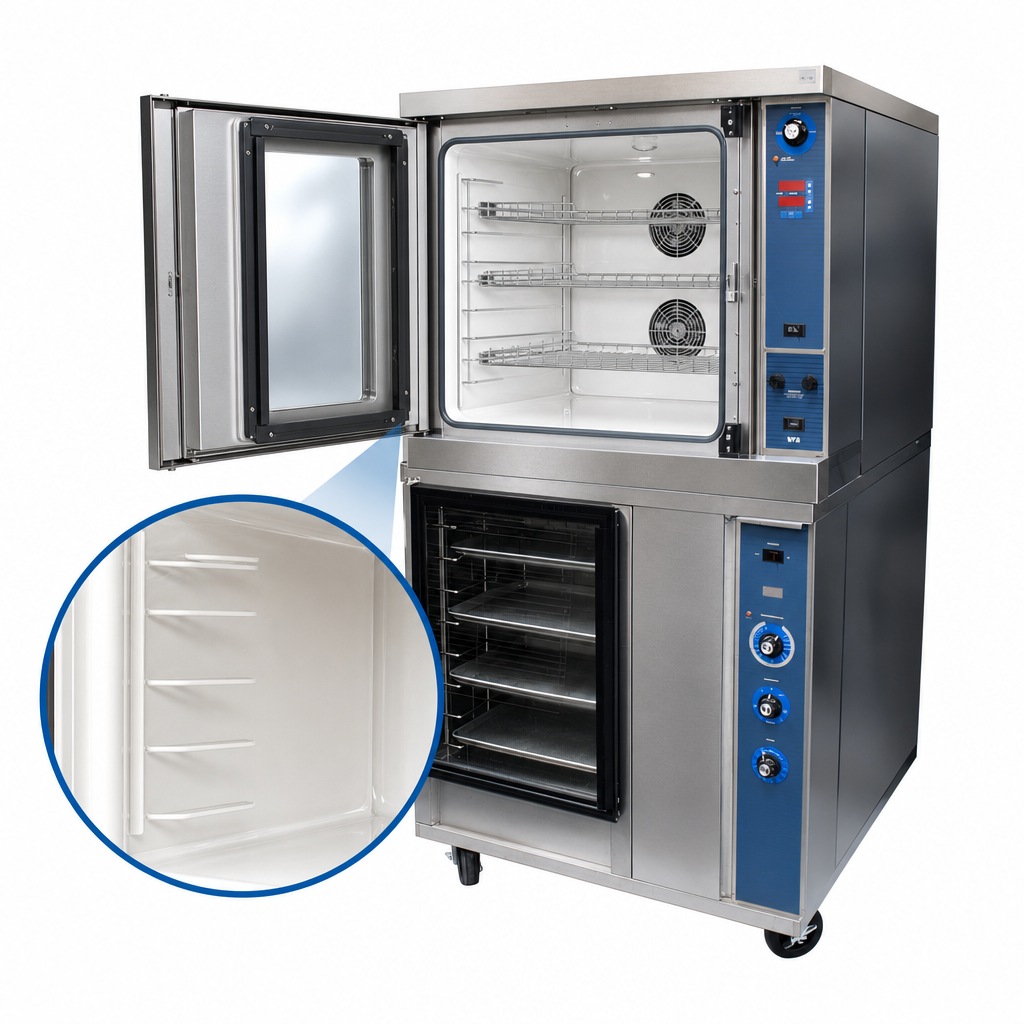

Porcelain Oven Interior

Easy-to-clean porcelain interior finish in the oven cavity, measuring 29 inches wide, 24 inches high, and 28 inches deep.

Durable Construction

Oven and proofer sections feature stainless steel front, sides, and top, ensuring durability and easy maintenance.

Dependent Doors with Window

Stainless steel 65/35 dependent doors on the oven, with a double-pane glass window on the 65 door for monitoring without heat loss.

Advanced Oven Controls

Solid state digital time and temperature controls with a 12-hour countdown timer, Cook & Hold feature, 2-speed fan, and pulse fan capability for precise baking.

High-Capacity Proofer Base

The proofer section features 8 rack guides to accommodate 16 full-size pans, maximizing proofing output.

Tempered Glass Proofer Door

Self-closing proofer door with tempered glass allows for visibility and maintains internal temperatures.

Proofer Temperature Control

Solid state temperature control and a 1-hour electric dial timer for precise proofing conditions.

Proofer Water Reservoir

Includes a water reservoir in the proofer to generate humidity, ensuring optimal proofing environments.

Type Convection Oven with Proofer Base
Style Full-Size, Deep Depth
Installation Type Floor Model (With Proofer Base)
Oven Capacity 6 Pans
Proofer Capacity 16 Pans
Oven Interior Finish Porcelain
Oven Interior Dimensions 29 Inches Width x 28 Inches Depth x 24 Inches Height
Oven Controls Solid State Digital Time & Temperature
Proofer Controls Solid State Temperature, Electric Dial Timer
Oven Temperature Range 200°-500°F
Fan Speeds 2-Speed
Material Stainless Steel
Voltage (Oven) 208 Volts, 240 Volts
Amps (Oven, 1-Phase, 208V) 40.0 Amps
Amps (Oven, 1-Phase, 240V) 35.0 Amps
Amps (Oven, 3-Phase, 208V) 30.5 Amps
Amps (Oven, 3-Phase, 240V) 21.0 Amps
Watts (Oven) 10 kW
Phase (Oven) 1-Phase, 3-Phase
Voltage (Proofer) 120 Volts
Amps (Proofer, 1-Phase, 120V) 13.0 Amps
Watts (Proofer) 1.5 kW
Phase (Proofer) 1-Phase
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 38 Inches
Shipping Depth 44 Inches
Shipping Height 73 Inches
Shipping Weight 840 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited parts and labor, 10-year limited door warranty

Frequently Asked Questions

The convection oven features solid state digital time and temperature controls that allow for a temperature range of 200°F to 500°F.
The proofer base has 8 rack guides and can accommodate up to 16 full-size pans.
The oven section requires either 208 Volts (1-Phase or 3-Phase) or 240 Volts (1-Phase or 3-Phase) power, consuming 10 kW. The proofer base requires 120 Volts, 1-Phase power, consuming 1.5 kW.
Yes, the convection oven is equipped with a 'Cook and Hold' feature, allowing you to seamlessly transition from cooking to holding temperatures.
The interior of the convection oven cavity is finished with durable porcelain, which is easy to clean and maintain.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
