Duke Manufacturing

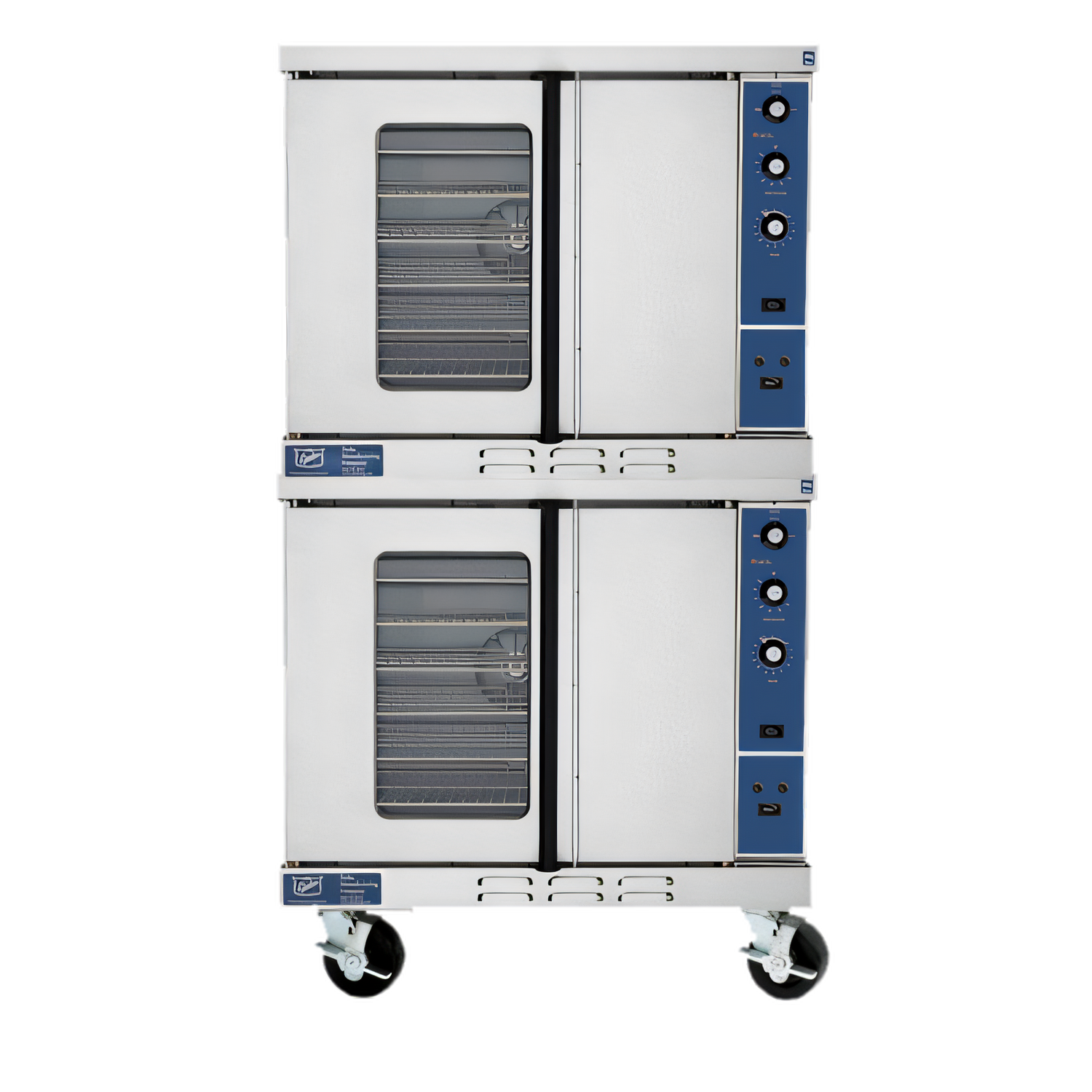

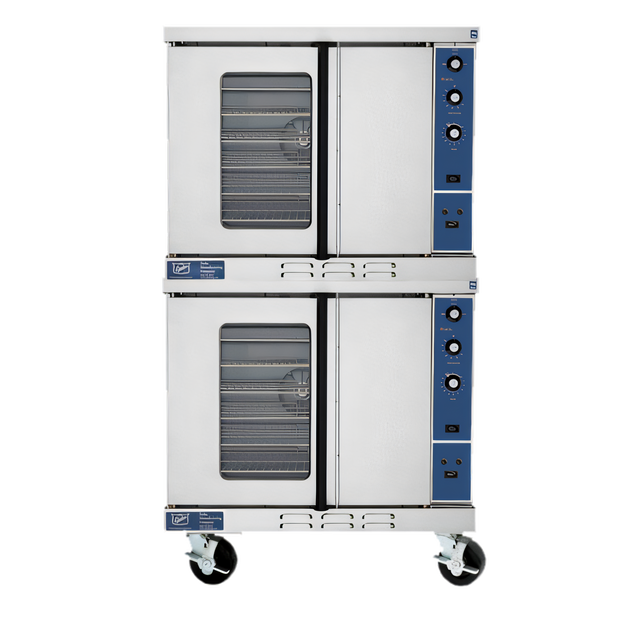

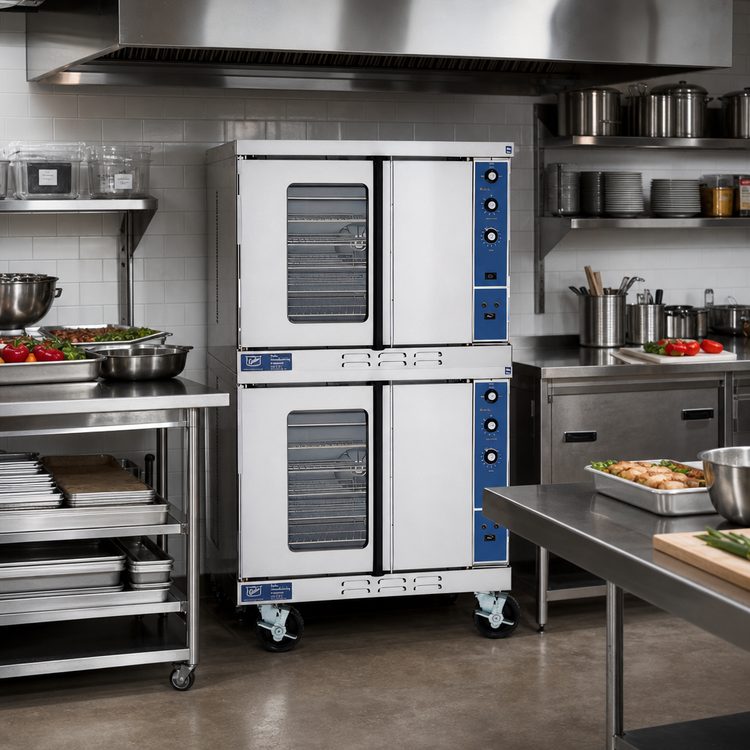

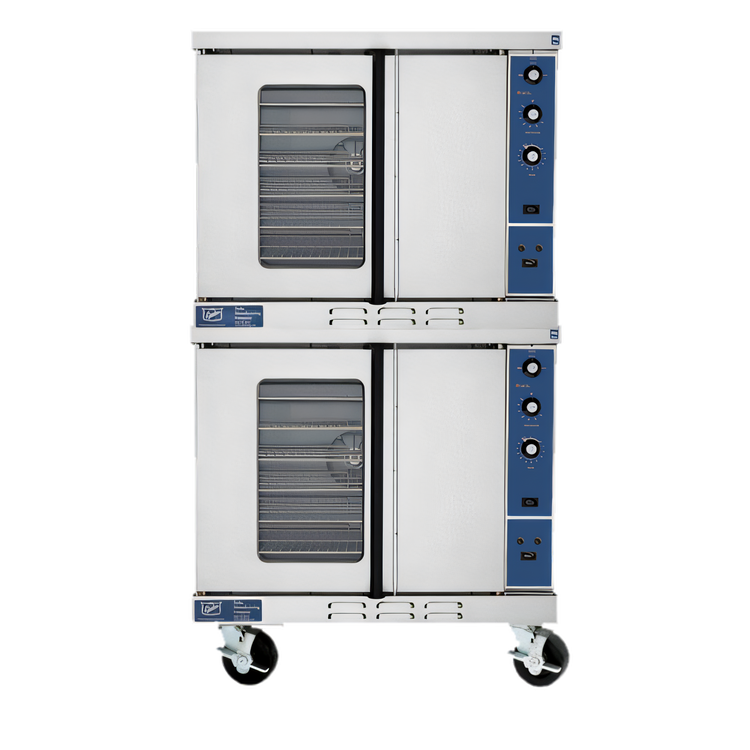

Duke 613-E2XX Double-Deck Full-Size Electric Convection Oven with Solid State Controls

SKU: 613-E2XX
$20,246.76
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Duke 613-E2XX Double-Deck Full-Size Electric Convection Oven with Solid State Controls

Full-Size, Double-Deck, Electric, Standard Depth

Experience robust cooking performance and consistent results with the Duke 613-E2XX double-deck electric convection oven, featuring advanced solid-state controls and a durable design.

  • Equipped with two full-size oven cavities, each accommodating 6 racks with 13 rack positions for versatile cooking.
  • Features precise solid-state digital time and temperature controls with a 12-hour countdown timer and Cook and Hold functionality.
  • Durable stainless steel front, sides, and top with a porcelain interior for easy cleaning and longevity.
  • Designed with a two-speed fan and pulse fan capability to ensure even heat distribution and consistent baking.
  • Includes 8-inch stainless steel legs with adjustable feet for stable floor model installation.
  • Constructed with dependent 65/35 stainless steel doors, including a double-pane glass window on the 65 door for monitoring.

Overall Dimensions:

38.0"W x 39.5"D x 70.5"H

Product Weight:

1080.0 lb

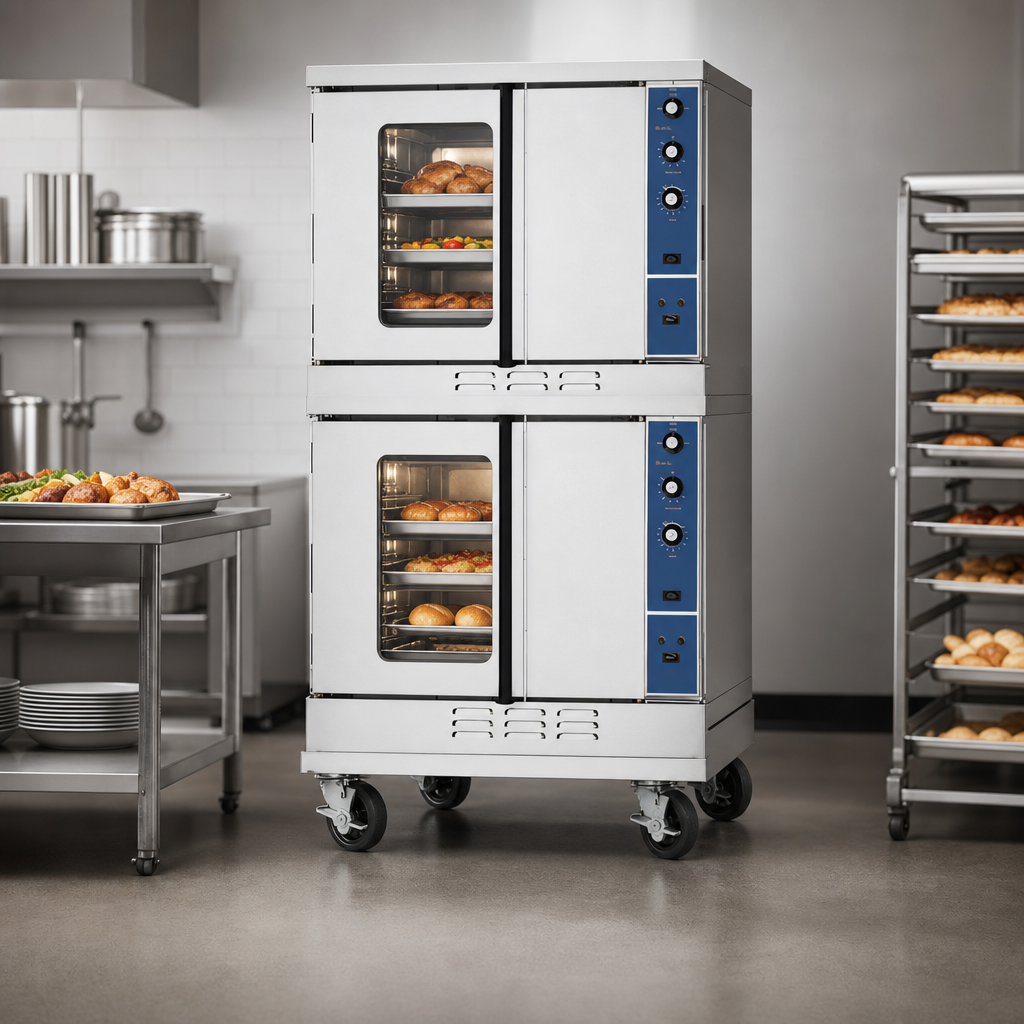

Double-Deck Design

Two independent oven cavities provide increased cooking capacity and flexibility, allowing for simultaneous preparation of different items at varying temperatures.

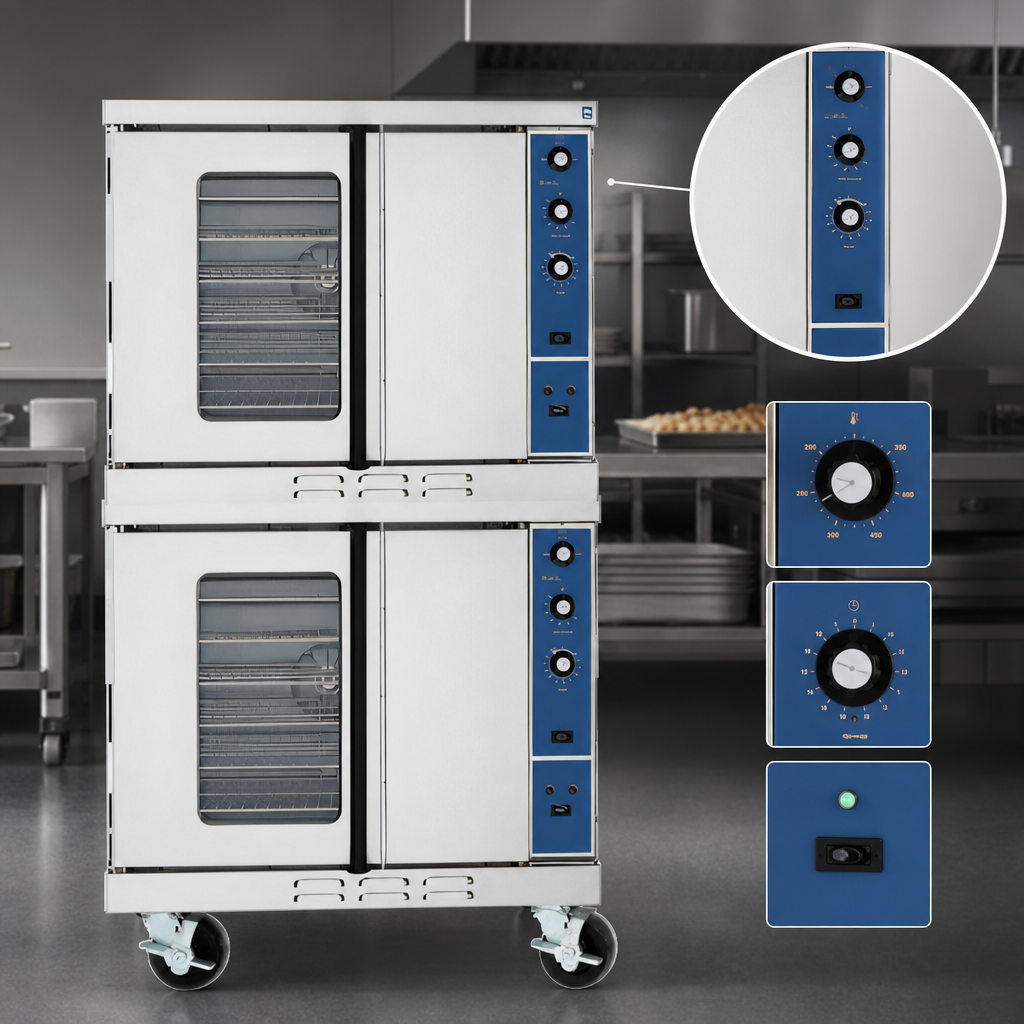

Solid State Digital Controls

Advanced digital controls offer precise temperature management (200°-500°F), a 12-hour countdown timer, and a Cook and Hold feature for optimal cooking results and food holding.

Two-Speed and Pulse Fan

A two-speed oven motor combined with pulse fan capability ensures uniform heat distribution, reducing hot spots and producing consistent product browning and texture.

High Capacity Interior

Each oven deck features 6 chrome-plated racks and 13 rack positions, accommodating up to 6 full-size pans per cavity for high-volume operations.

Durable Construction

The oven boasts a stainless steel front, sides, and top, providing commercial-grade durability and a professional appearance. The interior is finished with porcelain for easy cleaning.

Dependent 65/35 Doors

The chain-driven 65/35 stainless steel doors feature a double-pane glass window on the 65 door, allowing for easy monitoring of products without opening the oven.

Interior Lights

Each oven cavity is equipped with interior lights to illuminate the cooking chamber, enhancing visibility of products.

Insulated Oven Cavities

Features 1 1/2 inches of insulation on the bottom, sides, and back, and 3 inches on the top, ensuring efficient heat retention and consistent oven temperatures.

Type Convection Oven
Style Double Deck
Installation Type Floor Model (With 8 inch legs)
Control Type Solid State Digital
Temperature Range 200°-500°F
Pan Capacity 6 Full-Size Pans Per Cavity
Compartments 2
Racks Per Cavity 6
Rack Positions Per Cavity 13
Watts 10.0 kW Per Cavity
Voltage 208/240/480 Volts
Phase 1-Phase, 3-Phase
Exterior Finish Stainless Steel Front and Sides
Interior Finish Porcelain
Material Stainless Steel
Shipping Width 38 Inches
Shipping Depth 40 Inches
Shipping Height 71 Inches
Shipping Weight 1080 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited parts and labor, 10-year limited door warranty

Frequently Asked Questions

The oven operates at 10.0 kW per cavity and is available in various electrical configurations including 208 Volt (1-Phase or 3-Phase), 240 Volt (1-Phase or 3-Phase), and 480 Volt (3-Phase).
Each deck of the 613-E2XX convection oven can accommodate up to 6 full-size pans, with 13 rack positions for versatile arrangement.
Yes, the 613-E2XX model comes standard with 'XX' solid state digital controls, which include a Cook and Hold feature, a 12-hour countdown timer, and pulse fan capability.
This convection oven features dependent 65/35 stainless steel doors, with a double-pane glass window on the 65 door for easy viewing of product.
Yes, the oven interior is finished with porcelain, which is durable and designed for easy cleaning and maintenance.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
