Duke Manufacturing

Aerohot 4-Well Gas Hot Food Unit Steam Table with Open Base and Carving Board

SKU: 304
$2,444.04
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Steam Table Duke Manufacturing Food Bars & Buffets Food Wells & Serving Lines New Arrivals Restaurant Equipment Serving & Display Equipment Serving Counters

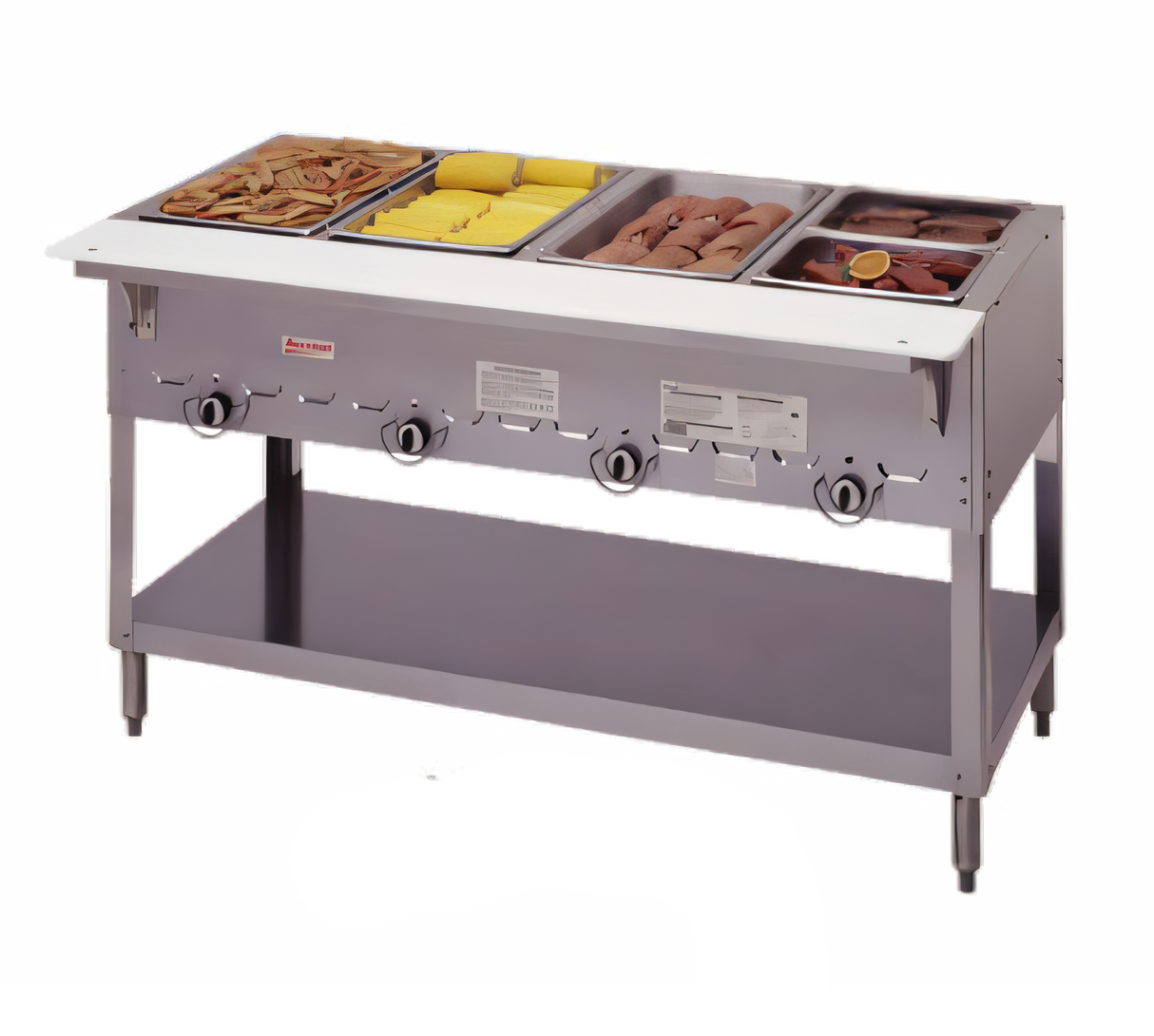

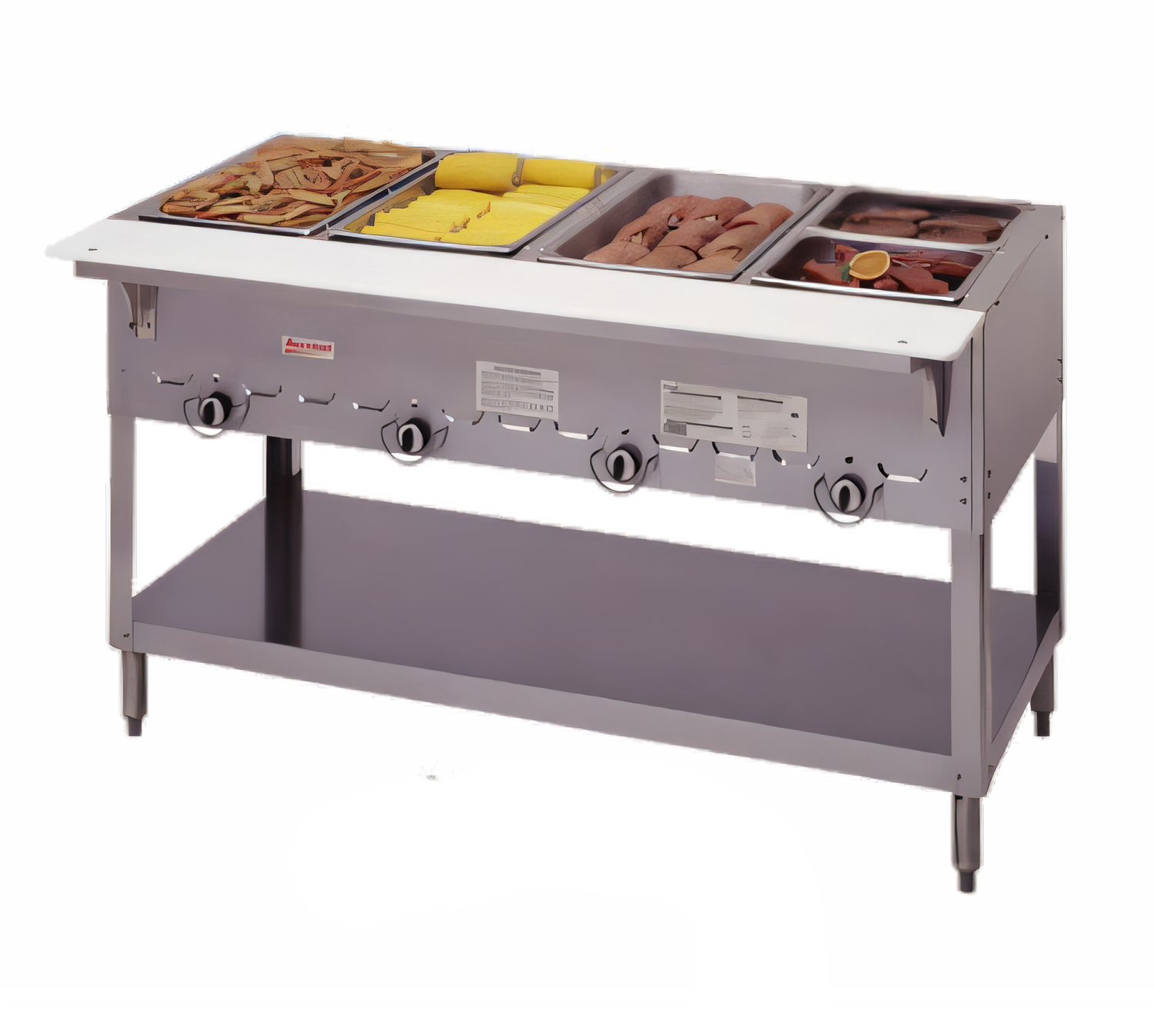

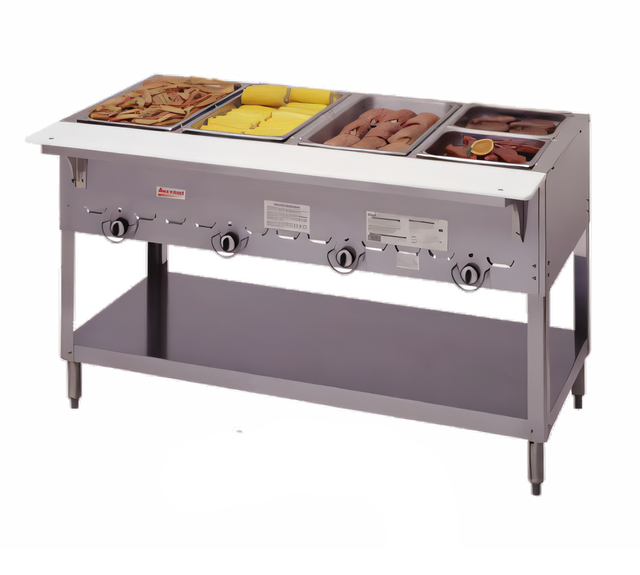

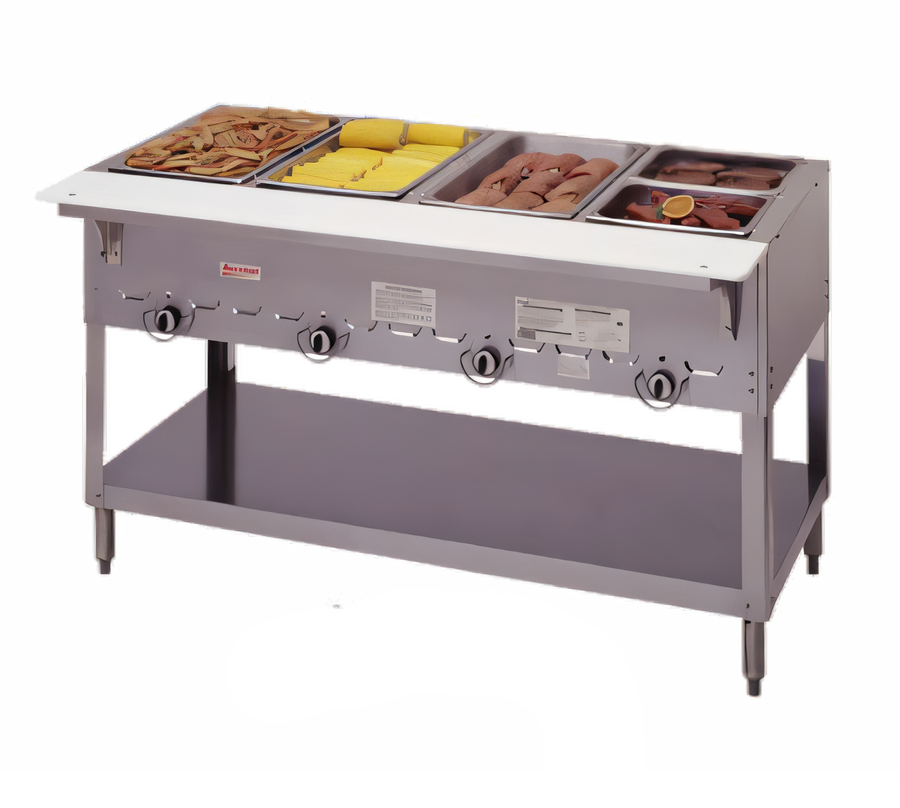

Aerohot 4-Well Gas Hot Food Unit Steam Table with Open Base and Carving Board

58-3/8 Inch Wide x 22-7/16 Inch Deep x 34 Inch High

Built for busy serving lines, this 4-well gas hot food unit combines durable stainless steel construction, adjustable burner control, and an integrated carving board for efficient service.

  • Four 12" x 20" hot food wells support high-volume buffet and serving-line operation.
  • Stainless steel top, body, and undershelf are built for commercial durability.
  • 7-inch-wide poly carving board adds convenient serving and prep space.
  • Individual adjustable valve controls and adjustable pilot light help fine-tune heat output.
  • Insulated heat compartments help retain heat for consistent holding performance.
  • Available for natural gas or propane applications with an included gas pressure regulator.

Overall Dimensions:

58.38"W x 22.44"D x 34.0"H

Product Weight:

139.0 lb

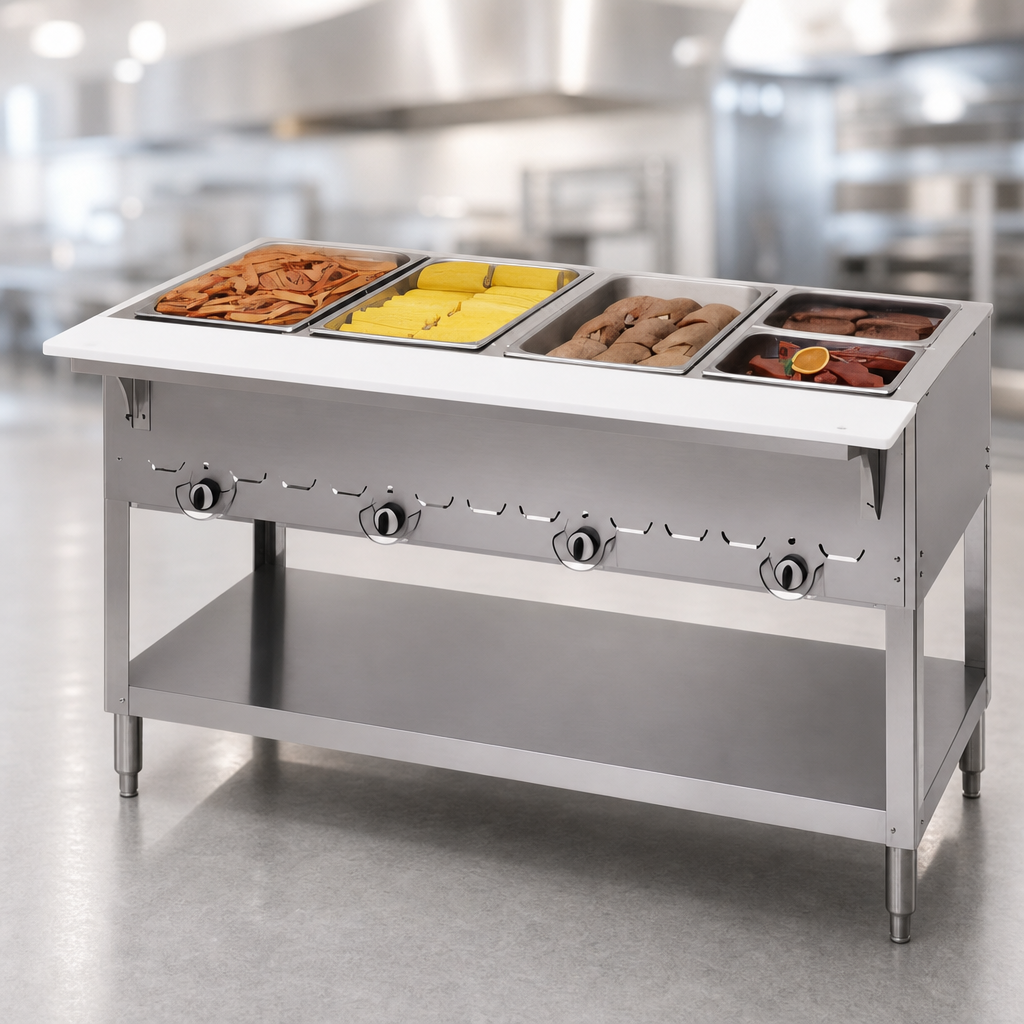

Four Open Wells

Die-stamped 12" x 20" openings are sized for standard food pans and serving applications.

Stainless Steel Construction

20-gauge stainless steel top and 430 series stainless steel body and undershelf provide durable, easy-to-clean construction.

Integrated Carving Board

Includes a 7-inch-wide, 1/2-inch-thick poly carving board with stainless steel support shelf and brackets.

Insulated Heat Compartments

Die-formed galvanized steel heat compartments are insulated on all four sides and the bottom with fiberglass.

Individual Burner Controls

Burners are controlled by individual adjustable valves with an adjustable pilot light for heat control.

Included Gas Regulator

A gas pressure regulator is furnished with each unit for installation convenience.

Adjustable Leveling Feet

Tubular stainless steel legs are fitted with adjustable plastic feet for leveling on the floor.

Type Hot Food Unit
Style Open Base With Undershelf
Installation Type Floor Model
Pan Capacity 4
Pan Size 12 Inches x 20 Inches
Controls Individual Adjustable Valves
BTU 10,000 BTU
Gas Connection Size 1/2 Inch NPT
Material Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 59 Inches
Shipping Depth 23 Inches
Shipping Height 34 Inches
Shipping Weight 139 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor warranty

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty PDF Download PDF Color chart PDF Download

Frequently Asked Questions

Model 304 has 4 top openings, each designed for 12" x 20" pans.
It can be specified for natural gas or propane.
Yes, a gas pressure regulator is furnished with each unit.
The unit uses a 1/2" NPT gas connection.
Yes. Listed options include safety pilots, a stainless steel liner, stainless steel feet, adapter plates, spillage pans, drop type brackets for the cutting board, a stainless steel dish shelf under the cutting board, trayslides and workshelves, and foodshields.
Yes, a high altitude orifice is available; the elevation must be specified.
