DRY AGER UX 8000 High-Production Ceiling-Mounted Dry Aging Chamber Production Unit

SKU: UX 8000
GTIN: 4260678513066
$39,000.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Curing Cabinet DRY AGER USA Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Restaurant Equipment

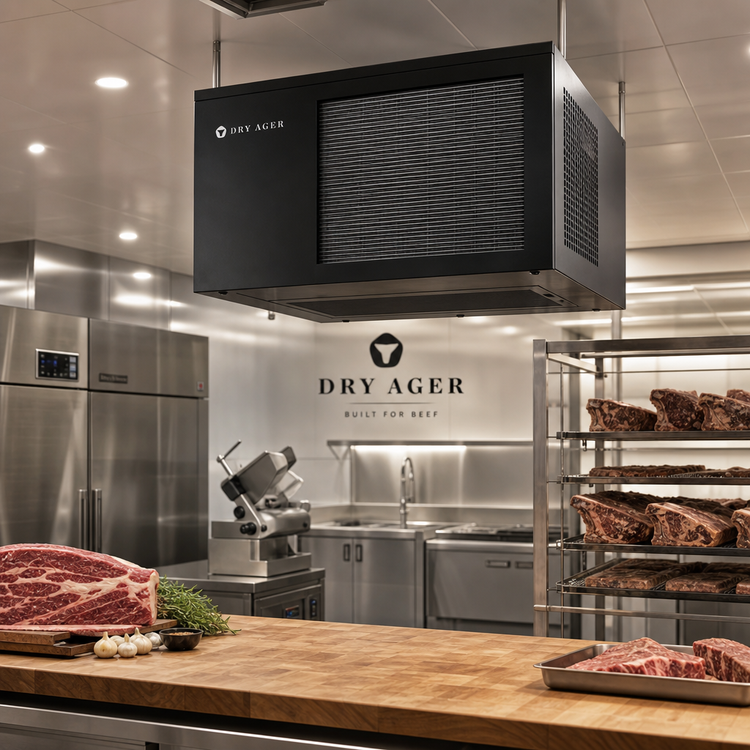

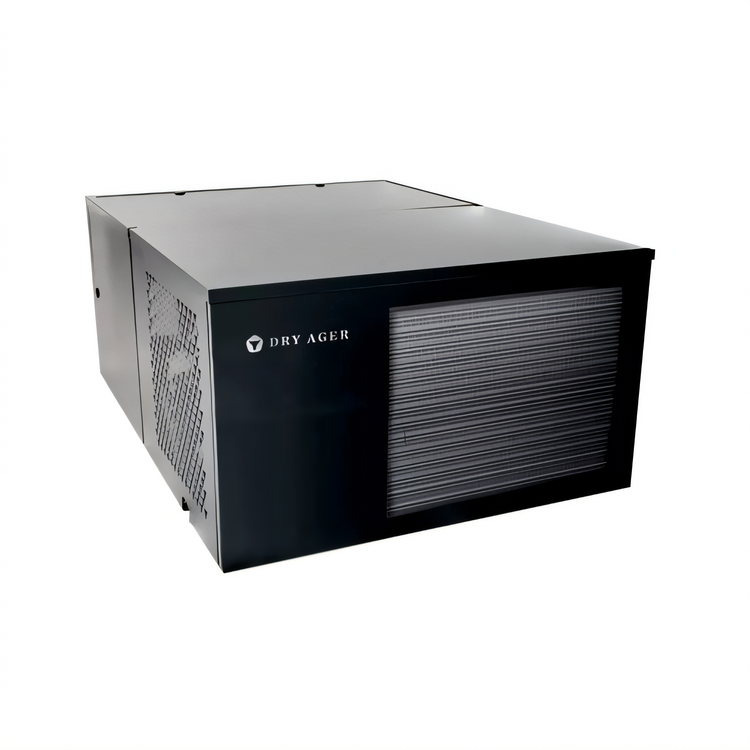

DRY AGER UX 8000 High-Production Ceiling-Mounted Dry Aging Chamber Production Unit

Self-Contained, Plug-and-Play, Up to 950 Cu Ft Chambers

Bring commercial dry aging in-house with a compact ceiling unit that delivers precise microclimate control, UVC sterilization, and plug-and-play installation for high-volume production.

  • All-in-one ceiling module combines compressor, condenser, evaporator, and dry-aging technology in a single self-contained unit.
  • Designed for high-production chambers up to 950 cu ft.
  • Electronic control maintains 32°F to 77°F temperature and 60% to 90% humidity for consistent aging.
  • UX AirReg airflow optimization and discreet UVC air sterilization help maintain a clean chamber environment.
  • Plug-and-play design requires no water connection or drain.
  • Operates on 208-220V, 60 Hz, single-phase power with a 16A service and NEMA 6-20P plug.
  • Suitable for dry aging meat, charcuterie, fish, and wine.

Overall Dimensions:

37.2"W x 46.06"D x 21.06"H

Product Weight:

556.0 lb

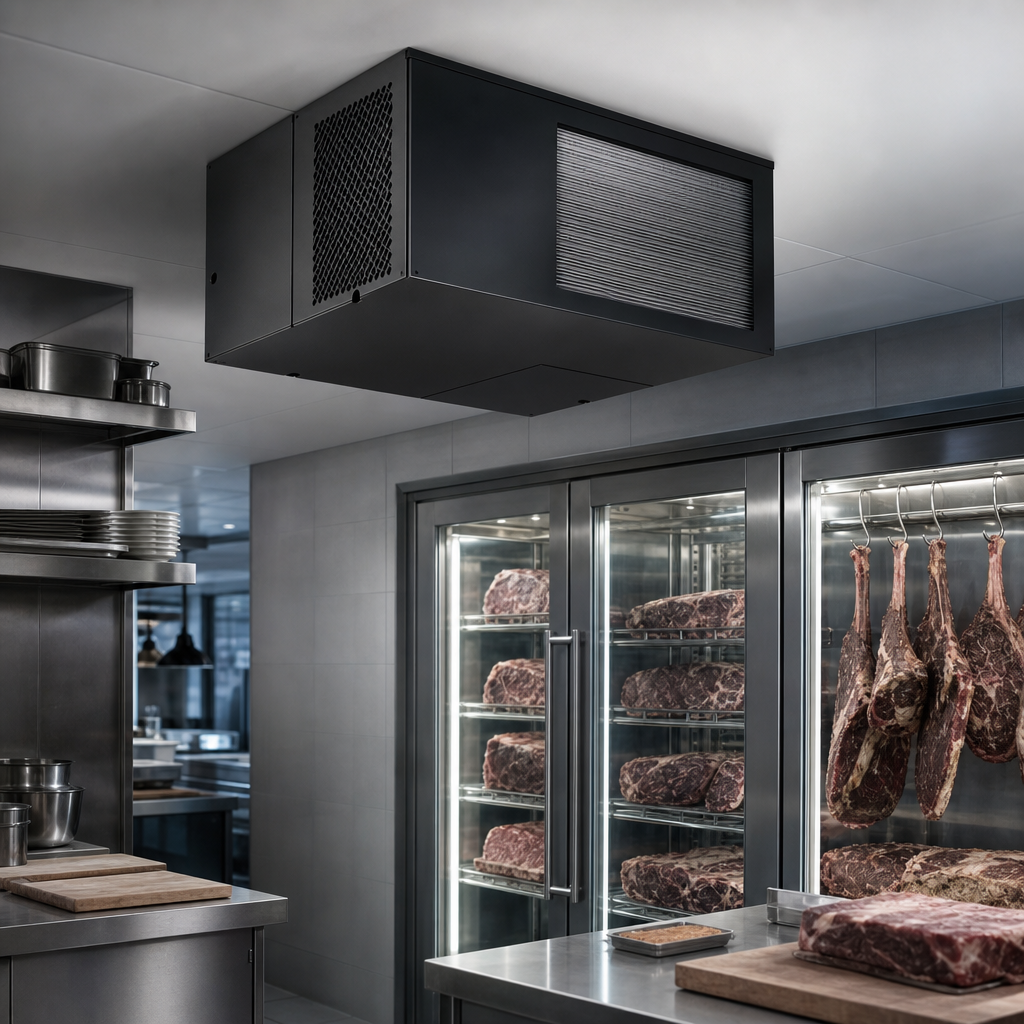

All-In-One Ceiling Module

Integrates the compressor, condenser, evaporator, and dry-aging technology into a compact ceiling-mounted production unit.

All-In-One Ceiling Module

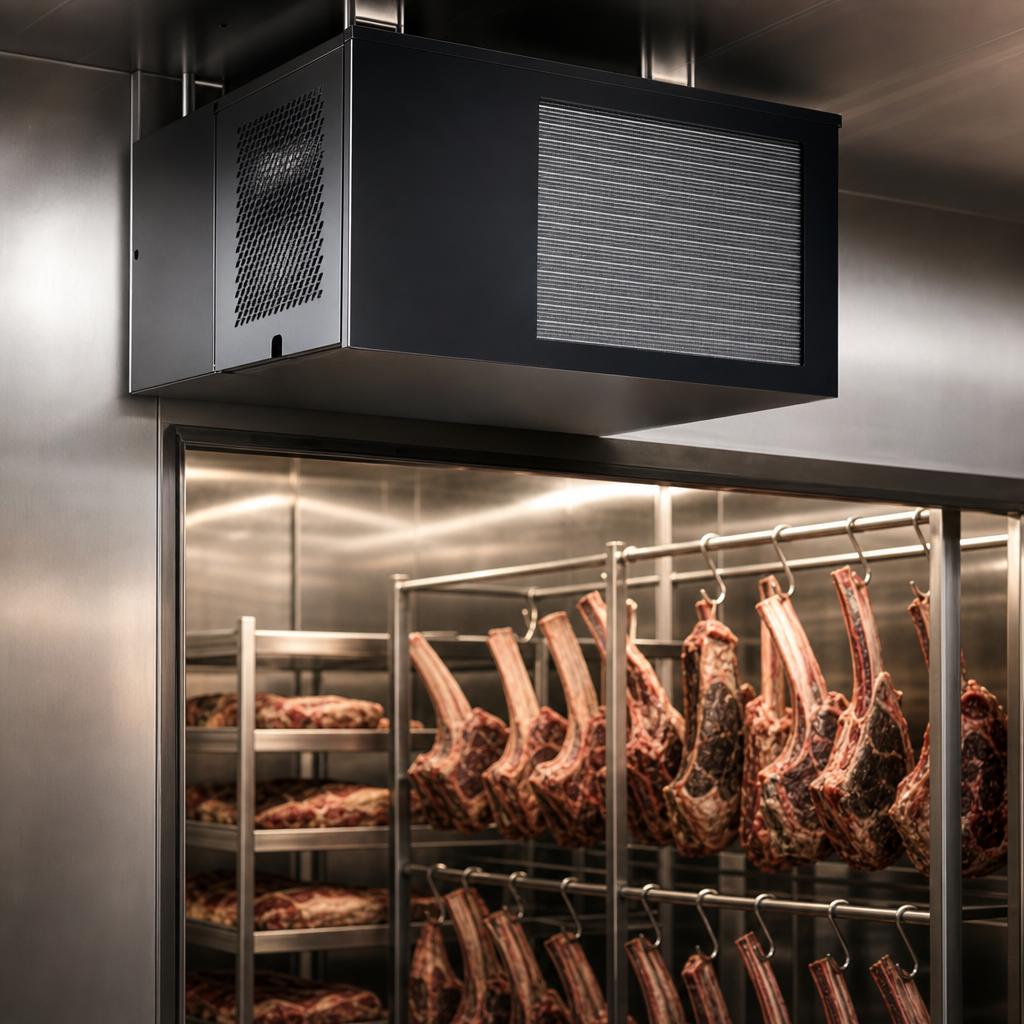

High-Volume Chamber Support

Built for dry-aging chambers up to 950 cu ft for commercial production environments.

High-Volume Chamber Support

Precision Microclimate Control

Electronically controlled temperature from 32°F to 77°F and humidity from 60% to 90% support consistent aging results.

Versatile Aging Applications

Suitable for commercial dry aging of meat, charcuterie, fish, and wine.

UX AirReg With UVC Sterilization

Airflow optimization and integrated UVC sterilization help create a clean, evenly circulated chamber environment.

Plug-And-Play Installation

Self-contained design requires no water connection or drain and is intended for straightforward installation into existing facilities.

Automatic Hot Gas Defrost

Built-in defrost and condensate evaporation help manage frost and moisture automatically.

Commercial-Ready Power And Refrigerant

Uses 208-220V, 60 Hz, 1-phase power, draws 16 amps, and runs on R290 refrigerant.

Safety-Focused System Design

Includes a double safety shutdown system and a hermetically sealed refrigeration circuit.

Type Dry Aging Chamber Production Unit
Style Ceiling Mounted
Installation Type Drop-In
Refrigeration Type Self-Contained
Capacity 950 Cubic Feet
Temperature Range 32°F to 77°F
Humidity Range 60% to 90%
Controls Control Panel
BTU 6500 BTU
Voltage 208-220 Volts
Amps 16 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Refrigerant Type R290
Water Connection Not Required
Drain Connection Not Required
Country of Origin Germany
Selling Unit Each
Units Per Case 1
Shipping Width 38 Inches
Shipping Depth 47 Inches
Shipping Height 22 Inches
Shipping Weight 556 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3 years compressor; 2 years parts and labor.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It is designed for chambers up to 950 cu ft.
The unit provides electronically controlled temperature from 32°F to 77°F and humidity from 60% to 90%.
No. It is a self-contained plug-and-play system and does not require a water connection or drain.
It requires 208-220V, 60 Hz, single-phase power with a 16 amp service and NEMA 6-20P plug.
The documentation states it is suitable for dry-aged meat, charcuterie, fish, and wine.
The unit uses UX AirReg airflow optimization and integrated UVC sterilization to support a clean, evenly circulated environment.
