DRY AGER UX 7000 Self-Contained Ceiling-Mounted Dry Aging Production Unit, 750 Cu. Ft. Chambers, 32–77°F, 60–90% RH
- Estimated maximum chamber volume
- 750 ft³
- Temperature range
- 32–77 °F
- Humidity control range
- 60–90%
- Permissible ambient temperature
- 50–100 °F
- Cooling capacity
- 1450 W / 5000 BTU
- Heat output
- 1900 W / 6500 BTU
Specifications
Description

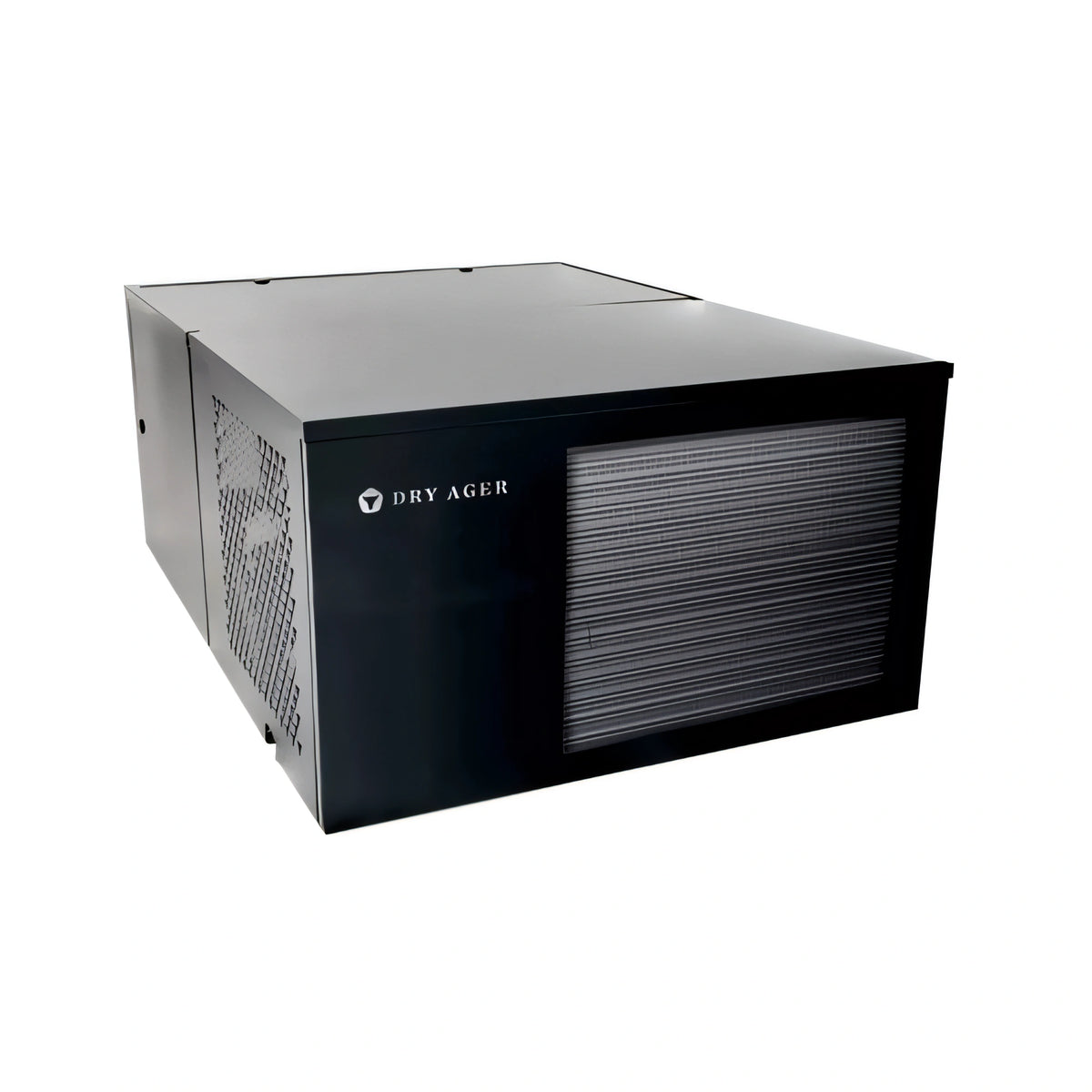

The DRY AGER UX 7000 is a compact, plug-and-play ceiling unit for commercial dry aging production. It combines the compressor, condenser, evaporator, and dry aging technology in one self-contained appliance for installation above a maturing chamber.
Electronic controls provide a temperature range of 32–77 °F and humidity control from 60–90% without a water connection or drain. The unit includes UX Airreg™ airflow management, UVC sterilization without product UV exposure, automatic hot gas defrost, and built-in condensate evaporation.
- Estimated maximum chamber volume: 750 ft³
- R290 refrigeration system
- 208–220 V, 60 Hz, 16 A electrical connection with NEMA 6-20P plug
- Standard warranty: 3 years on the compressor and 2 years on parts and labor
Overall Dimensions:
37.2"W x 46.06"D x 21.06"HProduct Weight:
538.0 lbSelf-contained ceiling installation

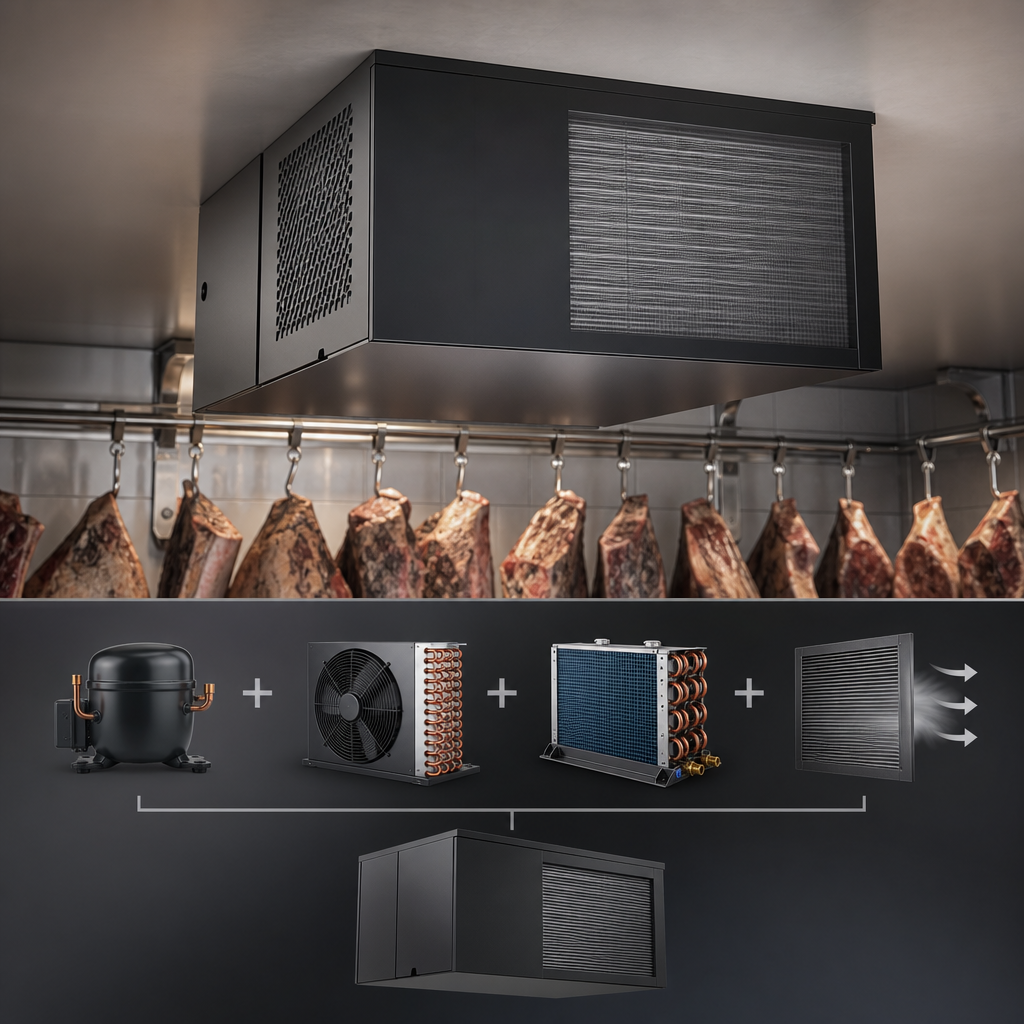

Combines the compressor, condenser, evaporator, and dry aging technology in one appliance for installation on top of a maturing chamber ceiling with an on-site ceiling cutout.
Temperature control
Provides electronically controlled cold-room temperatures from 32–77 °F.
Humidity control
Maintains electronic humidity control from 60–90% without a water connection or drain.
UX Airreg™ airflow and UVC sterilization
Supports air distribution and speed with UVC sterilization without UV exposure of the product.
Automatic defrost
Uses automatic hot gas defrost with built-in condensate evaporation.
Safety controls
Includes a visual and audible alarm and a double safety shutdown system for key components.
Hermetically sealed refrigeration circuit
Uses a hermetically sealed refrigeration circuit with R290 refrigerant.
Commercial production capacity
Supports an estimated maximum chamber volume of 750 ft³.
