Key specifications

Amps
11.04 Amps
Phase
1-Phase
Dimensions
70.9"W × 28.8"D × 55.1"H
Type
Cake Display Case
Style
Straight Glass
Installation Type
Floor Model
Spec sheet
Drago SKU: DRCD72-3

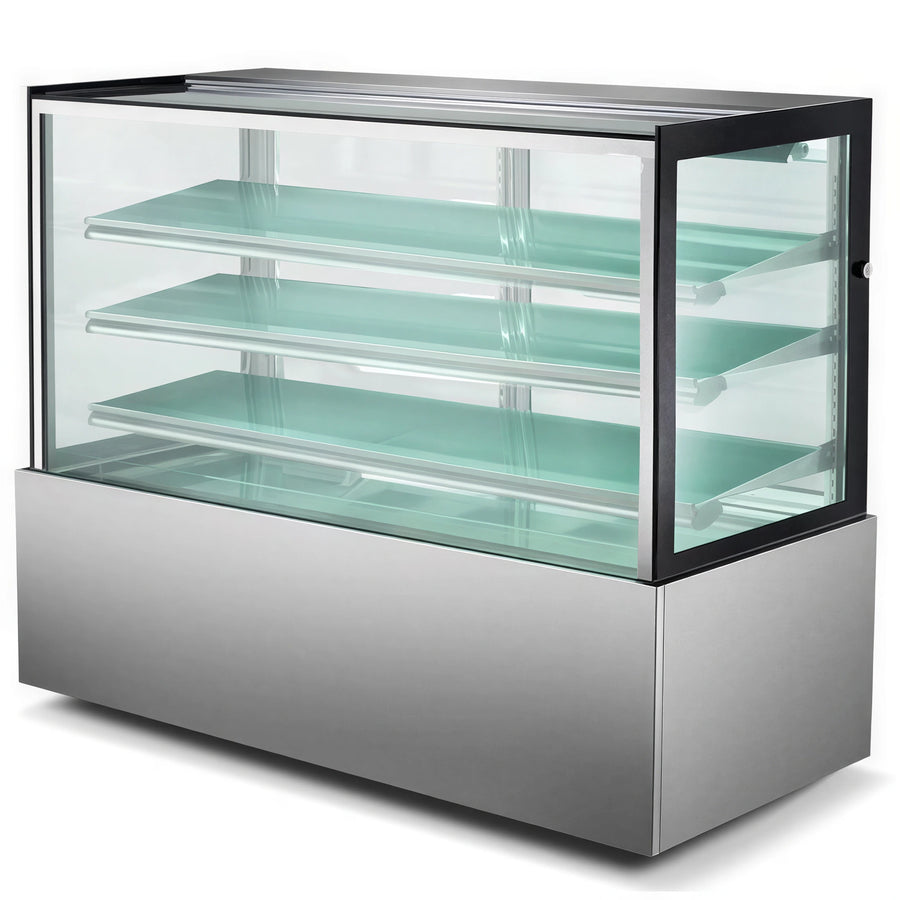

Drago DRCD72-3 70.9" Refrigerated Cake Display Case

$5,047.00
/each
Estimated to ship in 16–19 business days
Included: Drago warranty 2-year parts and labor warranty; 5-year compressor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $467/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cake Display Case
Style Straight Glass
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Interior Finish Stainless Steel
Capacity 30 cu. ft.
Shelf Count 6
Width 70.9 in
Depth 28.8 in
Height 55.1 in
Door Count 2
Door Type Sliding
Glass Type Tempered Glass
Lighting 12V LED
Service Type Full Service
Refrigeration Type Self-Contained
Temperature Range 32°F to 43°F
Refrigerant Type R290
Compressor Horsepower 1/2 HP
Voltage 115 Volts
Amps 11.04 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P

Description

The Drago DRCD72-3 is a refrigerated cake display case with a straight-glass front, two sliding doors, and 30 cu. ft. of capacity.

  • Six adjustable glass shelves support flexible product presentation.
  • Tempered glass, stainless steel interior and exterior surfaces, and a 12V LED lighting system support everyday service.
  • Self-contained refrigeration maintains a 32°F to 43°F temperature range.
  • The floor-model case includes a pre-installed hidden caster design and a NEMA 5-15P plug.

Overall Dimensions:

70.9"W x 28.8"D x 55.1"H

Product Weight:

732.0 lb

Refrigerated Display

Self-contained refrigeration provides a 32°F to 43°F temperature range.

Straight Tempered Glass

The case has a straight-glass front and tempered glass construction.

Adjustable Shelving

Six adjustable glass shelves provide flexible product presentation.

LED Lighting

A 12V LED lighting system illuminates the display area.

Stainless Steel Construction

The floor, walls, interior, and exterior are stainless steel.

Sliding Doors

Two sliding doors provide access to the display area.

Hidden Casters

A pre-installed hidden caster design supports floor placement and movement.

Self-Contained Refrigeration

The refrigeration system uses R290 refrigerant and provides access to the condenser coil for cleaning and service.

Frequently Asked Questions

The temperature range is 32°F to 43°F (0°C to 6°C).
The case includes six adjustable glass shelves.
It has two sliding doors.
The case uses 115 volts, 60 Hz, single-phase power, draws 11.04 amps, and has a NEMA 5-15P plug.
It uses R290 refrigerant.
