Customize Doyon Baking Equipment (Middleby) Model no. LSA516

Configuration
Accessories
Review
0 selected · total
$15,862.00
Doyon Baking Equipment (Middleby)

Doyon Baking Equipment (Middleby) LSA516 Reversible Bench Dough Sheeter with 19-11/16-Inch Stainless Steel Rollers and 20 Speeds

SKU: LSA516
$15,862.00
/each Configurable
Alternative products
LSA516 Current product Current
LSA520 Loading live product details…
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dough Preparation Equipment Dough Preparation Equipment Dough Preparation Equipment Dough Sheeters Dough Sheeters & Rollers Dough Sheeters & Rollers Doyon Baking Equipment (Middleby) Equipment Equipment Food Prep Equipment Food Preparation Equipment Food Preparation Equipment Food Preparation Equipment New Arrivals Restaurant Equipment

Doyon Reversible Bench Dough Sheeter with 19-11/16-Inch Stainless Steel Rollers and 20 Speeds

Without Stand, Adjustable Thickness 1/32 to 1 1/2 Inch

This bench-model sheeter delivers precise, reversible dough handling with 20 speeds, adjustable thickness control, and durable stainless steel rollers.

  • Bench model designed for countertop installation without a stand
  • Reversible operation and 20 adjustable speeds support efficient production
  • 19-11/16-inch stainless steel rollers deliver consistent sheeting performance
  • Adjustable thickness from 1/32 inch to 1 1/2 inches for versatile dough handling
  • Fold-up belts, removable arms, and easy-to-adjust scrapers simplify cleanup and storage
  • Safety-focused design includes an emergency stop, protective guards, and motor overload protection
  • 120V, 8.3A operation with a NEMA 5-15P plug

Overall Dimensions:

76.5"W x 41.5"D x 32.0"H

Product Weight:

620.0 lb

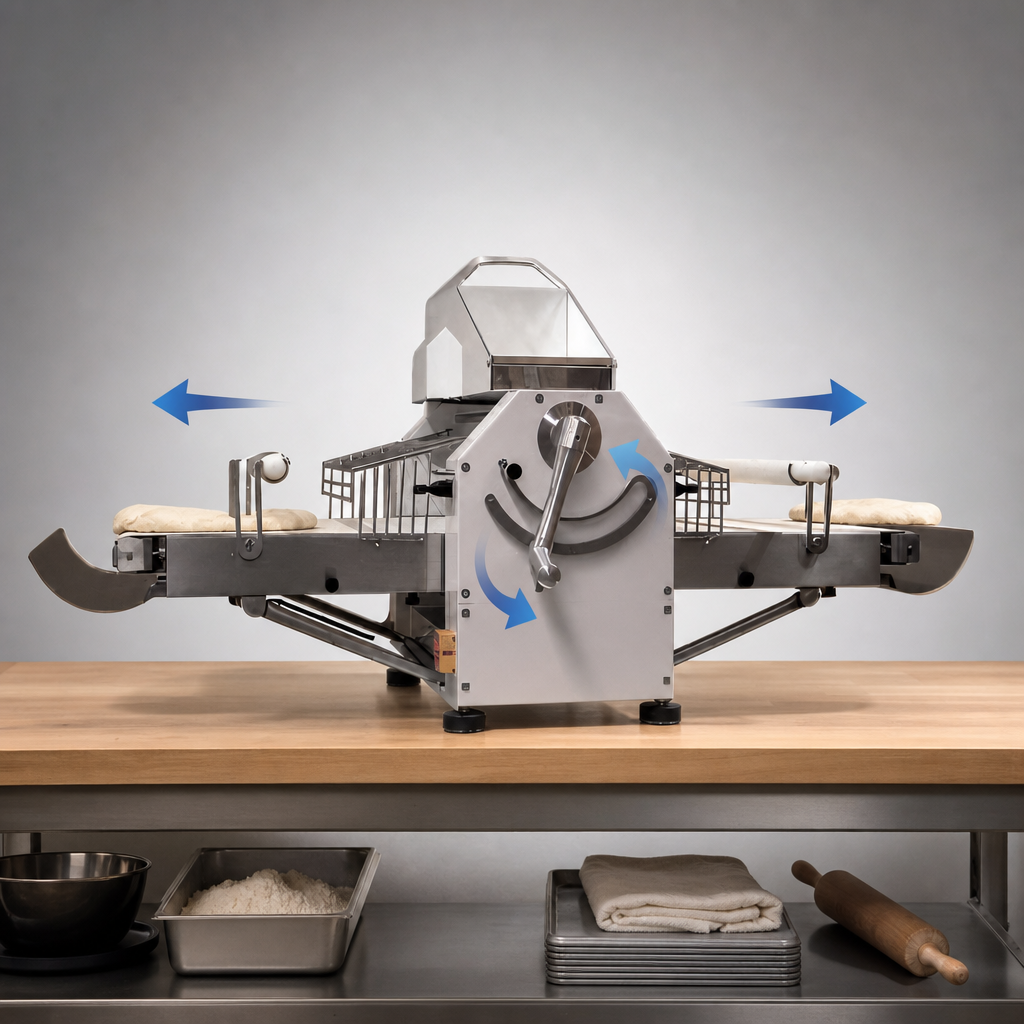

Reversible Operation

Runs in either direction to streamline dough handling and improve workflow.

Reversible Operation

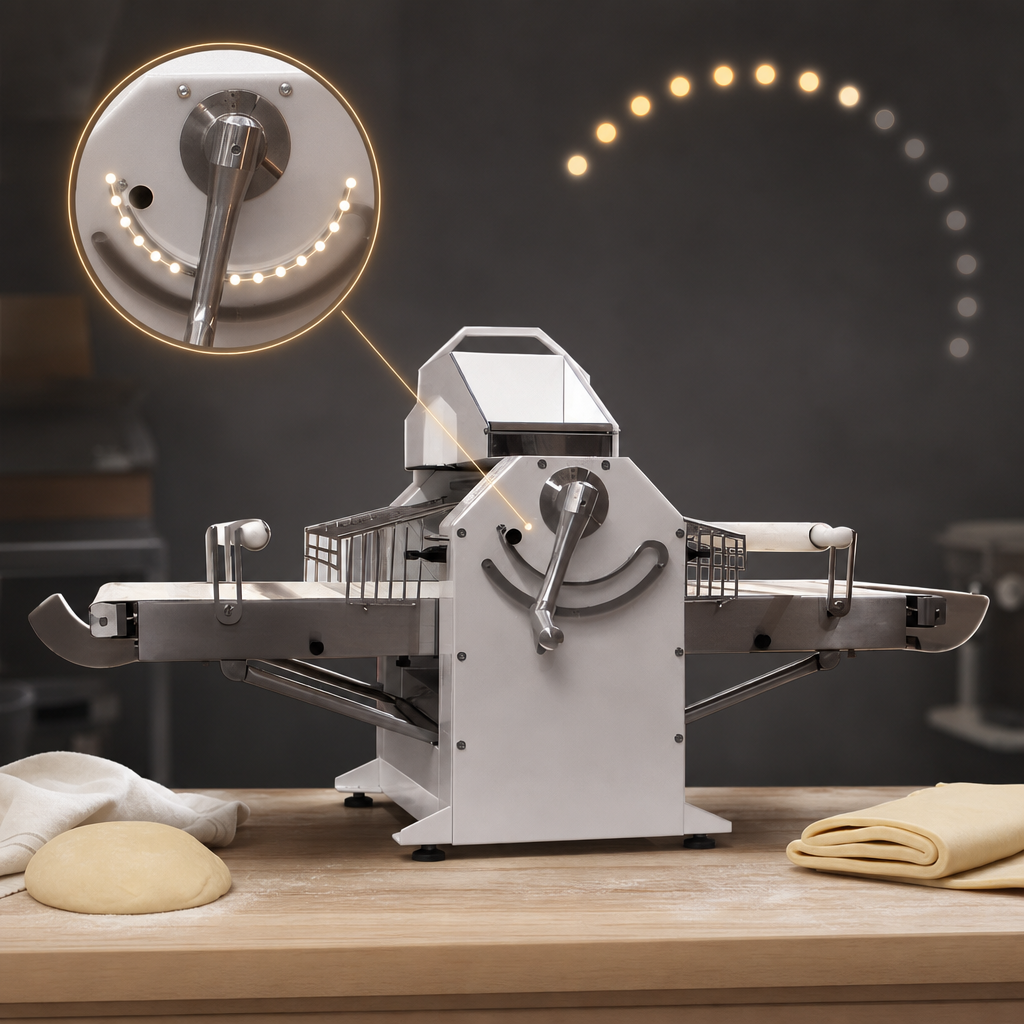

20 Adjustable Speeds

Provides fine control over rolling speed for different dough types and production needs.

20 Adjustable Speeds

Stainless Steel Rollers

19-11/16-inch rollers support durable, consistent dough sheeting.

Adjustable Thickness Range

Thickness adjusts from 1/32 inch to 1 1/2 inches (1 to 40 mm).

Dual Hand Controls

Allows the belt to be controlled from either side of the machine.

Fold-Up Belts and Removable Arms

Helps save space and makes the machine easier to clean and store.

Safety Protection Package

Includes an emergency stop, thermal overload protection, and protective guards with motor shut-off.

Enamel-Coated Finish

Durable coating designed for heavy-duty bakery use.

1 HP Motor

Provides the power needed for consistent dough sheeting.

Type Dough Sheeter
Style Reversible
Installation Type Countertop
Capacity 11 Pounds
Roller Size 19 11/16 Inches
Thickness Range 1/32 Inch to 1 1/2 Inches (1 to 40 mm)
Controls Dual Hand Controls
Voltage 120 Volts
Amps 8.3 Amps
Plug Type NEMA 5-15P
Horsepower 1 HP
Finish Enamel Coated
Width 77 Inches
Depth 42 Inches
Height 32 Inches
Weight 620 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

Two year parts and one year labor limited warranty.

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. This is a bench model sold without a stand.
The adjustable roller gap supports thickness from 1/32 inch to 1 1/2 inches (1 to 40 mm).
It operates on 120 volts, draws 8.3 amps, and uses a NEMA 5-15P plug.
It includes an emergency stop, thermal overload protection, and protective guards with motor shut-off.
The warranty is one year labor and two years parts, with limited terms and conditions.
