Doyon Baking Equipment (Middleby)

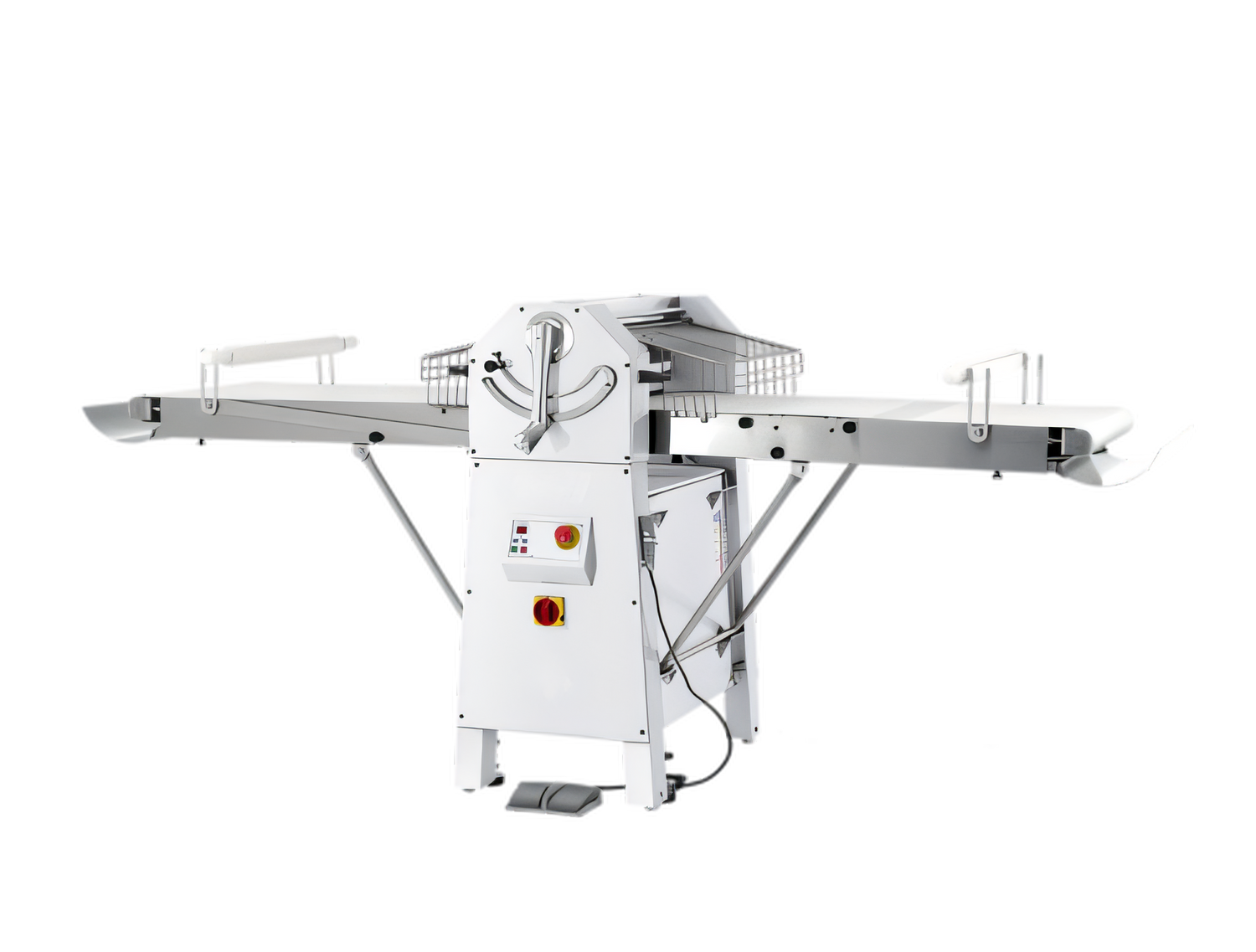

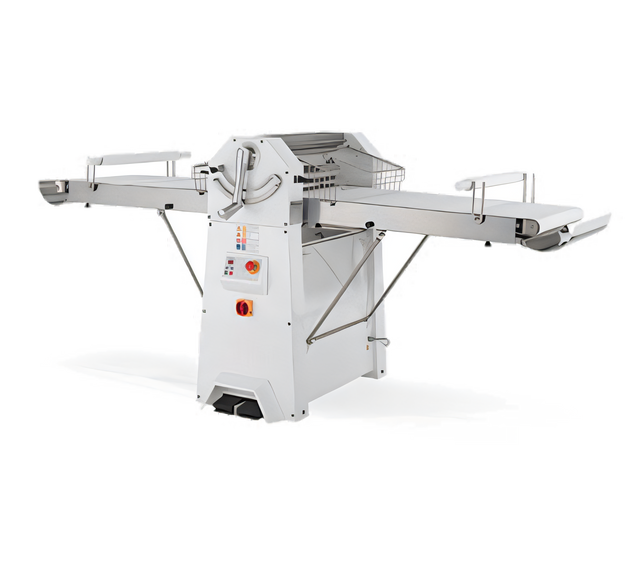

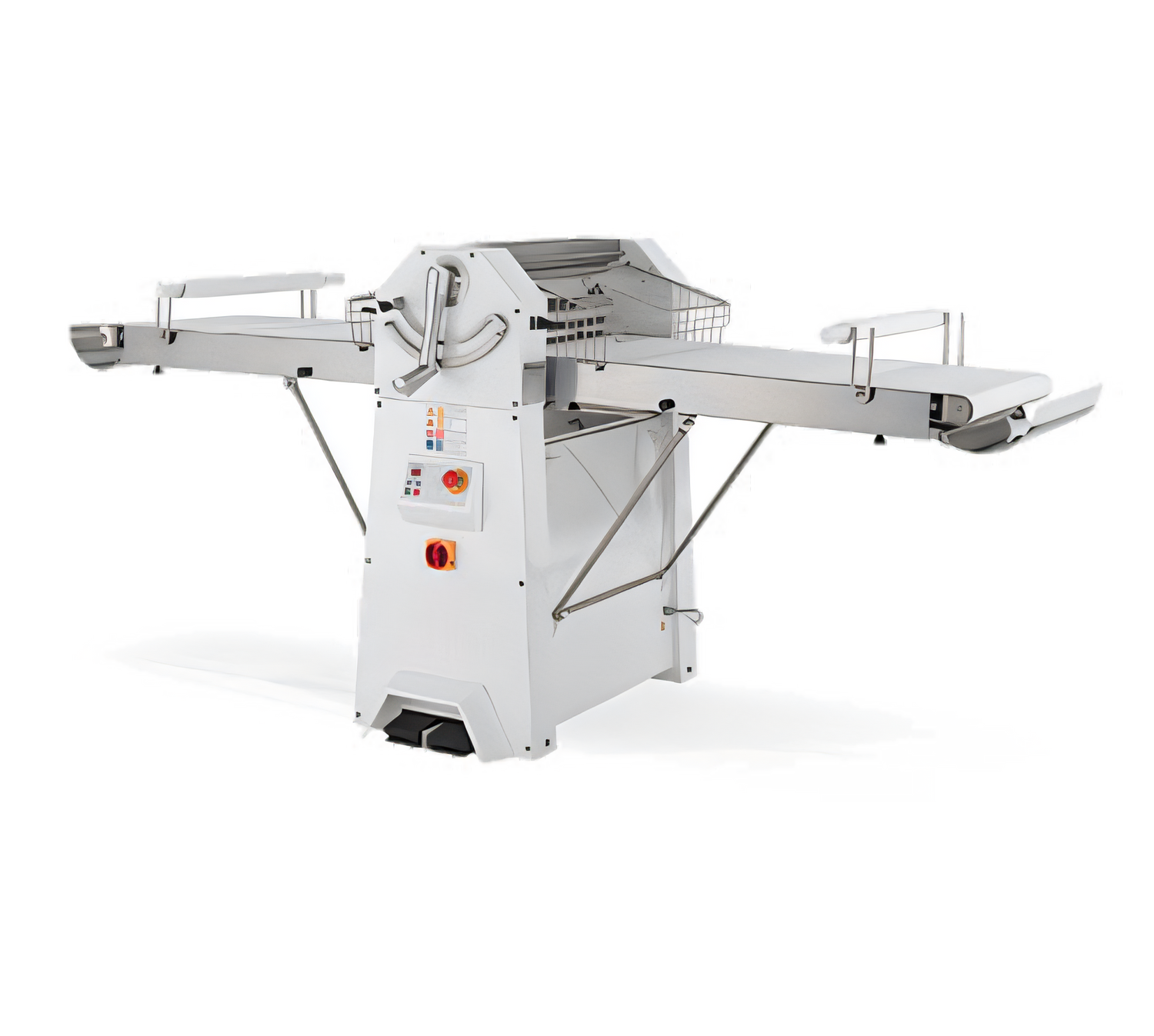

Doyon LMA624 Reversible Floor Model Dough Sheeter with 19-11/16-Inch Stainless Steel Rollers

SKU: LMA624
$20,350.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dough Preparation Equipment Dough Preparation Equipment Dough Sheeters Dough Sheeters & Rollers Doyon Baking Equipment (Middleby) Food Prep Equipment Food Preparation Equipment New Arrivals Restaurant Equipment

Doyon LMA624 Reversible Floor Model Dough Sheeter with 19-11/16-Inch Stainless Steel Rollers

20 Speeds, Enamel-Coated Stainless Steel, Adjustable Roller Gap

Built for busy bakeries, this reversible floor model sheeter delivers precise dough control with 20 speeds, adjustable thickness, and dual hand or foot operation.

  • Reversible floor model dough sheeter designed for consistent, high-volume dough handling.
  • 20 adjustable speeds and a 1/32" to 1 1/2" (1-40 mm) thickness range for precise control.
  • 19-11/16" stainless steel rollers and enamel-coated stainless steel construction for durability.
  • Dual hand or foot belt controls, plus emergency stop and motor shut-off guards for safer operation.
  • Fold-up belts, removable arms, and low-profile casters help with storage and mobility.
  • 120V operation with a NEMA 5-15P plug and 1 HP motor.

Overall Dimensions:

23.0"W x 39.5"D x 45.75"H

Product Weight:

815.0 lb

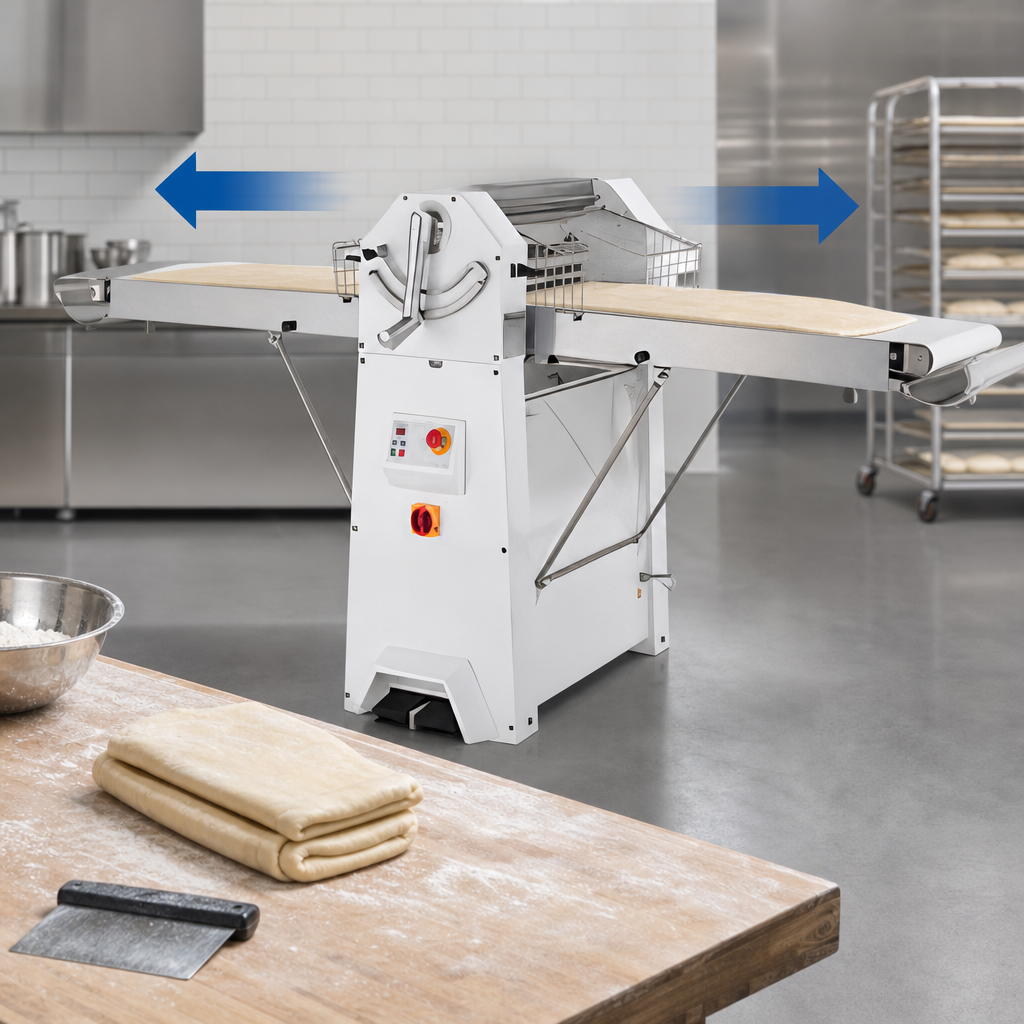

Reversible Dough Sheeter

Sheets dough in both directions for efficient, repeatable production.

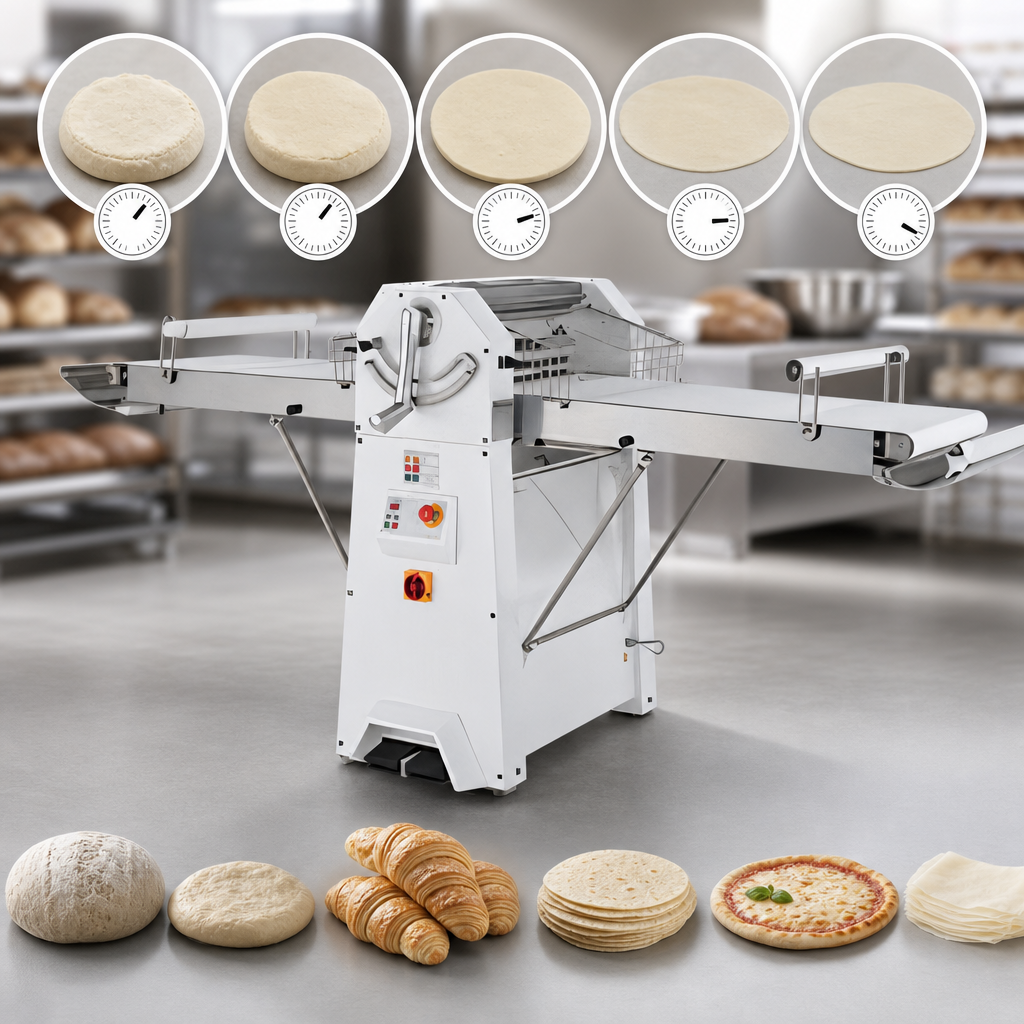

20 Adjustable Speeds

Lets operators fine-tune dough handling for different recipes and product types.

Adjustable Roller Gap

Thickness adjusts from 1/32" to 1 1/2" (1-40 mm).

Stainless Steel Rollers

19-11/16-inch stainless steel rollers support smooth, consistent dough processing.

Hand and Foot Controls

Dual belt controls provide flexible operation at the machine.

Enamel-Coated Stainless Steel Construction

Durable construction suited for commercial bakery environments.

Safety Features

Includes an emergency stop, thermal overload protection, and protective guards with motor shut-off.

Fold-Up Belts and Removable Arms

Designed to simplify storage, setup, and cleanup.

Mobility Casters

Low-profile casters make the unit easier to reposition.

1 HP Motor

Powered by a 1 horsepower motor.

Listings

CE and ETL listed.

Type Dough Sheeter
Style Reversible
Installation Type Floor Model
Material Stainless Steel
Finish Enamel Coated
Capacity 24 Pounds
Roller Size 19 11/16 Inches
Speed Settings 20
Roller Gap 1/32" to 1 1/2" (1 to 40 Millimeters)
Controls Hand and Foot
Horsepower 1 HP
Voltage 120 Volts
Amps 8.3 Amps
Plug Type NEMA 5-15P
Shipping Width 23 Inches
Shipping Depth 40 Inches
Shipping Height 46 Inches
Shipping Weight 815 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

One year labor and two years parts.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Terms & conditions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a reversible floor model dough sheeter.
The adjustable roller gap sets thickness from 1/32" to 1 1/2" (1-40 mm).
It uses dual hand or foot belt controls.
It operates on 120 Volts, draws 8.3 Amps, and uses a NEMA 5-15P plug.
The warranty is one year labor and two years parts.
