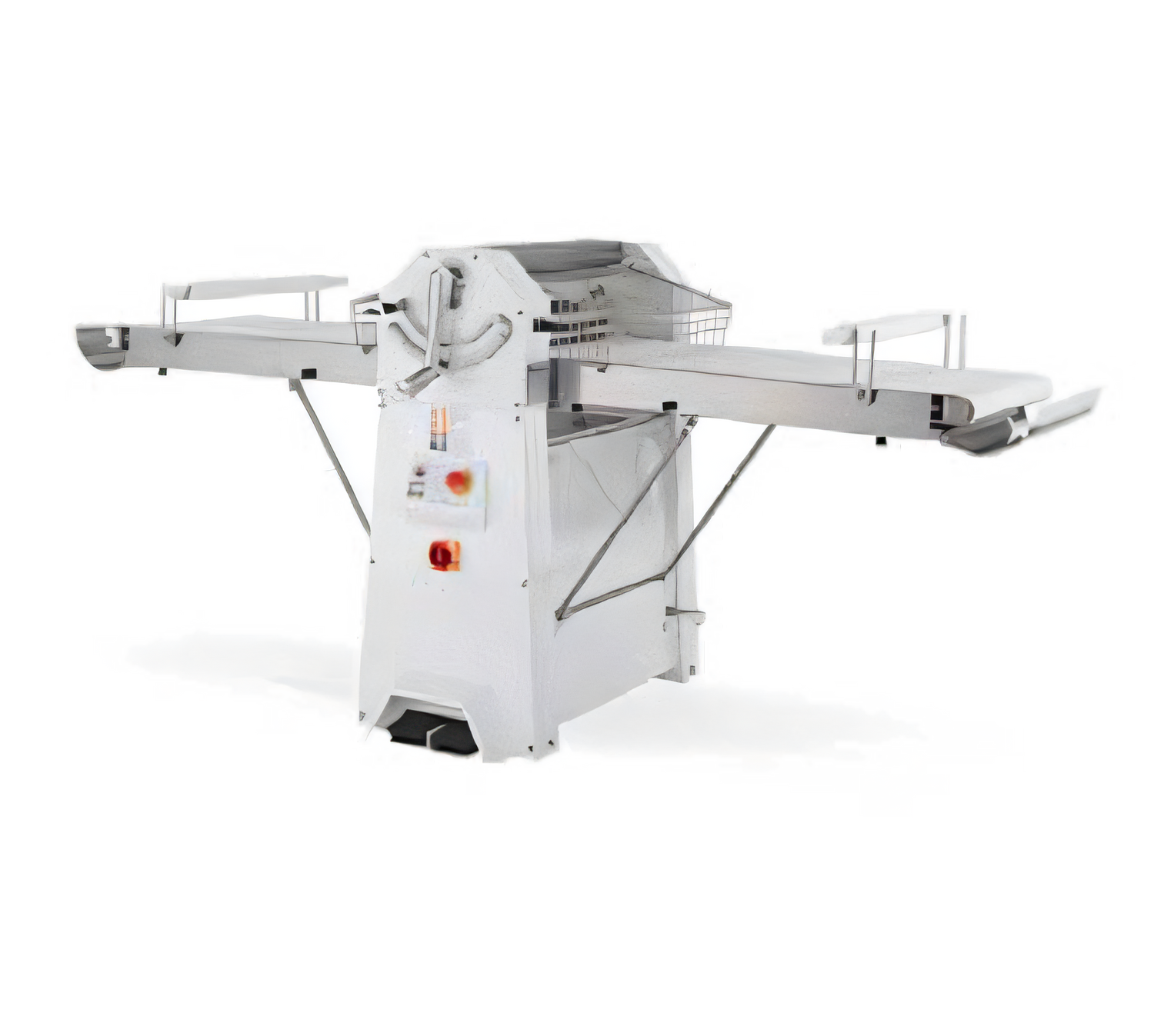

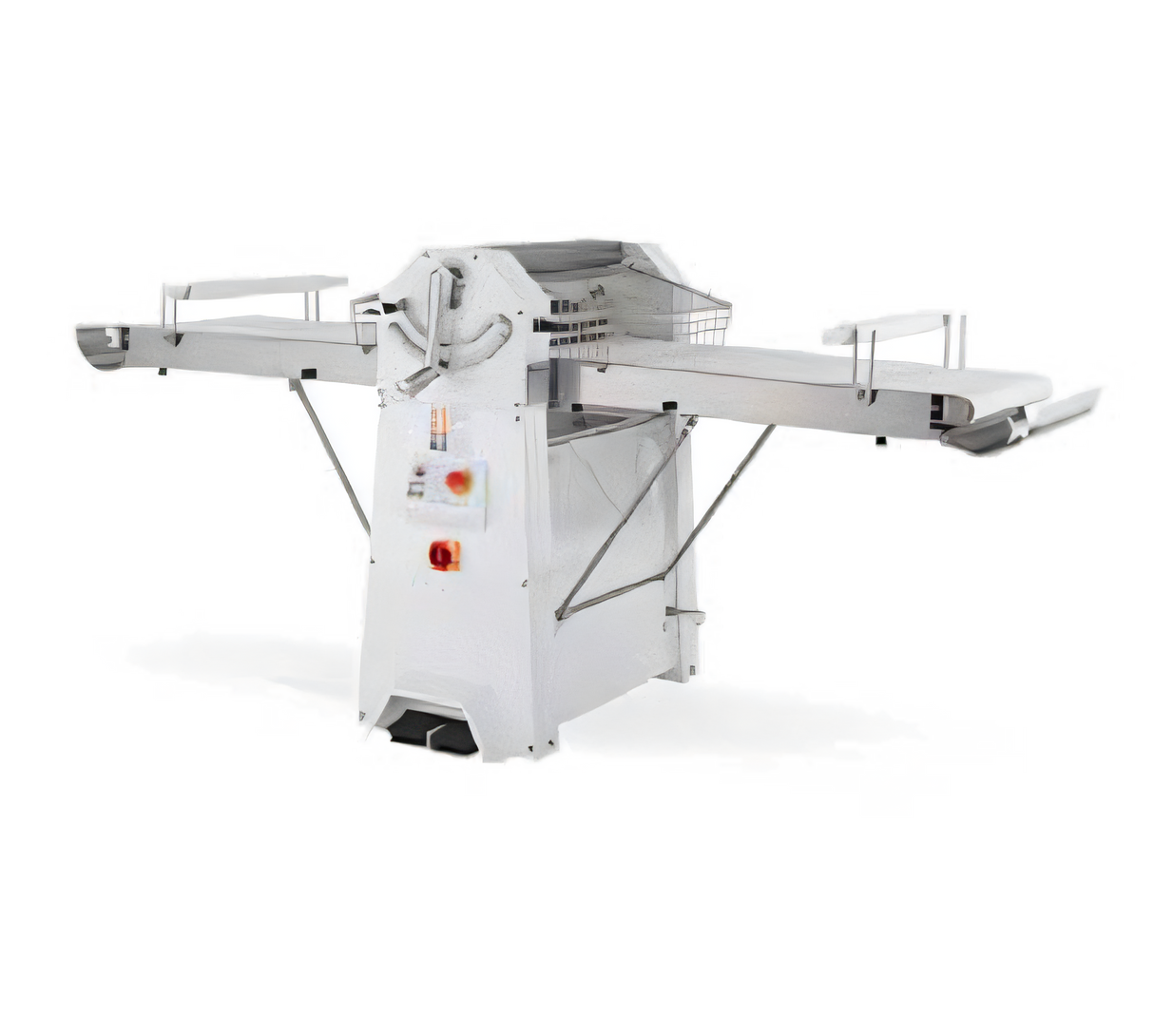

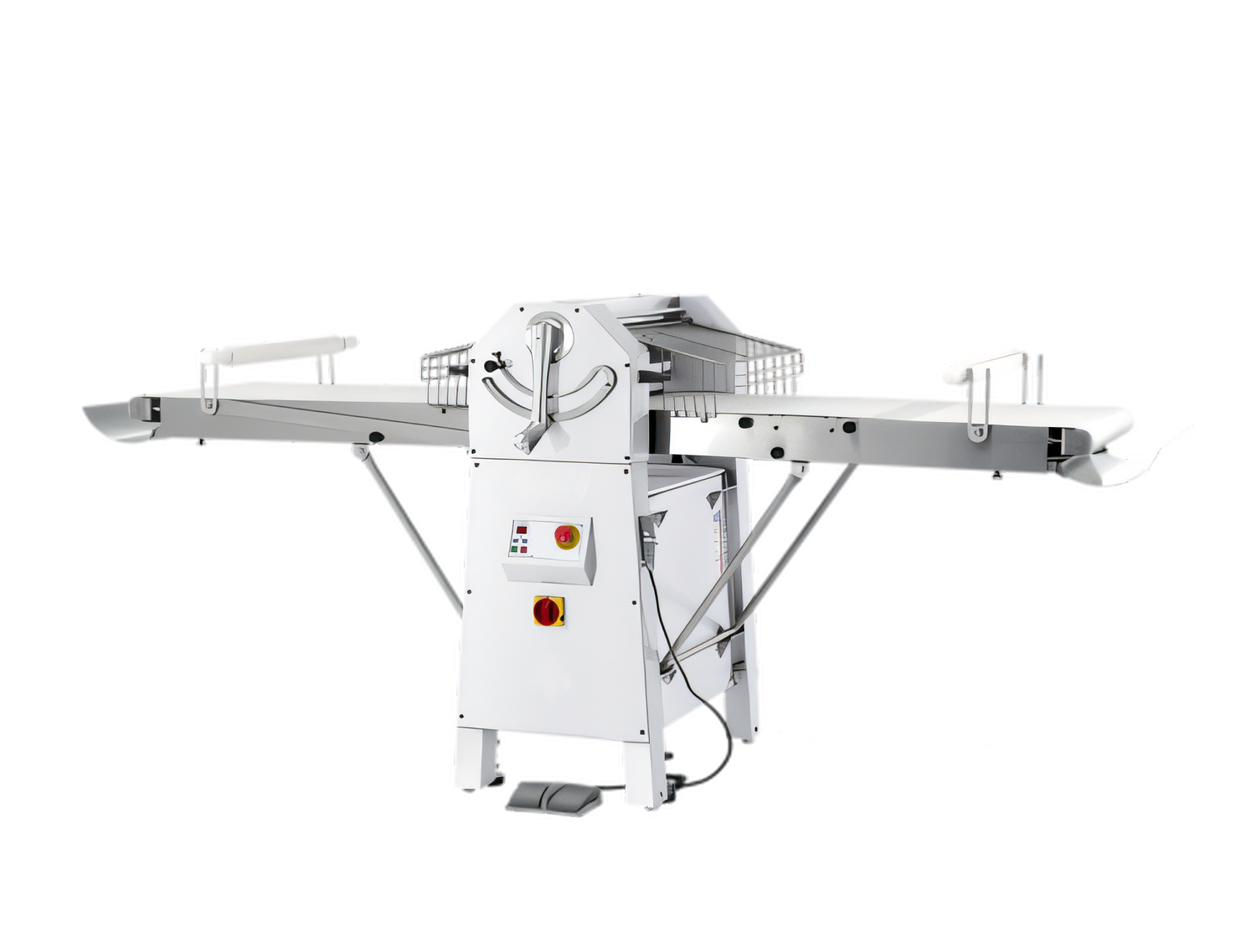

Doyon LMA620 Reversible Floor Model Dough Sheeter with 19-11/16 Inch Stainless Steel Rollers

SKU: LMA620
$20,162.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dough Preparation Equipment Dough Preparation Equipment Dough Sheeters Dough Sheeters & Rollers Doyon Baking Equipment (Middleby) Food Prep Equipment Food Preparation Equipment New Arrivals Restaurant Equipment

Doyon LMA620 Reversible Floor Model Dough Sheeter with 19-11/16 Inch Stainless Steel Rollers

20 Speeds, Adjustable 1/32 Inch to 1 1/2 Inch Thickness, 120V

Built for busy bakeries, this reversible floor model dough sheeter delivers precise thickness control, smooth operation, and durable stainless steel rollers.

  • Reversible floor model design for efficient dough handling in high-volume prep areas.
  • 20 adjustable speeds help match output to different dough types and production needs.
  • Adjustable thickness from 1/32 inch to 1 1/2 inches for versatile sheeting.
  • Dual hand or foot controls provide flexible operator control.
  • Stainless steel rollers and enamel-coated stainless steel construction support durability.
  • Built-in safety features include an emergency stop, protective guards, and motor overload protection.

Overall Dimensions:

23.0"W x 39.5"D x 45.75"H

Product Weight:

700.0 lb

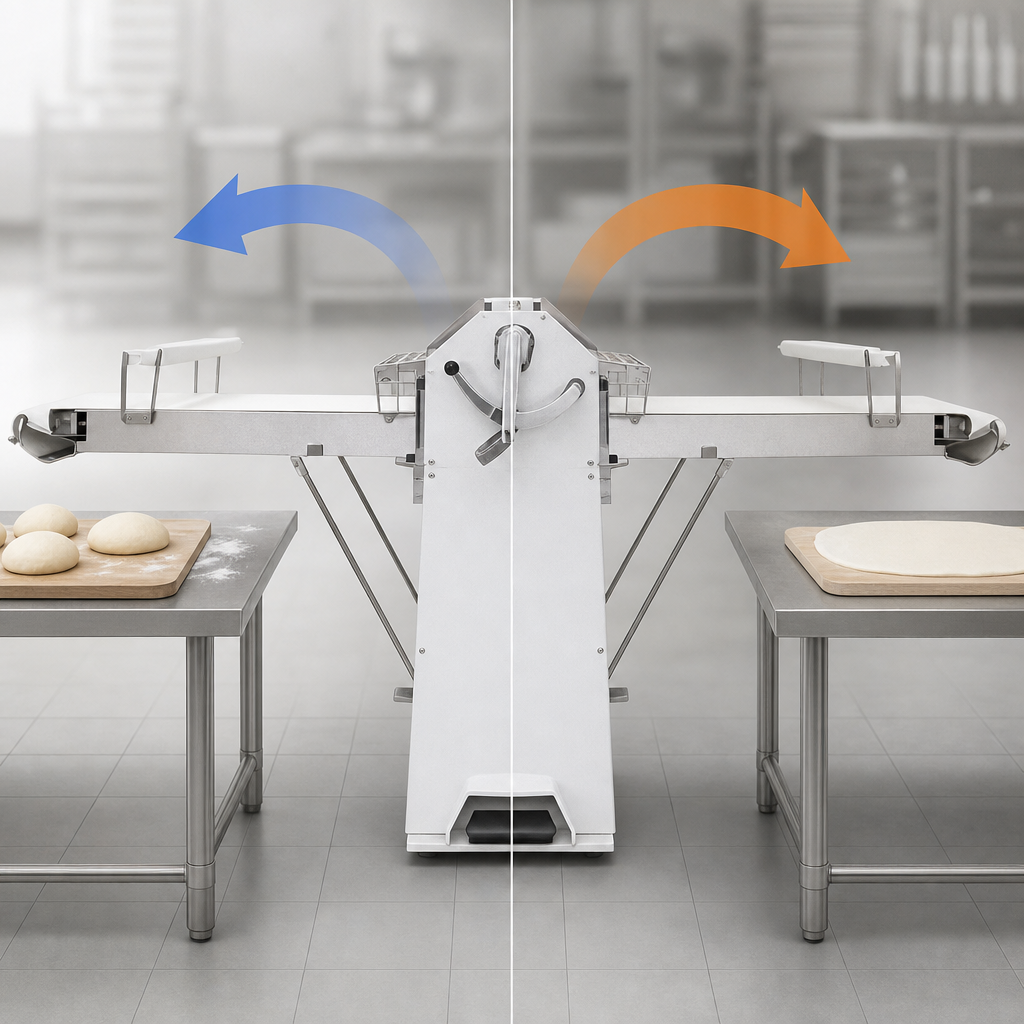

Reversible Operation

Reversible dough sheeter design helps improve workflow and dough handling efficiency.

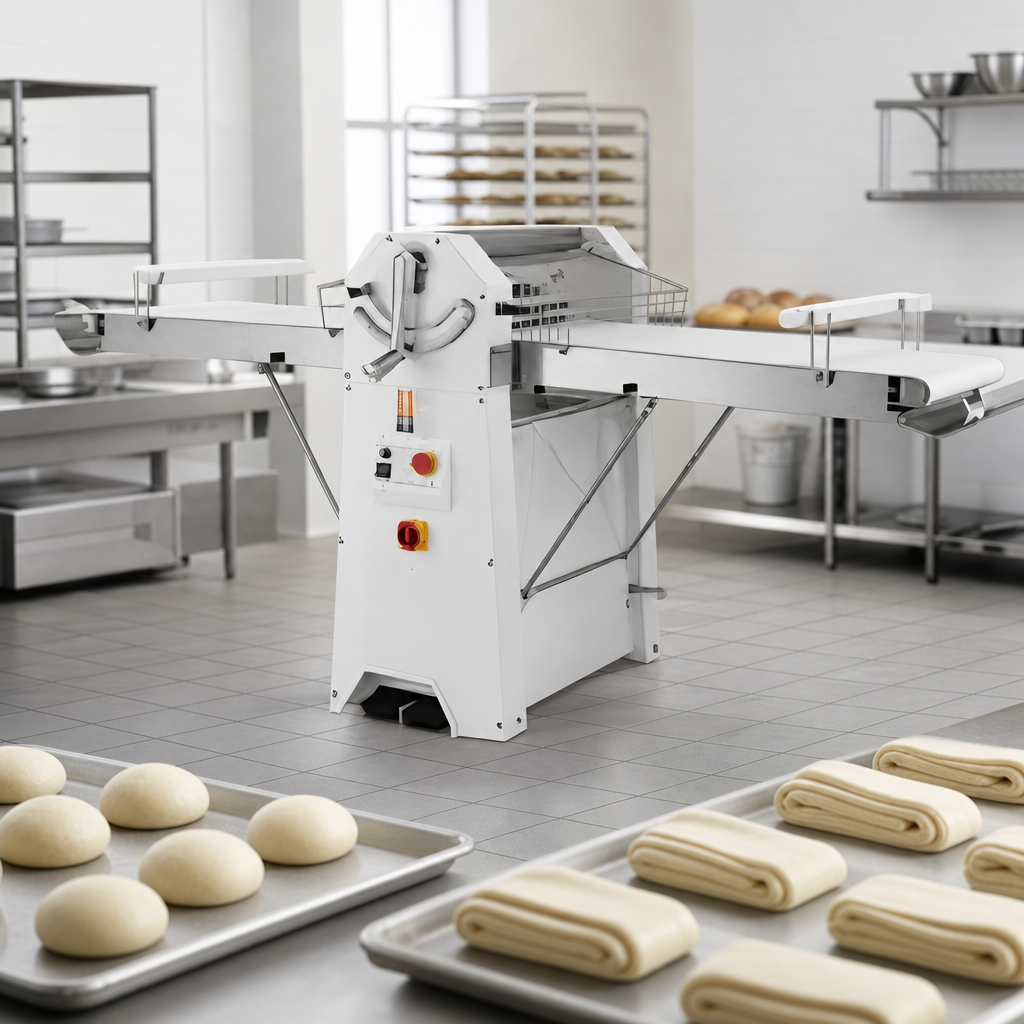

20 Adjustable Speeds

Allows operators to fine-tune line speed for different dough products and production demands.

Adjustable Thickness Range

Thickness adjusts from 1/32 inch to 1 1/2 inches (1 to 40 mm) for precise sheeting.

Dual Hand or Foot Controls

Lets the operator control the belt using either hand controls or foot controls.

Stainless Steel Rollers

19 11/16 inch stainless steel rollers support consistent dough processing and durability.

Emergency Stop

Provides a quick shutdown option for improved operator safety.

Protective Guards With Motor Shut-Off

Safety guards help protect the operator and automatically shut off the motor when needed.

Thermal Overload Protection

Helps protect the motor from overheating during extended use.

Fold-Up Belts

Belts fold up for easier storage when the unit is not in use.

Low Profile Casters

Casters improve mobility for repositioning and cleaning.

Synchronized Belt System

Helps move dough smoothly and evenly through the sheeter.

Stainless Steel Catch Pans

Catch pans on each side help collect flour and dough for easier cleanup.

Type Dough Sheeter
Style Reversible
Installation Type Floor Model
Material Stainless Steel
Finish Enamel Coated
Capacity 30 lb. Dough
Roller Size 19 11/16 Inches
Roller Material Stainless Steel
Thickness Range 1/32 Inch - 1 1/2 Inches (1 - 40 mm)
Controls Dual Hand or Foot
Speeds 20
Horsepower 1 HP
Voltage 120 Volts
Amps 8.3 Amps
Plug Type NEMA 5-15P
Shipping Width 23 Inches
Shipping Depth 40 Inches
Shipping Height 46 Inches
Shipping Weight 700 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

1-year labor, 2-year parts

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It adjusts from 1/32 inch to 1 1/2 inches, or 1 to 40 mm.
The belt can be controlled by either dual hand controls or foot controls.
It operates on 120 volts, draws 8.3 amps, and uses a NEMA 5-15P plug.
It includes an emergency stop, protective guards with motor shut-off, and thermal overload protection on the motor.
The warranty is one year labor and two years parts.
