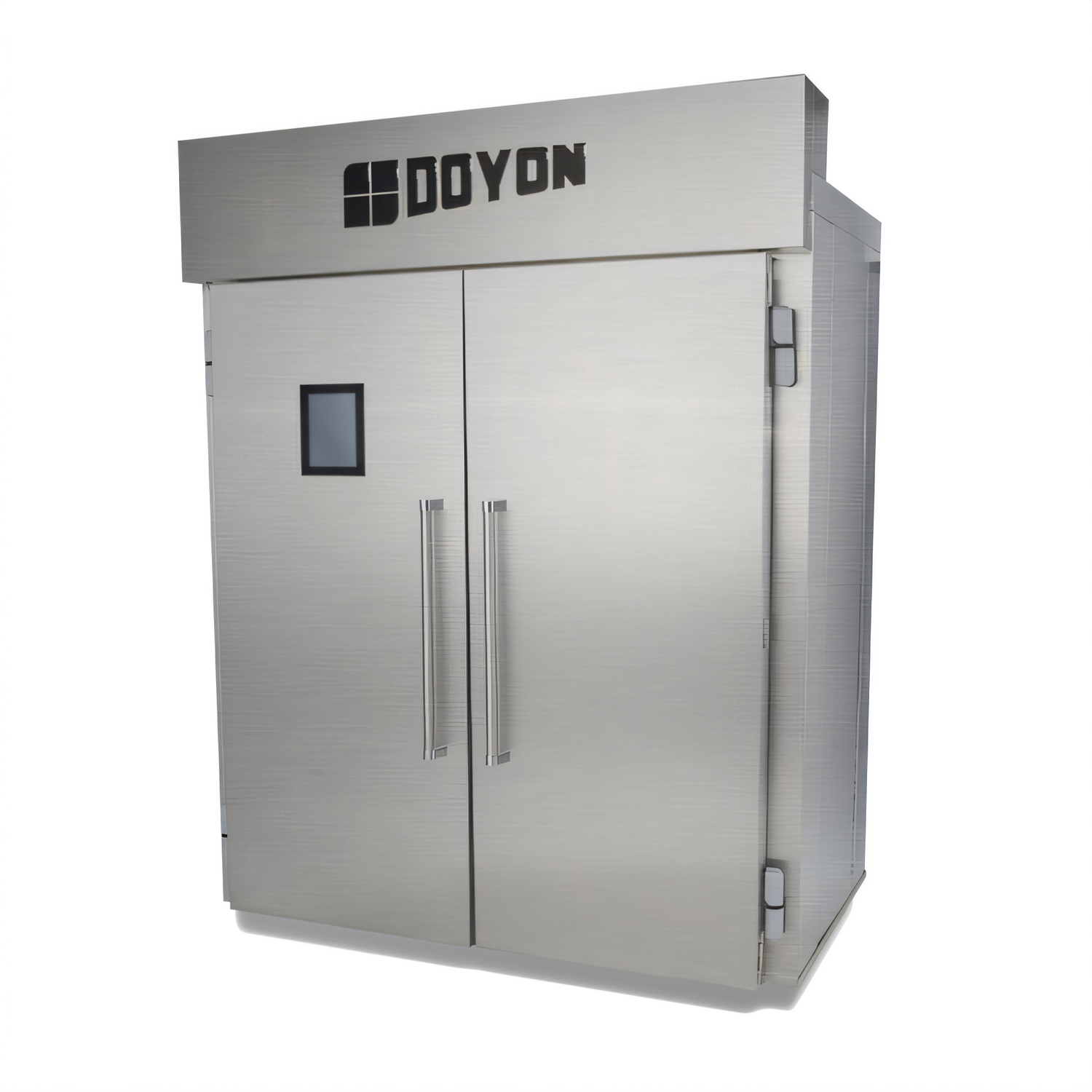

Doyon KDPR32 Knockdown Roll-In Three-Section Retarder Proofer Cabinet

Self-Contained Refrigeration, Digital Touchscreen, Stainless Steel

Built for high-volume bakery operations, this knockdown roll-in retarder proofer cabinet combines self-contained refrigeration, auto-fill humidity, and touchscreen control for consistent results.

  • Knockdown, roll-in design helps simplify delivery and installation.
  • Three-section cabinet supports high-volume proofing and retarding workflows.
  • Holds 6 double side load racks, 11 single end load racks, or 12 single side load racks.
  • Digital touchscreen control and auto-fill humidity help maintain consistent conditions.
  • Self-contained R134a refrigeration supports both retarding and proofing.
  • Stainless steel construction and insulated panels are built for demanding bakery use.
  • Single water line and rear drain connection support operation.

Overall Dimensions:

107.0"W x 84.38"D x 94.19"H

Product Weight:

1832.0 lb

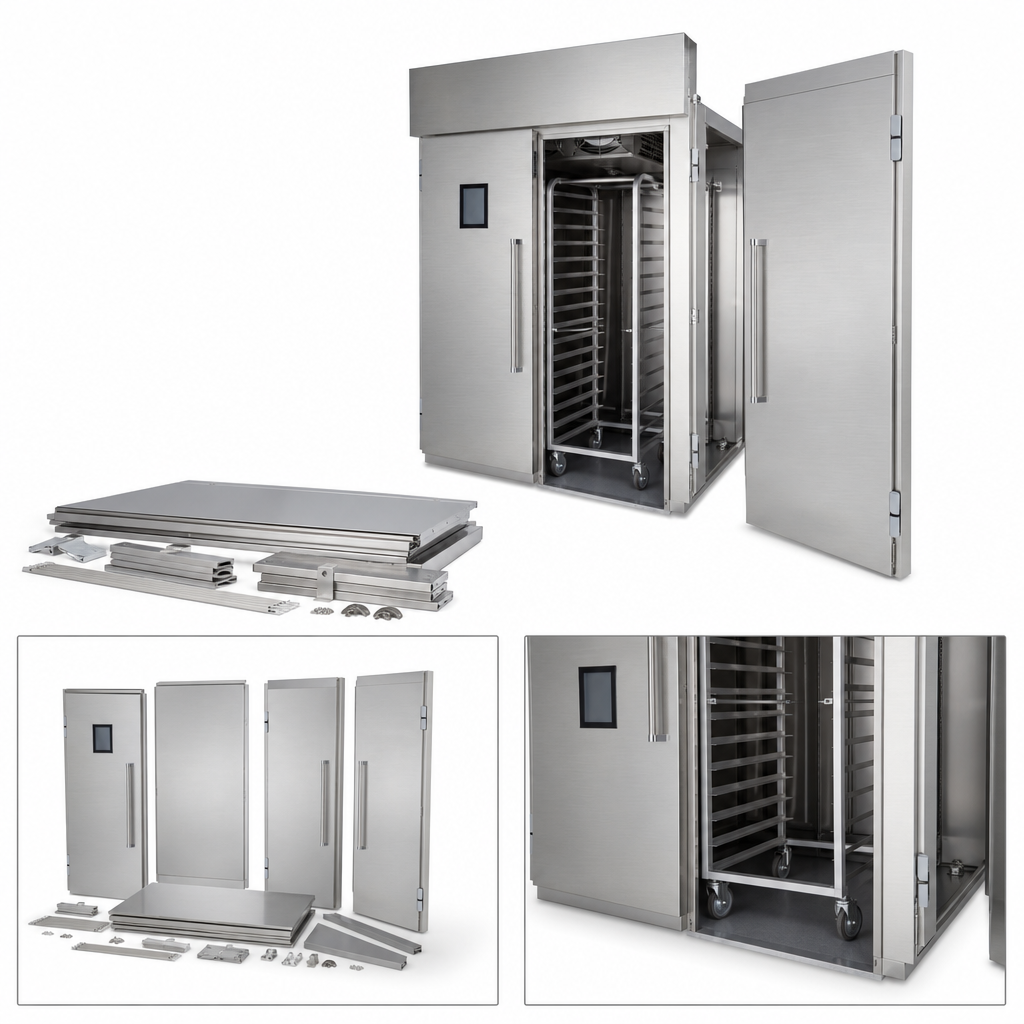

Knockdown Roll-In Construction

Ships knockdown for easier handling, and the roll-in design is suited for bakery rack loading.

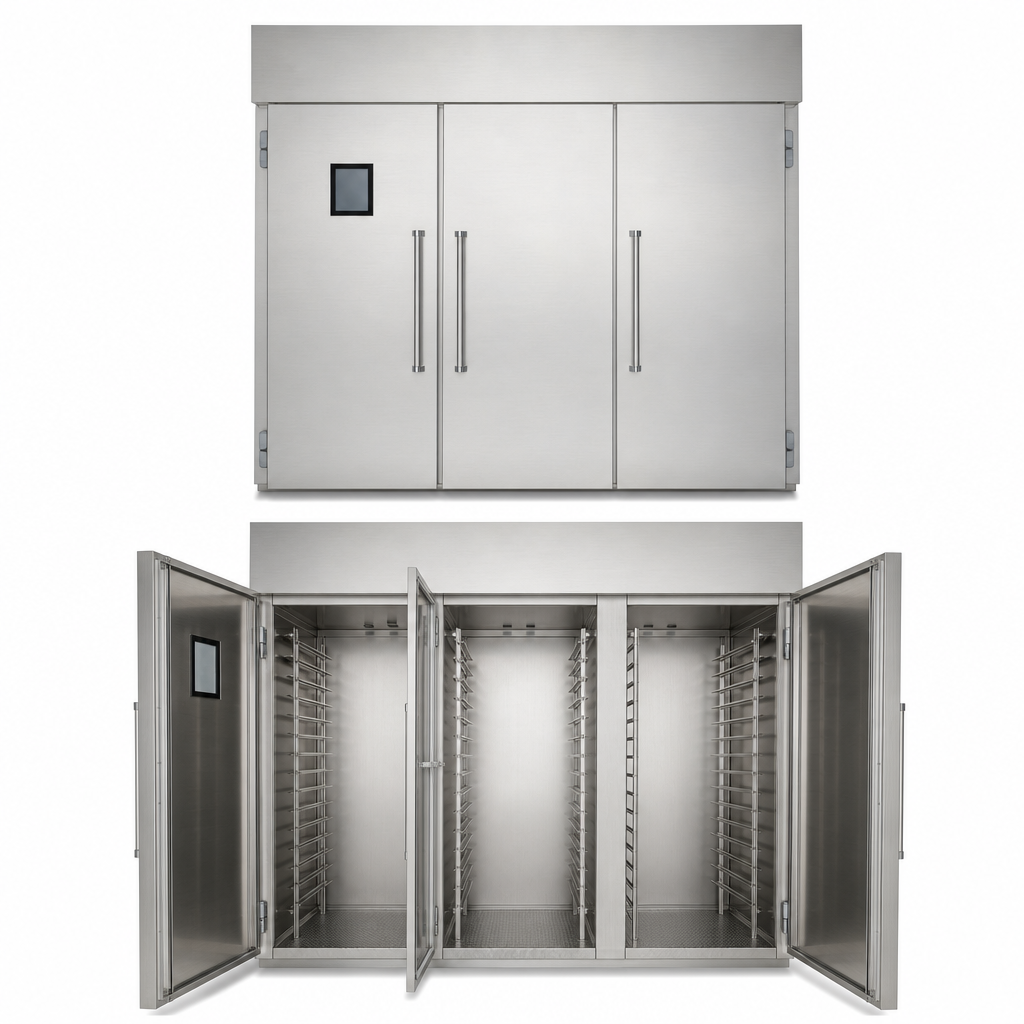

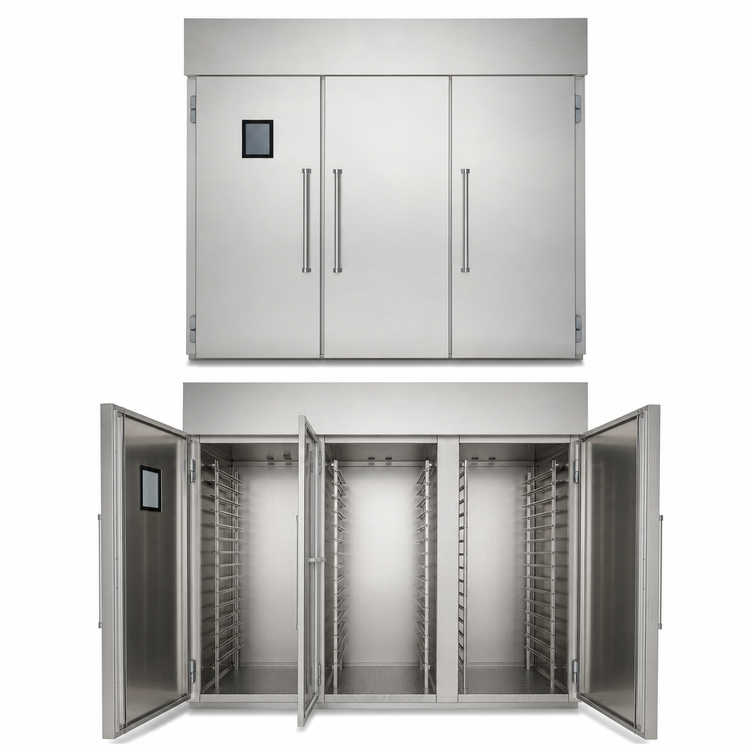

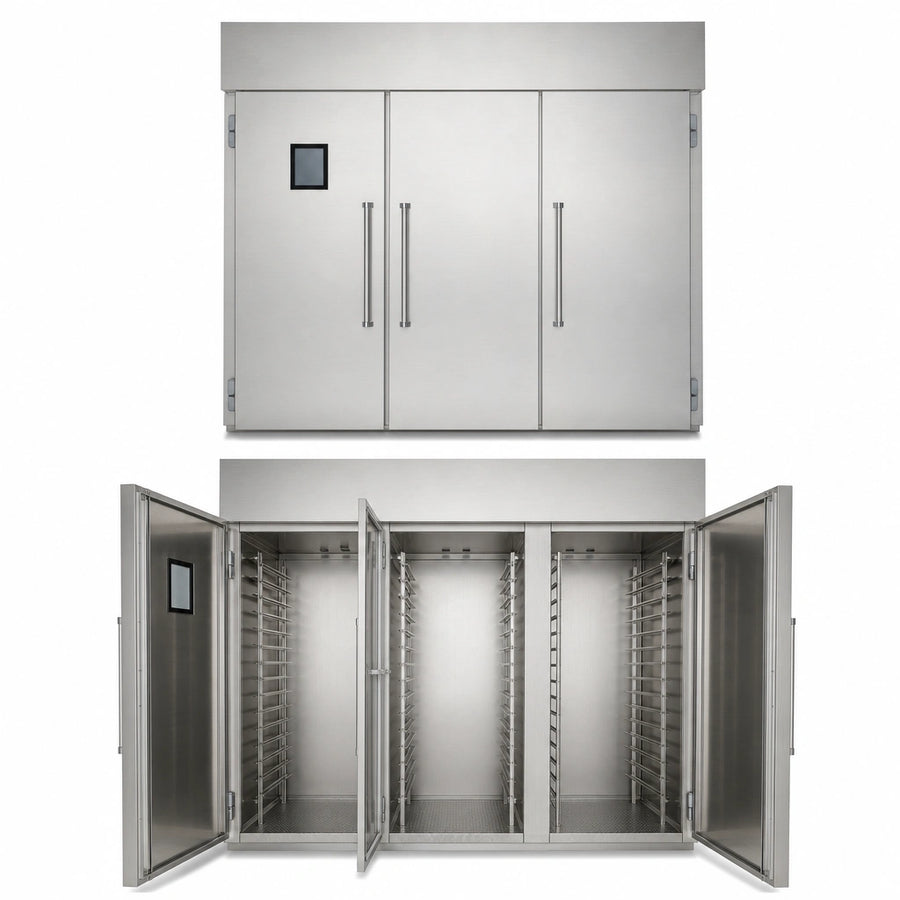

Three-Section Cabinet

Large three-section layout provides substantial capacity for production environments.

High Rack Capacity

Accommodates 6 double side load racks, 11 single end load racks, or 12 single side load racks.

Digital Touchscreen Control

Single digital touchscreen control simplifies operation and settings adjustment.

Auto-Fill Humidity System

Automatically maintains humidity using a single water line connection.

Self-Contained Refrigeration

Integrated refrigeration system uses R134a refrigerant for retarding and proofing performance.

Stainless Steel Construction

Stainless steel exterior and interior construction offers durability and easy cleanup.

Insulated Panels

Insulated panel construction helps support temperature consistency and energy efficiency.

Expandable Design

Expandable cabinet design offers flexibility for future needs.

Type Retarder Proofer Cabinet
Style Roll-In
Installation Type Floor Model
Compartments 3
Capacity 6 Double Side Load Racks / 11 Single End Load Racks / 12 Single Side Load Racks
Controls Digital Touchscreen
Refrigeration Type Self-Contained
Refrigerant Type R134a
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Water Inlet Size 1/4 Inch Tube
Drain Connection Size 1 1/2 Inch Diameter
Water Connection Required
Drain Connection Required
Watts 15 kW
Hertz 60 Hz
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 107 Inches
Shipping Depth 85 Inches
Shipping Height 95 Inches
Shipping Weight 1832 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Two year parts and one year labor limited warranty.

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Middleby financial flyer PDF Download PDF Site inspection PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds 6 double side load racks, 11 single end load racks, or 12 single side load racks.
The documentation lists 208 Volts or 240 Volts in either 1-phase or 3-phase, with 15 kW and 60 Hz.
A 1/4" tube cold water line connection is required with 15-25 PSI, and a 1 1/2" diameter drain connection is required at the back of the unit.
Minimum clearances are 1 inch on the sides, 19 inches on top, and 3 inches on the rear. A 10-foot ceiling height is required for proper airflow and service access.
It is shipped knockdown (KD).
