Doyon KDP22 Knockdown Roll-In Two-Section Proofer Cabinet, 4-Rack Capacity, Digital Touchscreen

SKU: KDP22
$33,380.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ranges Dough Proofers & Retarders Doyon Baking Equipment (Middleby) New Arrivals Restaurant Equipment

Doyon KDP22 Knockdown Roll-In Two-Section Proofer Cabinet, 4-Rack Capacity, Digital Touchscreen

All Stainless Steel, 208/240V, Single Water Line

This roll-in, two-section proofer combines automatic humidity control, touchscreen operation, and stainless steel construction for consistent proofing in busy bakeries.

  • Roll-in, knockdown cabinet designed for high-volume proofing workflows.
  • Two sections with capacity for 4 double side load racks or 8 single racks.
  • Digital touchscreen control and auto-fill humidity help maintain consistent proofing conditions.
  • Stainless steel construction with insulated panels supports durability and heat retention.
  • Ships knocked down to help simplify delivery and on-site installation.
  • Requires a single cold water line and is made in USA.

Overall Dimensions:

74.5"W x 84.38"D x 94.19"H

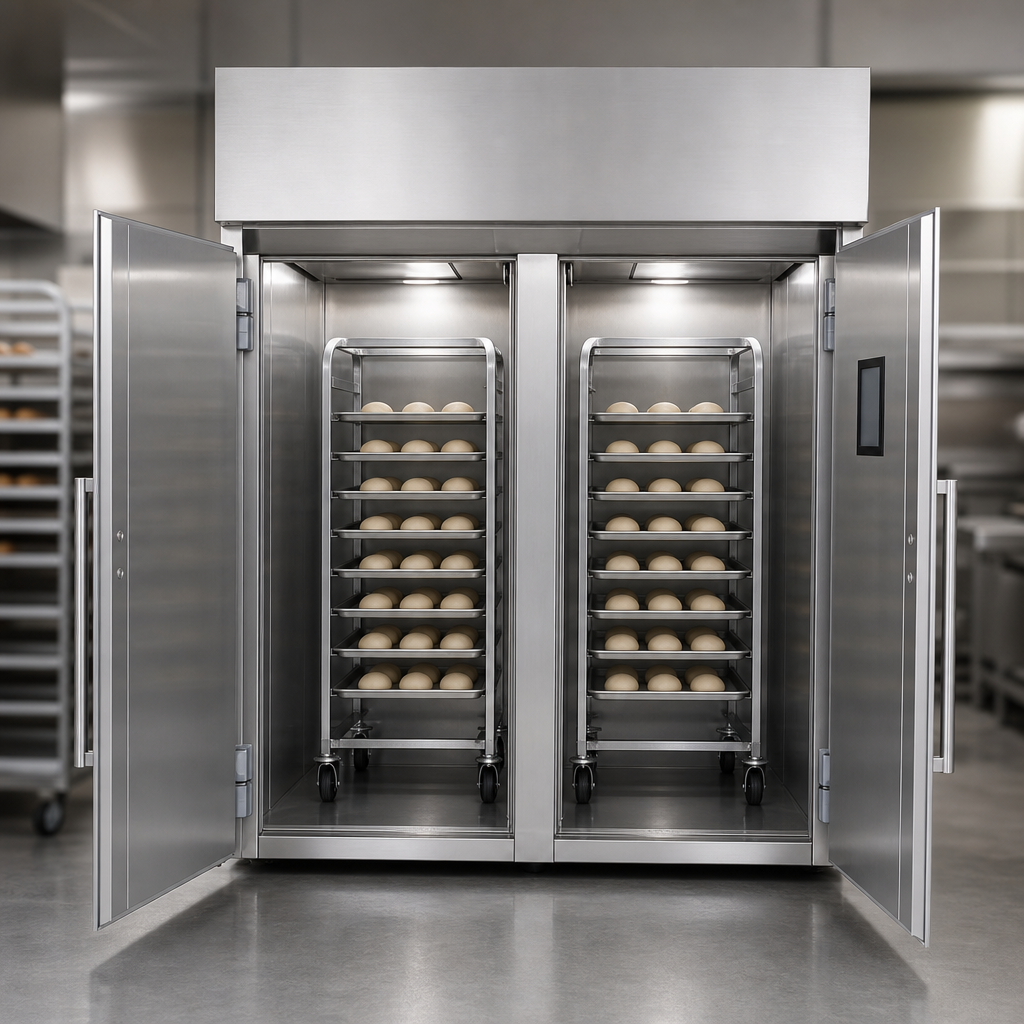

Two-Section Roll-In Design

Floor model proofer cabinet designed for roll-in rack use with two separate sections for efficient workflow.

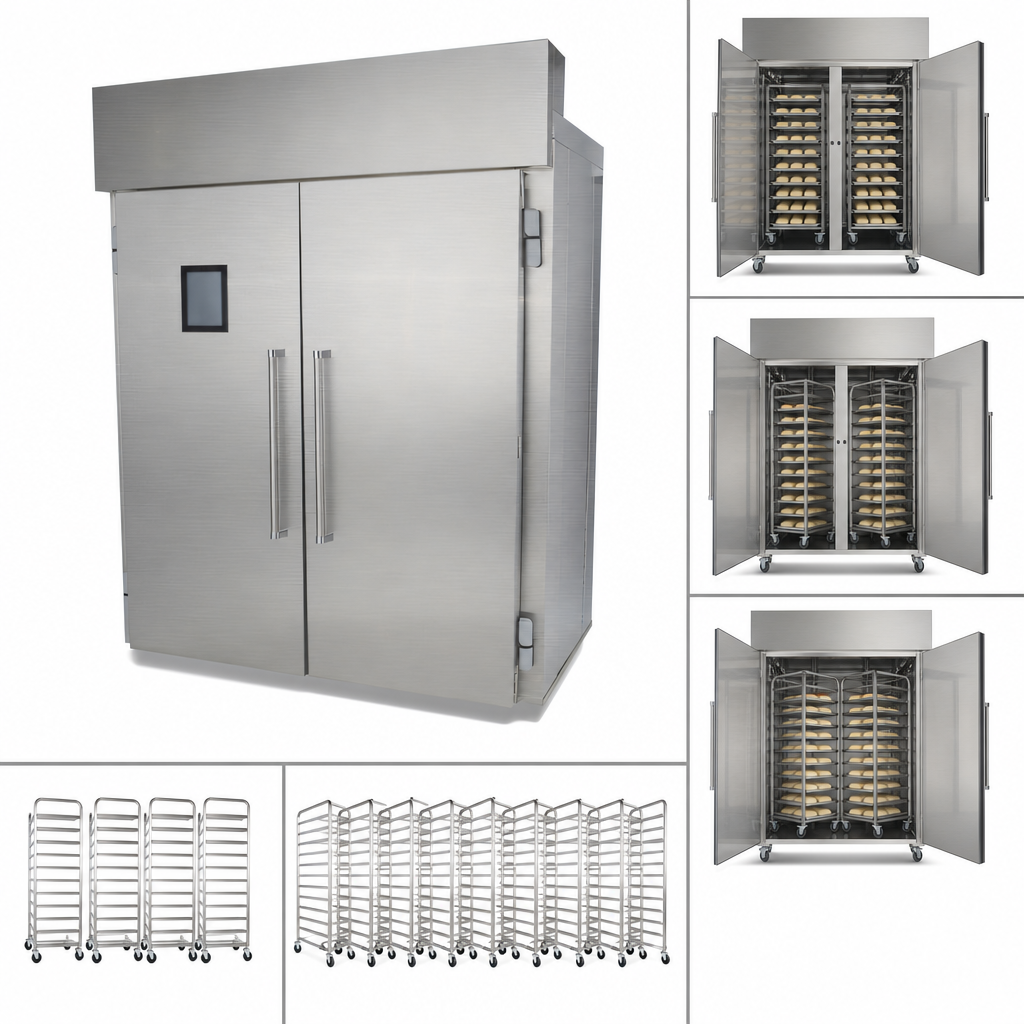

Flexible Rack Capacity

Accommodates 4 double side load racks, 8 single end load racks, or 8 single side load racks.

Digital Touchscreen Control

One digital touchscreen controller simplifies operation and proofing adjustments.

Auto-Fill Humidity System

Maintains cabinet humidity automatically when connected to a water line.

Stainless Steel Construction

Stainless steel interior and exterior provide durability and easier cleaning.

Insulated Panels

Insulated cabinet panels help retain heat and humidity for more consistent proofing.

Knockdown Shipment

Ships knocked down for easier delivery and installation access.

Type Knockdown Proofer Cabinet
Style Roll-In
Installation Type Floor Model
Compartments 2
Capacity 4 Double Side Load Racks
Controls Digital Touchscreen
Material Stainless Steel
Interior Finish Stainless Steel
Finish All Stainless Steel
Voltage 208/240 Volts
Amps 48/42 Amps
Watts 10 kW
Hertz 60 Hz
Phase 1-Phase
Water Connection Required
Water Inlet Size 1/4 Inch Tube
Drain Connection Not Required
Country of Origin USA
Shipping Width 75 Inches
Shipping Depth 85 Inches
Shipping Height 95 Inches
Shipping Weight 1,446 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2-year parts, 1-year labor limited warranty

Documents

PDF Cutsheet PDF Download PDF Site inspection PDF Download PDF Terms & conditions PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds 4 double side load racks, or 8 single end load racks, or 8 single side load racks.
The KDP22 is available in 208V or 240V, single-phase, 60 Hz power. It draws 48 amps at 208V or 42 amps at 240V and is rated at 10 kW.
Yes. The site inspection sheet calls for a 1/4 inch tube cold water line connection with 15-25 PSI.
No drain connection is listed for the KDP22. The drain connection note in the document applies to KDPR models only.
Provide 1 inch on the sides, 19 inches on top, and 3 inches at the rear. The unit should be installed on a close-to-level, non-combustible floor, and a 10-foot ceiling is recommended for airflow and service access.
Doyon provides a limited warranty of two years parts and one year labor for the original purchaser, subject to the stated installation and maintenance conditions.
